ORGAN SECTION
Technology: TMT (Tonewheel Modeling Technology)
Polyphony: 91 (tone wheels)

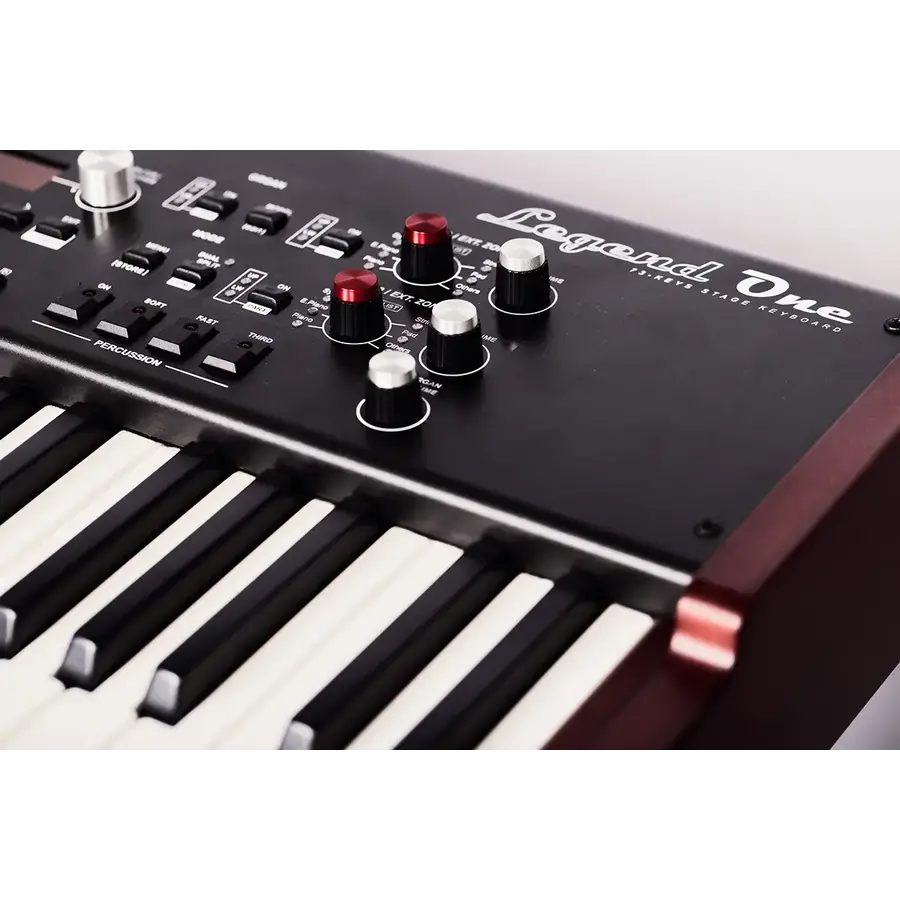

Harmonic Percussion: On/Off, Soft/Normal, Decay Fast/Slow, Harmonic 3rd/2nd
Vibrato/Chorus: Upper and Lower On/Off, V1/V2/V3/C1/C2/C3 mode selector, 4 Presets

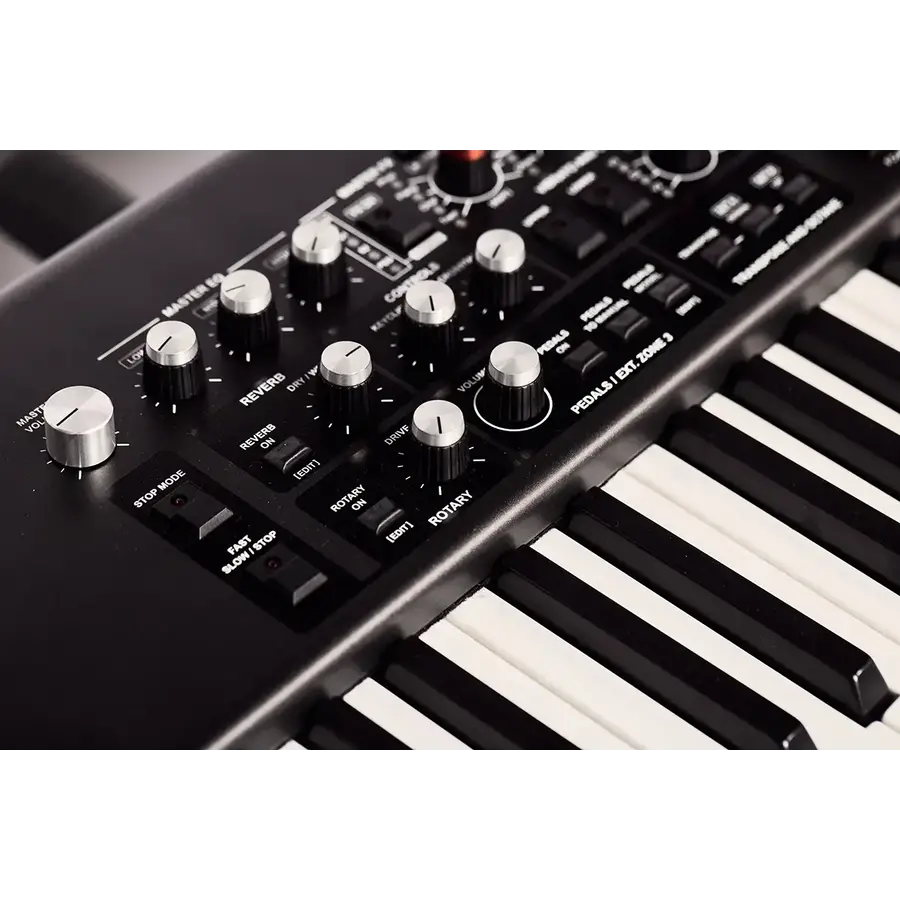

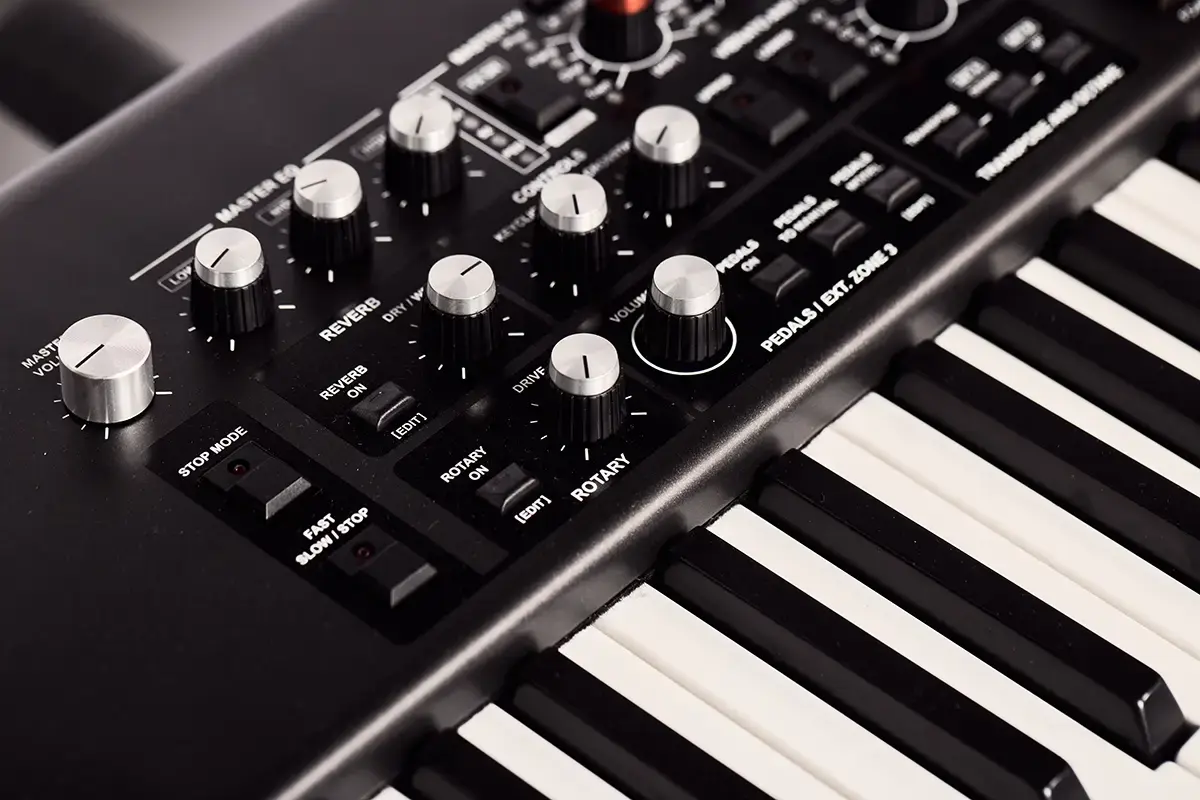

Rotary Speaker: On/Off, Fast Slow/Stop speed, Drive, 8 Presets + 1 Custom with user selection of model, mic setup, memphis style, stop position, drum and horn balance, rotor speeds, rise and fall time, direct level, output level and eq.
Additional Controls: Audio routing, reverb send, octave shift, keyclick, crosstalk, hum level, preamp ao-28, key comp, swell mode
Organ Models: B3 (1938), C3 (1955) B3 (1967), BC (1936), B3 (1956), A100 (1961), Baroque Pipe, Romantic Pipe, Symph Pipe, Farf Organ, Vx Organ

SOUND 1/2 SECTIONS
Technology: HDS (High Definition Sampling)
Polyphony: 240
Additional Controls: Audio routing, reverb send, octave shift, f. cutoff, f. resonance, attack, decay, release, control1, control2, brilliance, detune, velocity sens
Sounds: 119 (Pianos, E.Pianos, Synths, Pads, Strings, Choirs, Brass, Guitars, Chromatic Percs, Bells, Keyboards and others)

PEDALS SECTION
Technology Additional: TMT (Tonewheel Modeling Technology)+ HDS (High definition sampling)
Controls: Audio routing, reverb send, octave shift, pedals sustain, f. cutoff, layer/split mode, velocity mode, thud mode
Bass Models: 22 (T.Wheel Bass, Baroque Bass, Romantic Bass, Symph Bass, Farf Bass, Vx Bass, Organ Bass, Acoustic Bass, Finger Bass, Fretless Bass, Picked Bass, Slap Bass, Rhod Bass, Dark Pk Bass, Synth Bass1-2-3-4-5-6, Fat Bass, DX Bass)

EXT. ZONE 1/2/3 SECTIONS
Master keyboard: 3 External Zones assignable to Upper, Lower and Pedals parts.
Additional Controls: On/Off, Volume, midi/usb port, midi channel, octave shift, program change, bank msb, bank lsb

EFFECTS
Multi Effects: 2 Insert (IFX1, IFX2) + 1 Master (MFX)
14 Effect Types (Tremolo, Vibrato, Chorus, Flanger, Phaser, Wah, Amp, Delay, Ring Mod, PEq3, PEq5, GEq5, Comp, Simple Rot)
108 Effect Presets
Reverb: 13 Reverb Types (Small Room, Large Room, Small Hall, Medium Hall, Large Hall, Stage1, Stage2, Medium Plate, Large Plate, Spring 1, Spring 2, Tape 1, Tape 2)
Master Eq: 3 band (Low, Mid, High) with programmable parameters

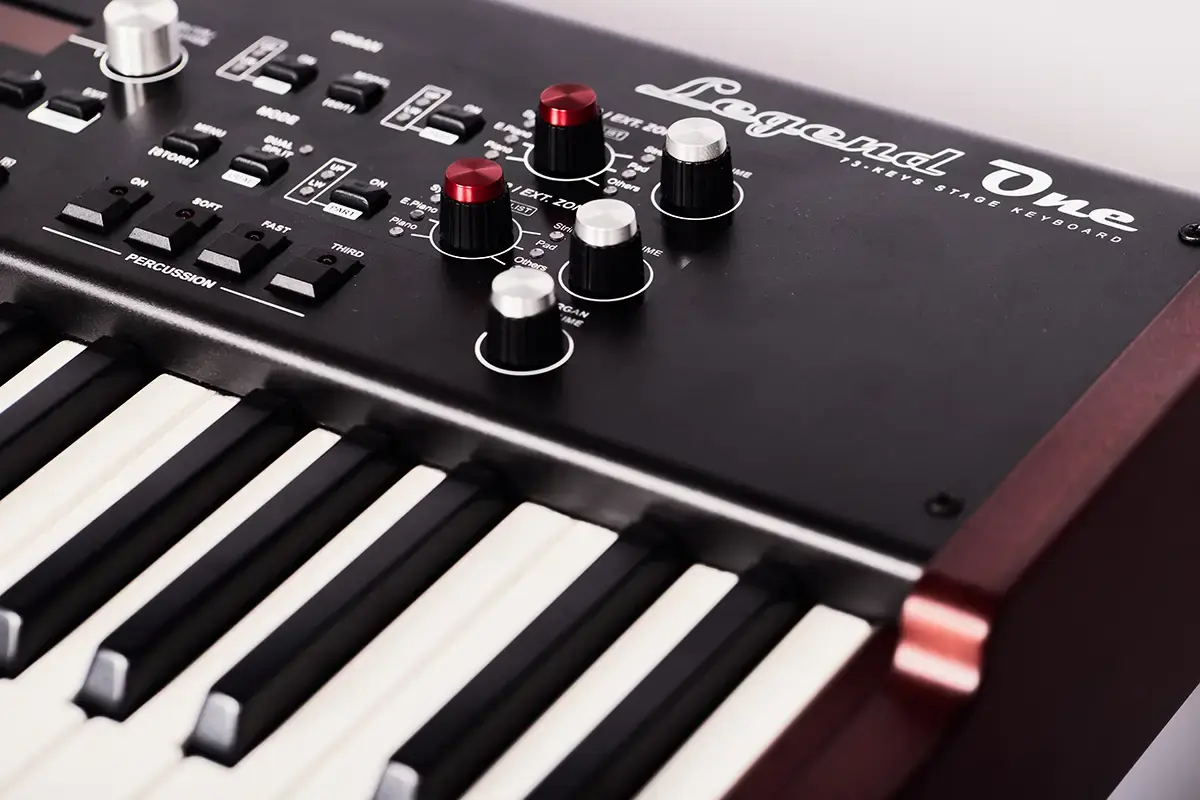

INTERFACE
Drawbars: 20 (9 Upper + 9 Lower + 2 Pedals)
Controls: Modulation Wheel, Pitch Wheel
Display: 128 x 64 OLED display
Data Memory: 396 Programs (99 Banks x 4 Programs)

CONNECTIONS
Audio: Main L(Mono)/R outs, Aux1/2 outs, Pedals out, Analog in, Headphones

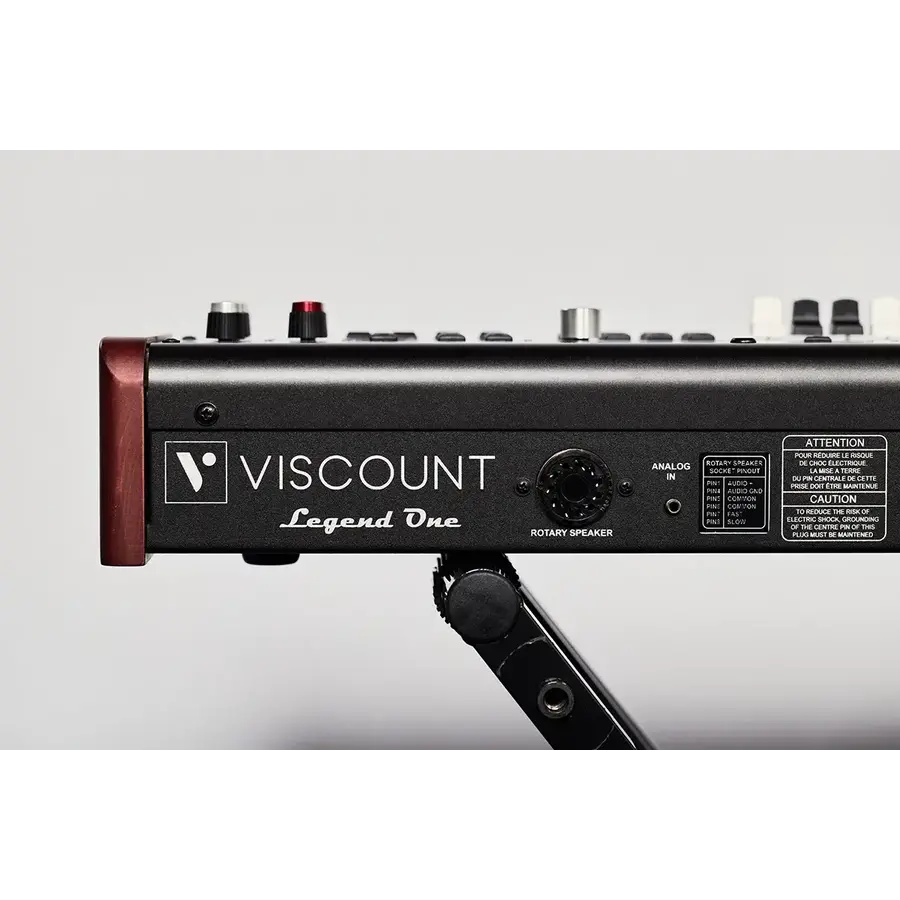

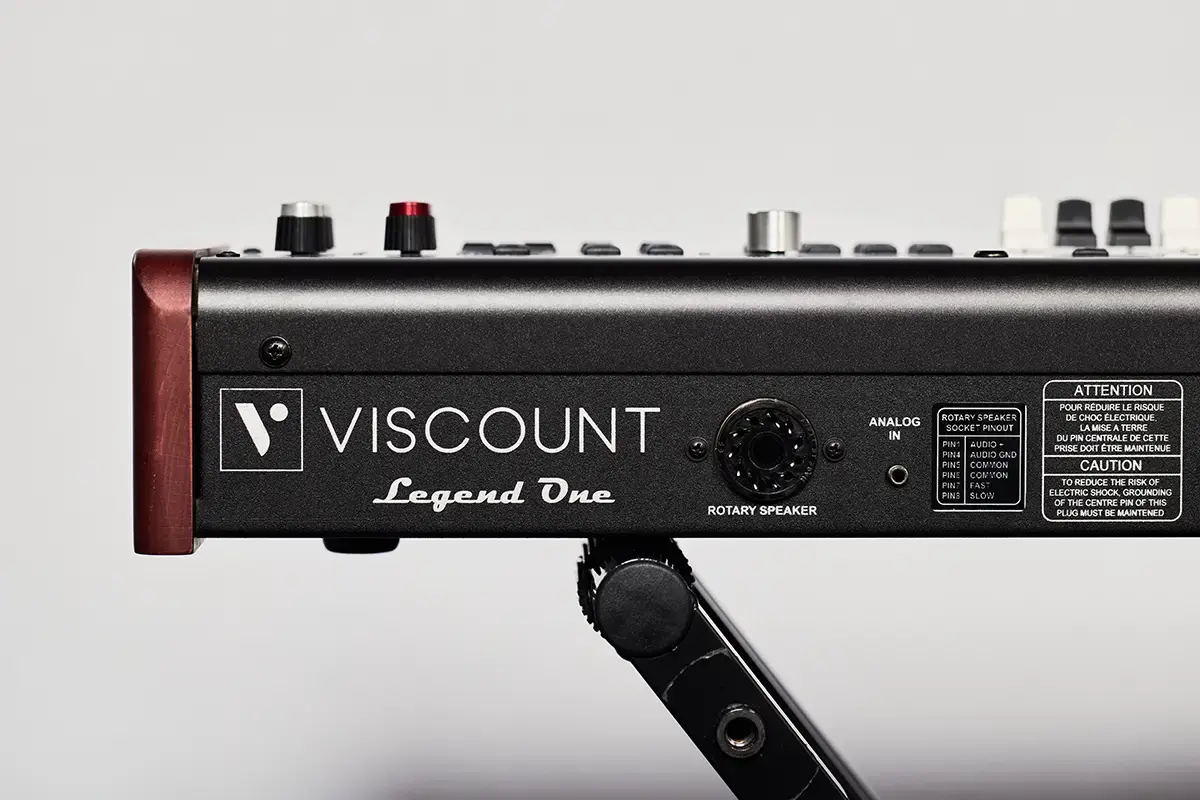

Rotary Speaker: 11-pin socket
MIDI: In/Out, Soft-Thru, Pedalboard In
USB: to Host (Audio/Midi), to Device (Pen drive, Battery Charger)
Pedal: Exp Pedal, Damp Pedal, Rotary Switch, Foot Controller, Foot Switch
