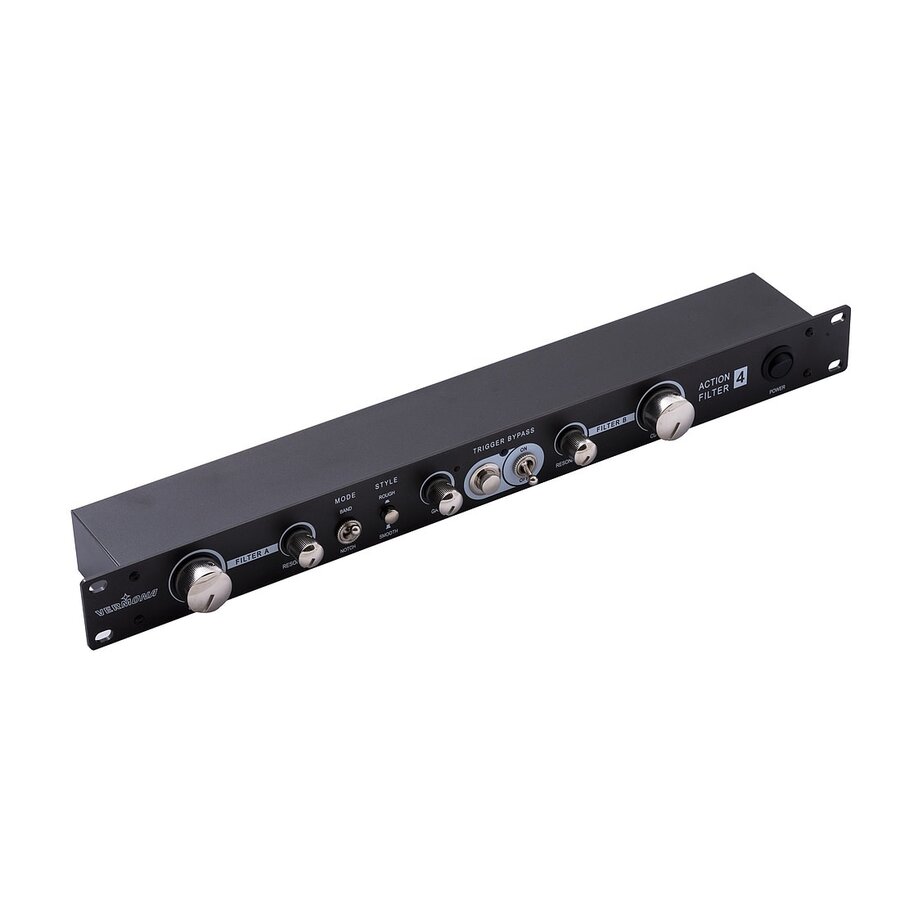

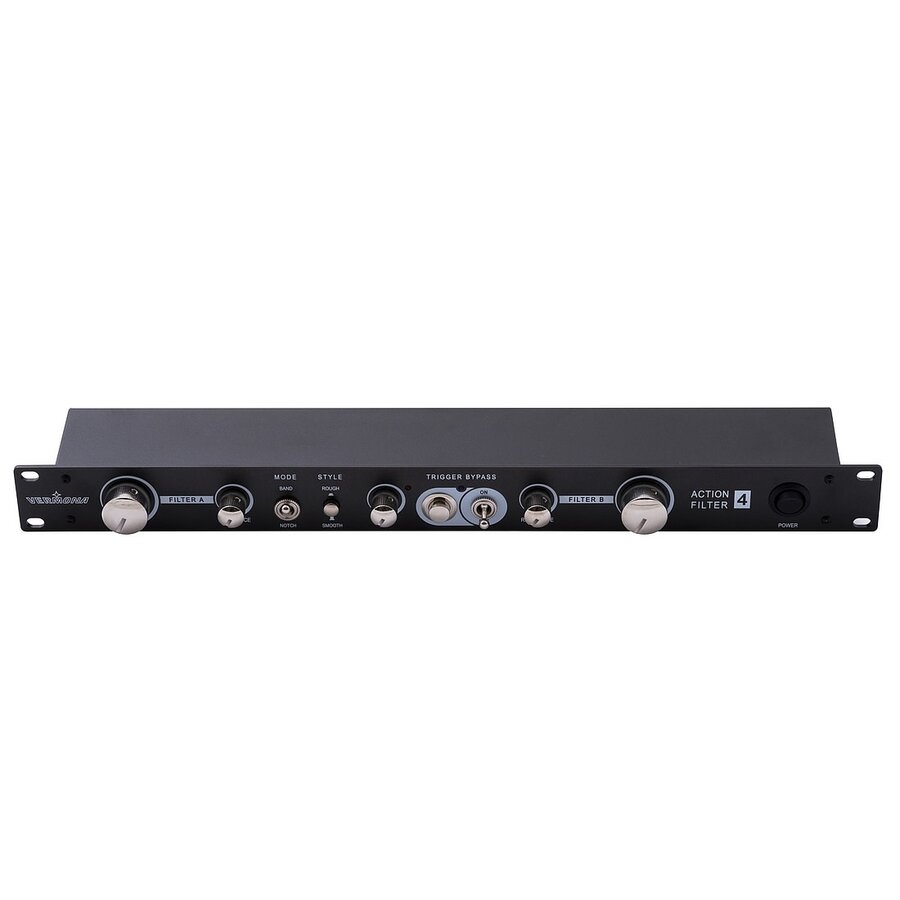

Time-honored and fashionable at the same time

Fact is that our Action Filter is one of the first units being developed by VERMONA in the new era! Although the unit has been constantly refined, we remained true to the original concept. Your action is still wanted – no cause, no effect.

Knowingly, Action Filter 4 does not offer any automation. We want you to take control, alter frequencies, manually sweep them and rhythmically blend the effect in and out.

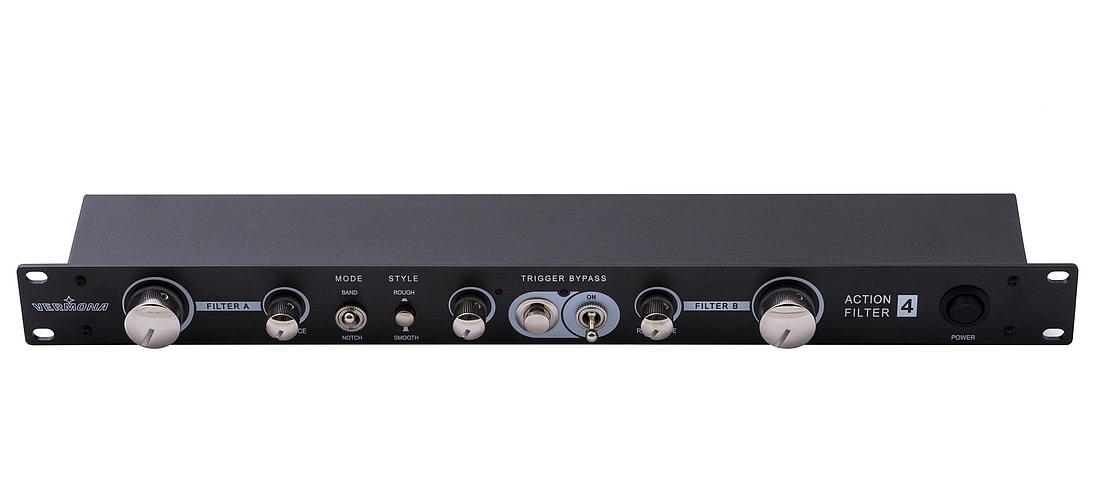

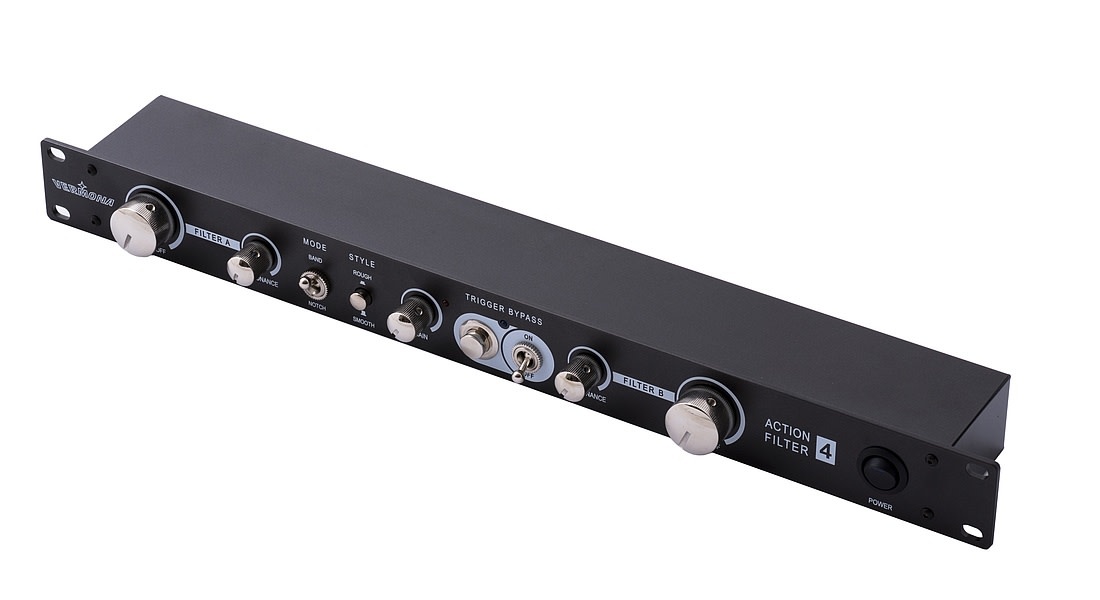

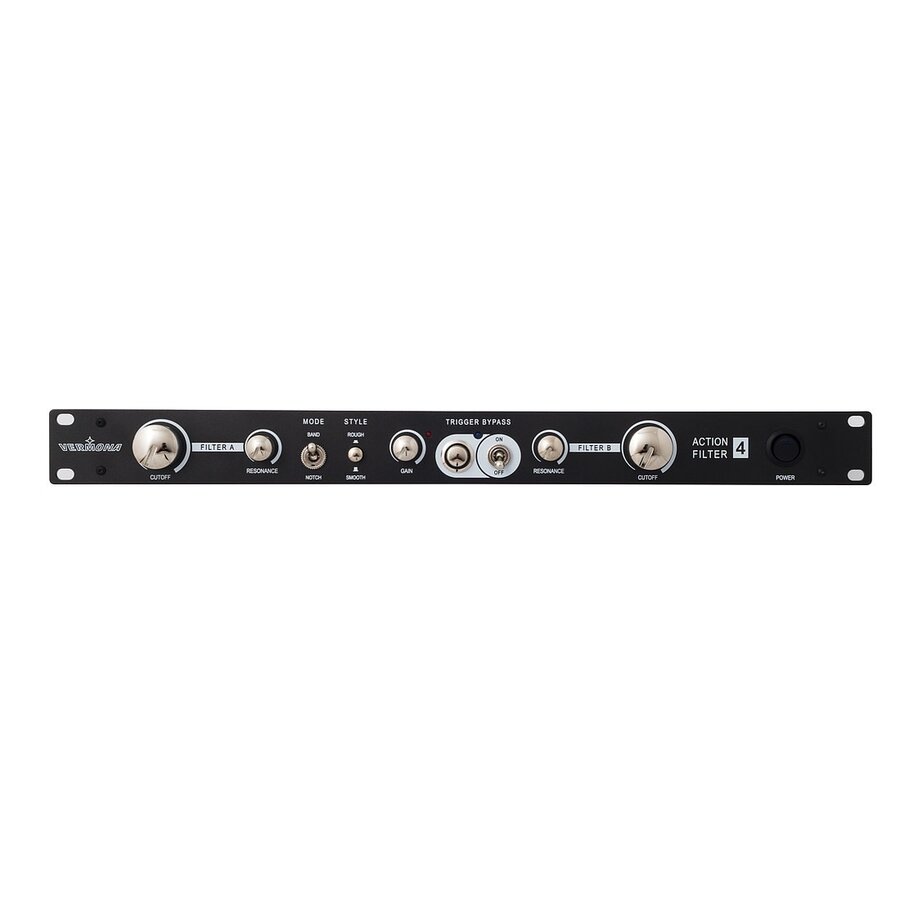

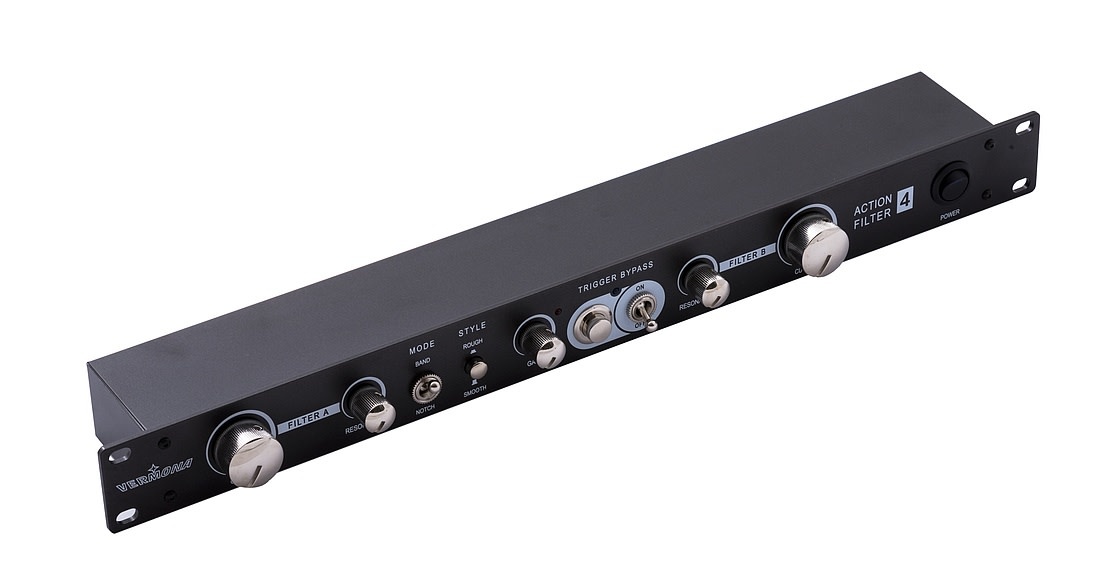

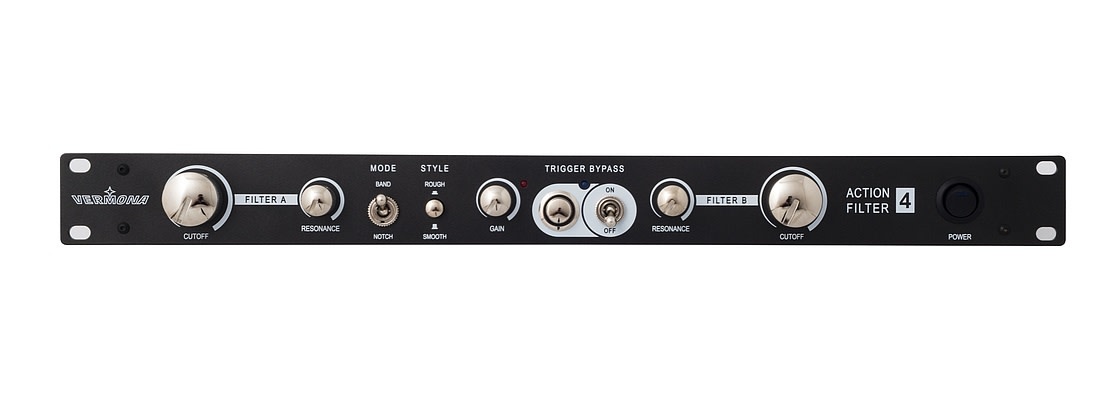

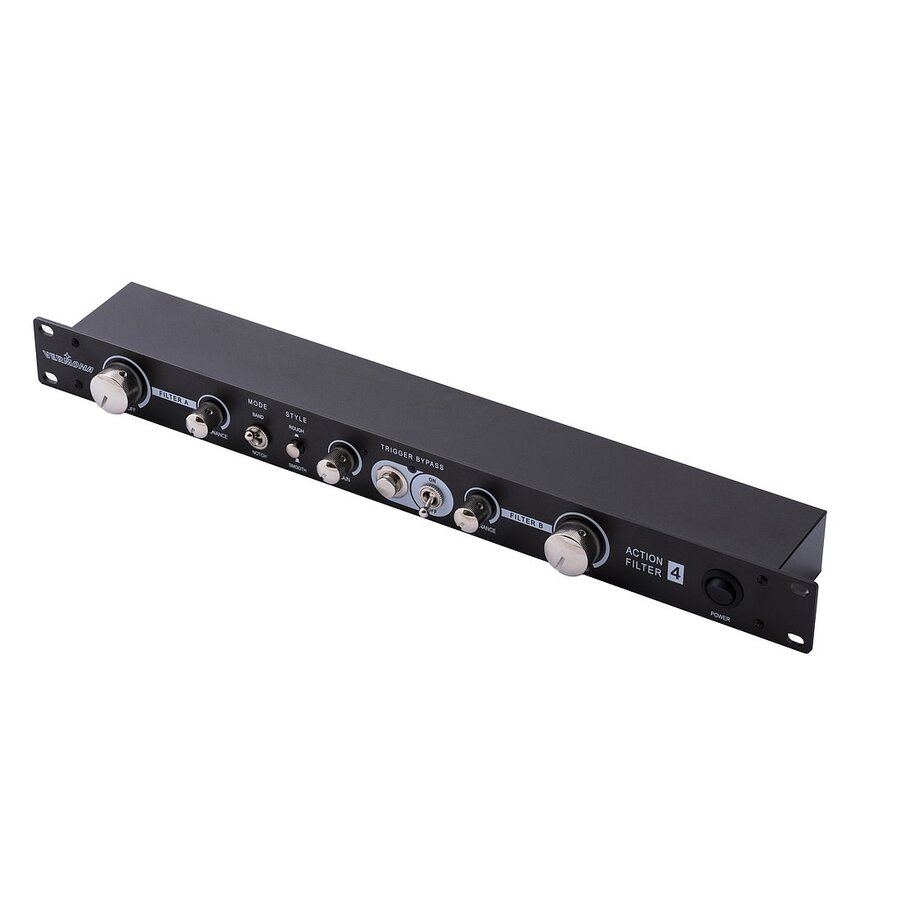

At the same time it is easy to keep control over both filters: Two beautifully soft CUTOFF-controls allow intuitive variations of band- and notch-zones and therefore purposeful killing or boosting of specific frequencies.

Action heroes need to take a lot. Action Filter 4 is such a hero!

Action Filter 4's control elements are specifically designed to cope with all strains of everyday's duty on stage. Don't worry when hitting the TRIGGER button harder than usual – it was designed for this application!

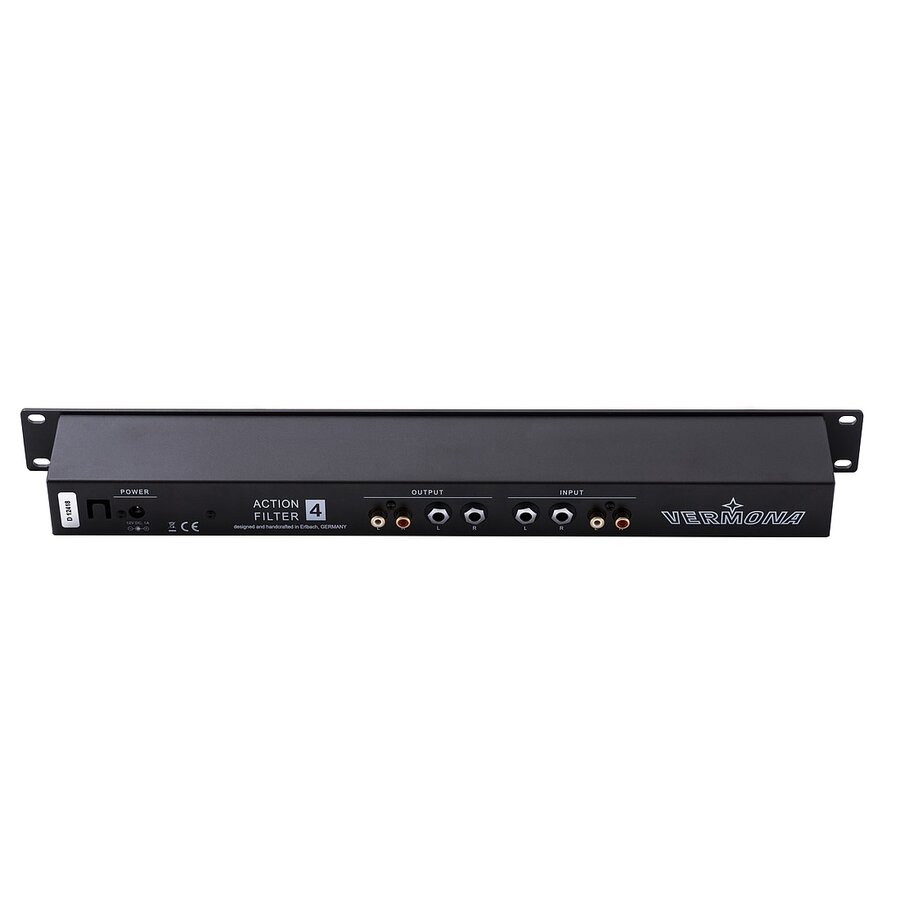

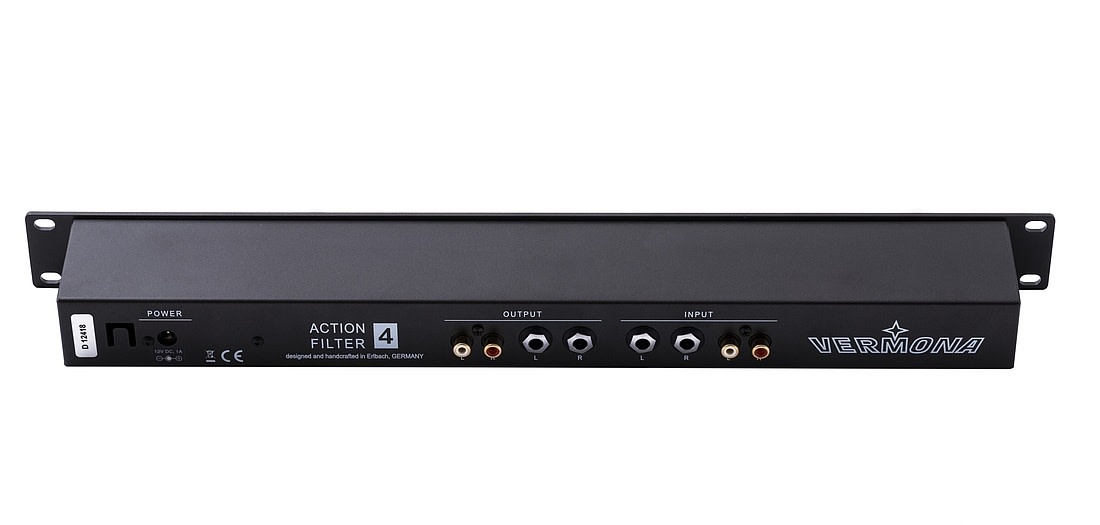

For the first time, we have treated the Action Filter 4 with in- and outputs in jack-format – in addition to the mandatory RCA-connectors. This makes the unit immediately usable in studio situations.

Action Filter 4 is a consequent advancement of a tool for creative sound sculpting.

Inputs

• Type:
  • 2x TS, unbalanced
  • 2x RCA, unbalanced
• min. input sensitivity: –16 dBu
• max. input level: +22 dBu
• impedance: 10 kΩ

Outputs

• Type:
  • 2x TS, unbalanced
  • 2x RCA, unbalanced
• max. output level: +15 dBu

Filter

• Type: 2x High-/Lowpass per channel
• Slope: 24 dB/octave

Dimensions & Weight

• Dimensions: 19"; 1 U
• Depth: 60 mm (from rear of frontpanel)
• Weight: 1.1 kg
