EP-35 K.O. AMP

The EP-35 K.O. AMP combines a battery-powered instrument amplifier, Bluetooth speaker and USB audio interface in a compact design.

Whether you're playing guitar, bass, vocals, synthesizers or grooveboxes, all audio inputs can be used simultaneously and balanced using their individual gain controls.

With 35 watts of output power, a 4″ woofer and a 1″ tweeter, the EP-35 is ideal for impromptu jam sessions, making music on the go and enjoying music wherever you are.

Eight built-in effect presets are available for both guitar/bass and microphone inputs. The instrument presets range from Clean, Twang and Blues to Overdrive and Auto-Wah, as well as dedicated settings for acoustic guitar and bass. For vocals and speech, presets such as Radio, Pop, Rock, Bass Synth, Robo Choir and Megaphone provide a wide variety of creative effects. Separate controls for effect selection and intensity let you shape your sound directly on the device.

The XLR microphone input features switchable 48 V phantom power for condenser microphones. The 6.35 mm instrument input offers two gain settings to accommodate different signal levels, including those from active pickups and external effects pedals. Individual gain controls for the microphone, instrument and line inputs, together with additional tone controls, make it easy to fine-tune your sound. The stereo line output can also be used for headphones or to connect another EP-35 via a wired connection.

The USB audio interface transmits eight audio channels to a computer and receives a stereo signal. In addition to the stereo master mix, guitar, microphone and line-in signals can be recorded on separate channel pairs in a DAW. The additional EP-PLUG connection functions as a USB audio host, supporting compatible audio devices and accessories, as well as playback of music and backing tracks from a USB flash drive.

Bluetooth 5.3 with LE Audio and Auracast enables wireless streaming and allows multiple EP-35 units to be connected in broadcast mode. Two units can be configured as left and right speakers for stereo Bluetooth audio playback. A web mixer and MIDI-based level control provide additional flexibility when integrating the EP-35 into larger setups.

The built-in battery provides up to 12 hours of playback at volume setting 5 and takes approximately two hours to recharge. A carry handle, splash-resistant enclosure and storage compartment make the EP-35 a practical companion on the go. The integrated camping light features an automatic mode, a music-reactive disco mode and a battery level indicator that activates when the device is tilted.

The EP-35 can be expanded with compatible accessories via EP-PLUG and the EP-GRID System™. The optional K.O. DOCK KIT allows devices from the EP series to be mounted directly onto the amp. The optional EP-127 K.O. PEDAL adds further effects control, a looper and a metronome.

Features

• Battery-powered instrument amplifier and Bluetooth speaker
• 6 simultaneously usable signal sources: guitar, microphone, line-in, Bluetooth, USB audio and EP-PLUG
• Output power: 35 W

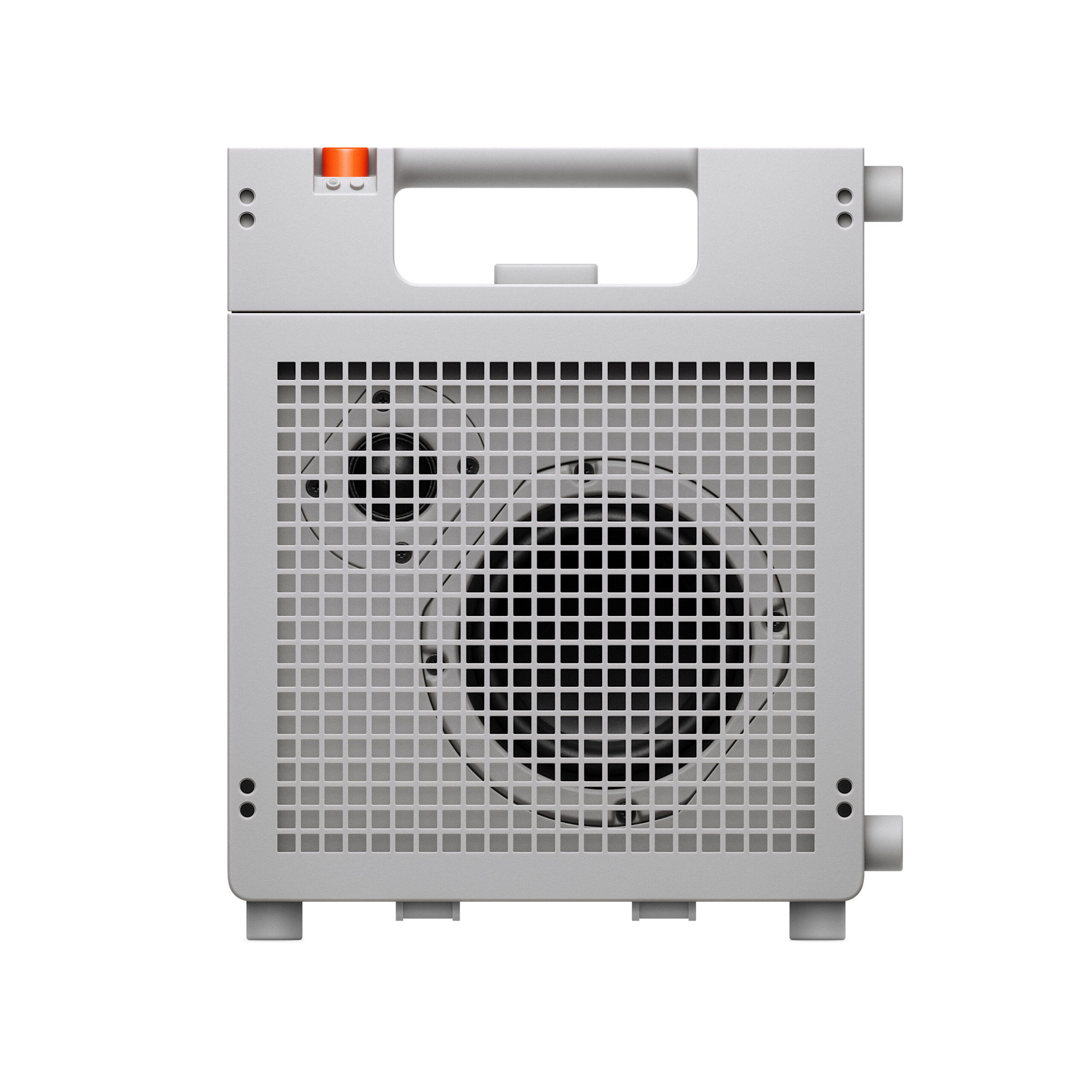

• Speaker configuration: 4″ woofer and 1″ tweeter
• Mono speaker system
• Frequency response: 50 Hz–20 kHz at −6 dB
• Maximum sound pressure level: 94 dB at 1 m
• Guitar/bass input: 6.35 mm mono jack
• Two gain settings for the instrument input
• HI mode for high signal levels, active pickups and external effects pedals
• Microphone input: XLR with switchable 48 V phantom power
• Line input: 3.5 mm stereo jack
• Line/headphone output: 3.5 mm stereo jack
• Separate gain controls for instrument, microphone and line-in
• Tone controls, master volume control and speaker mute function
• Multiple EP-35 units can be connected via line-out and line-in
• 8 guitar/bass effect presets: Clean, Twang, Blues, OD, Indie, Env, AG and B
• 8 microphone effect presets: Clean, Radio, Pop, Rock, Bass Synth, Robo Choir, Frog and Megaphone
• Separate effect selection and intensity controls for instrument and microphone
• Line-in signal bypasses the internal effects processing
• USB 2.0 audio interface with 8 recording channels to a computer and 2 playback channels from a computer
• USB recording channels 1–2: Stereo master mix
• USB recording channels 3–4: Guitar
• USB recording channels 5–6: Microphone
• USB recording channels 7–8: Line-in
• EP-PLUG: USB-C host port for compatible USB audio devices and accessories
• EP-PLUG supports two-channel USB audio
• USB flash drive playback of MP3, WAV and AIFF files
• Web mixer for adjusting the levels of all inputs and controlling playback
• Level control for the six signal sources via MIDI CC 7 on MIDI channels 1–6
• Firmware updates and additional settings via the Web Update Utility
• Compatible with EP-PLUG and EP-GRID System™
• Bluetooth 5.3 with LE Audio and Auracast
• Broadcast mode for connecting multiple EP-35 units
• Assignable left and right Bluetooth audio channels in broadcast mode
• Stereo Bluetooth audio playback using two EP-35 units
• Automatic reconnection to the last paired device
• Built-in lithium-ion battery: 20.1 Wh / 7.2 V / 2,800 mAh
• Battery life: 12 hours at volume setting 5
• Charging time: 2 hours
• Dedicated USB-C PD charging port in the storage compartment: up to 45 W, 15 V / 3 A
• Top-mounted USB-C port: charging at up to 27 W, 9 V / 3 A
• Recommended power adapter: 45 W USB-C Power Delivery
• Automatic standby after 10 minutes of inactivity
• Automatic wake-up when an audio signal is detected
• Standby power consumption: less than 0.5 W
• Splash-resistant enclosure
• Integrated carry handle

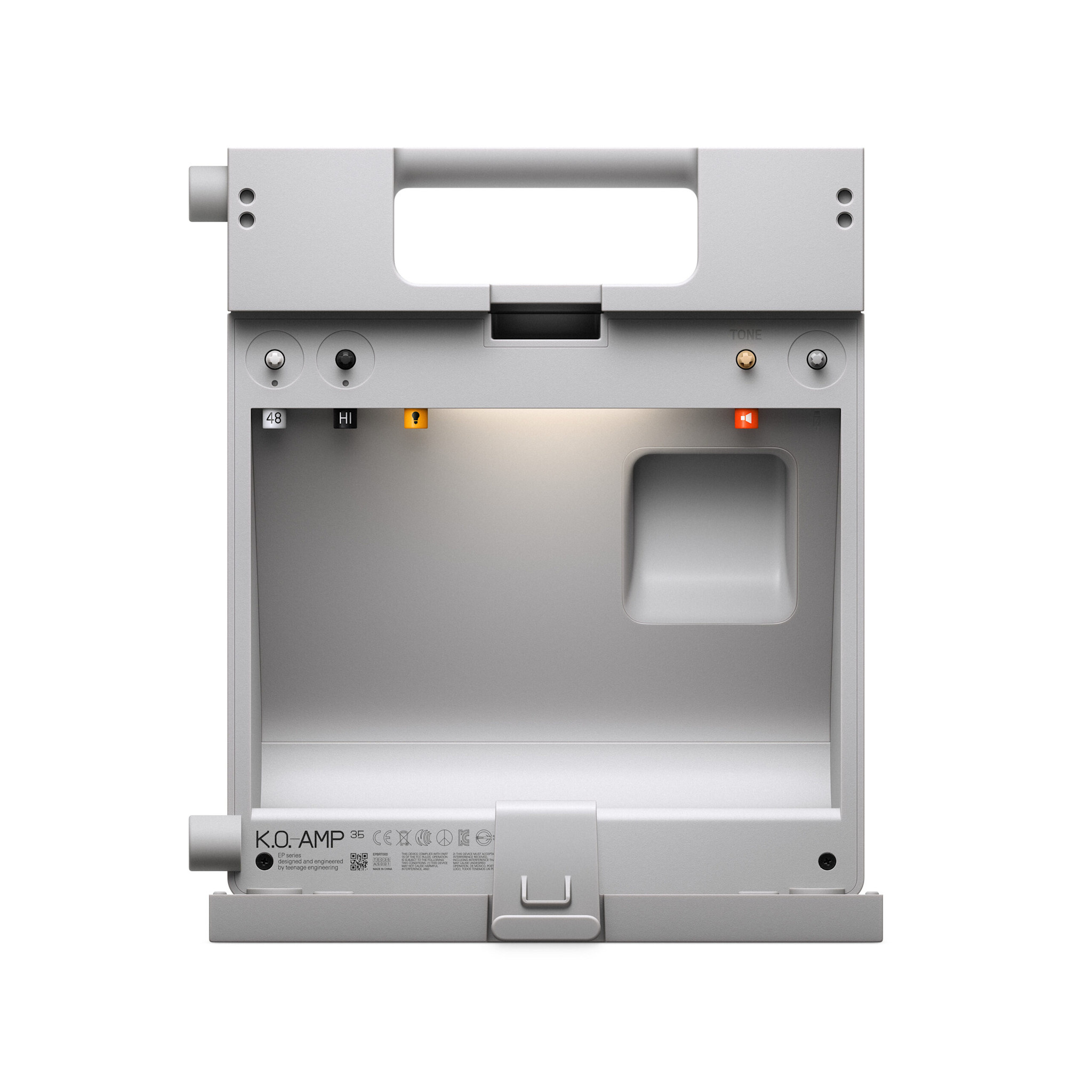

• Storage compartment for cables and accessories
• Camping light with on, off and automatic modes
• Music-reactive disco mode
• Battery level indication via the camping light when the device is tilted
• Adjustable maximum volume
• Dimensions: 229 × 269 × 176 mm
• Included in the box: EP-35 and Quick Start Guide
