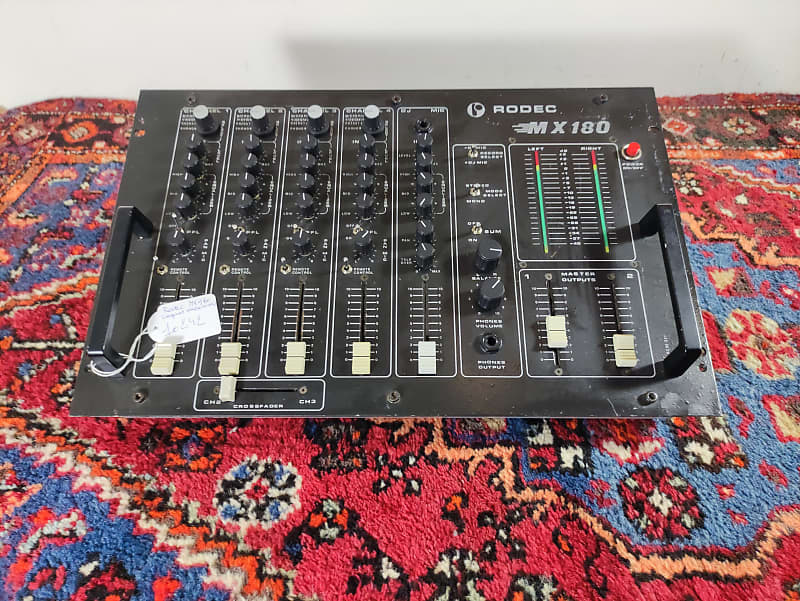

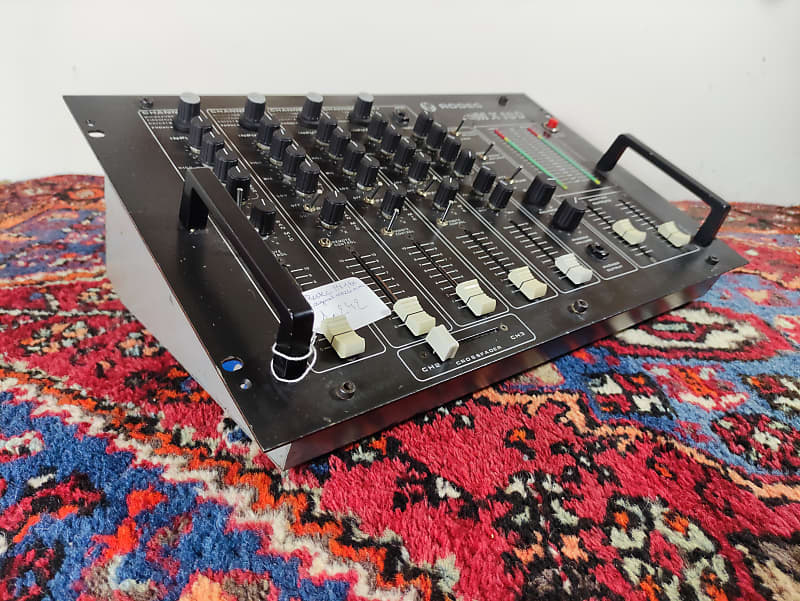

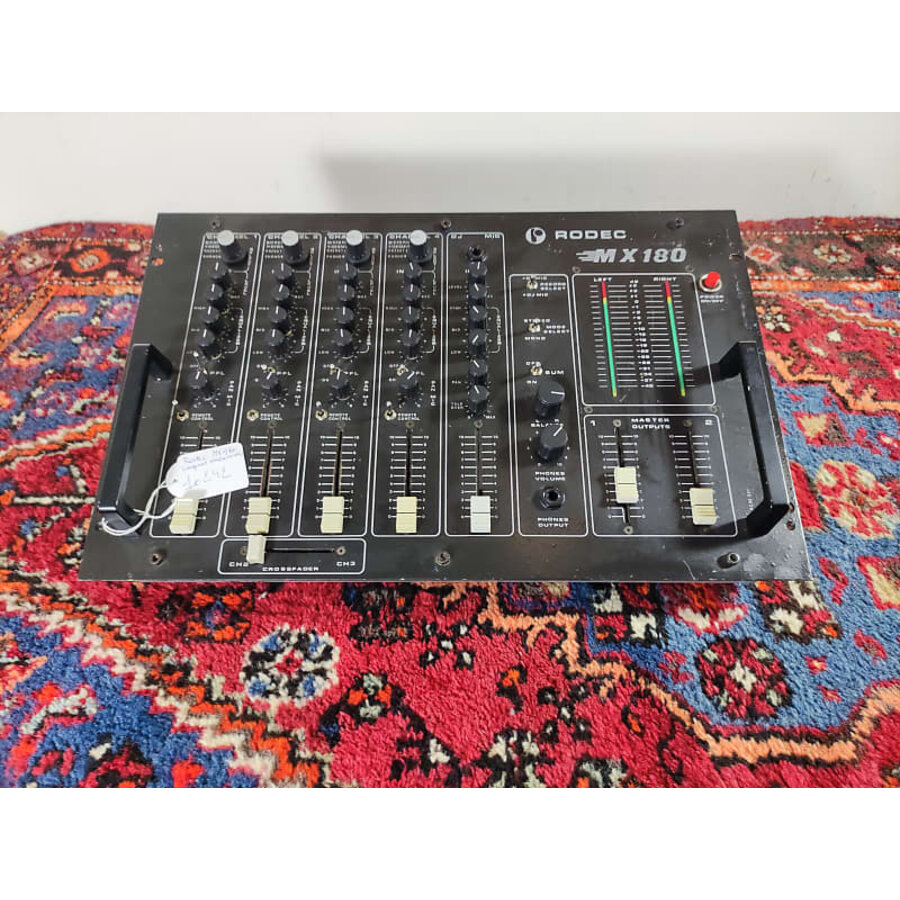

High-Quality DJ Mixer

A high-end DJ mixer designed for large clubs, mobile setups, and professional DJs. It features 4 multi-input channels (each channel with 1x Phono, 1x CD/DAT, 1x MD/Aux, 1x Mic input) – Microphone inputs come with combined XLR/Jack connectors – Additional dedicated microphone channel with talk-over function – Gain control, 3-band EQ, Pan, and PFL on all channels – Ultra-low-noise microphone preamp – Insert jack on the microphone input – Soft-touch faders and rotary knobs for better grip – 60mm ALPS faders mounted at an angle to prevent moisture and dust ingress – PFL selector with push-button and LED indication per channel – Four LED VU meters – Headphone output with volume control – Mono/Stereo switch – Crossfader with center detent – Overall balance control – Two fader-controlled master outputs – Four record outputs – C&K switches with gold-plated contacts – Subsonic filter – 36V internal power supply for high dynamic range across all inputs and outputs – Fast, noise-free inputs for CD, MD, or DAT players – ALPS rotary faders – Toroidal transformer – Remote start button on all input channels – Fully handmade and hand-soldered PCB boards

Specifications:

• 5-channel mixer

• 4 input channels: phono/line or microphone

• 1 separate microphone channel with talk-over, gain, 3-band EQ, PFL, and FX insert

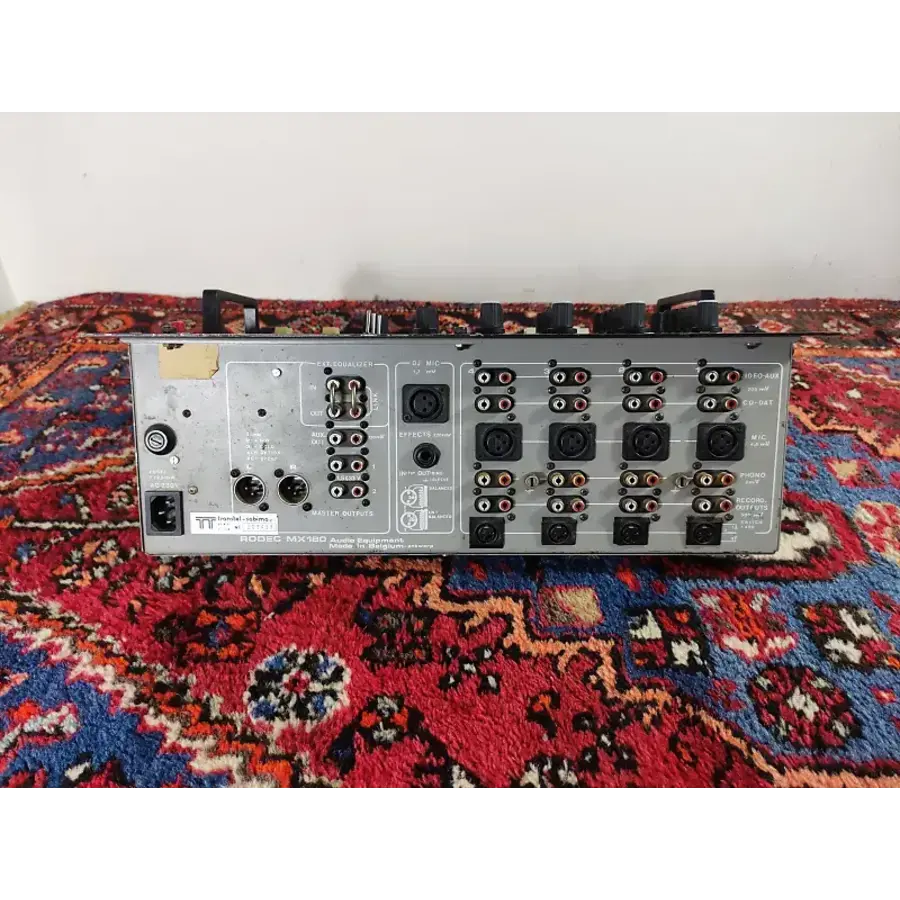

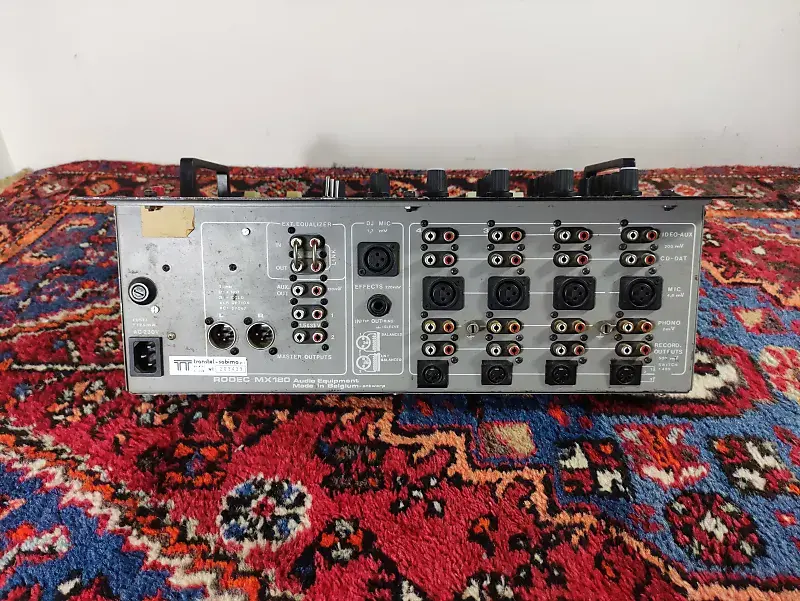

• 2 master outputs with RCA/balanced XLR connectors and mono/stereo modes

• 1 additional master output with RCA connector and mono/stereo mode (without DJ mic)

• Record output with RCA connector, also usable as AUX output

• Send/Return for external effects units

• Easy-slide 60mm channel faders

• Crossfader between channels 1–2 and 3–4

• Soft-touch fader caps for enhanced grip

• Headphone jack on front and rear panel

• 3-band EQ per channel

• Signal-to-noise ratio: 90dB

• Dynamic range: 110dB

• THD: < 0.006%

• Dimensions: 482mm (W) x 295mm (H) x 150mm (D)

• 19″ rack width, 7U height/depth

• Weight: 7.4 kg

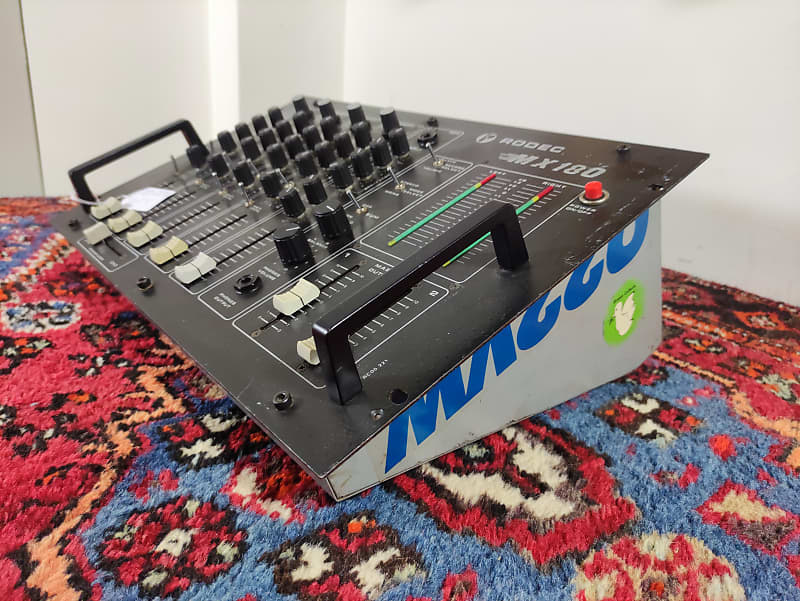

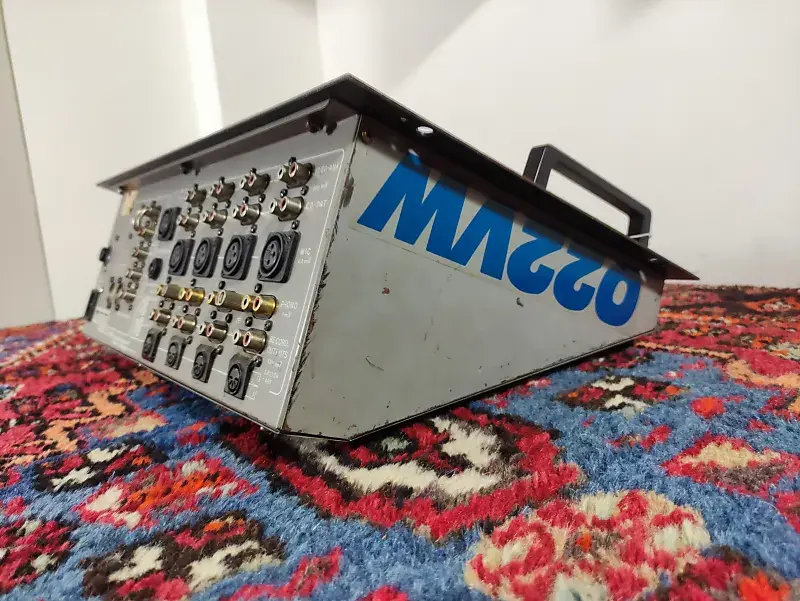

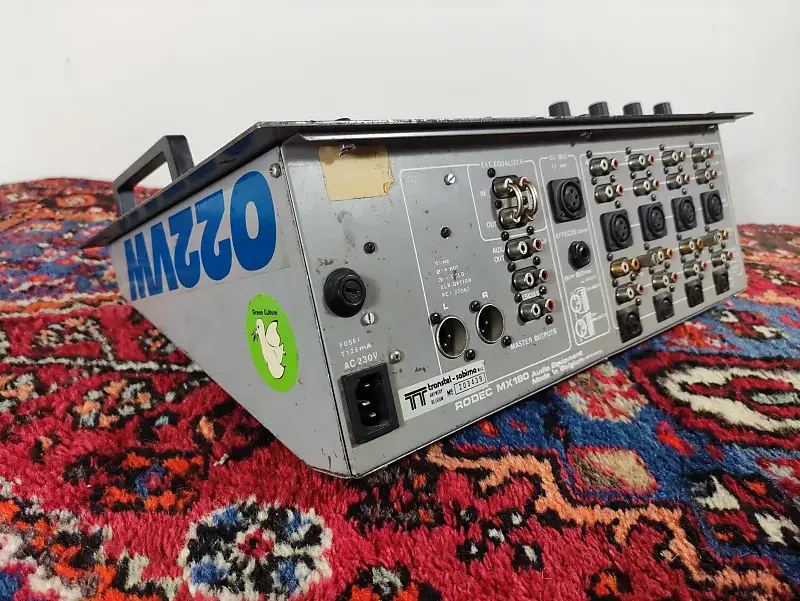

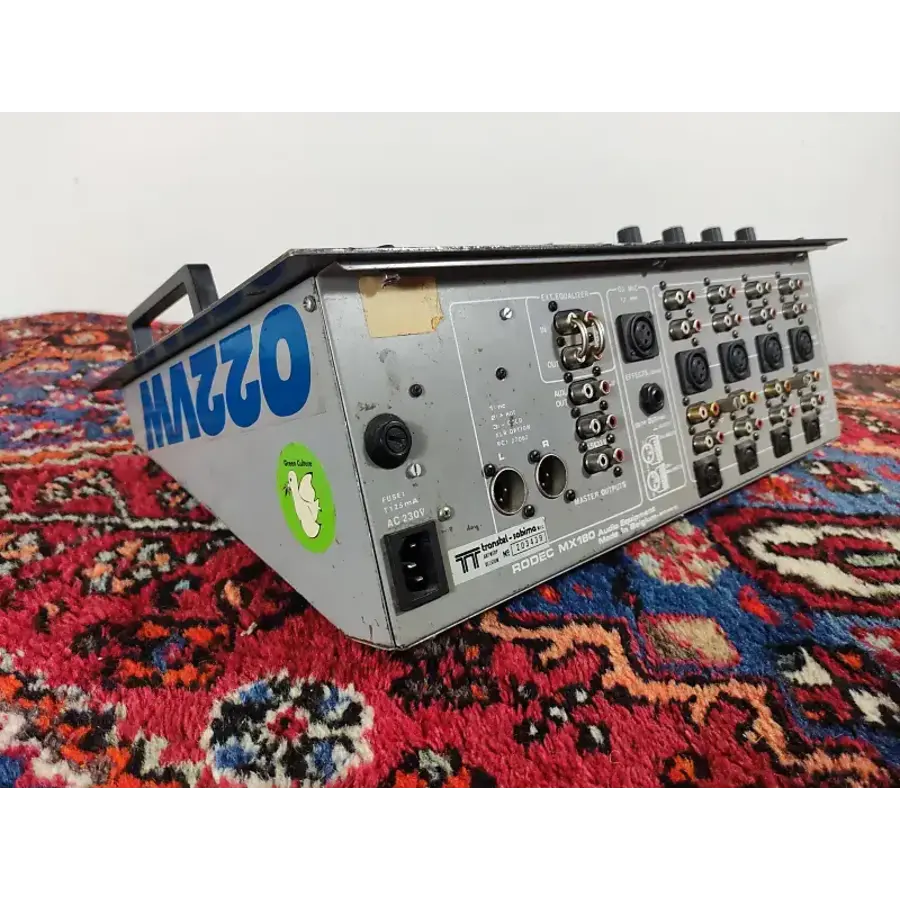

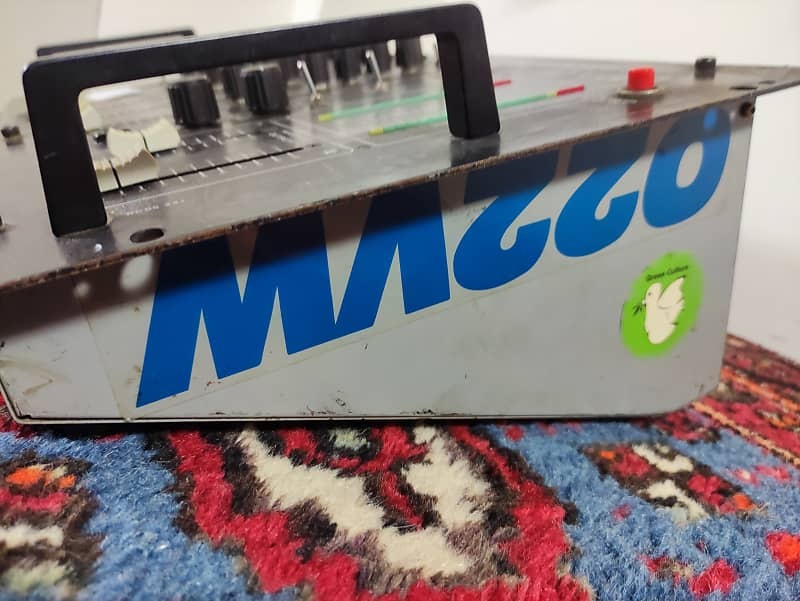

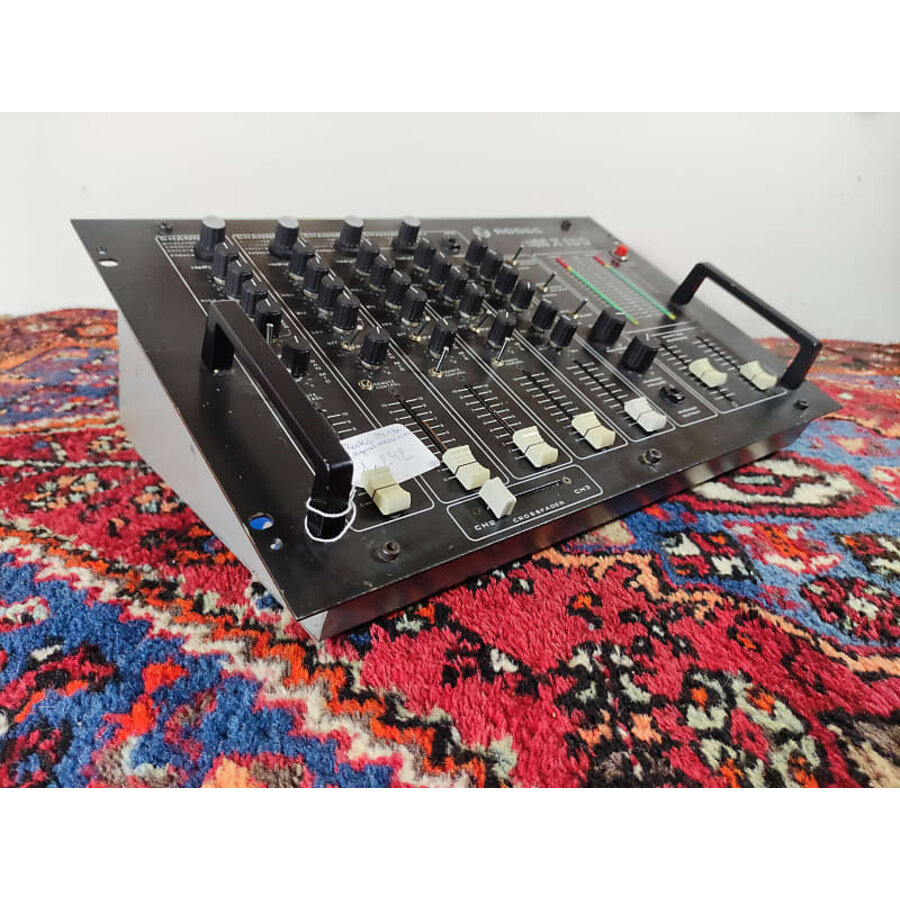

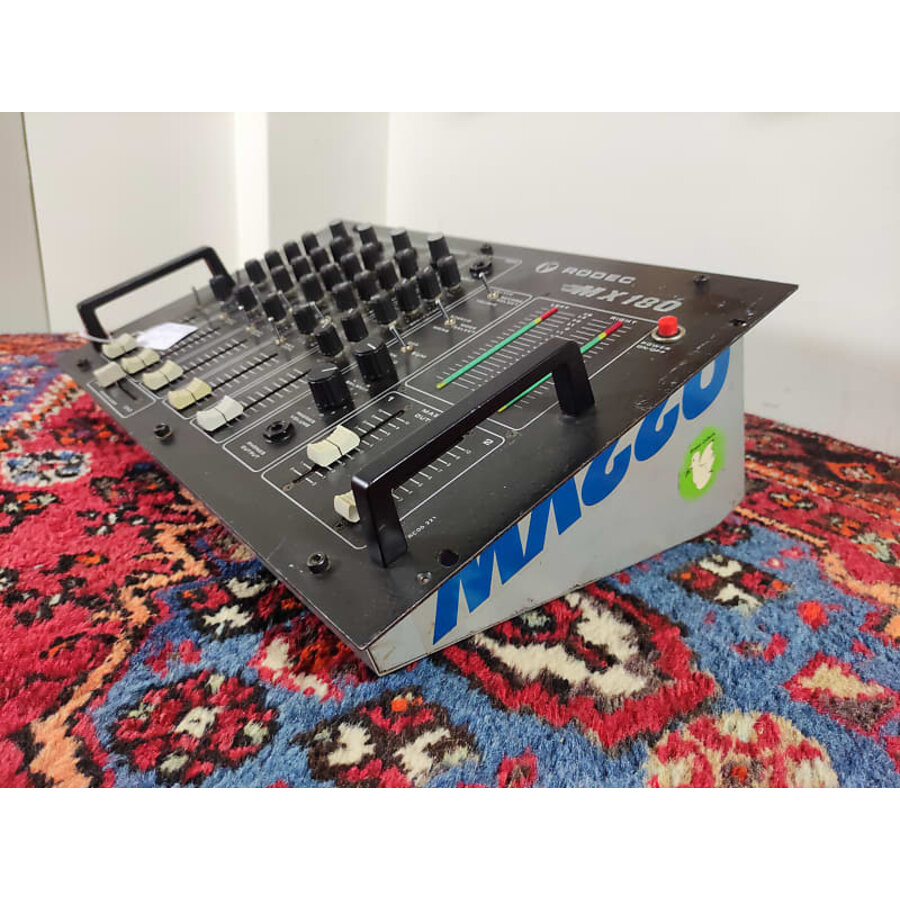

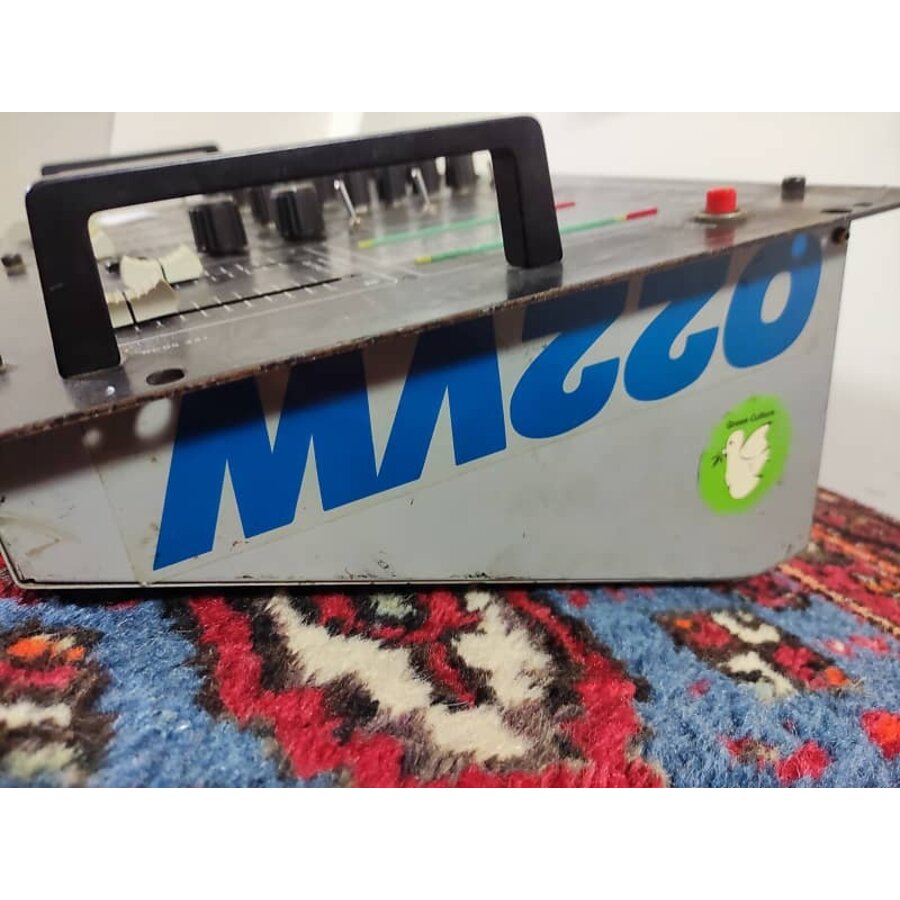

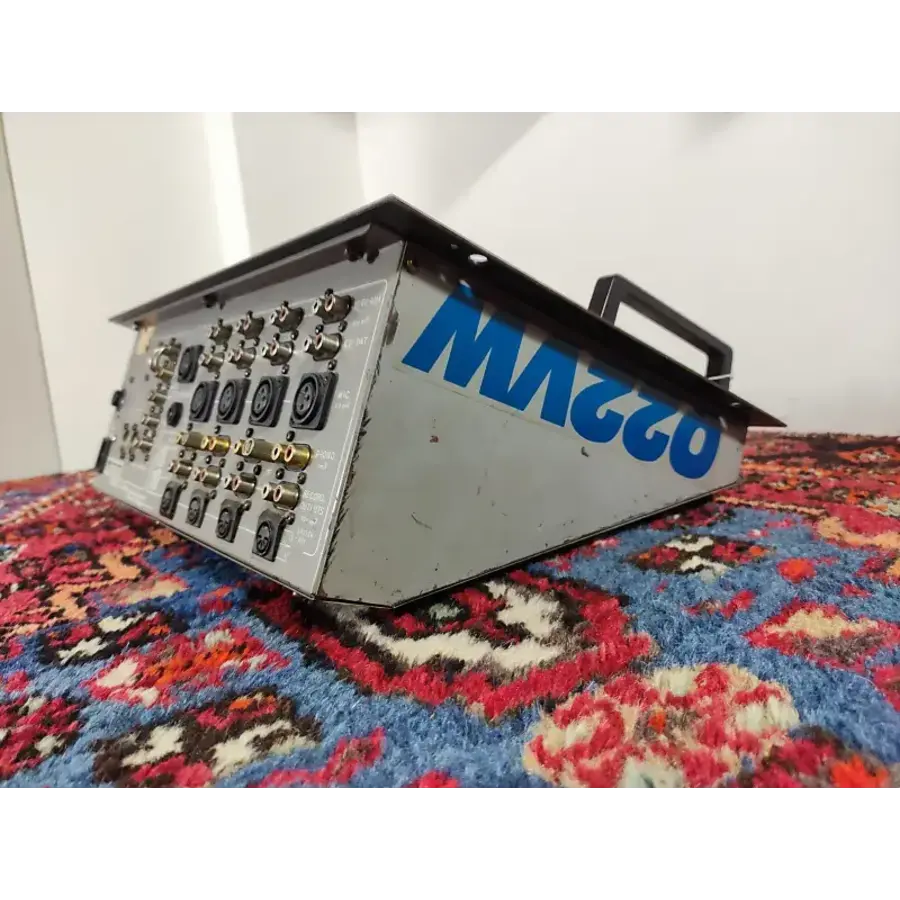

Fun Fact: This mixer was used in Mazzo club, one of the first legendary clubs in Amsterdam.
