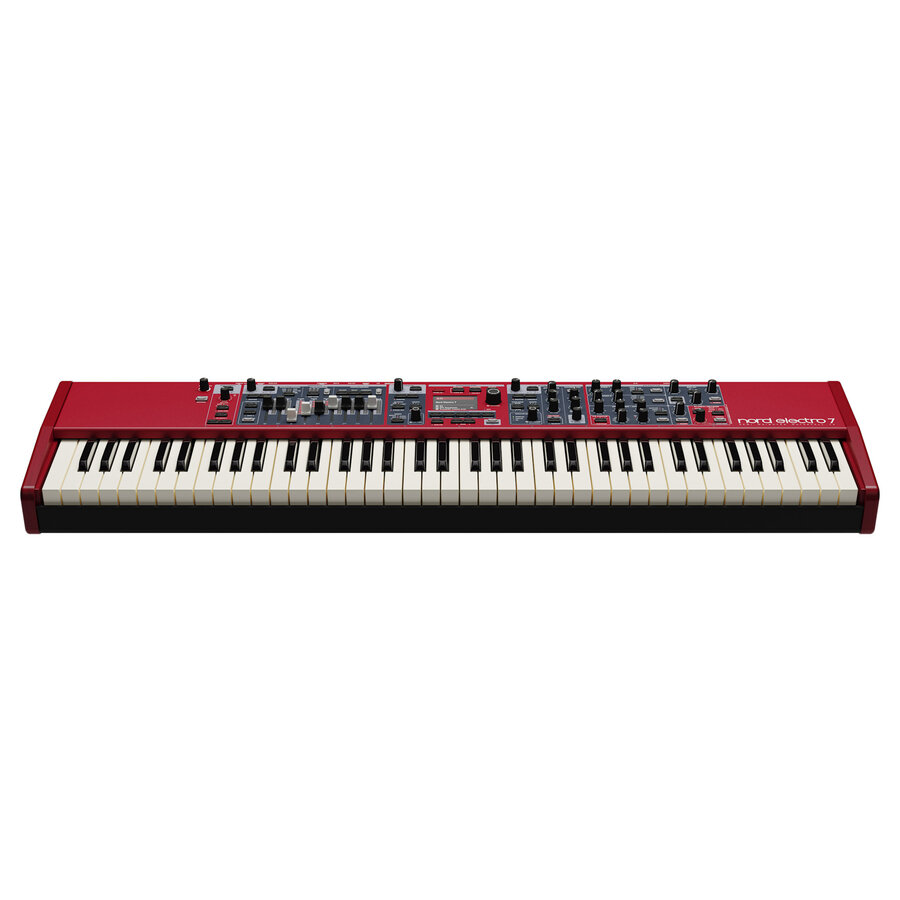

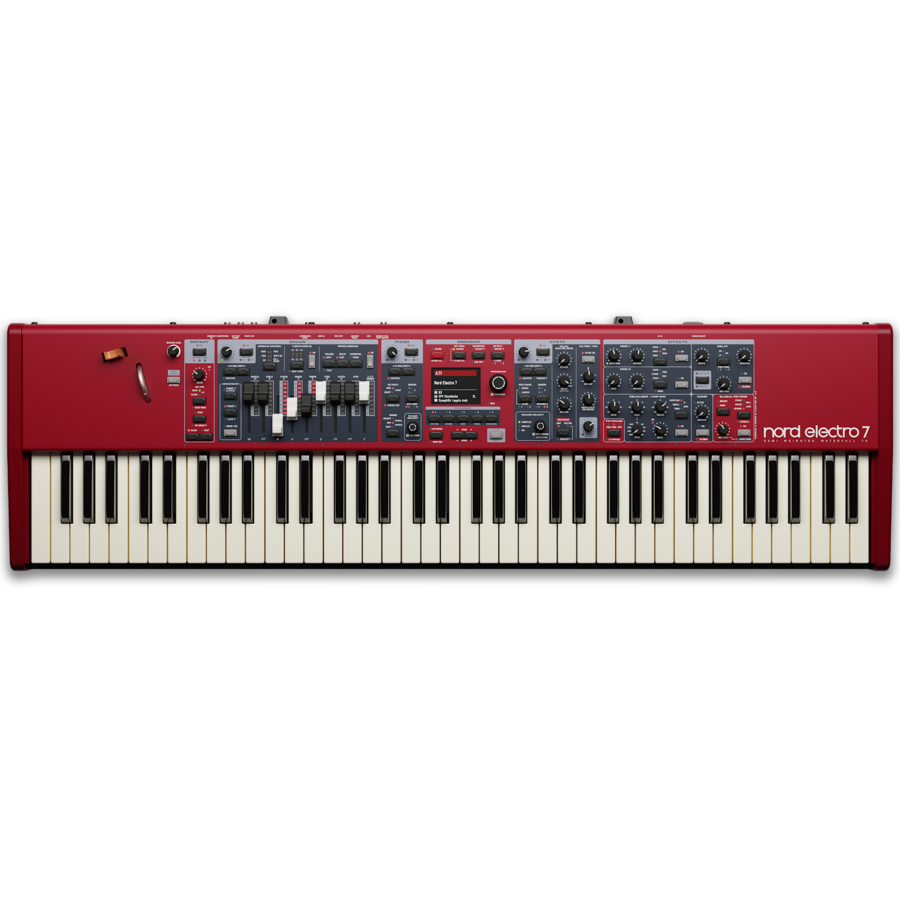

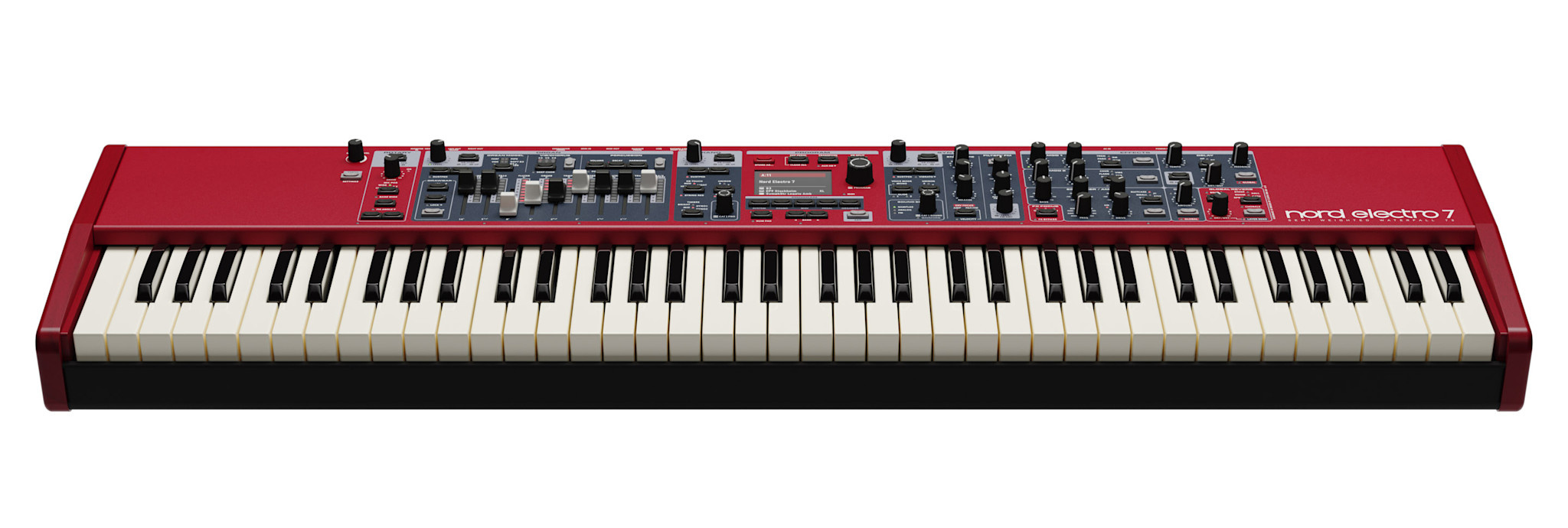

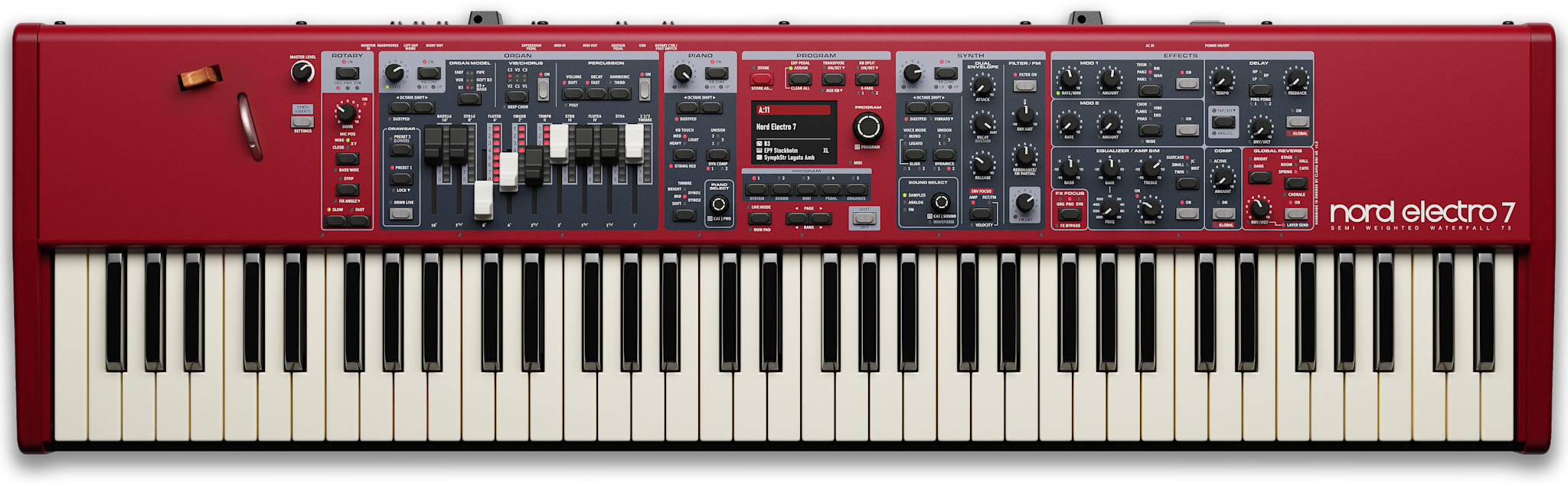

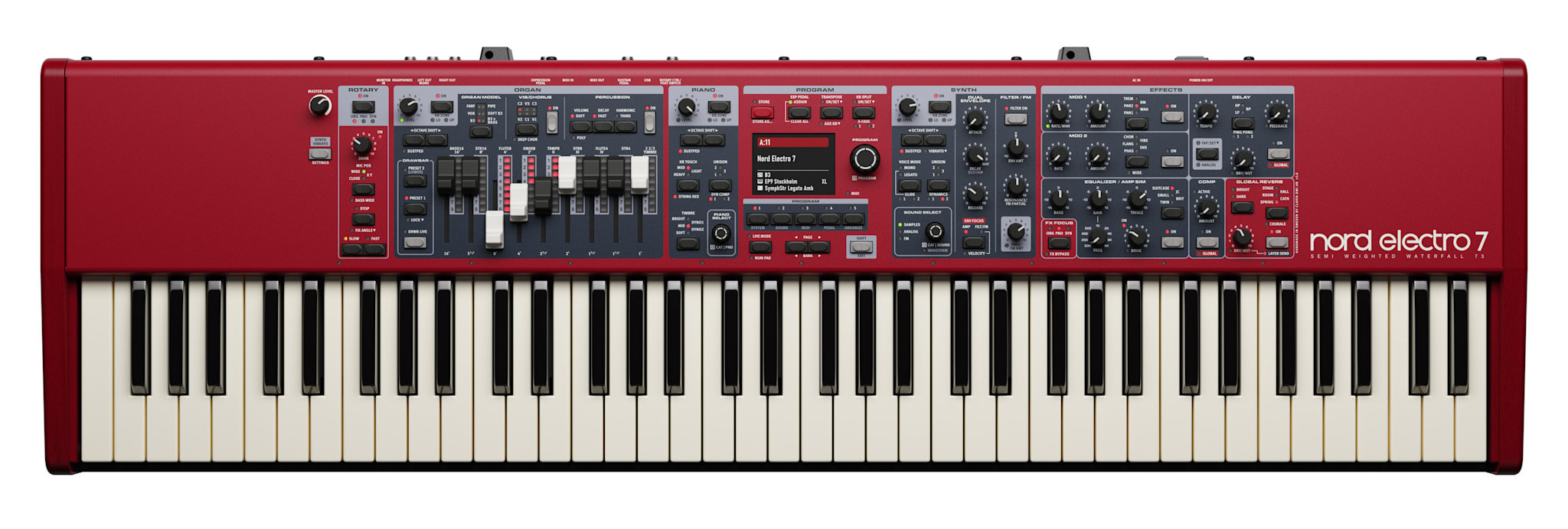

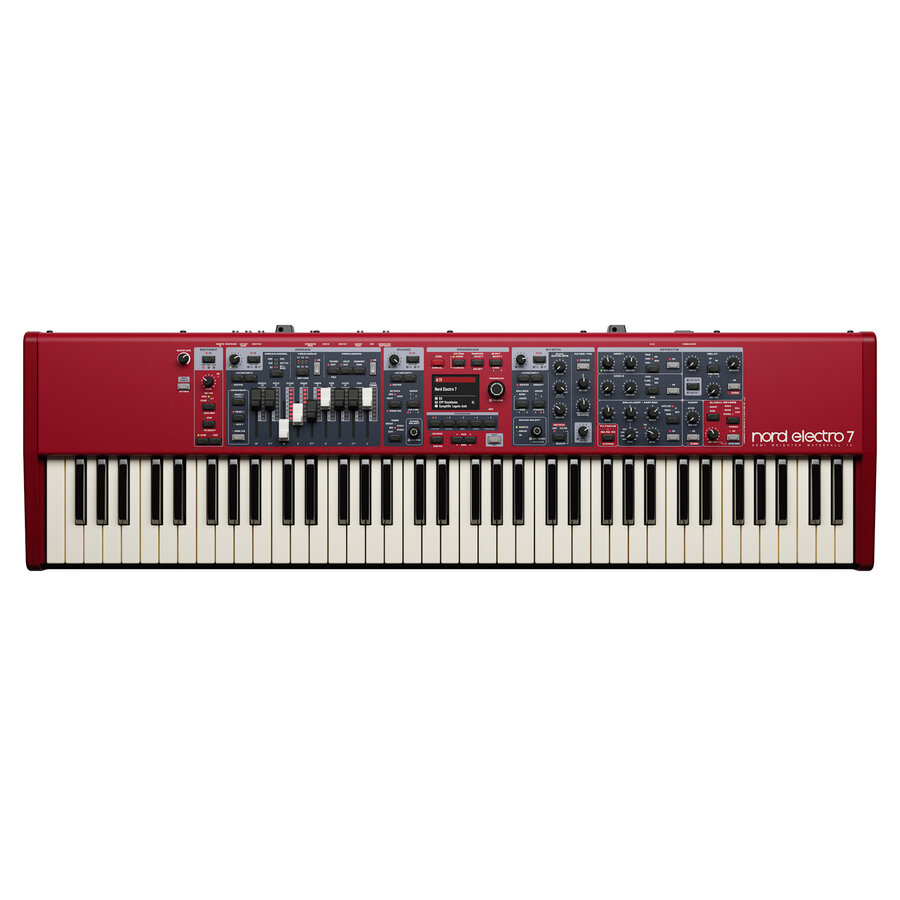

Stage Piano

• For live and studio use

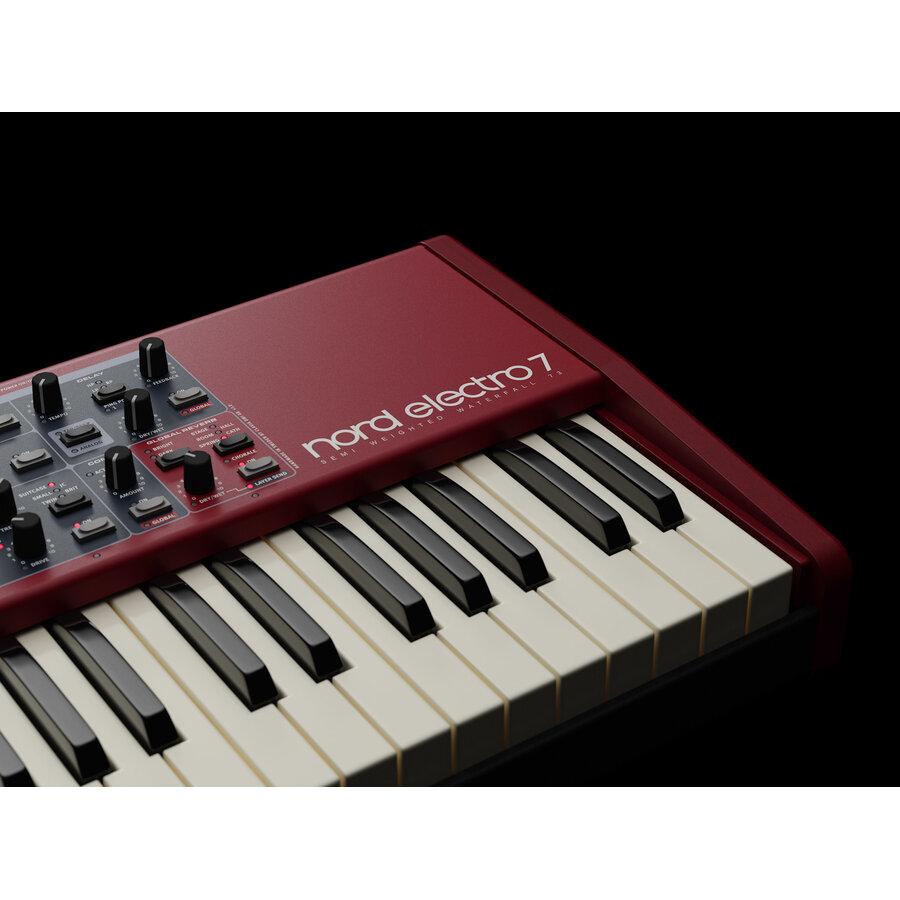

• 73 half-weighted waterfall buttons
• Three independent sections for piano, organ and synth with split and layer function
• Six freely selectable split points with LED indicators

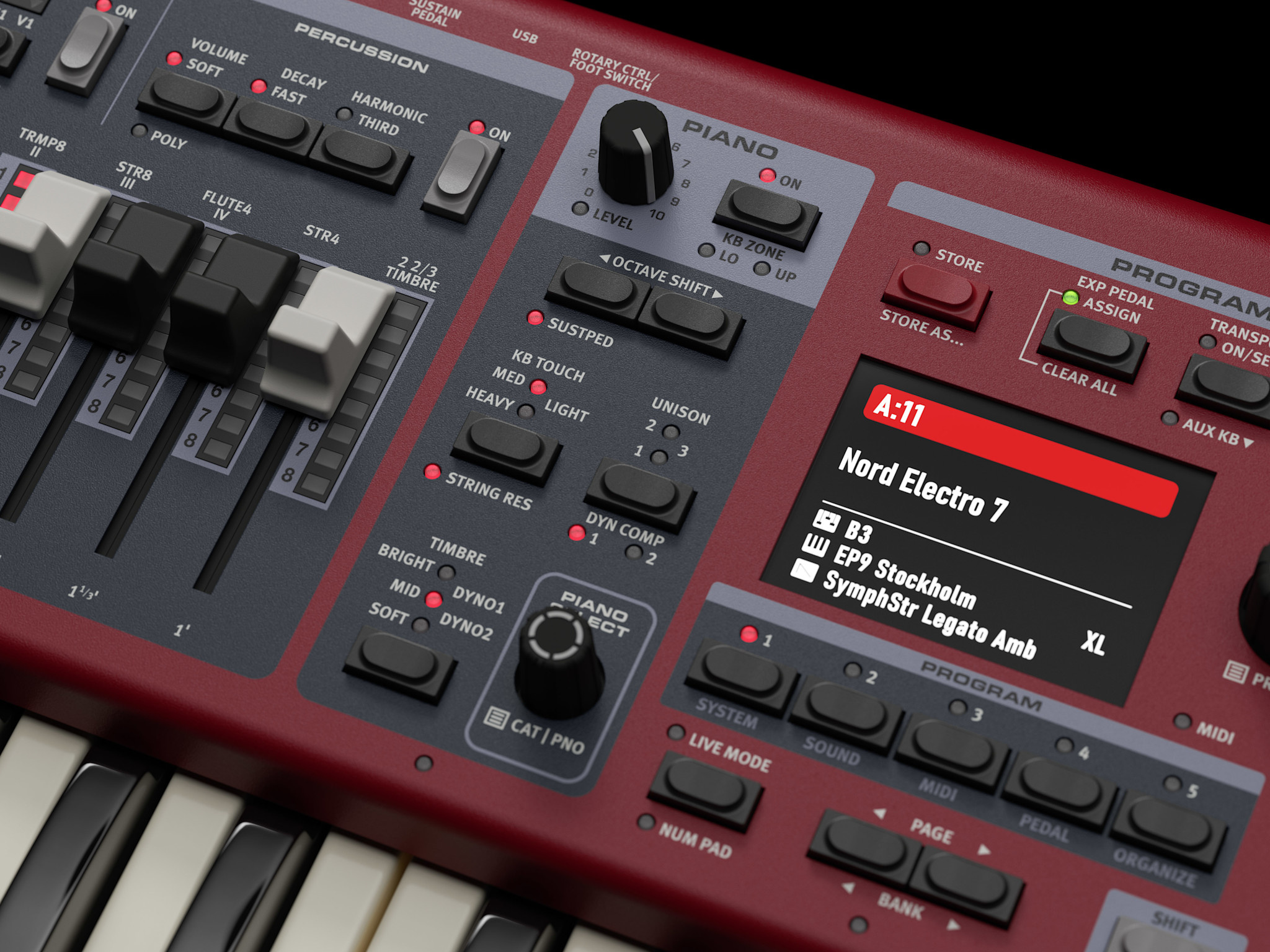

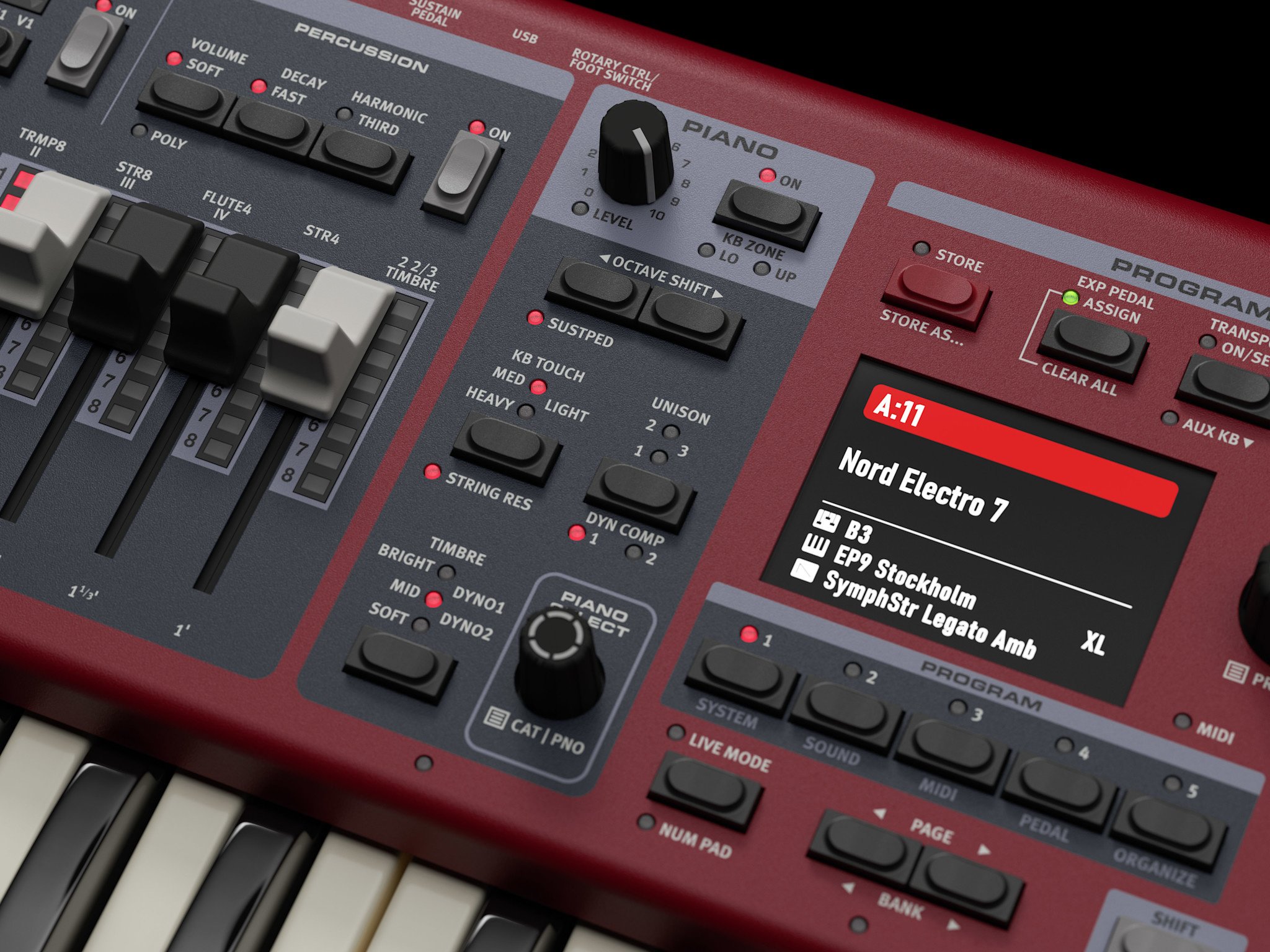

• Large colour display

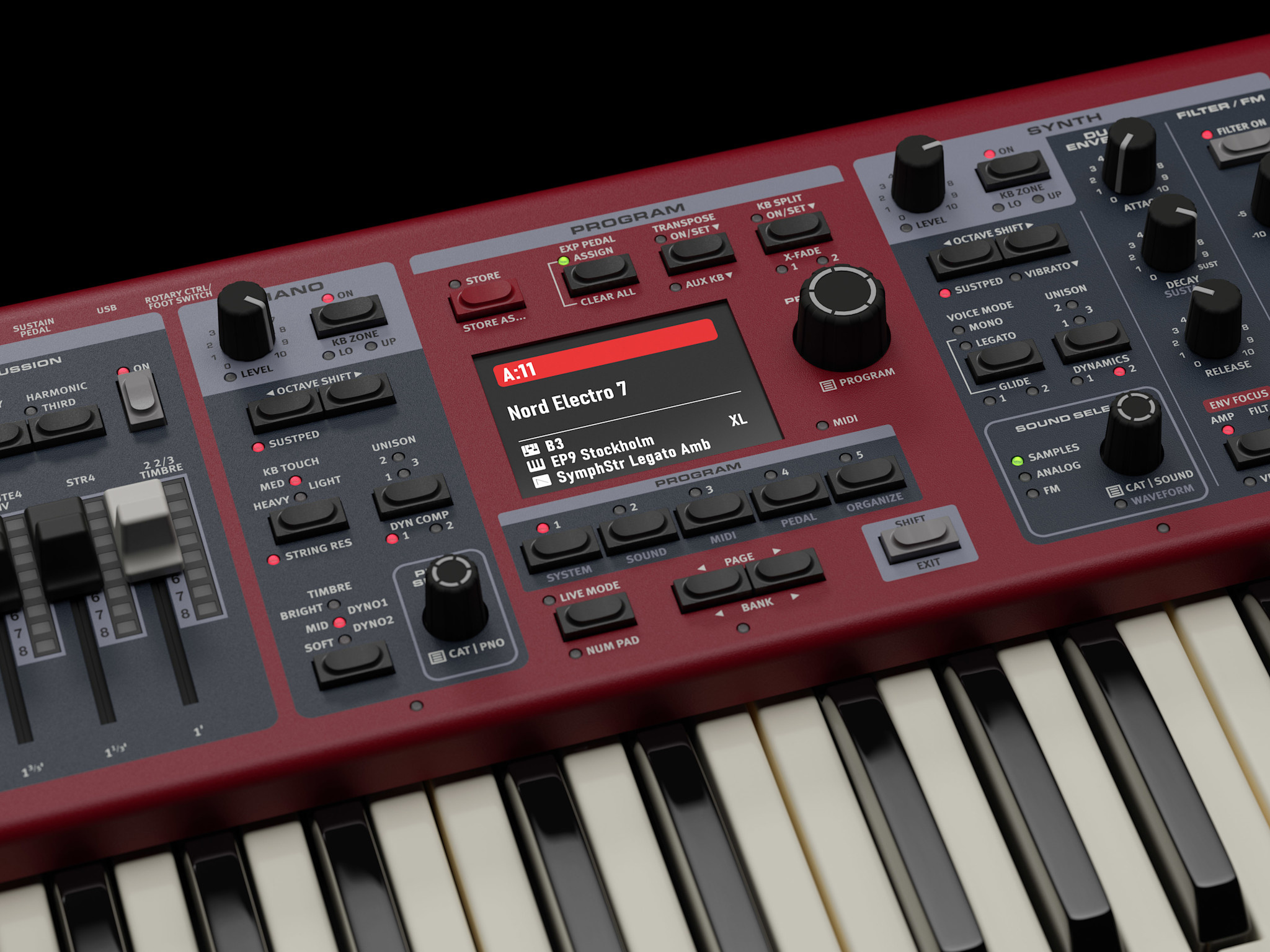

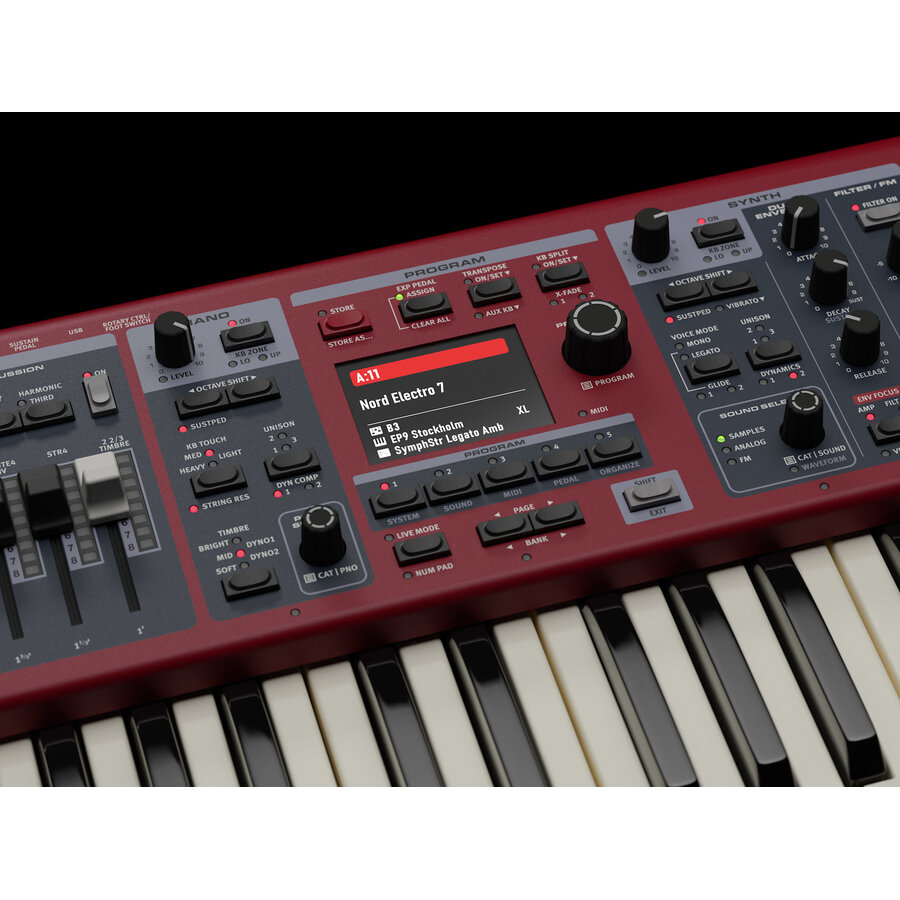

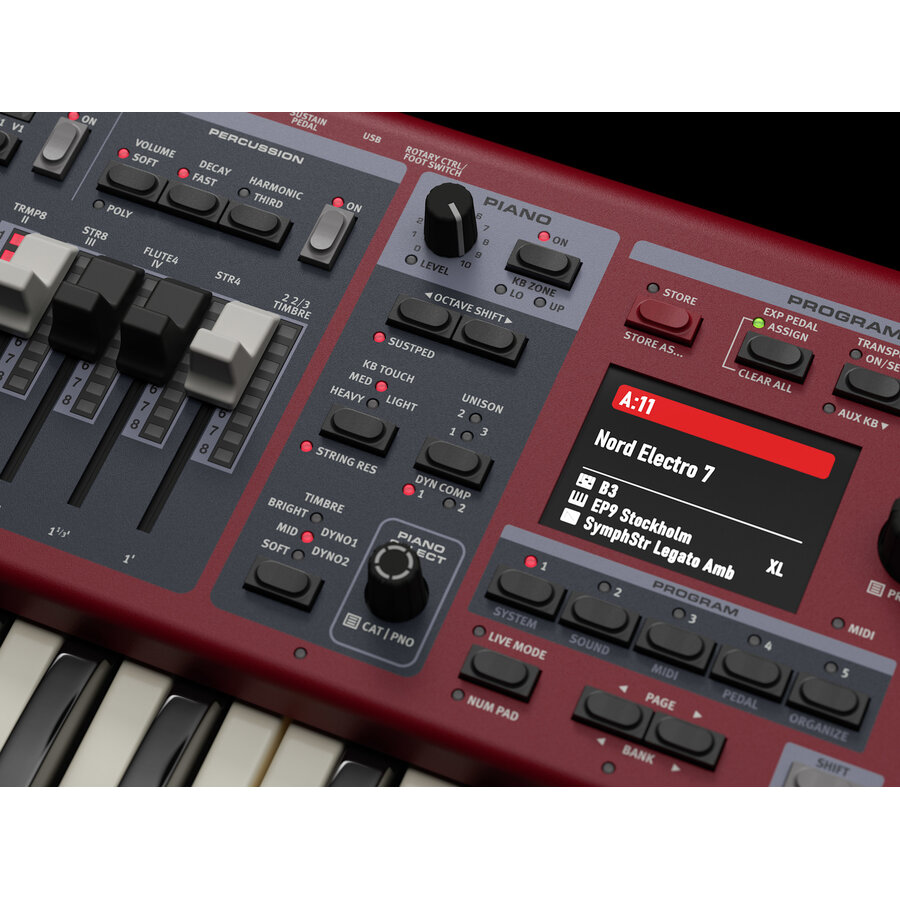

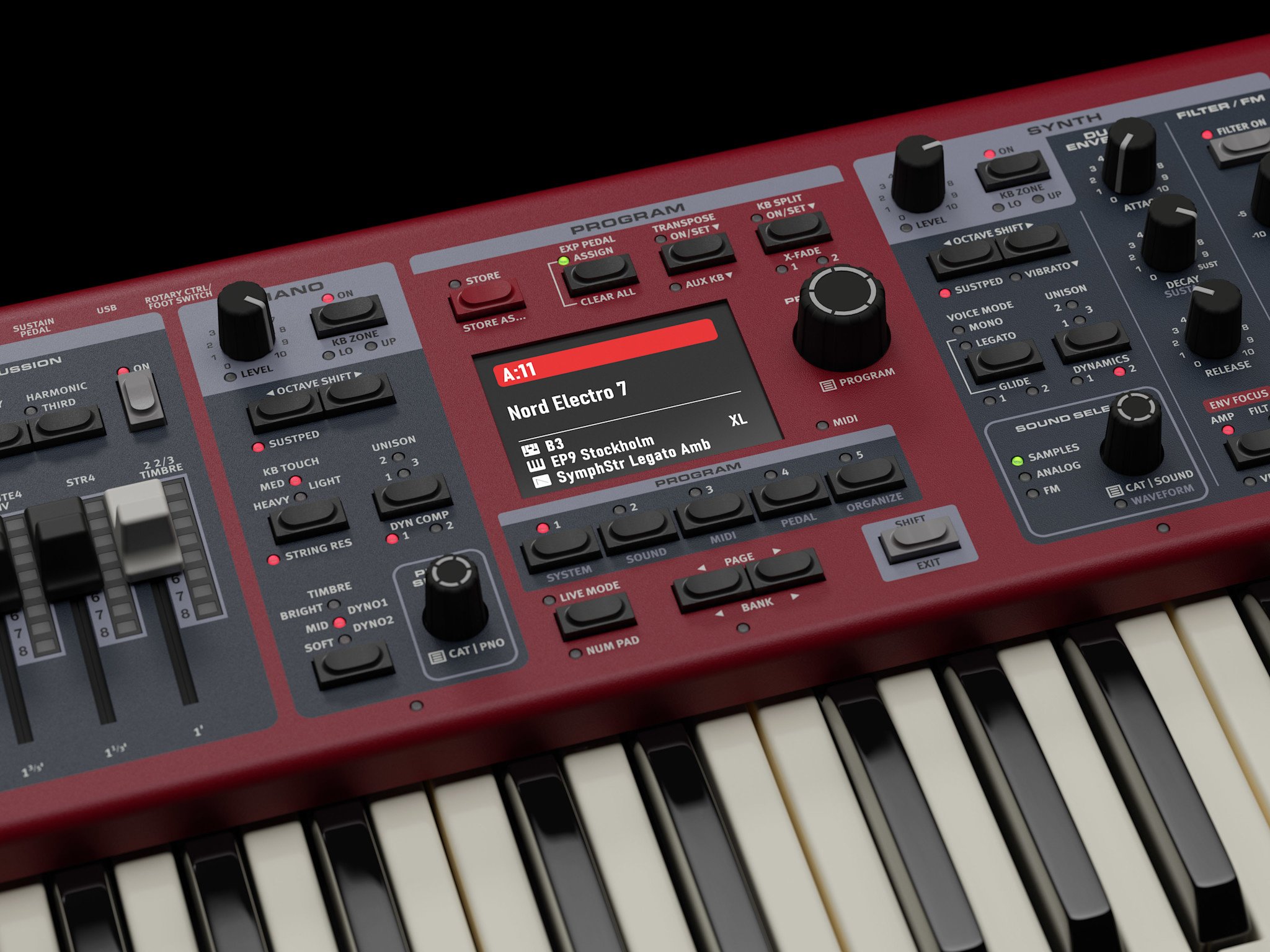

• Program section with Live Mode, set list function and push encoder for quick programme selection
• Seamless transitions between sounds thanks to the Seamless Transitions function

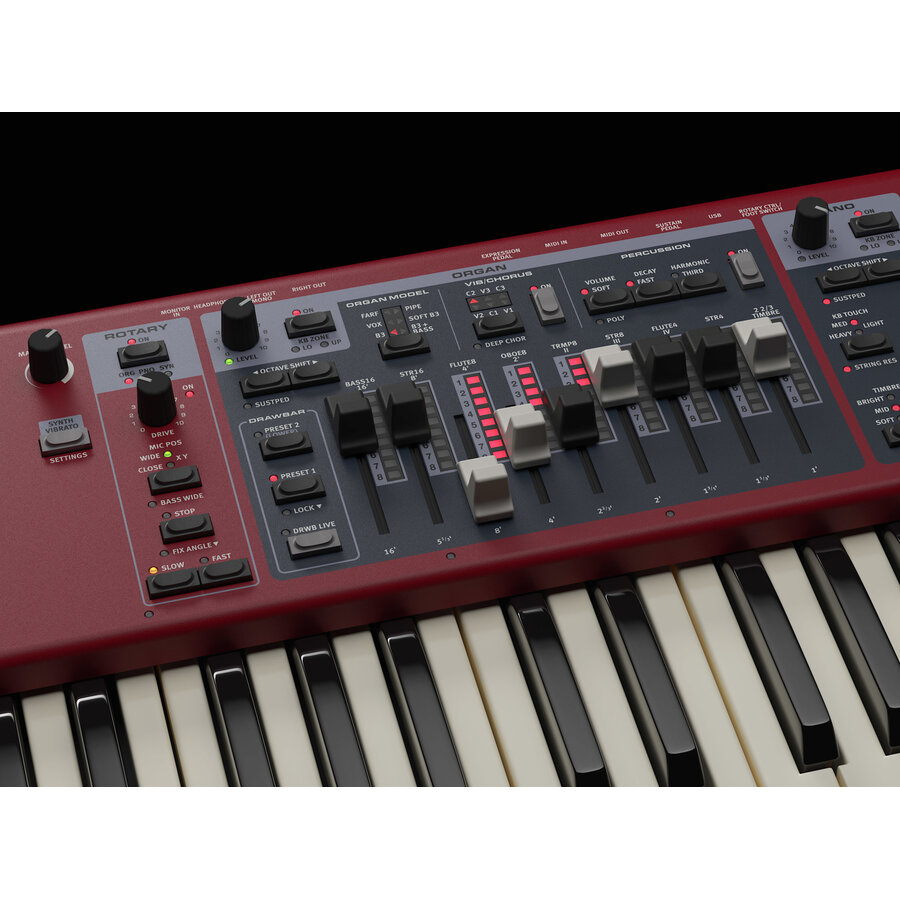

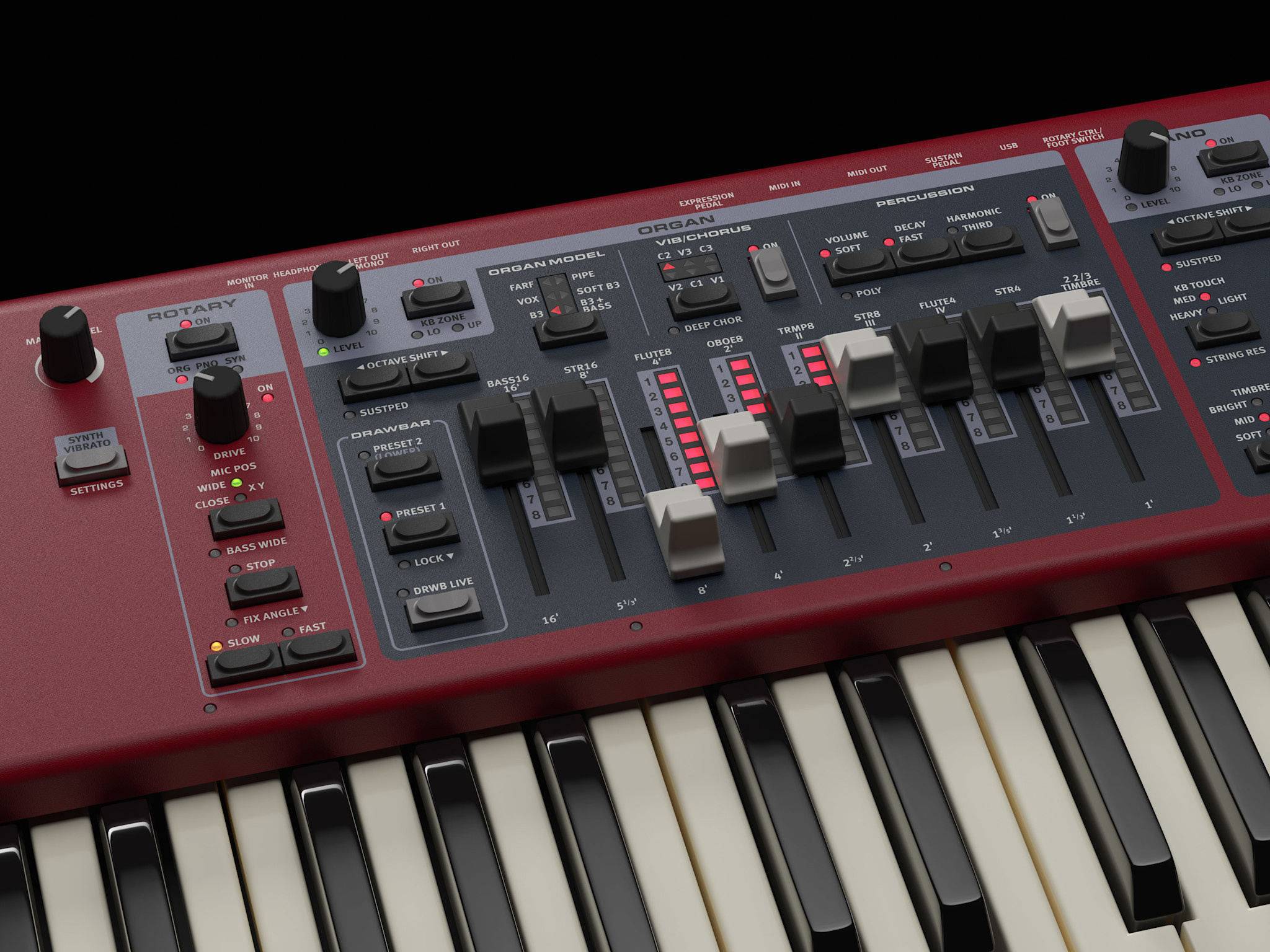

• Organ section based on Nord Organ 3 (B3, B3 Bass, Vox, Farfisa, Soft B3 and Pipe Organ models)
• Rotary speaker simulation with selectable microphone positions, slow/fast/stop
• Dual organ mode for quick access to two-manual setups
• Drawbar Live Mode and presets for upper and lower manuals
• Physical drawbar with LED display
• Mounting bracket for optional Nord Half-Moon Switch (Art.117159#- not included)
• Piano section compatible with Nord Piano Library
• Dynamic compression and unison function
• Push encoder for sound and category selection

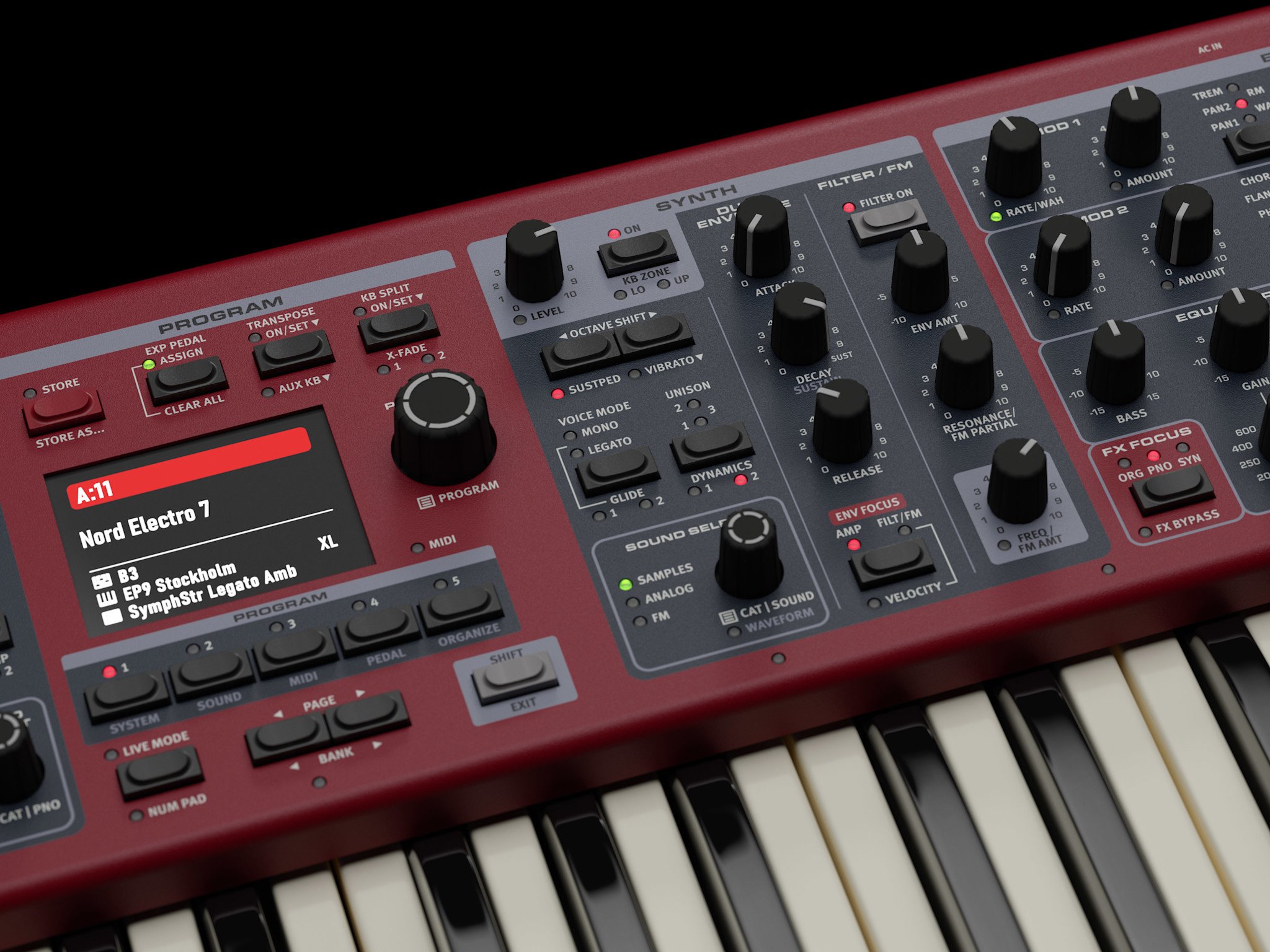

• Synth section with sample playback, classic waveforms and FM synthesis (compatible with the Nord Sample Library)
• Mono and legato mode with glide and unison function
• ADR envelopes for amp and filter
• Low-pass filter with resonance

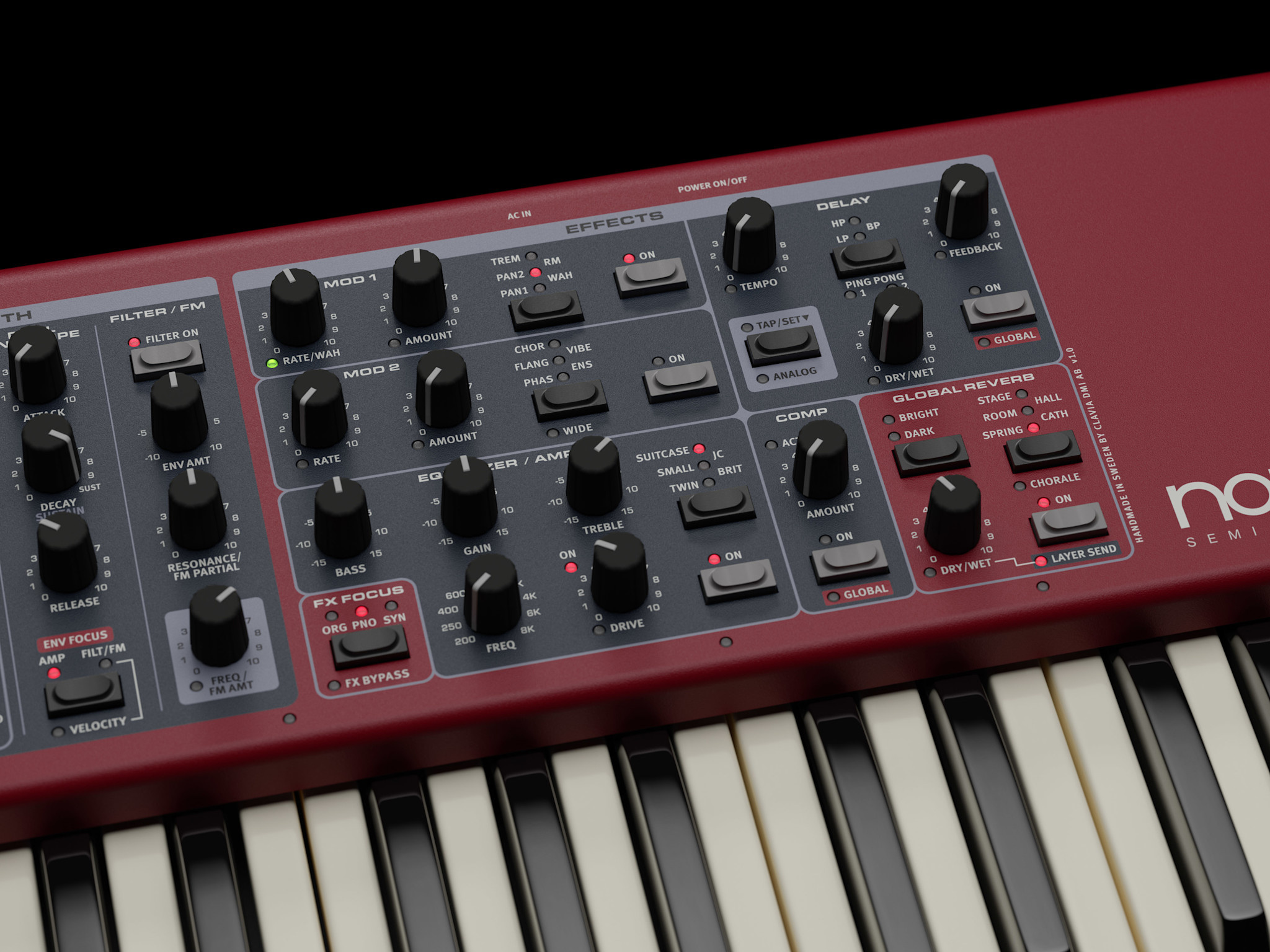

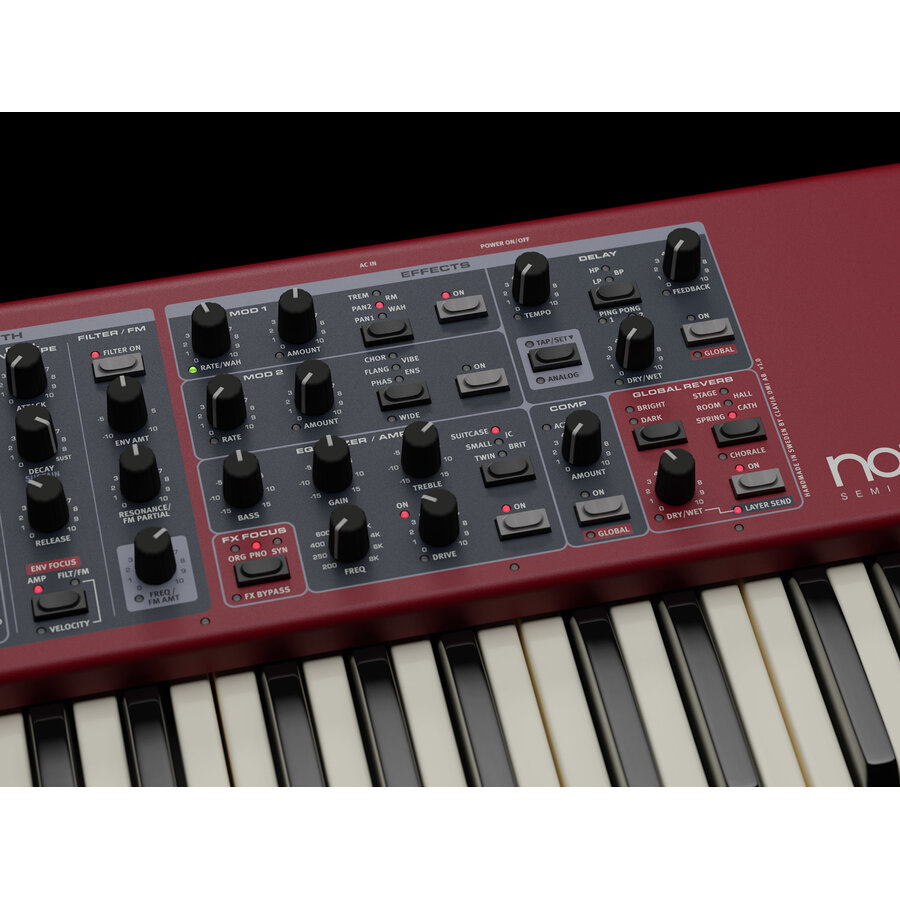

• Effects section with dedicated effects per section
• Two modulation effects (tremolo, wah, ring modulator, chorus, flanger, phaser, ensemble and more)
• Delay with tap tempo, analogue simulation, switchable filter and ping-pong mode
• Amp section with five amp models, drive and 3-band equaliser
• Compressor can be switched on per section or globally
• Global reverb effect with optional send per layer
• All effects in stereo

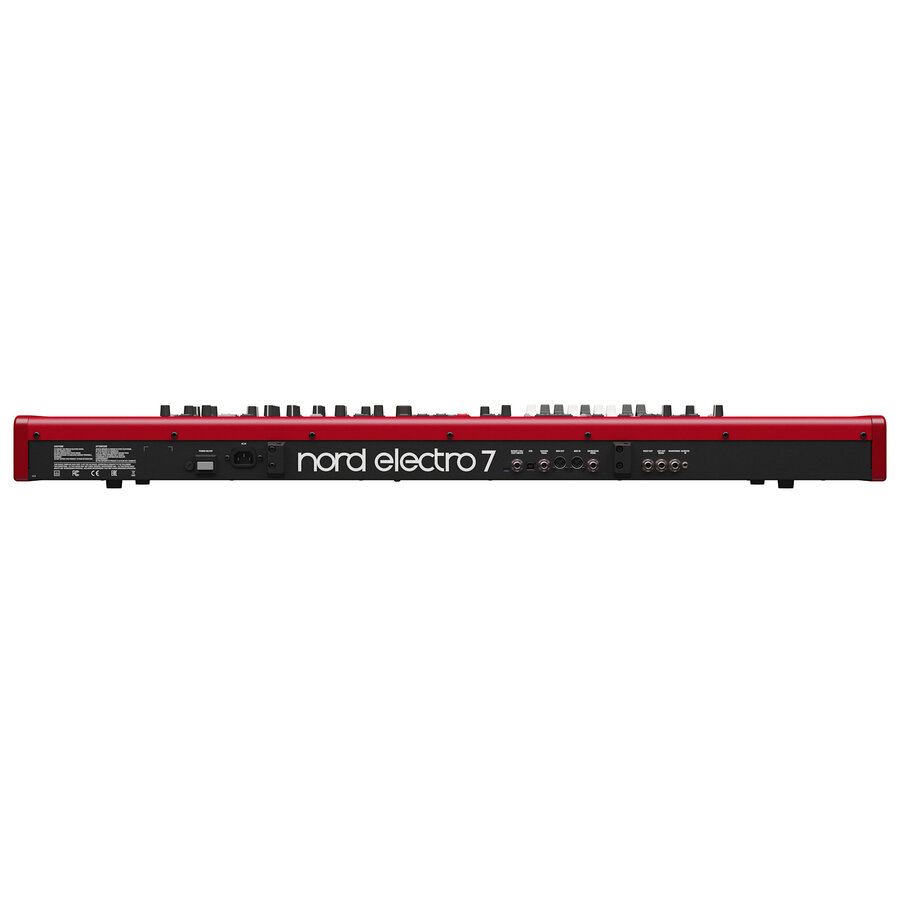

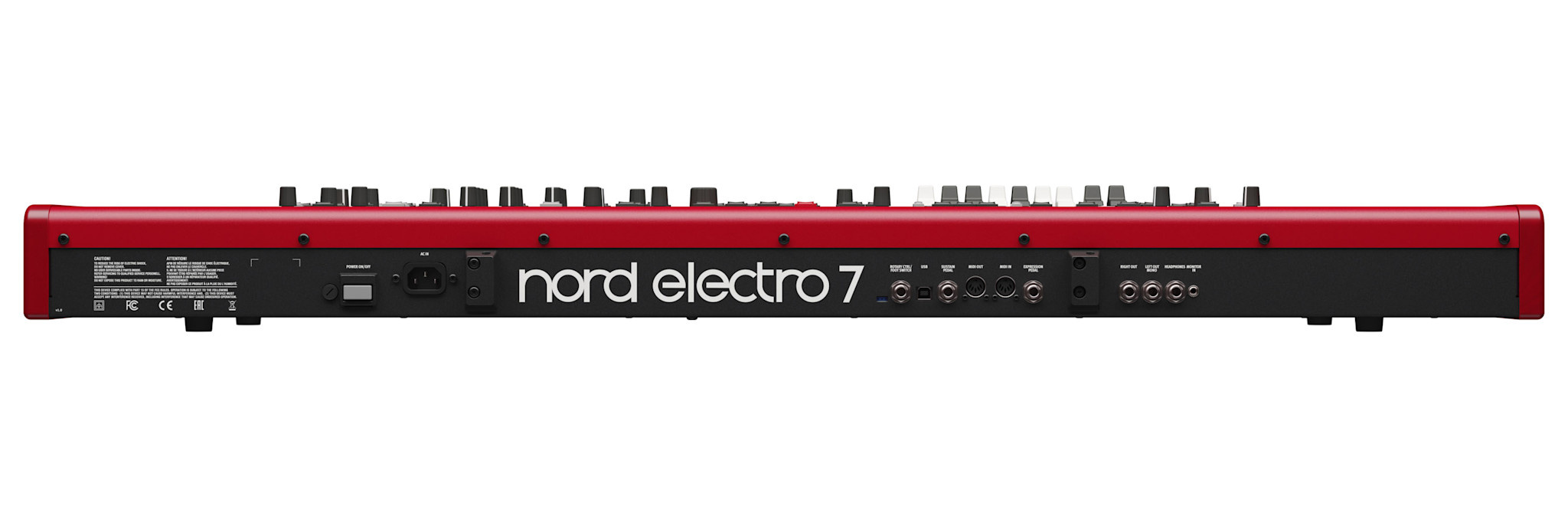

• Monitor input: 3.5 mm stereo mini jack
• Sustain pedal input: 6.3 mm jack
• Expression pedal input: 6.3 mm jack
• Input for rotary speaker/half-moon switch: 6.3 mm jack
• Stereo line outputs: 2 x 6.3 mm jack
• Stereo headphone output: 6.3 mm jack
• MIDI In/Out: 5-pin DIN
• USB-B port
• Dimensions (W x D x H): 1066 x 307 x 104 mm
• Weight: 9.7 kg
