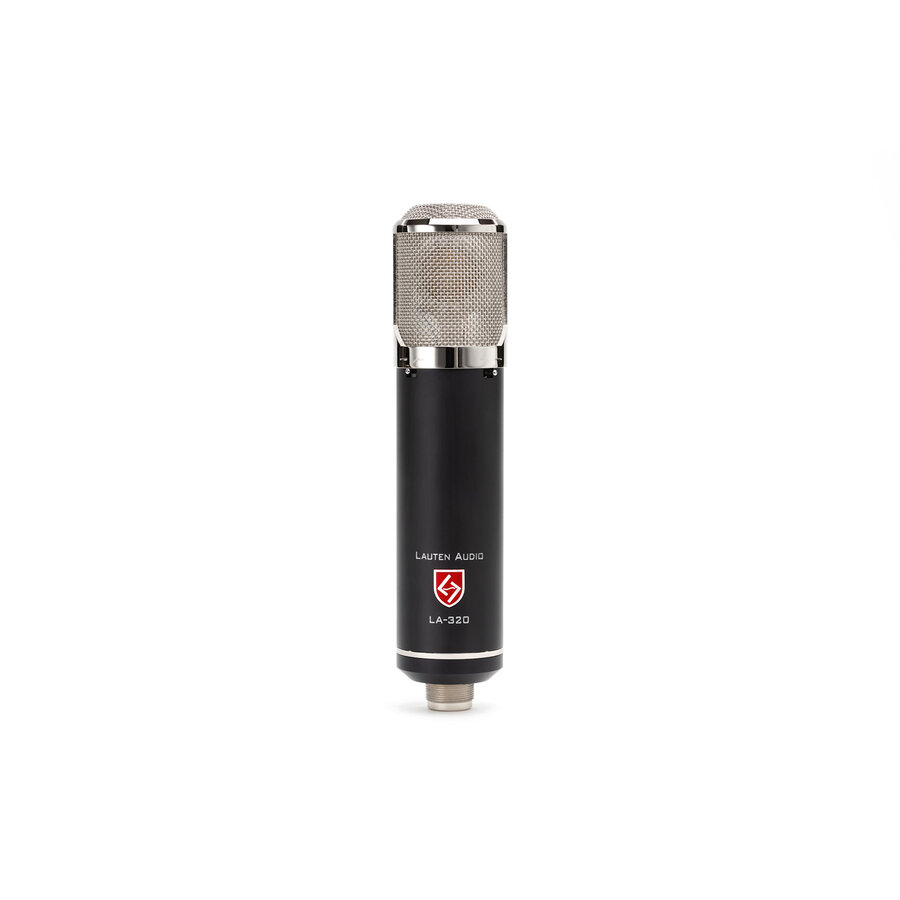

The LA-320 is a twin-tone tube microphone that allows you to choose between the warmth and body of a vintage tube microphone and the clarity and presence of a modern tube microphone at the flip of a switch. Classic tube microphones were made for a signal chain that you don’t have, so we designed the LA-320 to sound great without it. Centered around a custom-made Lauten Audio capsule and hand-soldered tube circuit path, our unique microphone design gives you the musical color and gentle compression associated with classic signal chains but straight into your audio interface.

KEY APPLICATIONS

• Vocals
• Acoustic Guitar
• Piano
• Cello
• Drum Overheads

TWO TUBE MICS IN ONE

The LA-320’s onboard sound-shaping eliminates the need for mic swaps and wasted time. Choose between the warmth of a classic tube microphone and the clarity of a modern tube microphone at the flip of a switch. Capture the wood of a worn-out acoustic guitar and the air of a pop vocal with the same microphone at the flip of a switch.

CUSTOM-CRAFTED CAPSULE

Unlike classic capsule designs, our hand-tuned 32mm transducer naturally imparts gentle compression and balance to any sound source, making it ideal for use on traditionally troublesome applications. This means getting a great recording in the real world is faster and easier.

FINISHED SOUND WITHOUT THE SIGNAL CHAIN

The LA-320 isn’t flat – it sounds like music. We believe every Lauten Audio microphone should stand on its own and make your life easier. Does the LA-320 sound great with a high-end signal chain? You bet! Does it need one to deliver powerful, present sound out of the box? Not at all.

INSIDE STORY

The LA-320 is hand-soldered with high-resolution, low-distortion polypropylene capacitors and resistors, a dual triode vacuum tube, and a vintage-inspired output transformer. The resulting sound is crisp, clear, and full without the high noise floor and delicacy of vintage microphones.

DESIGNED & TESTED IN SILICON VALLEY, CA

Each LA-320 is lovingly designed and built to last a lifetime by the Lauten Audio family.

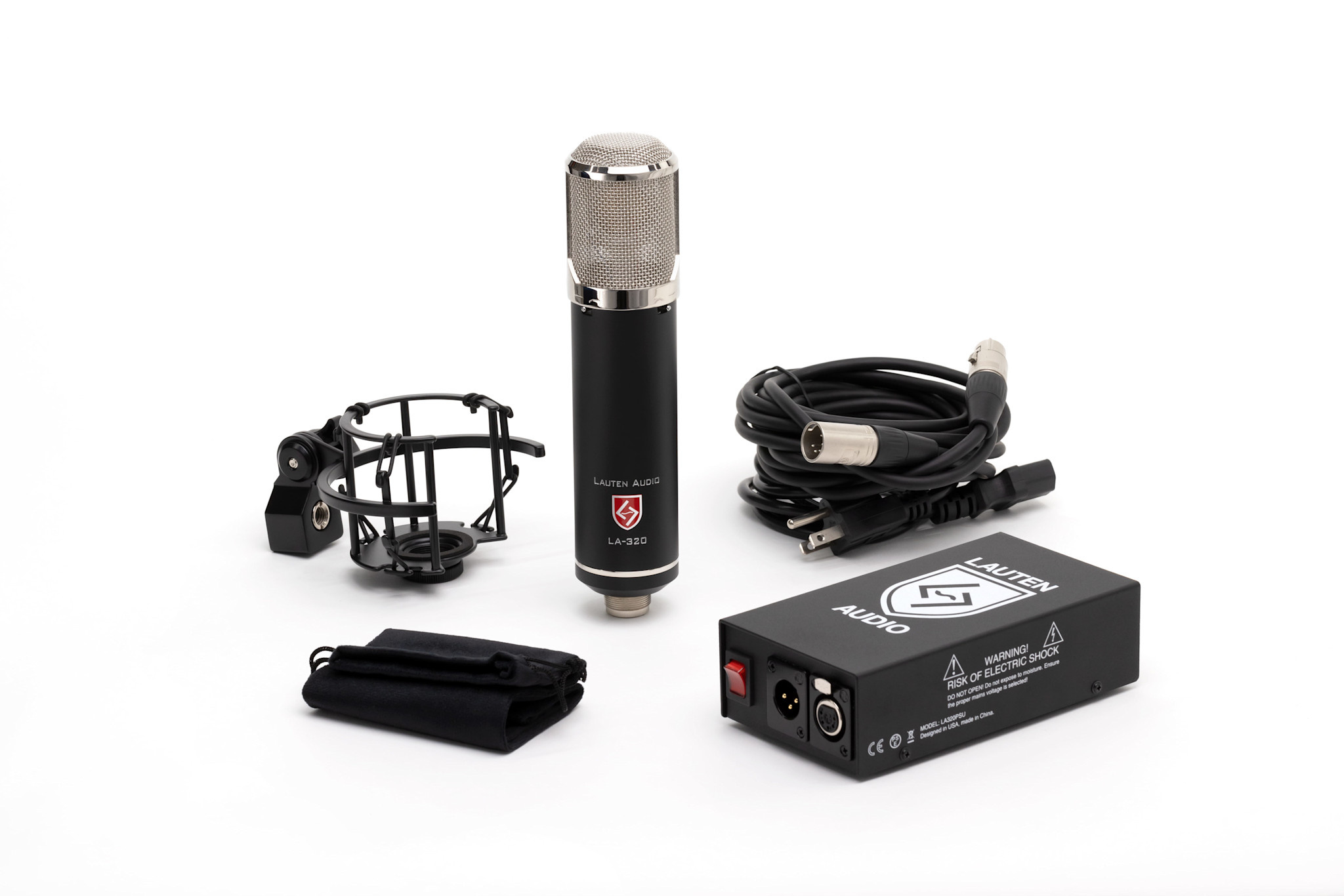

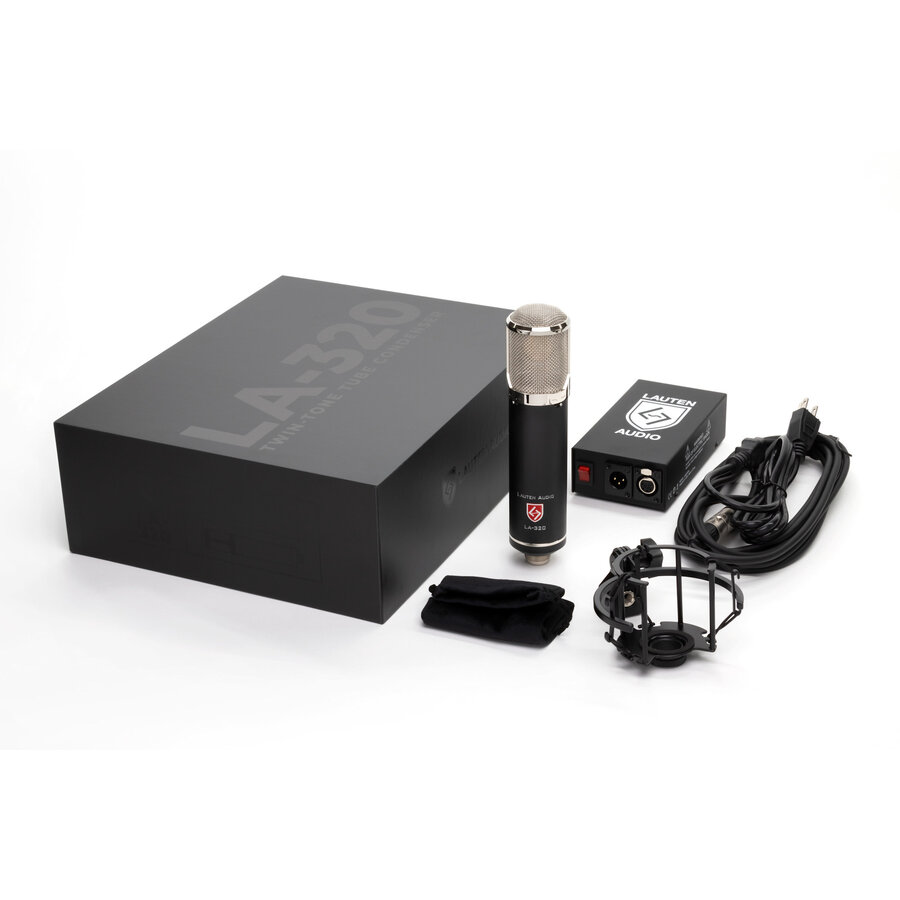

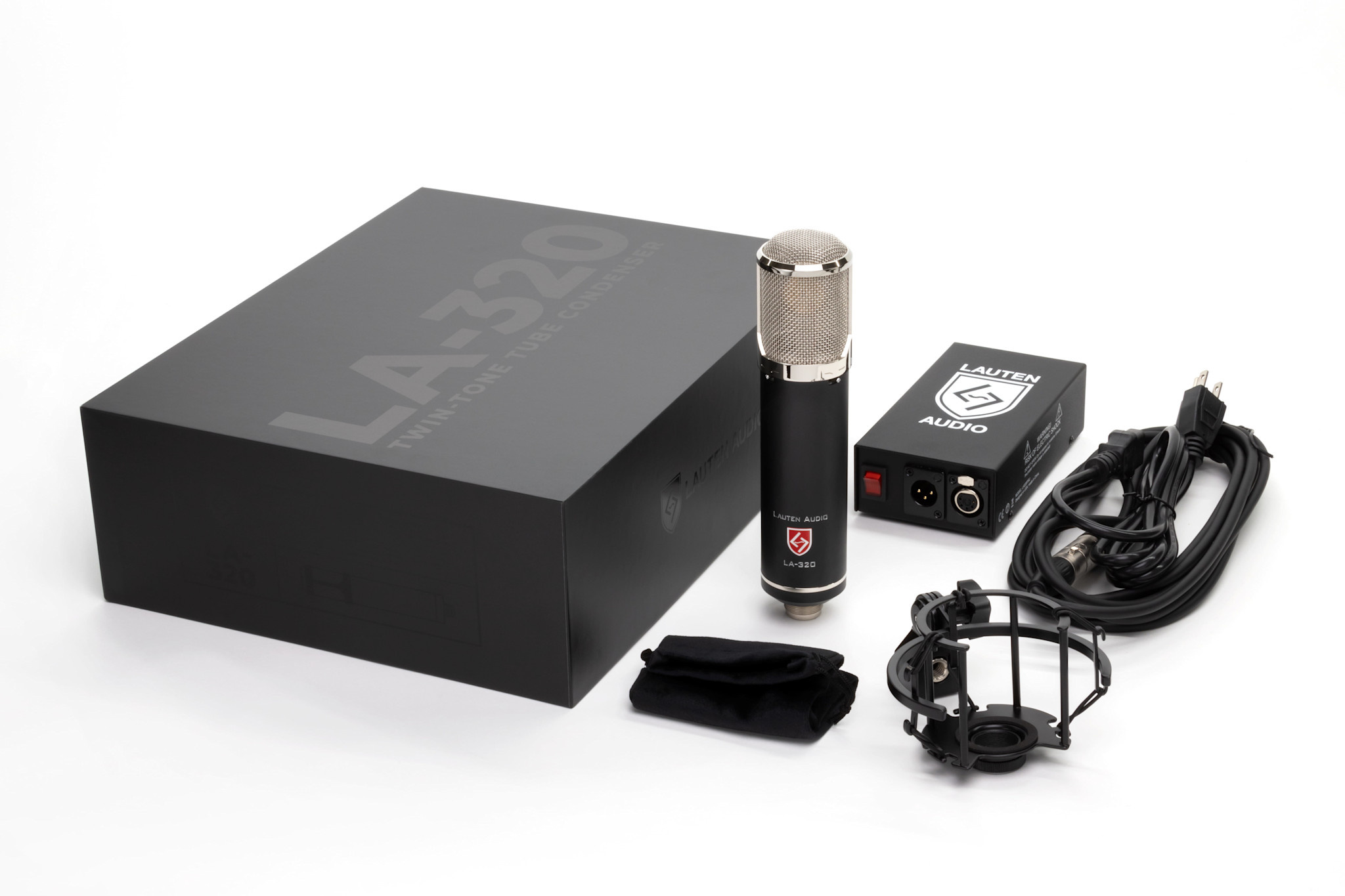

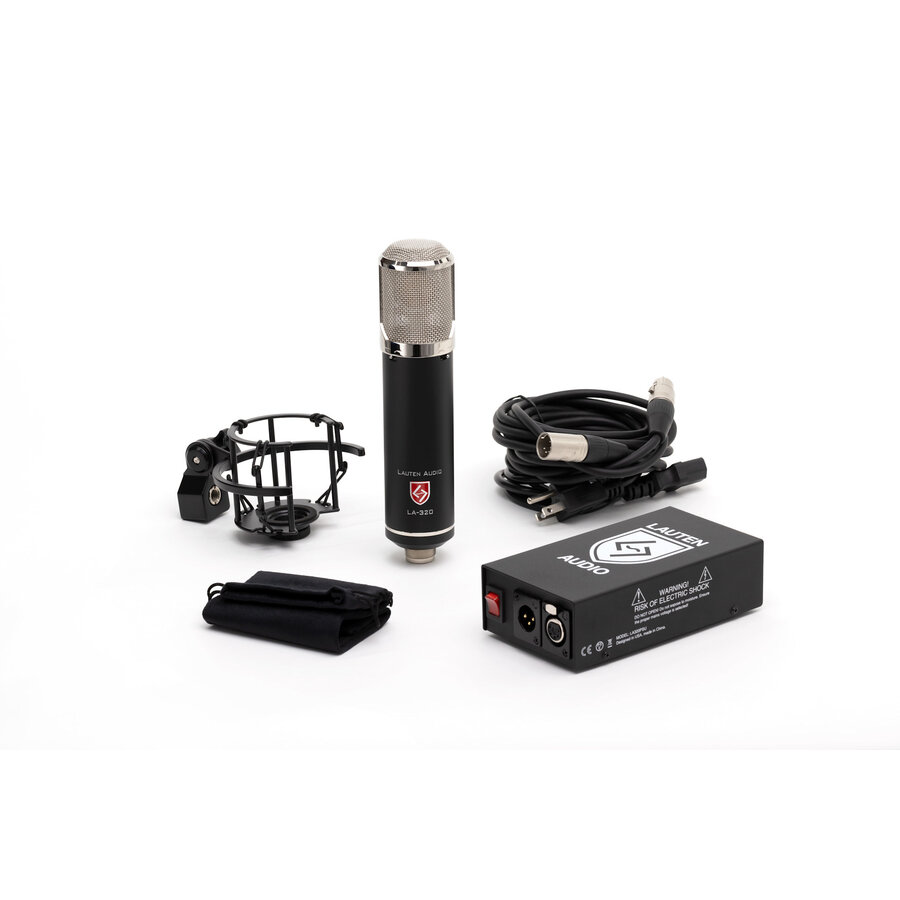

IN THE BOX

• LA-320

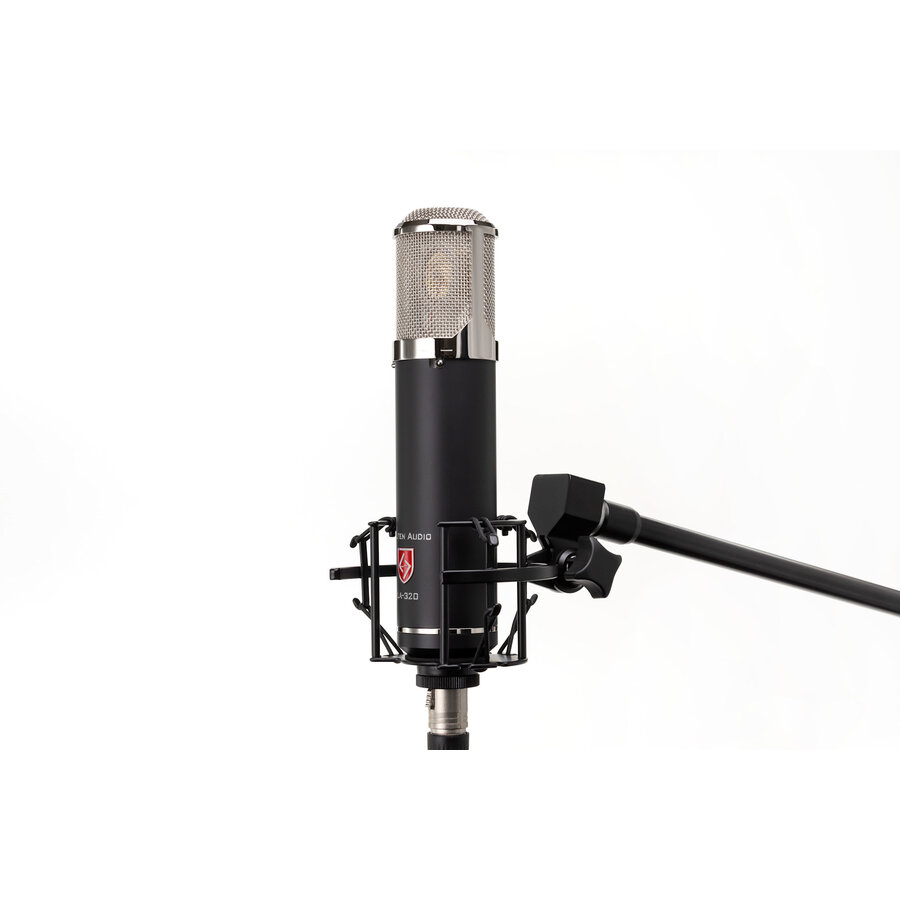

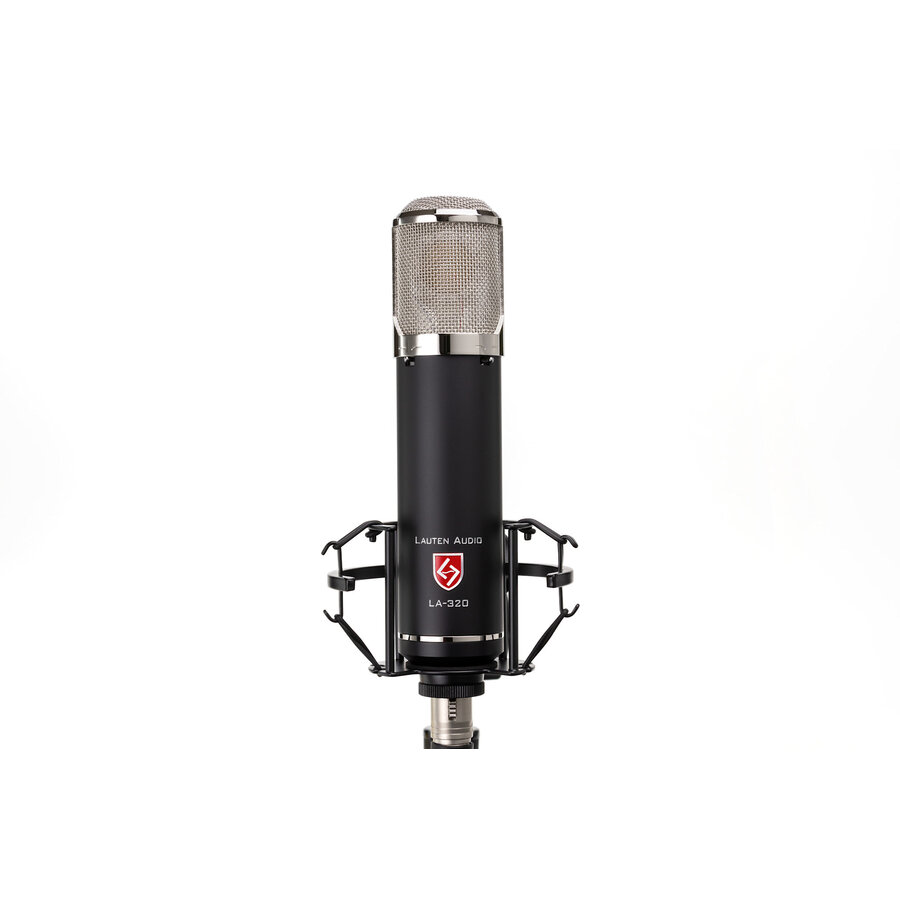

• Spider Shock Mount
• Microphone Bag
• Power Supply
• IEC Power Cable
• 5-Pin Cable
• QuickStart Guide
• Registration Card



SPECIFICATIONS

• Type: Transformer balanced tube condenser
• Tube: ECC83
• Capsule: 32mm center-terminated pressure gradient
• Polar Patterns: Cardioid
• Response: 20Hz-20KHz
• High Pass: Flat / 120Hz
• Low Pass: Flat / 12kHz
• Dynamic Range: 120dB minimum
• SPL: 0.5%THD@1000Hz: 130dB​
• Impedance: <200 ohms
• Self-noise level: < 17dB-A
• Sensitivity: 14mV/Pa (@ 1kHz 74dB SPL)
• Connector: 5-pin XLR (PSU to the microphone) and 3-pin XLR (PSU to preamp)
• Power: Requires included PSU (Switchable 100v to 240v)
• Box Dimensions: 5” x 12” x 15”
• Weight: 8.2lbs
• Mic W/ Shock Weight: 1lb 11oz
