PlayAUDIO2U is a MIDI miracle worker
iConnectivity has been the leader in MIDI connectivity for years. The PlayAUDIO2U brings that expertise to your live performances. This beast of a MIDI interface and controller provides a staggering multitude of MIDI connectivity to connect performers and operators, allowing you to manage MIDI everywhere throughout your stage and venue.
The PlayAUDIO2U acts as your central MIDI hub and control center, connecting devices via its integrated 5-pin MIDI DIN, USB host ports, computers, and dual RTP Ethernet ports for venue-wide networking. Its programmable control ports and 4 assignable front-panel buttons let you even directly assign MIDI commands directly from the interface to control the show! This comprehensive interface simplifies even the most intricate MIDI workflows and enriches them effortlessly with reliability.
With PlayAUDIO2U, you tailor what MIDI goes where and when. For instance, iConnectivity’s powerful MIDI processing lets you easily send MIDI to connected computing devices while only sending one set of program changes to connected peripherals, send all notes off if computer failure occurs to avoid stuck notes, filter out extraneous CCs, and much more.
It’s a MIDI beast. iConnectivity’s famous flexibility is built-in.
Uncompromising Protection for Your Performance
Engineered for the demands of touring, the PlayAUDIO2U ensures every detail is crafted to keep your show flawless.
-
Seamless Redundancy: The PlayAUDIO2U safeguards your performance with iConnectivity’s renowned multi-computer redundancy, actively monitoring audio signals or MIDI and instantly switching computers if issues arise—faster than anyone can hear.
-
Advanced Audio Protection: Beyond detecting software glitches, it vigilantly monitors audio streams, automatically switching to a Safe Mode, muting outputs at the first sign of any potential trouble, and displaying diagnostics to prevent unwanted noise or glitches from reaching your PA system or monitors.
-

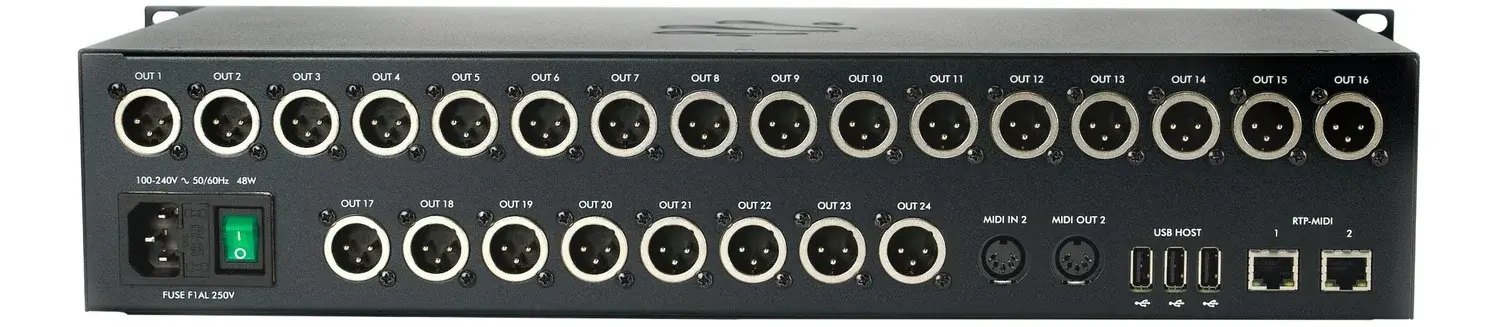

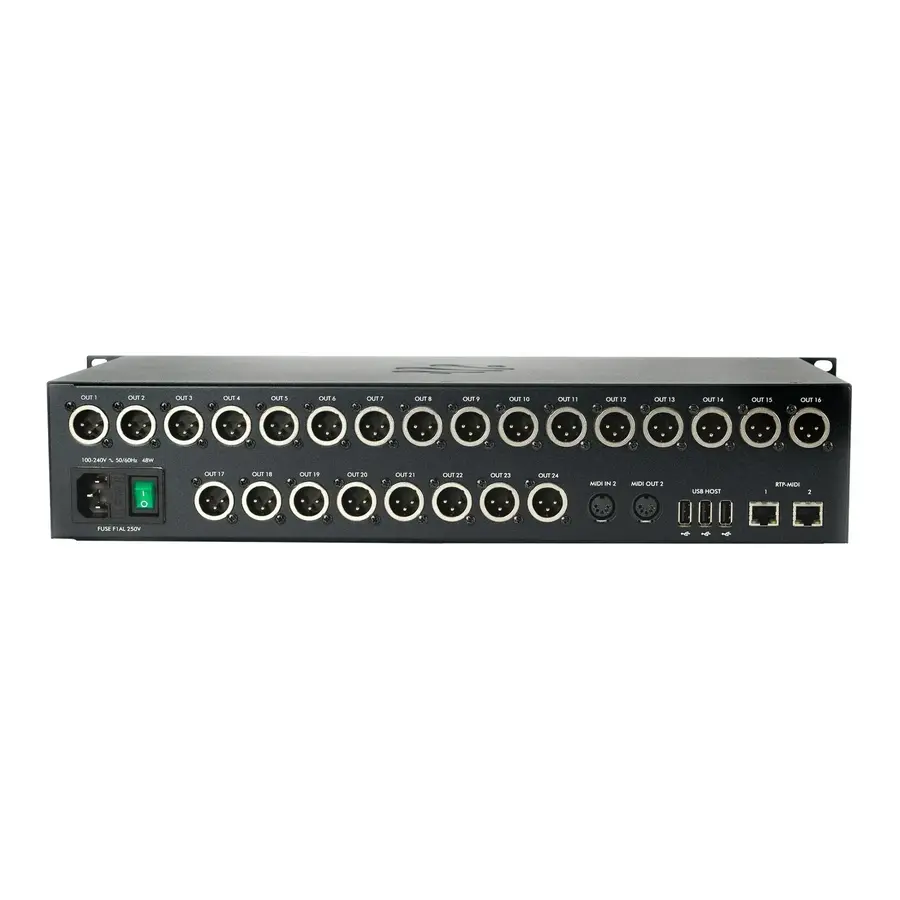

24 Balanced panel reinforced XLR outputs
-
4 XLR / ¼” TRS combo analog inputs
-
4 pristine ultra-low noise microphone preamps with 48V phantom power
-
Integrated +48v phantom power resistance on outputs protects your interface from accidental damage when plugging directly into consoles or stage boxes (please note we cannot guarantee 100% protection indefinitely. It is best practice not to send +48v phantom power into any audio interface’s outputs)
-
1x 1/4” TRS stereo headphone output with dedicated control for convenient headphone monitoring
-
4x USB MIDI host ports, offering USB MIDI connectivity for Class Compliant controllers and/or modules
-
DIN-MIDI ports built-in (2 in 2 out)
-
Dual Ethernet MIDI jacks with a total 22 ports of connectivity for rugged long-distance MIDI connections
-
Comprehensive audio mixing and routing between connected USB computing devices and analog outputs
-
Easy-to-use buttons and rotary encoders provide software-less control over PlayAUDIO2U’s key features from the front panel
-
100-240v switching power built-in with Industry-Standard IEC Power Connection
-
2x USB C type ports for connecting computing devices
-
Automatic and manual computer switching modes, for lightning-fast switching between connected computers
-
4x user assignable buttons can be mapped to MIDI functions, control numerous functions on the interface and/or send control messages to compatible devices
-
2x 2 button “Control” footswitch jacks with can be mapped to MIDI functions, control over numerous functions on the interface and/or sending control messages to compatible devices
-
Audio Protection helps stop unwanted noise from corrupt audio sources/files from making it into the audience
-
Auracle software enables you to tailor the PlayAUDIO2U’s settings to your exact needs
-
High-resolution audio - Studio sound quality for the live arena - up to 24-bit/96kHz AD/DA conversion
-
“MIDI learn” from external MIDI devices to control key functions on the interface
-
Large OLED screen for instantaneous status information and precise control
-
2U ready-to-tour rack-mountable chassis
