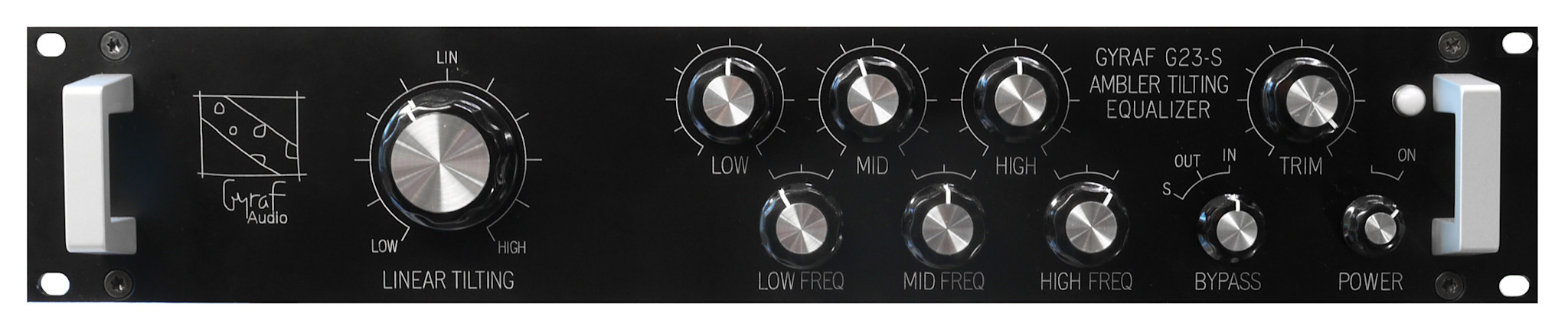

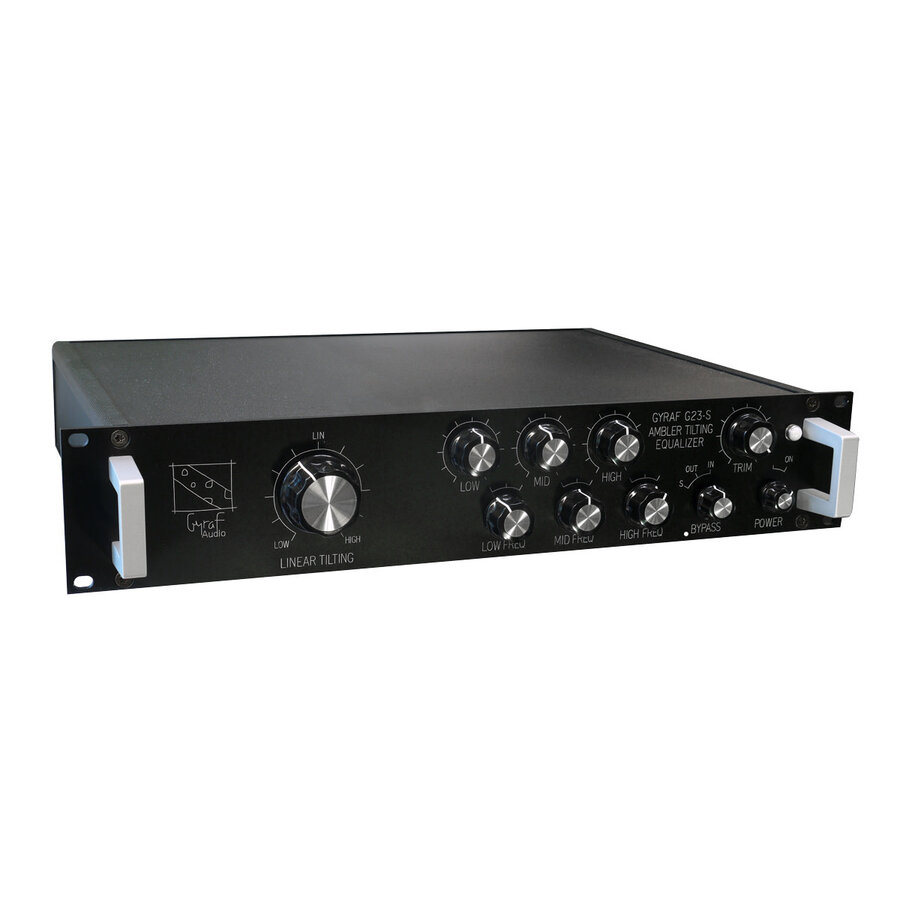

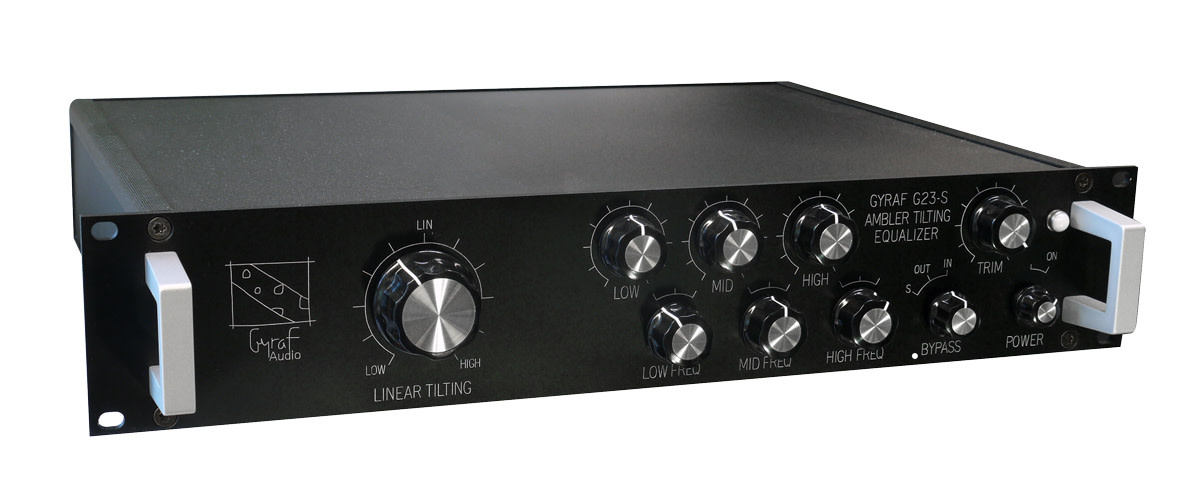

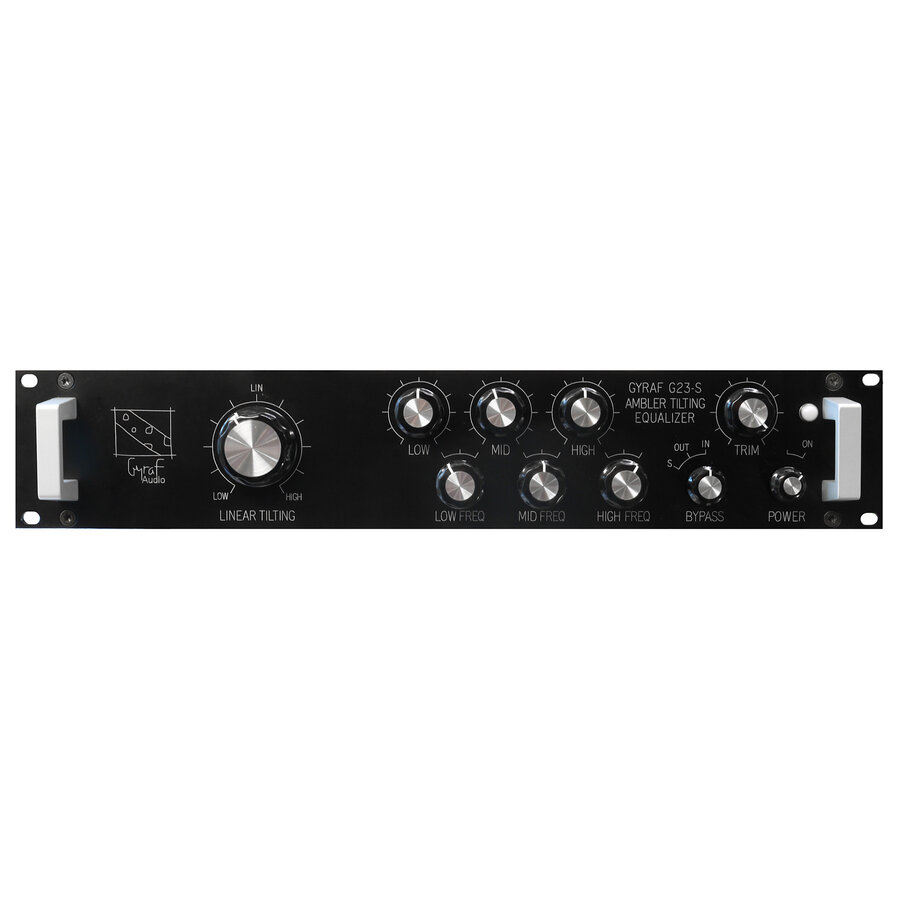

The G23-S is a stereo Tilt EQ aimed to tad a mix or master darker or brighter without
messing up the overall definition. Gentleness and subtlety are main design targets: Tilt
and Highs at +/-4dB, Mids at +/-2dB, and Lows at +/-6.5dB.
The Tilt is designed around a highly linear 1dB/oct slope filter, so that rotating the tilt
control will tilt an almost ruler-straight response curve, to a maximum steepness of
1dB/octave. And to correct outer ends of spectrum, a gentle Baxandall tone control
shelving lows and highs and a wide-Q bell for the mids - each at three selectable
frequencies - have been added.
The G23-S is based on tubes and passives alone. Bypass is full-relay, and it has a gain trim
function for easing comparison between direct and processed material.

Details | Technical

• Stereo Tilt EQ with a highly linear 1dB/oct slope filter
• Tilt and Highs at +/-4dB, Mids at +/-2dB, and Lows at +/-6.5dB
• Hard relay bypass
• 230V mains voltage (others on request)

Details | Operability

• Linear Tilt, Low, Mid & High Freq.
• Baxandall tone control shelving lows and highs
• wide-Q bell for the mids
• Switch between Tube and Solid State Stage
• Trim to match levels
