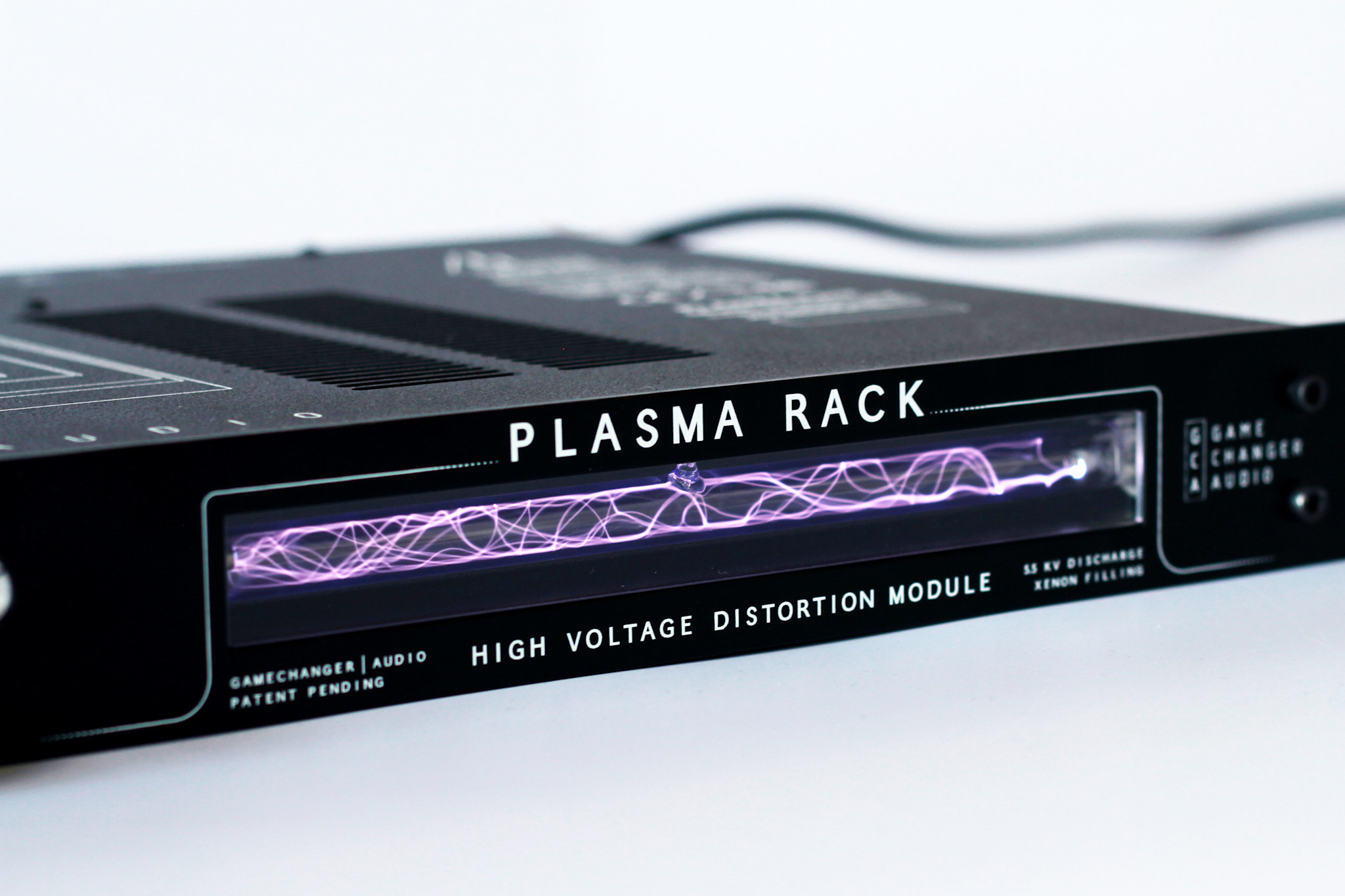

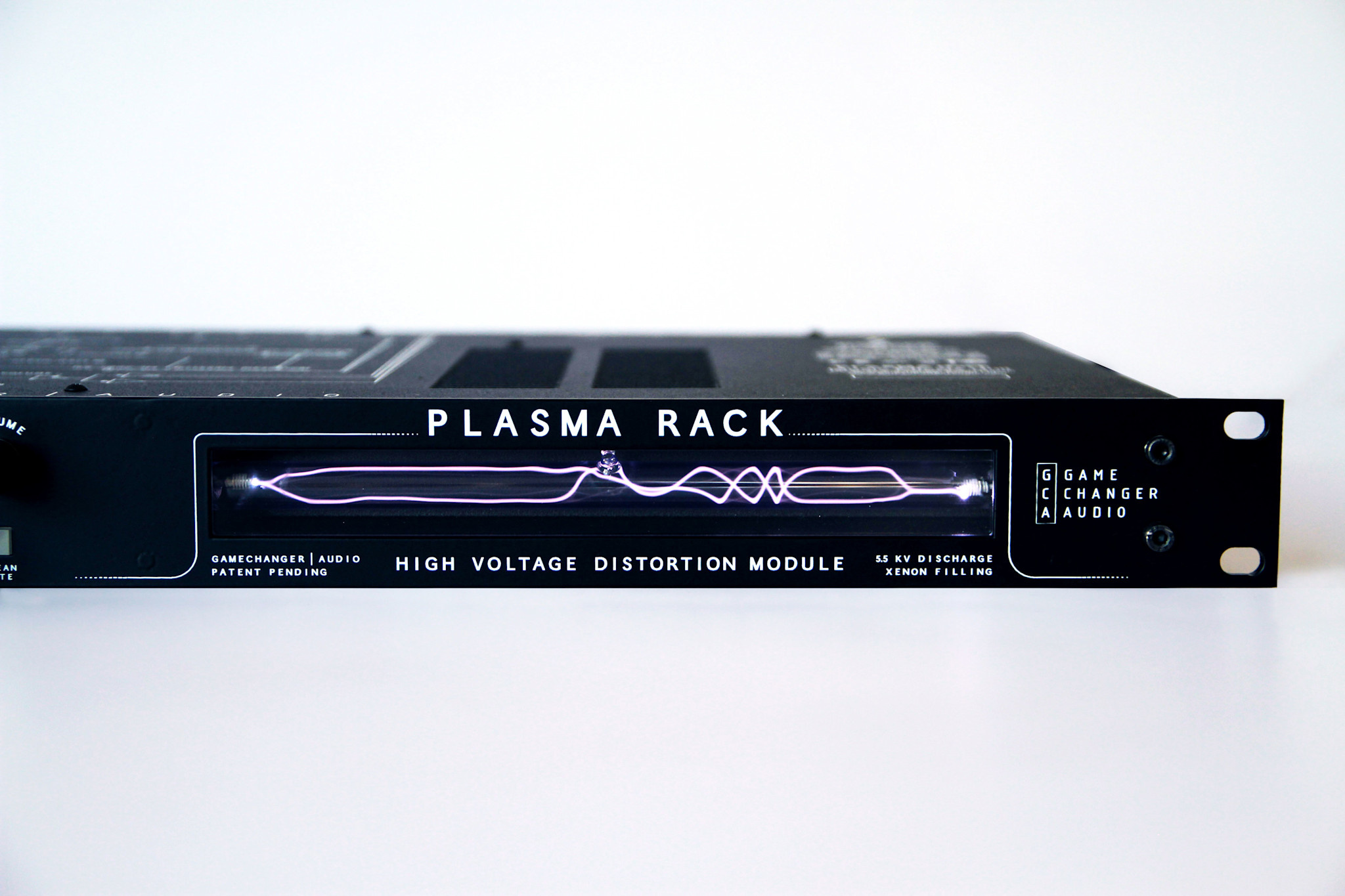

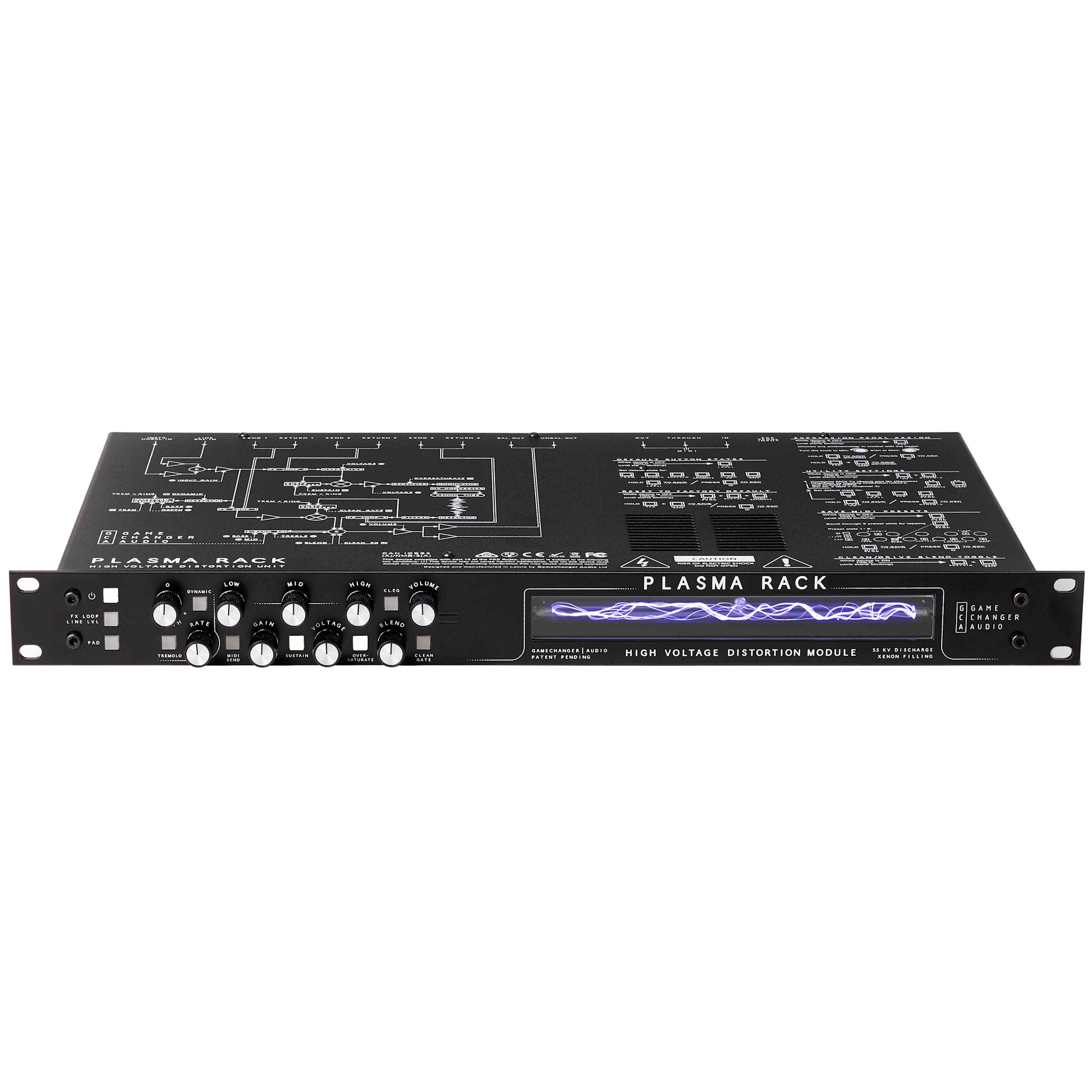

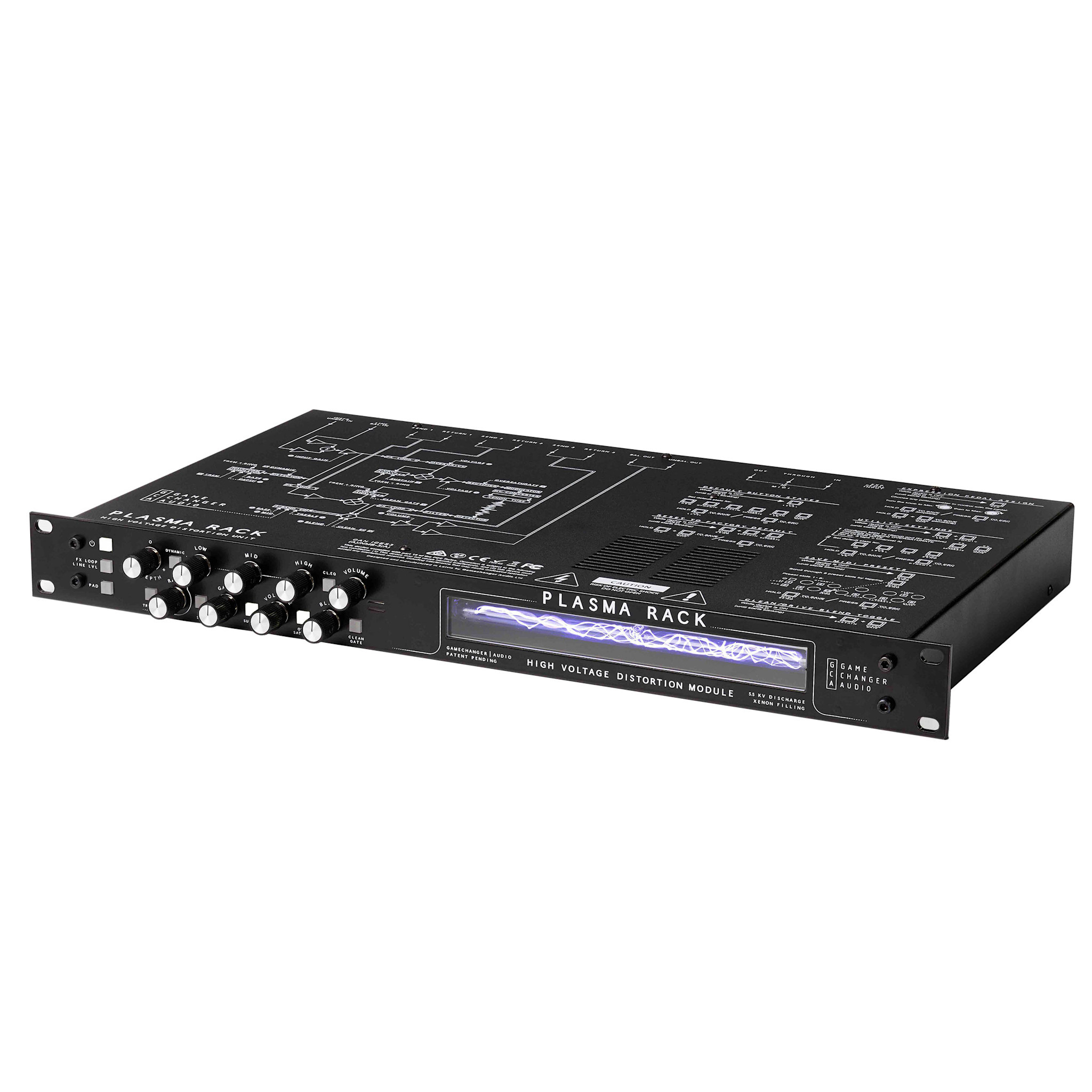

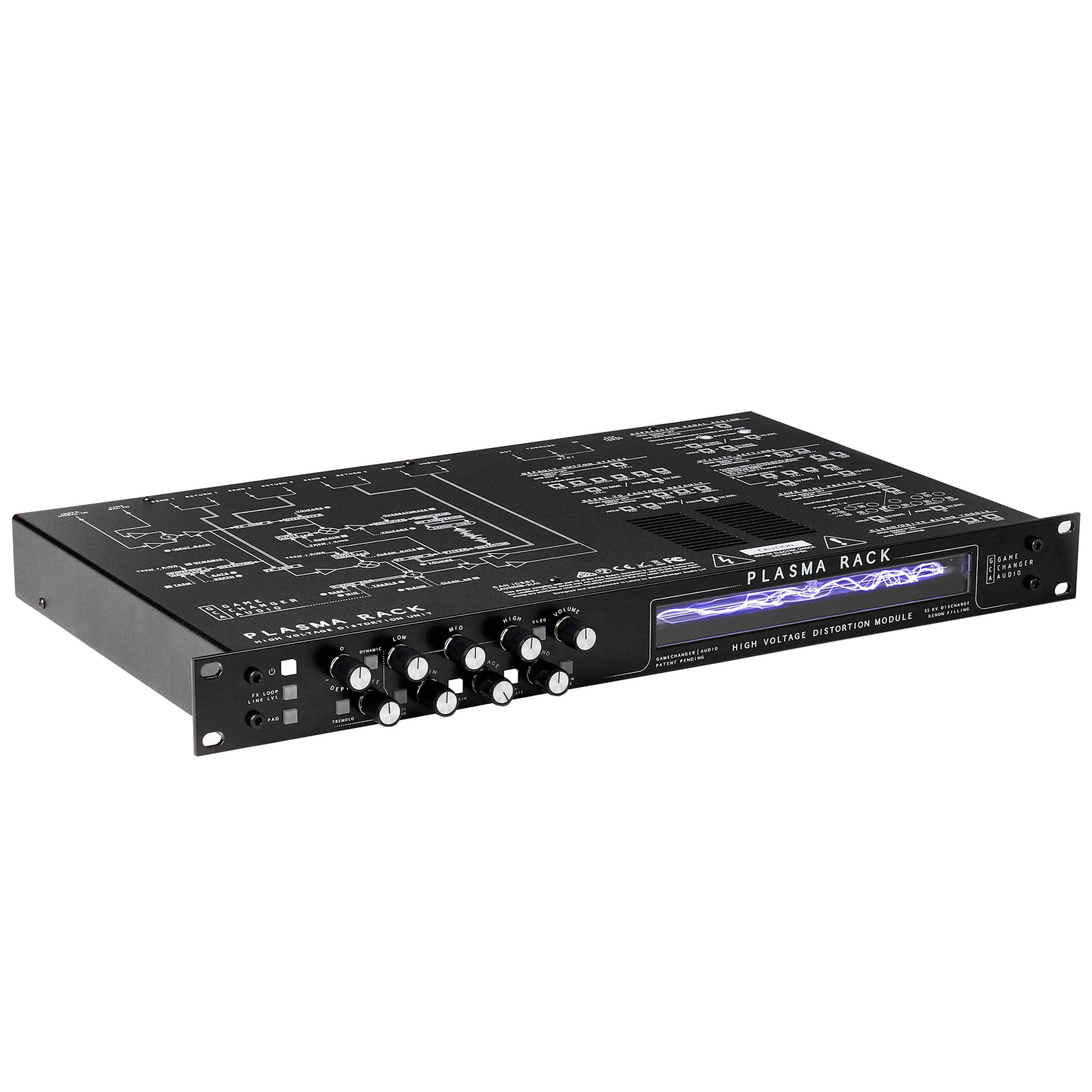

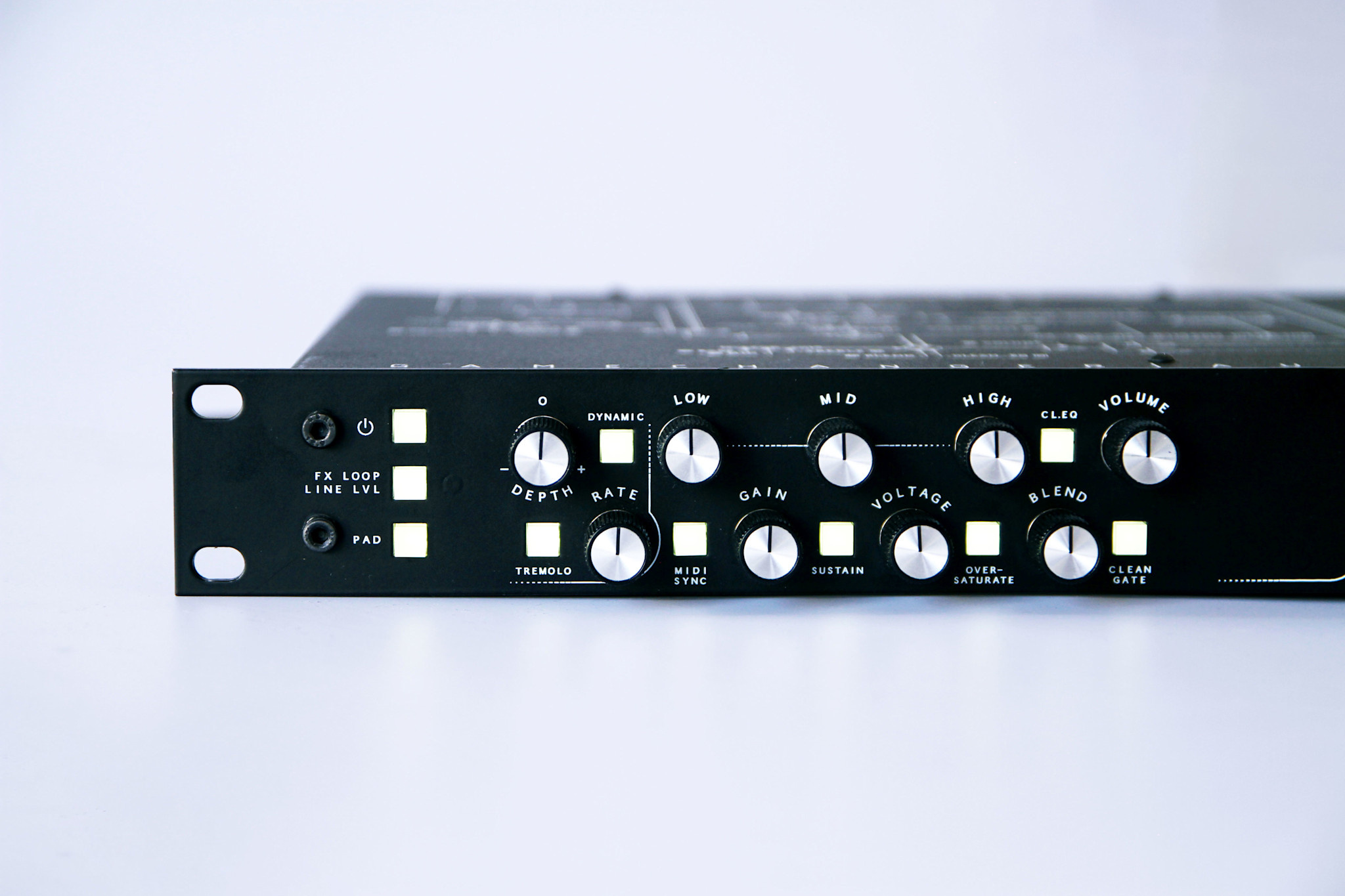

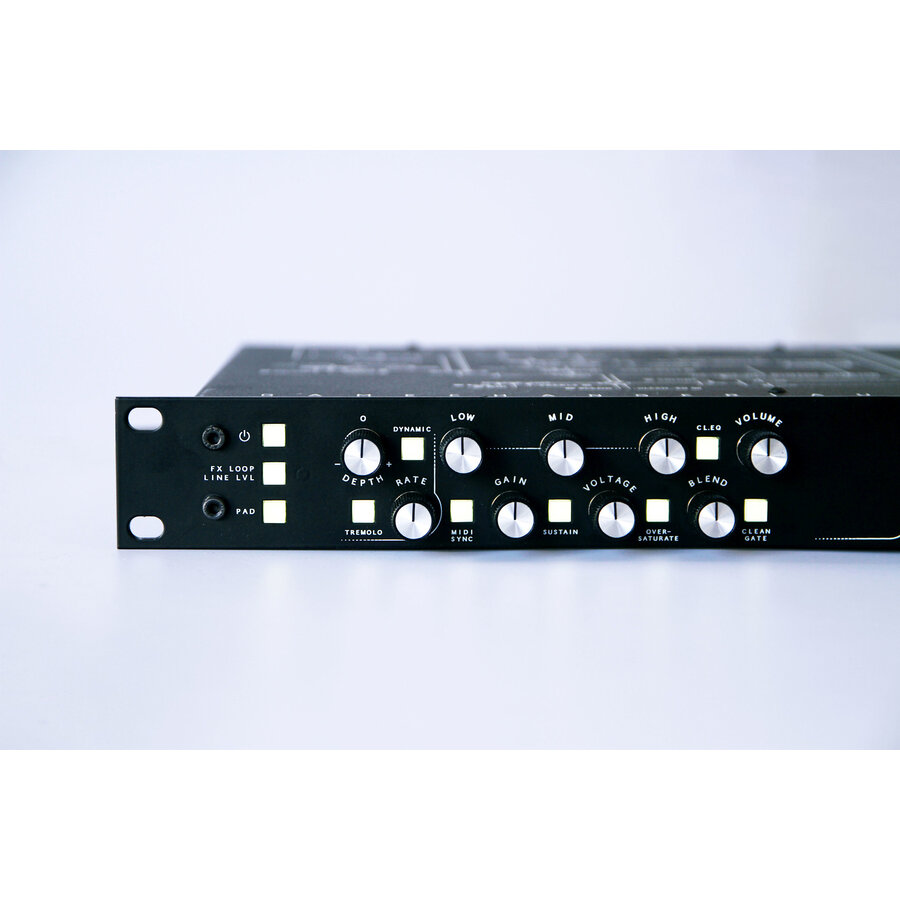

The PLASMA Rack distorts audio signal by transforming it into visible high voltage electric discharge in a xenon tube. The wide frequency spectrum works great with various sound sources. The PLASMA rack has a unique gritty distortion and carefully designed controls. The naturally occurring noise gate effect interacts with the VOLTAGE knob and input level. This combined with the DRY/WET mix knob makes PLASMA Drive perfect for drum machines and fx tracks.
Modulating the xenon lamp creates extraordinary TREMOLO and RING MOD sounds. The CLEAN GATE effect adds the signature PLASMA gating effect to the clean signal. The SUSTAINER circuit allows to dial in sputtery broken sounds without losing sustain. The OVERSATURE circuit overloads the tube and adds upper harmonics and changes the dynamic response. This together with sophisticated I/O and full MIDI implementation makes for a powerful post-production and post-destruction machine.
- Distortion that integrates in a studio with instrument/line level signal processing and balanced & unbalanced I/O;
- Previously unheard gritty CLEAN GATE effect that can be applied on dry sound without distortion;
- Dynamic TREMOLO / RING MODULATOR effect modulates the xenon lamp resulting in a unique effect that can be controlled by the input level;
- Distort stereo tracks with two units in master/slave configuration;
- Recall your distortion presets with MIDI PC and control all parameters with MIDI CC.

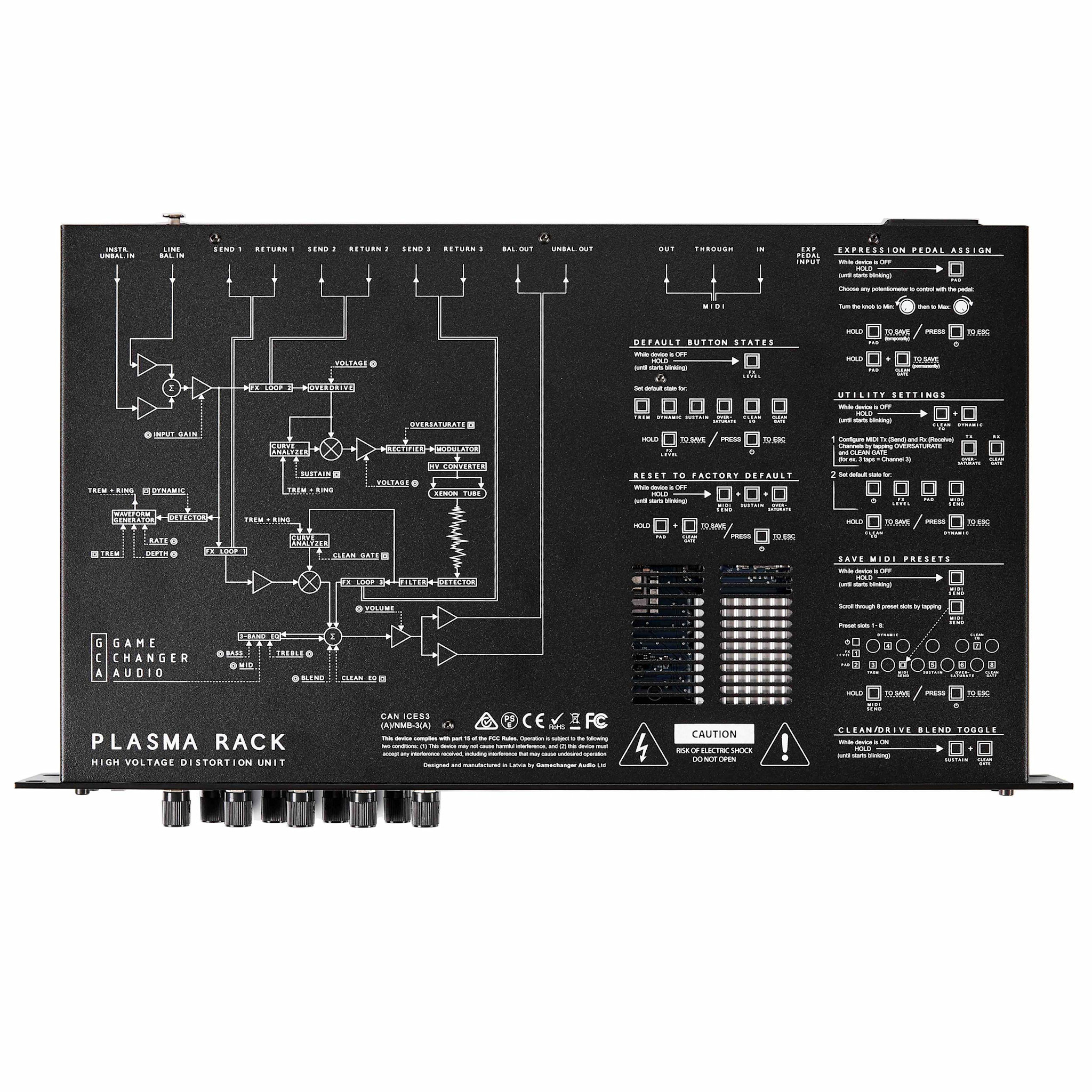

PRODUCT DETAILS
User manual: https://www.gamechangeraudio.com/wp-content/uploads/2019/07/Plasma_Rack_User_Manual.pdf
|

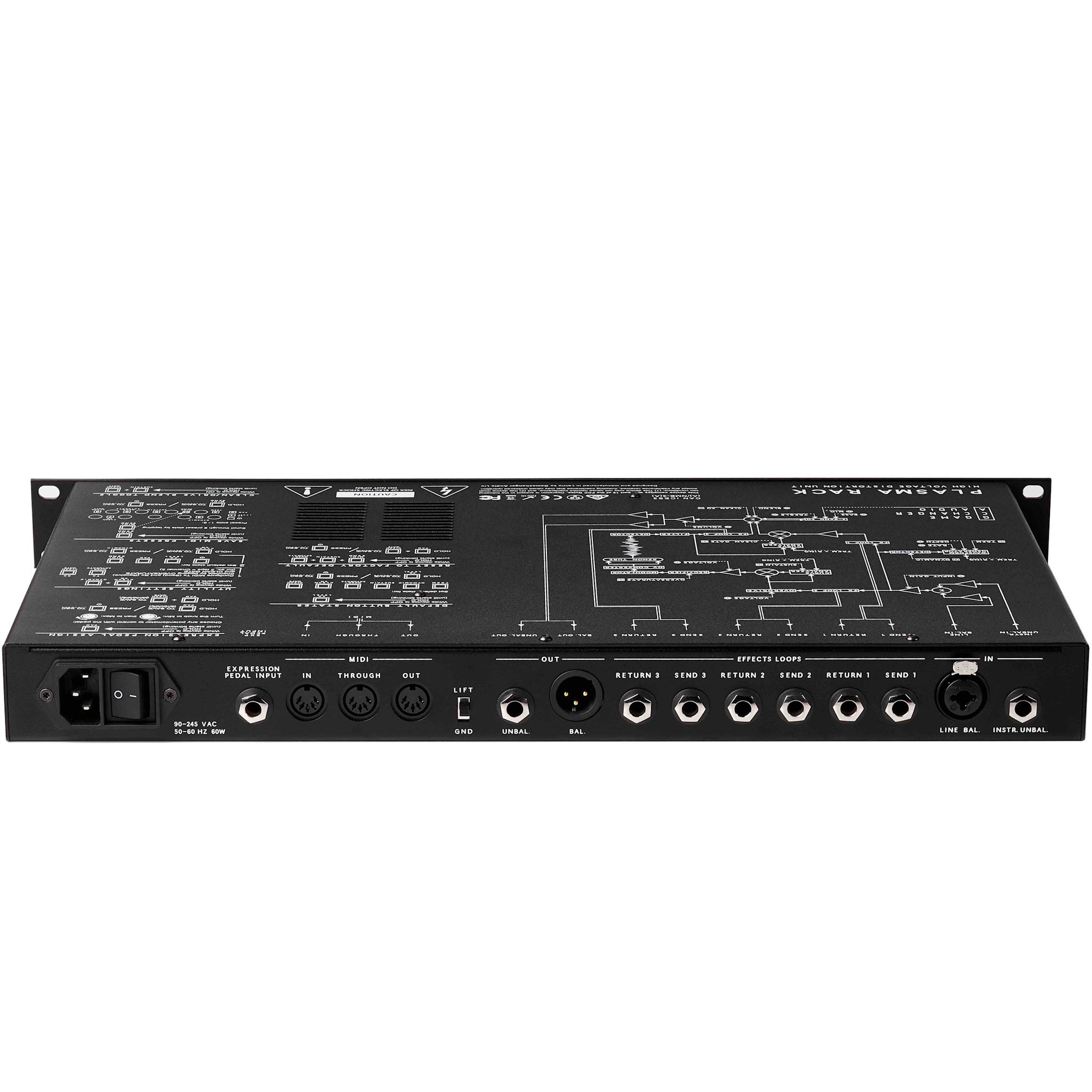

SPECIFICATIONS IO
|
|
Unbalanced inputs
|
|
Connector
|
Tip-Sleeve ¼” Jack
|
|
Impedance
|
1 MΩ
|
|
Maximum input level
|
+ 11 dBu
|
|
Maximum undistorted input level
|
0 dBu (Gain setting at minimum)
|
|
Type
|
Instrument input, RF filtered, true bypass to unbalanced output
|
|
Balanced inputs
|
|
Connector
|
Combo connector: Female XLR and Tip-Ring-Sleeve ¼” (Pin 2 and Tip hot)
|
|
Impedance
|
4.38 kΩ; 1.5 kΩ (PAD switch on)
|
|
Maximum input level
|
+17 dBu (Clamped by protection devices)
+37 dBu (PAD switch on, clamped by protection devices)
|
|
Maximum undistorted input level
|
+2dBu (Gain setting at minimum)
+22 dBu (PAD switch on, Gain setting at minimum)
|
|
Type
|
Mic/Line input, RF filtered, true bypass to balanced output
|
|
Unbalanced outputs
|
|
Connector
|
Tip-Sleeve ¼” Jack
|
|
Impedance
|
220Ω
|
|
Maximum output level
|
+7 dBu
|
|
Balanced output:
|
|
|
Connector
|
Male XLR (Pin 2 Hot)
|
|
Impedance
|
200 Ω
|
|
Maximum output level
|
+ 10 dBu
|
|
FX loop send (1-3):
|
|
|
Connector
|
Tip-Sleeve ¼” Jack
|
|
Impedance
|
100 Ω
|
|
Maximum output level
|
+12 dBu (Line level)
-6 dBu (Instrument level)
|
|
FX loop return (1-3)
|
|
Connector
|
Tip-Sleeve ¼” Jack
|
|
Impedance
|
1 MΩ
|
|
Maximum input level
|
+14 dBu
|
|
MIDI in/out/through
|
|
|
Connector
|
5-pin DIN (180 degree)
|
|
Type
|
Optically isolated input, RF filtered
|
|
Expression pedal
|
|
|
Connector
|
Tip-Ring-Sleeve ¼” (Wiper tip, CCW ring, CW sleeve)
|
|
Type
|
Designed for potentiometer-based expression pedals, RF filtered
|
|
GAIN AND SIGNAL LEVELS
|
|
Preamp gain range
|
-26 to +12 dB
|
|
Unbalanced input
|
recommended level for 0dB gain setting: -15 dBu
|
|
Balanced input (PAD switch off)
|
recommended level for 0dB gain setting: -9 dBu
|
|
Balanced input (PAD switch on)
|
recommended level for 0dB gain setting: +11 dBu
|
|
FX loop level (Line)
|
+4 dBu at recommended input level
|
|
FX loop level (Instrument)
|
-15 dBu at recommended input level
|
|
Volume control gain
|
-80 to +12 dB
|
|
PAD attenuation
|
-20 dB, applies for balanced input only
|
|
EQUALIZATION
|
|
Low frequency
|
10 Hz, -20 to 20 dB Low-pass shelving filter
|
|
Mid frequency
|
600 Hz, -6 to 6 dB
|
|
High frequency
|
20 kHz, -10 to 10 dB, High-pass shelving filter
|
|
Type
|
Baxandall, MIDI controllable
|
|
TREMOLO
|
|
Rate range
|
0.85 to 2600 Hz
|
|
Depth control
|
0 – 100%, in (positive range) or out (negative range) of phase between clean and distorted signals
|
|

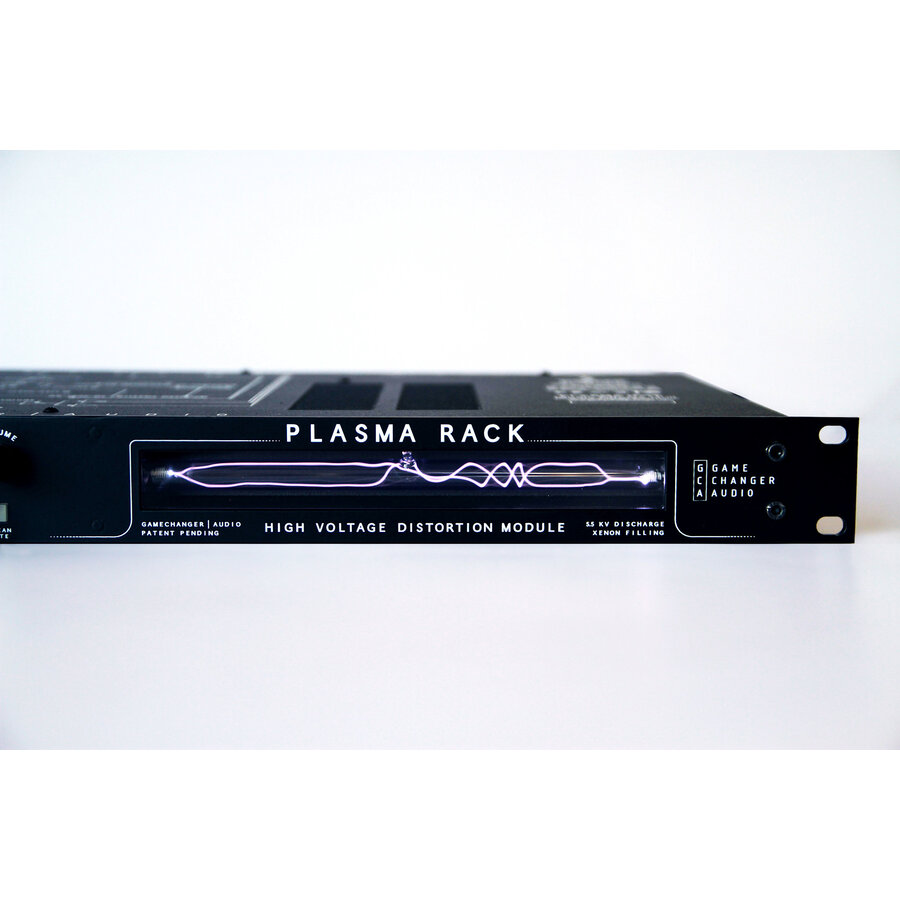

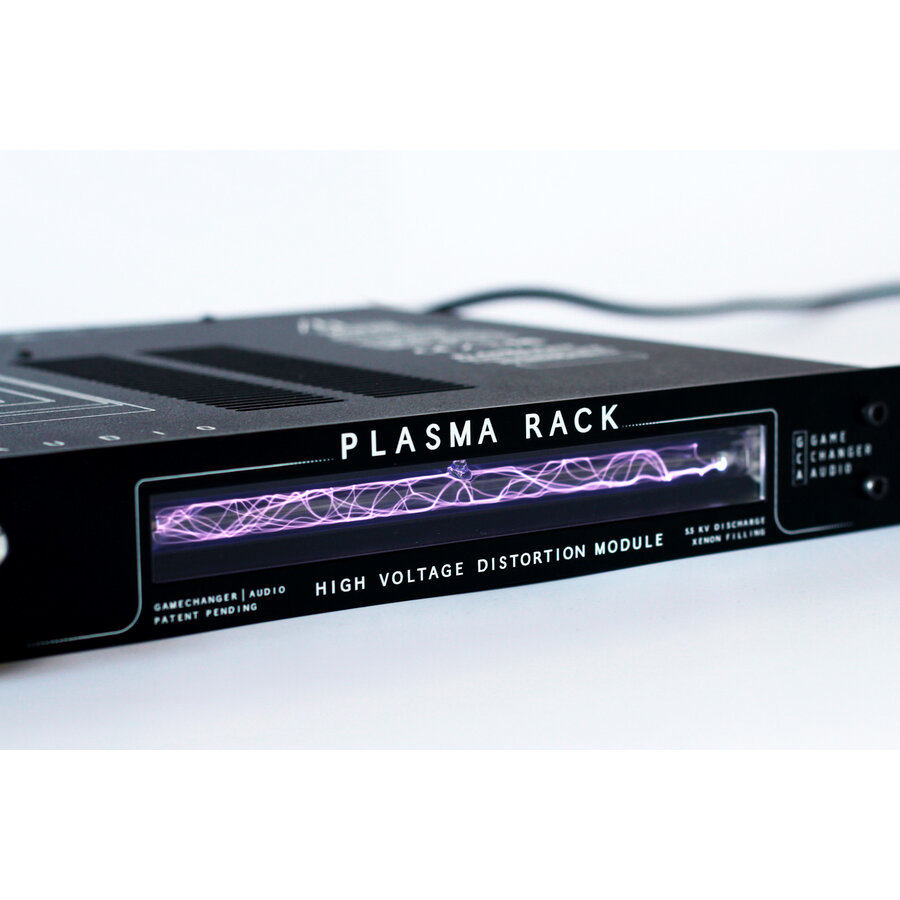

TUBE
|
|
Gas
|
Xenon
|
|
Discharge voltage
|
5.5 kV
|
