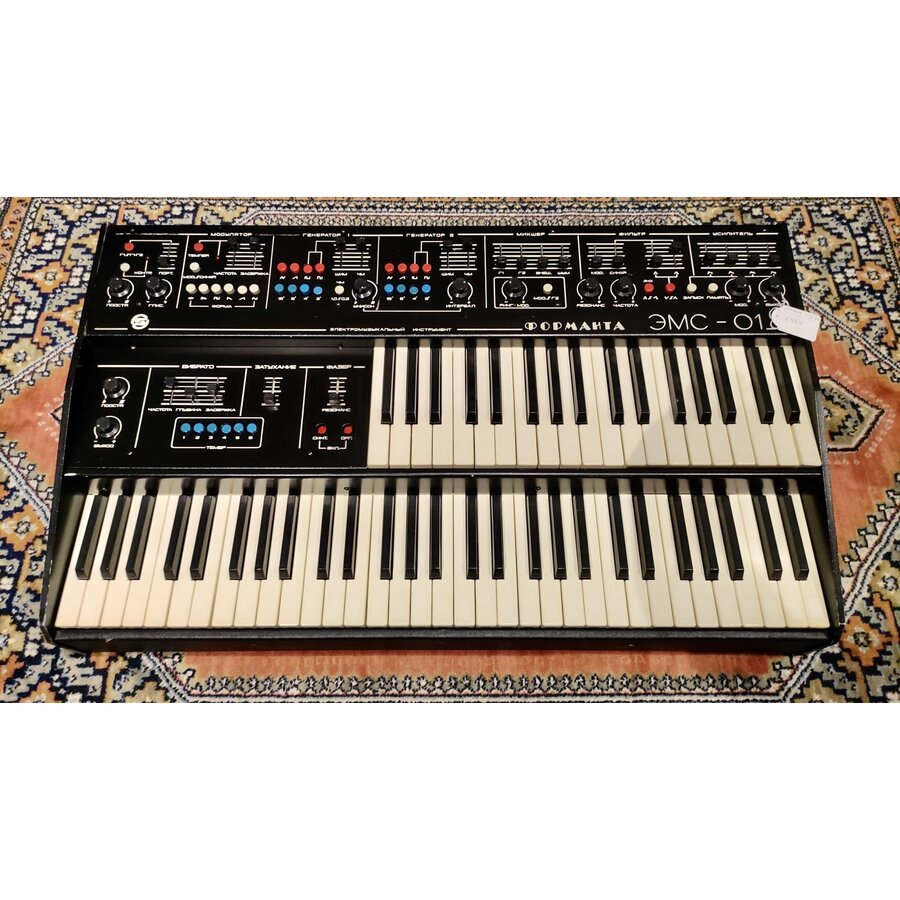

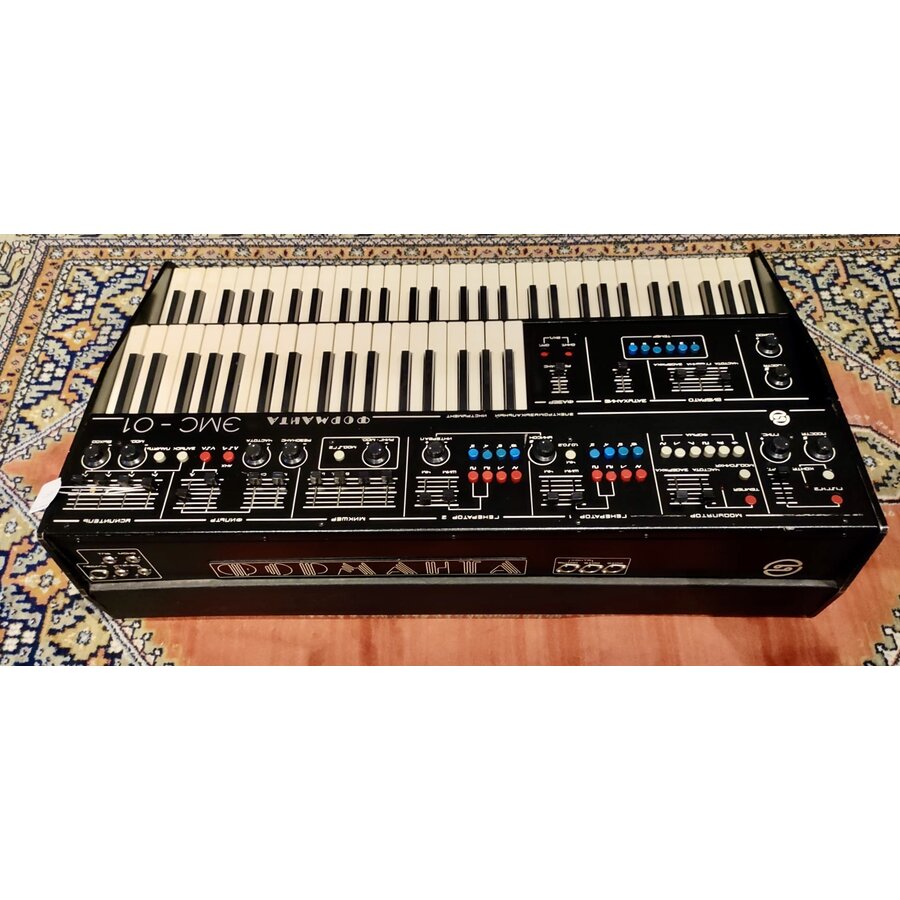

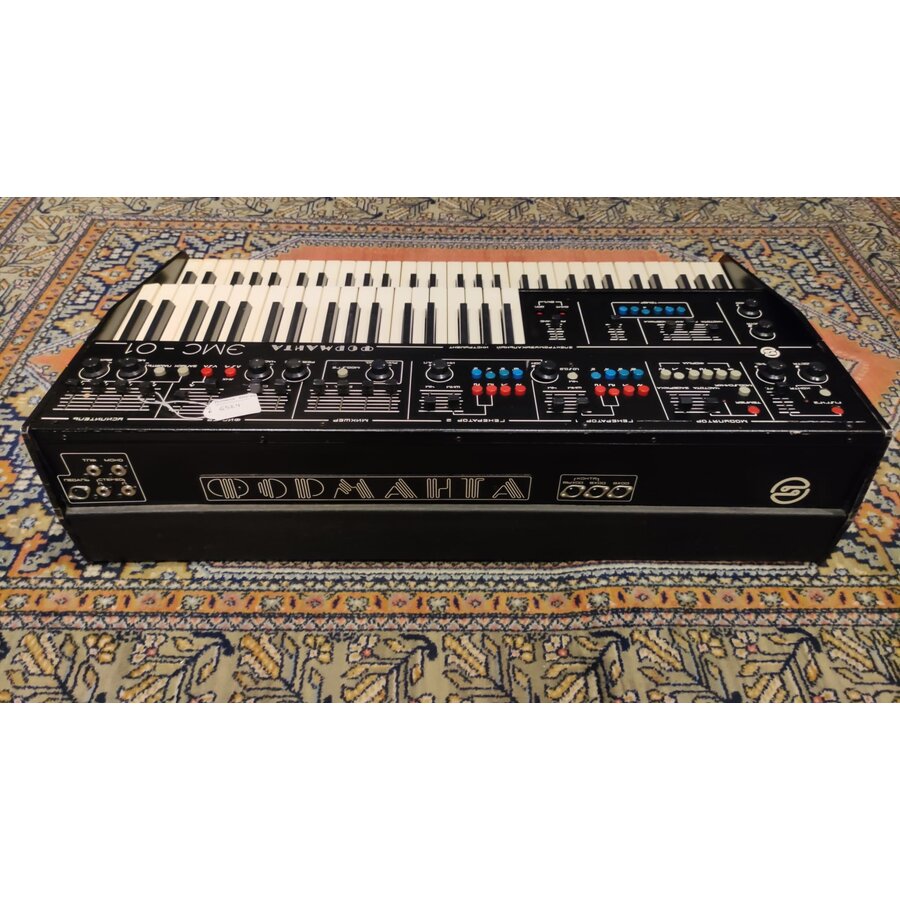

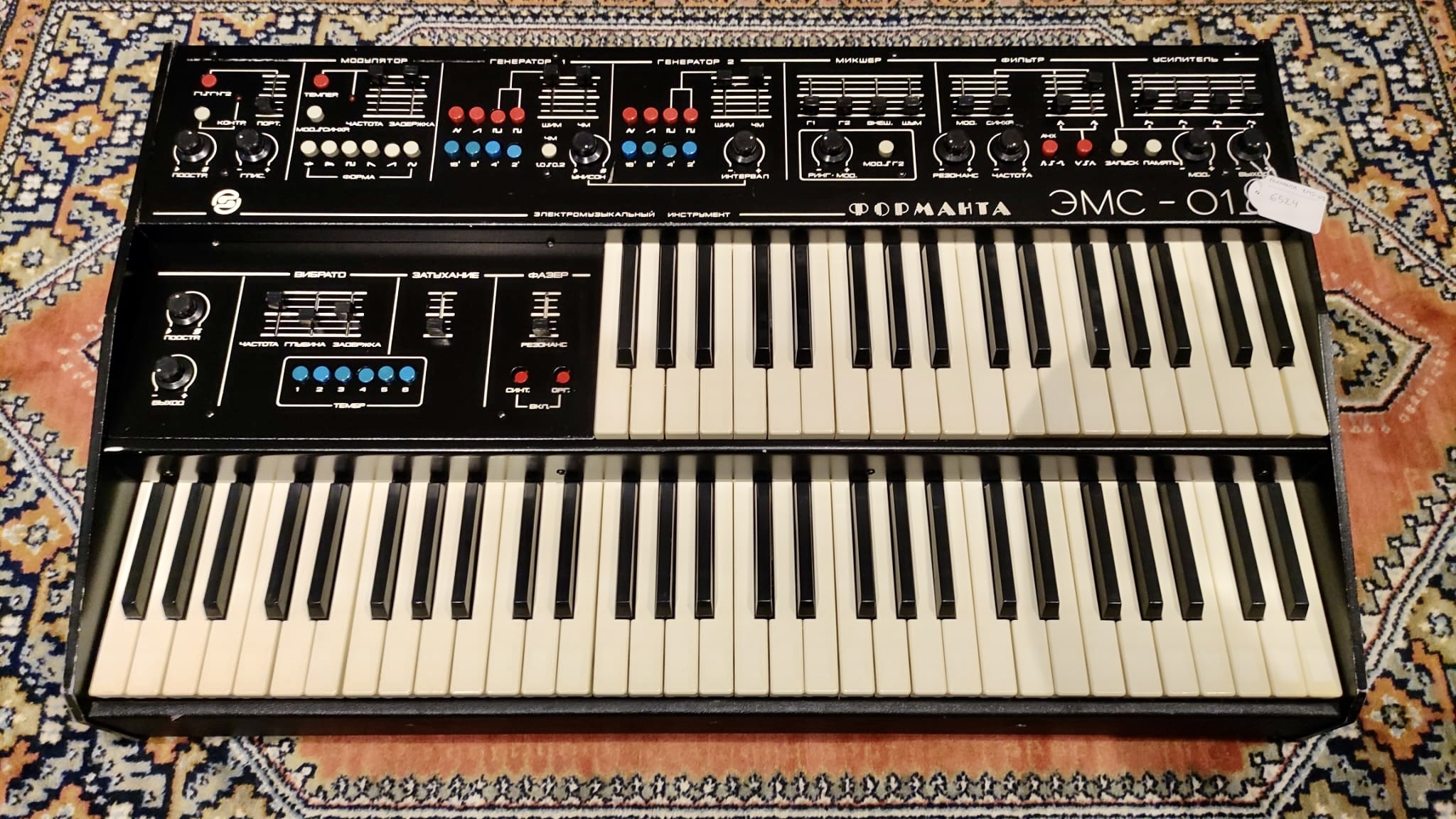

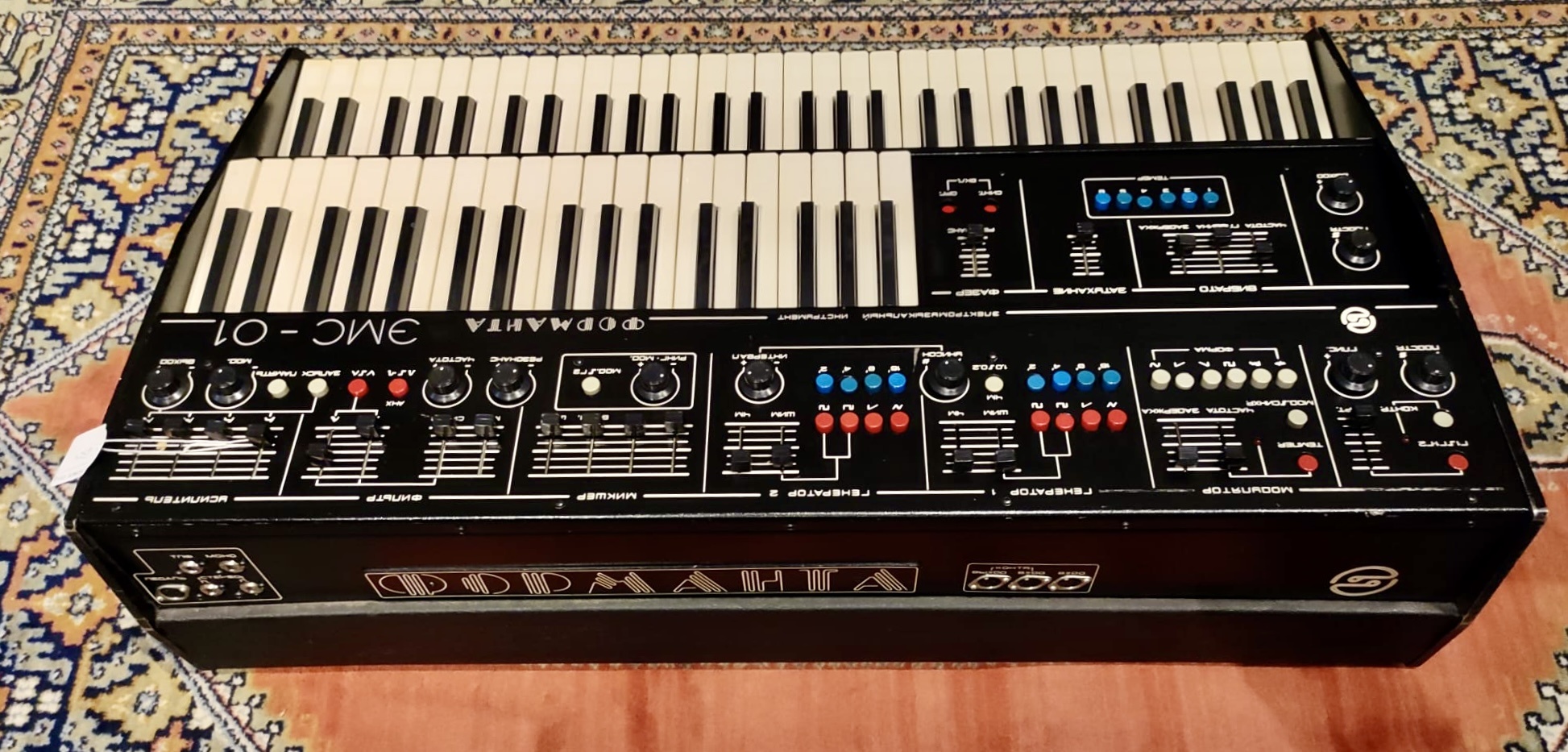

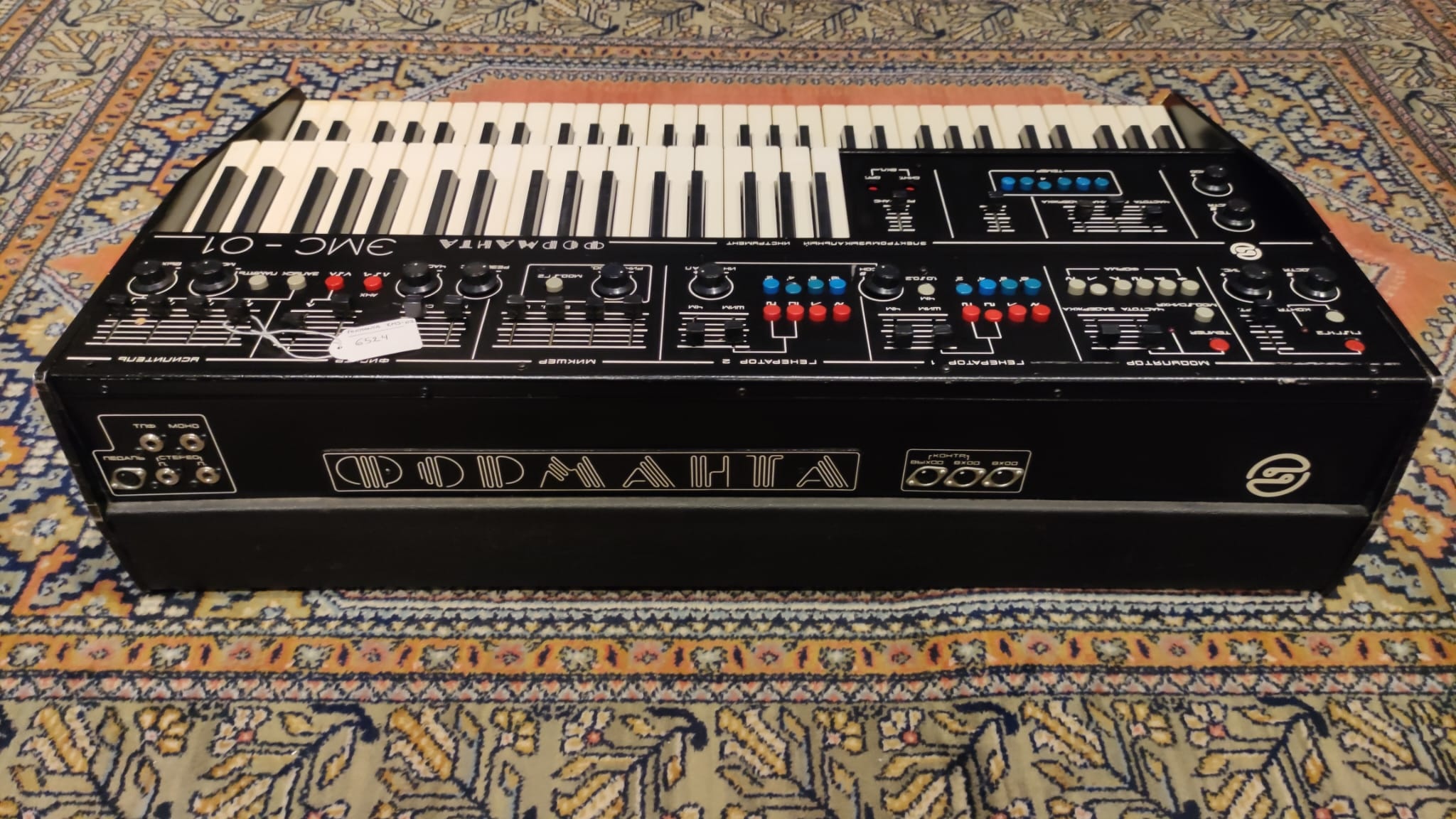

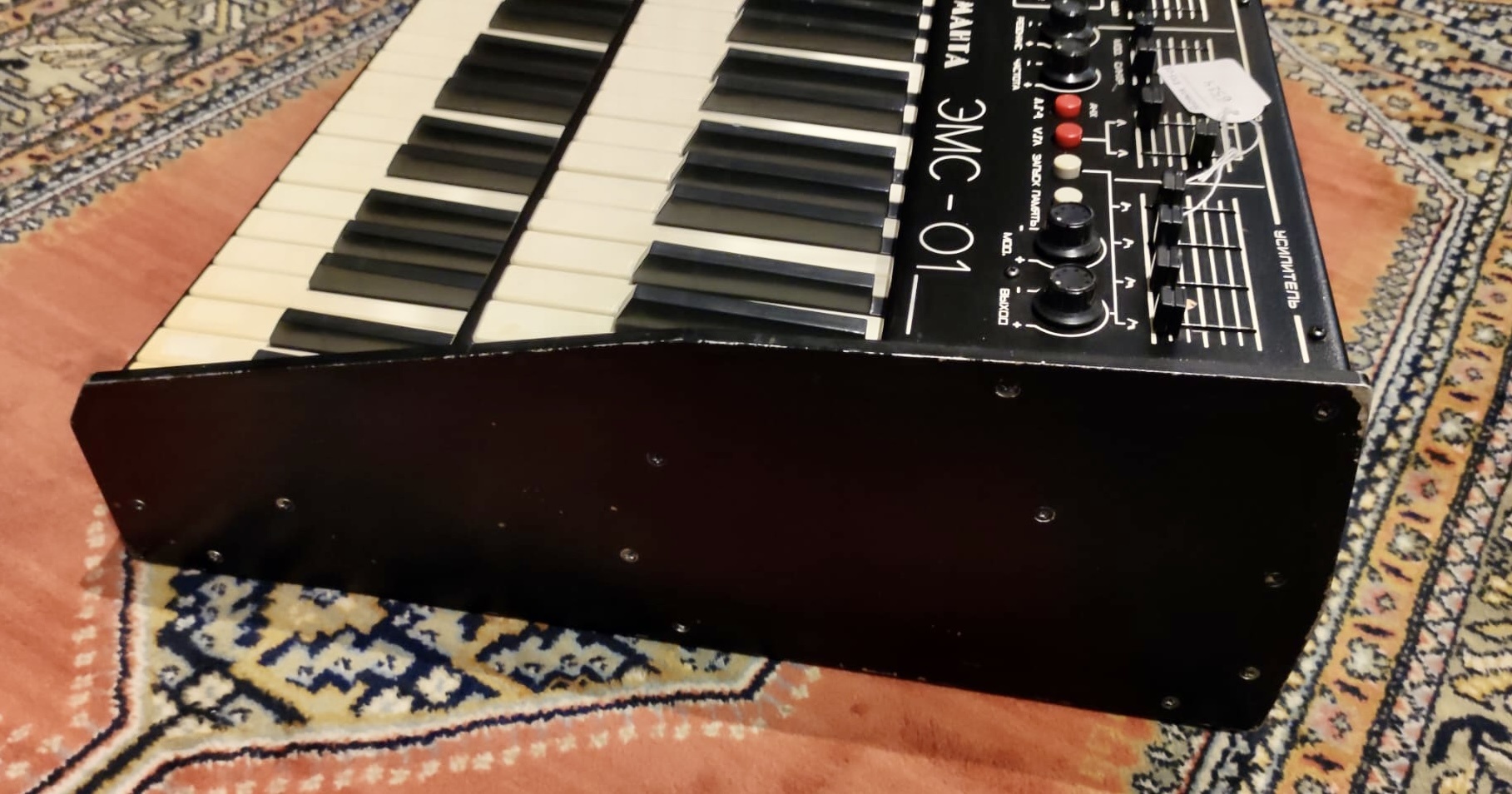

FORMANTA EMS-01 is an electronical music instrument combining a polyphonic organ and a monophonic synthesizer. It is designed to perform music of all genres and to create various sound effects while recording soundtracks for movies and plays, or studio recording. The organ has a 5-octave keyboard, 6 preset sound timbres, frequency vibrato with adjustable vibrato delay, decay adjustment and a stereophaser (both for organ and synthesizer). The "vibrato delay" scheme is activated again only after all the previously pressed keys are released. In the "legato" mode the "vibrato delay" scheme is not activated.

The synthesizer has:

• 3-octave keyboard;
• modulator, modulation voltage from which is applied to frequency modulator, width modulator, filter, and amplifier;
• broad band oscillators 1 and 2 (with various waveforms);
• mixer, designed for summation of signals from oscillators 1 and 2, noise generator, external source, and ring modulator;
• filter, designed for dynamic and static changing of the spectrum of summarized signal from mixer output;
• amplifier, designed for making the sound corresponding to various parameters of the envelope;

Visual division of the synthesizer panel into the above listed sections and their lay-out make it more easy to orientate oneself while setting the required timbre. Besides, the synthesizer is able to simultaneously control one more similar synthesizer through a special cable and connectors CONTR IN and CONTR OUT.

The instrument provides the opportunity of connecting stereo headphones; the volume in headphones doesn't change in case of changing the volume of the instrument from zero to maximum at all the outputs of the instrument with the foot pedal; thanks to this, preliminary control of timbre through the headphones before applying it to amplifiers is possible. By switching on PHASER into the channel of organ or synthesizer, it is possible to get stereo sound in the outputs STEREO L and STEREO P. In case PHASER is switched off, both channels will function in MONO mode.

Specifications:

• Supply voltage AC 220+10V, 50 Hz;
• Power consumption within 75 VA;
• Operating conditions: temperature 15-35 C, humidity 65%, barometric pressure 86,6 - 106,6 kPa;
• Relative frequency deviation after 4 hours of uninterrupted operation within 0,5%;
• 5-octave organ keyboard;
• Organ band from 43,65 Hz (F controctave) to 1318 Hz (E in three-line octave);
• 3-octave synthesizer keyboard;
• Sound range - 9 octaves;
• Adjustment range for organ and synthesizer + 6% (+ 0,5 tone);
• Minimal range of continuous detuning of oscillator 2 regarding oscillator 1 - 1 octave;
• Range of adjustment of filter cutoff frequency 100- 1500 Hz;
• Minimal dynamic range - 55 dB;
