RedNet TNX is a portable Dante® interface that delivers high-resolution, ultra-low latency Dante audio with 128x128 channels at 24-bit/192kHz straight out of the box. With Dante Ready™, you can expand your system to 256x256 channels at 24-bit/96kHz — all via a single Thunderbolt™ connection for powerful and versatile audio workflows.

Portable Dante-Interface

• 128 x 128 channels at 24 bit / 192 kHz
• Expandable to 256 x 256 channels at 24 bit / 96 kHz with Dante Ready
• Seamless Dolby Atmos integration
• Supports AES67, Dante Domain Manager and SMPTE ST 2110
• Integrated Network redundancy
• Centralised control via RedNet Control
• Drivers for multi-client ASIO and WDM (Windows) and CoreAudio (Mac)

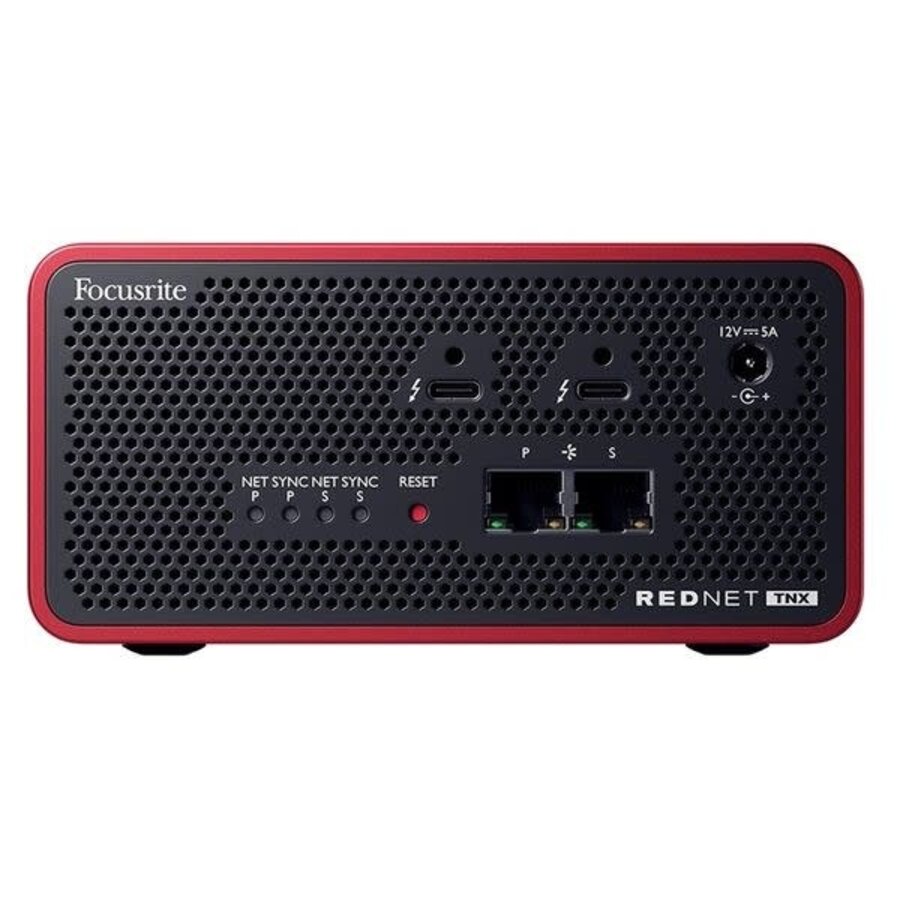

• Connections: 2 x Thunderbolt 3 and 2 x RJ45 Erhernet
• Dimensions (W x H x D): 144 x 71.6 x 212.4 mm
• Weight: 1.49 kg
• Includes external power supply
