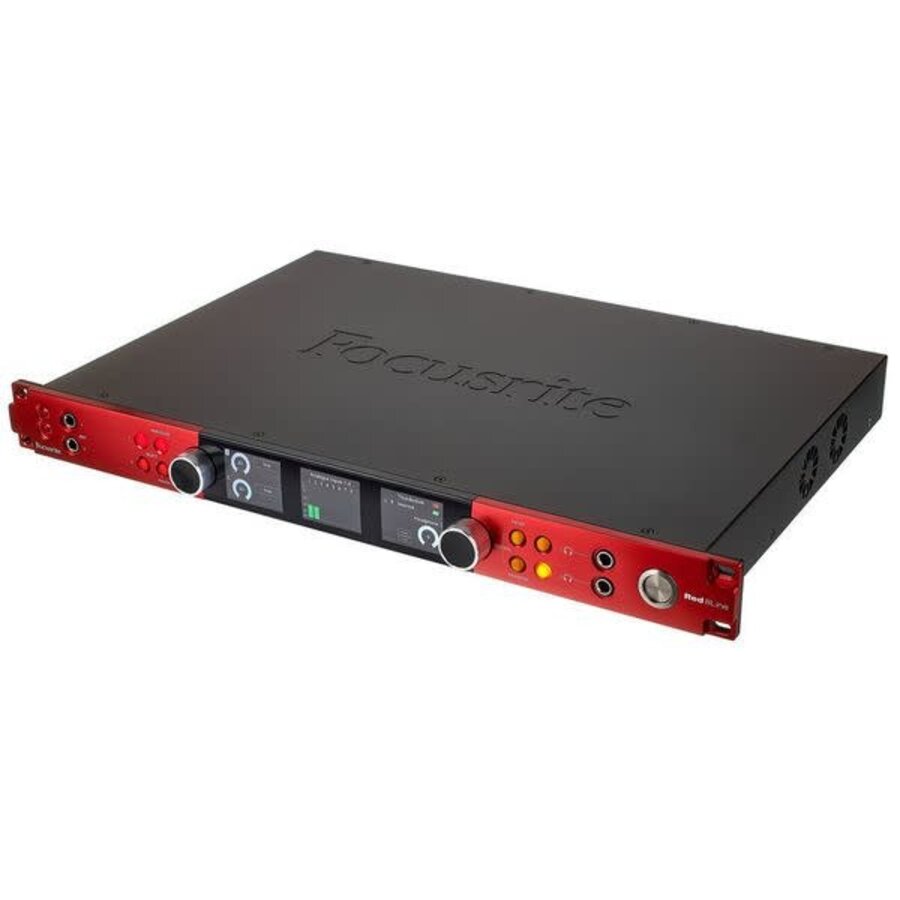

Thunderbolt 3 / Dante / Pro Tools HD Audio Interface

• 24 bit / 192 kHz
• Seamless multi-platform work flow
• Connectivity: Thunderbolt 3 interface, 2x mini DigiLink connections for direction connection to Pro Tools | HD cards, 2x Dante connections for Audio over IP
• Two integrated Red Evolution microphone preamplifiers with +48 V phantom power, high-pass filter, phase reversal and air mode, up to 63 dB distortion-free gain

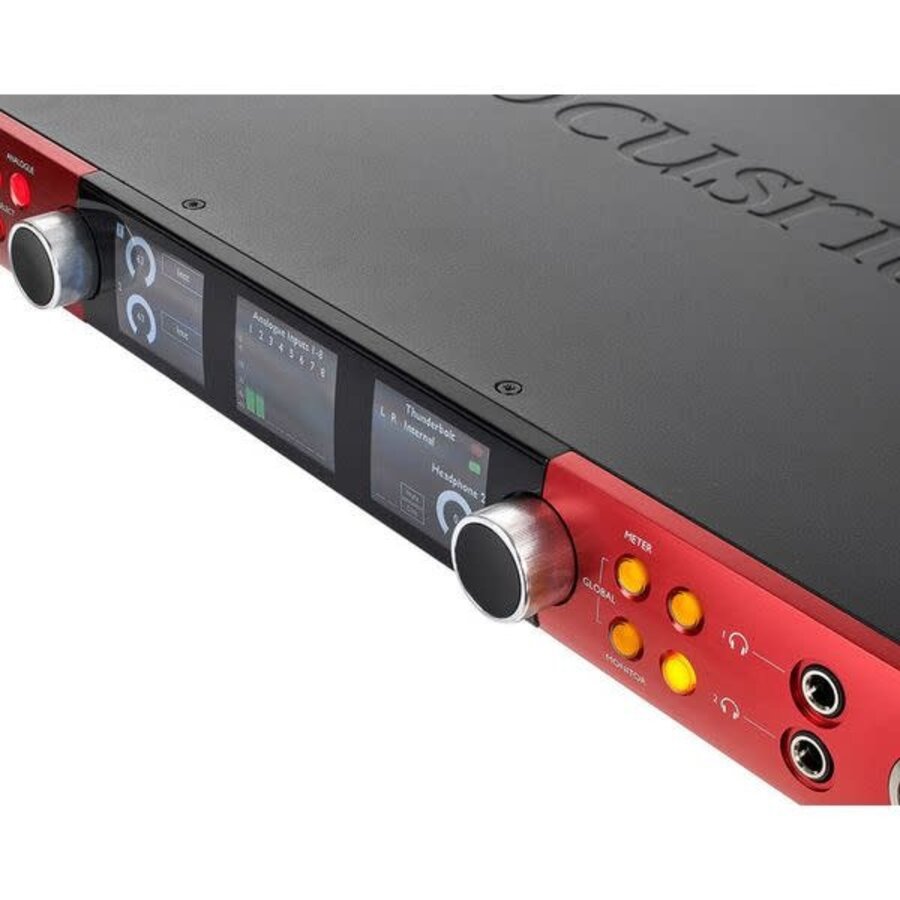

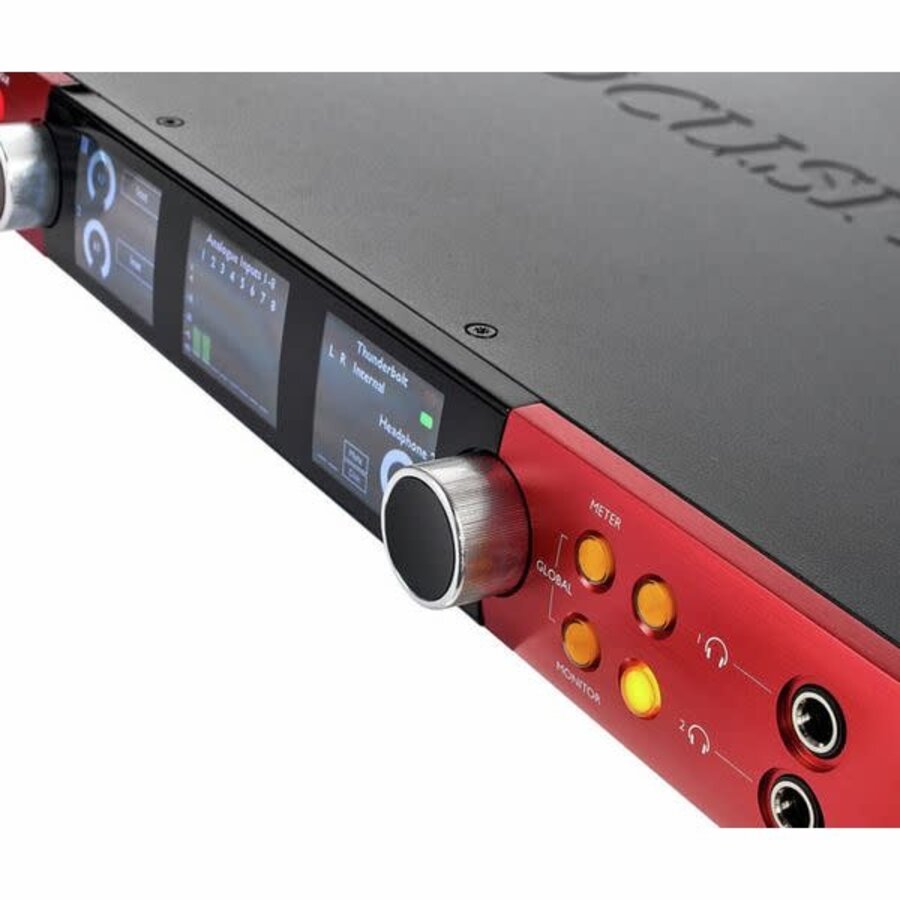

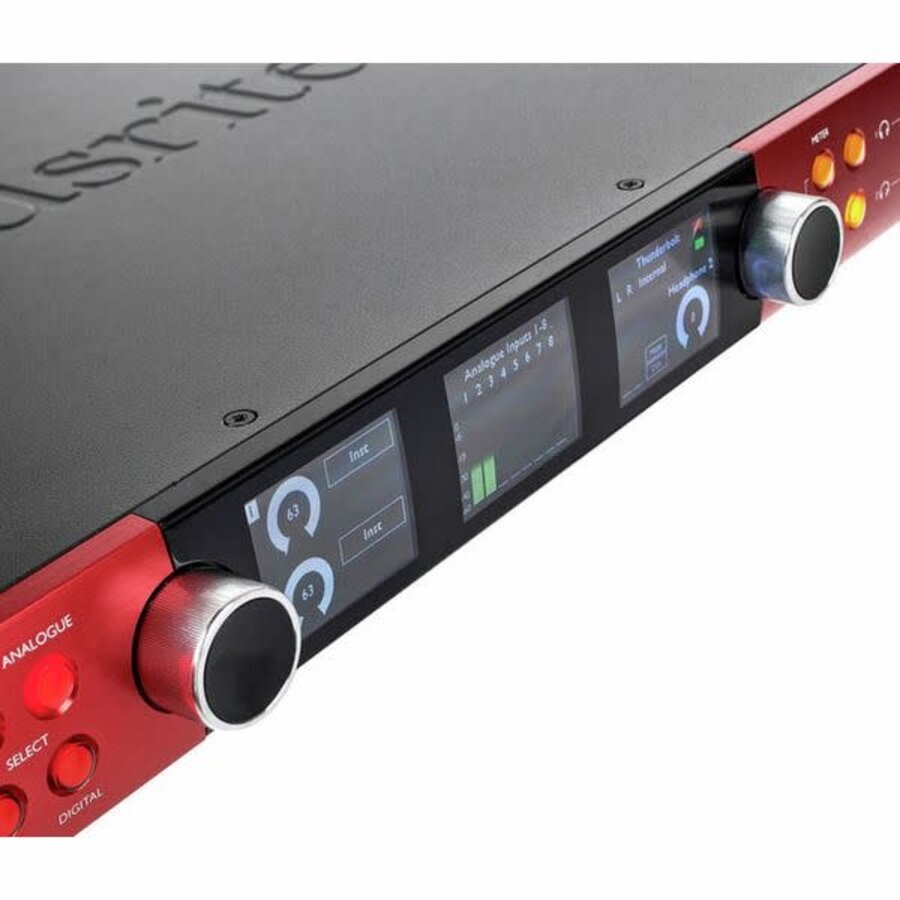

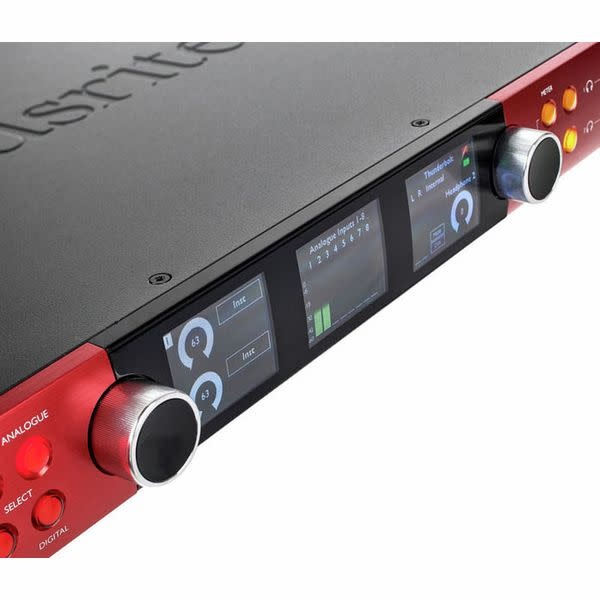

• 3 LC Displays
• Monitor control function supports mono, stereo, and multi-channel monitor setups with up to 10 channels including 7.1.2

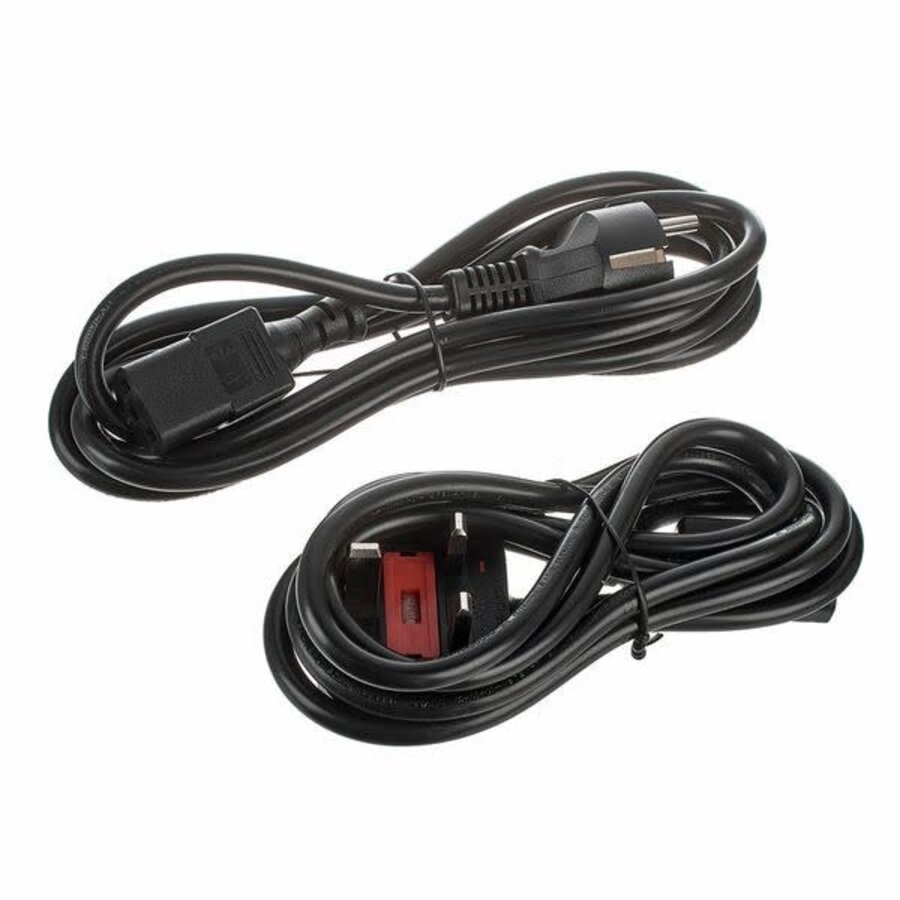

• Internal power supply 100 - 240 V, 50 / 60 Hz
• Windows 10 Thunderbolt driver

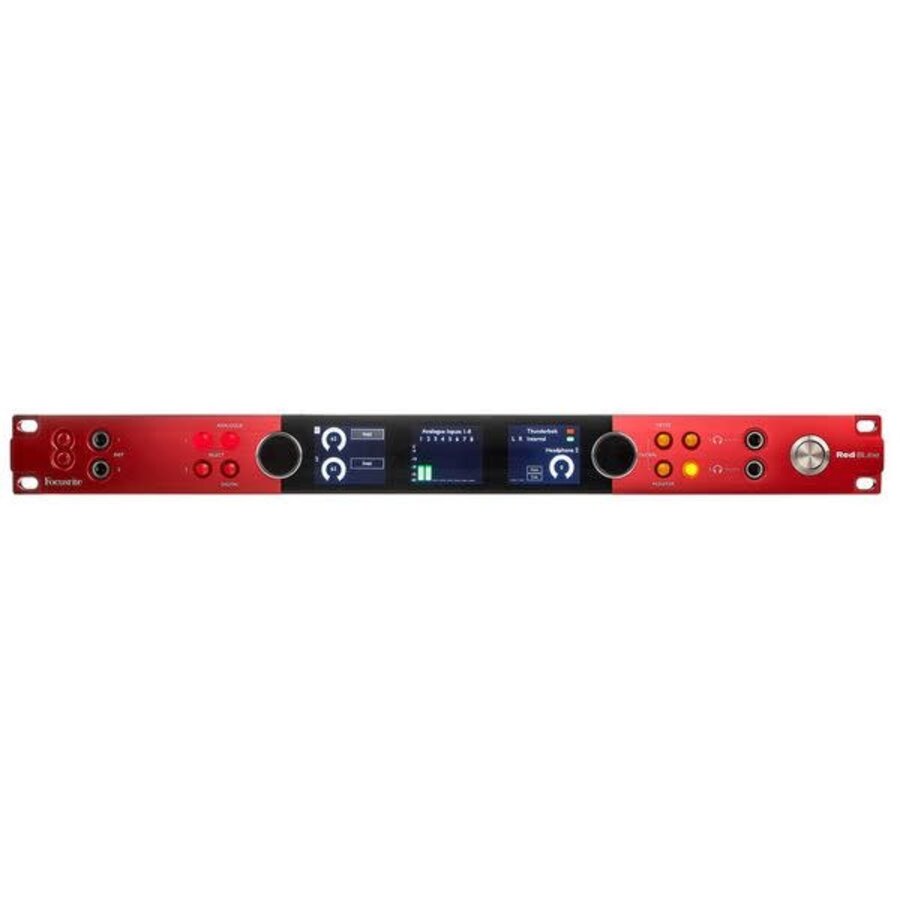

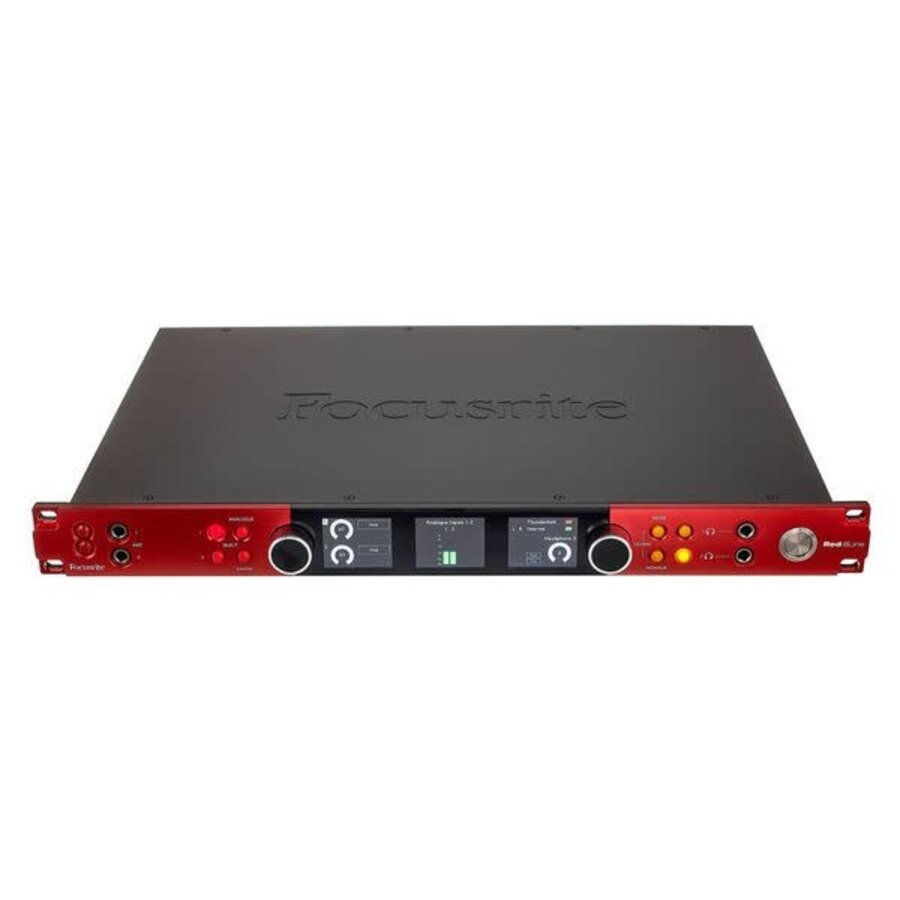

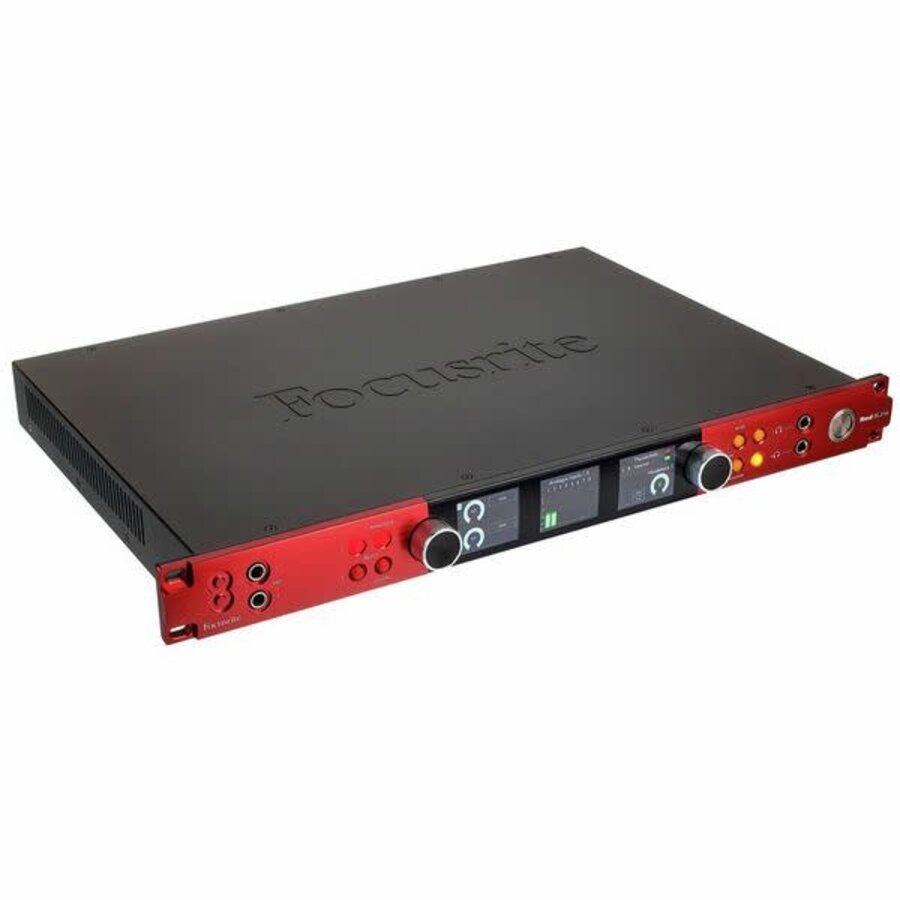

• Design: 19" / 1 U
• Dimensions (W x D x H): 482 x 44 x 343 mm
• Weight: 4.84 kg
• Incl. Hitmaker Expansion Software Bundle (Ableton Live Lite, 3 months Splice Sounds membership and plugin bundle for songwriting, mixing and mastering, Pro Tools Artist (three-month subscription) and Avid Complete Plug-in Bundle).

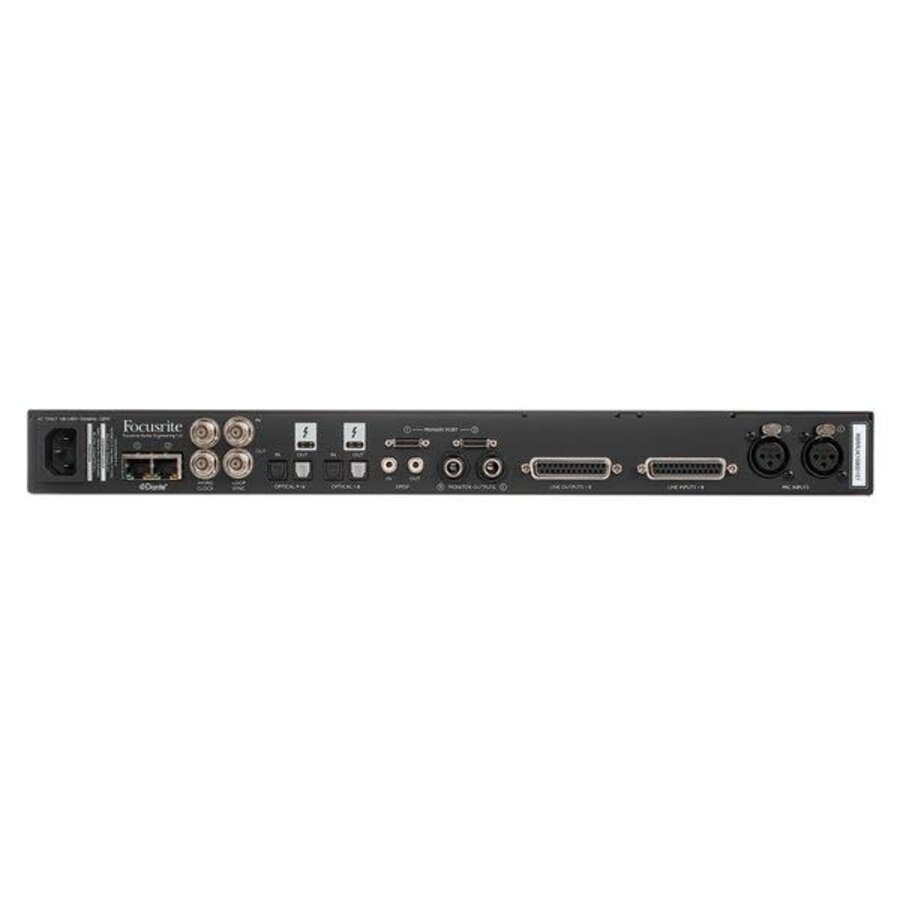

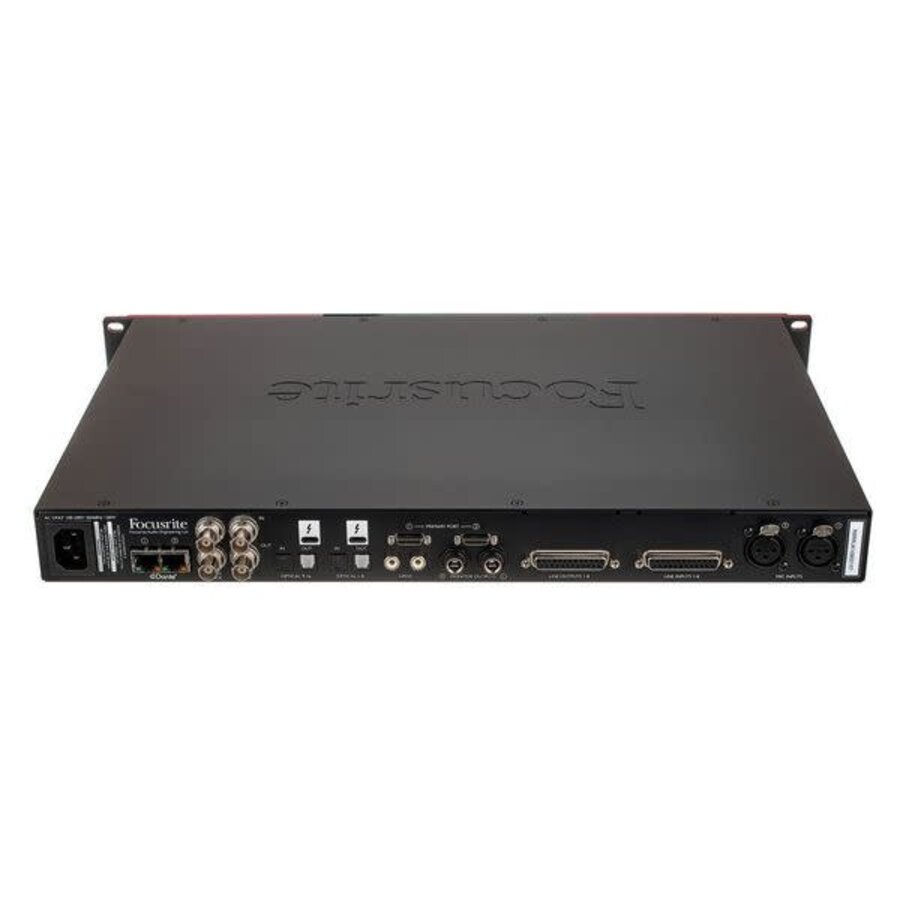

Connections:

• 2 Microphone inputs: XLR
• 2 Hi-Z instrument inputs
• 8 Line inputs and outputs: SubD-25
• 2 Monitor outputs: 6.3 mm jack
• S/PDIF coaxial input and output
• 2 ADAT inputs and outputs
• Word clock input and output: BNC
• Loop sync input and output: BNC

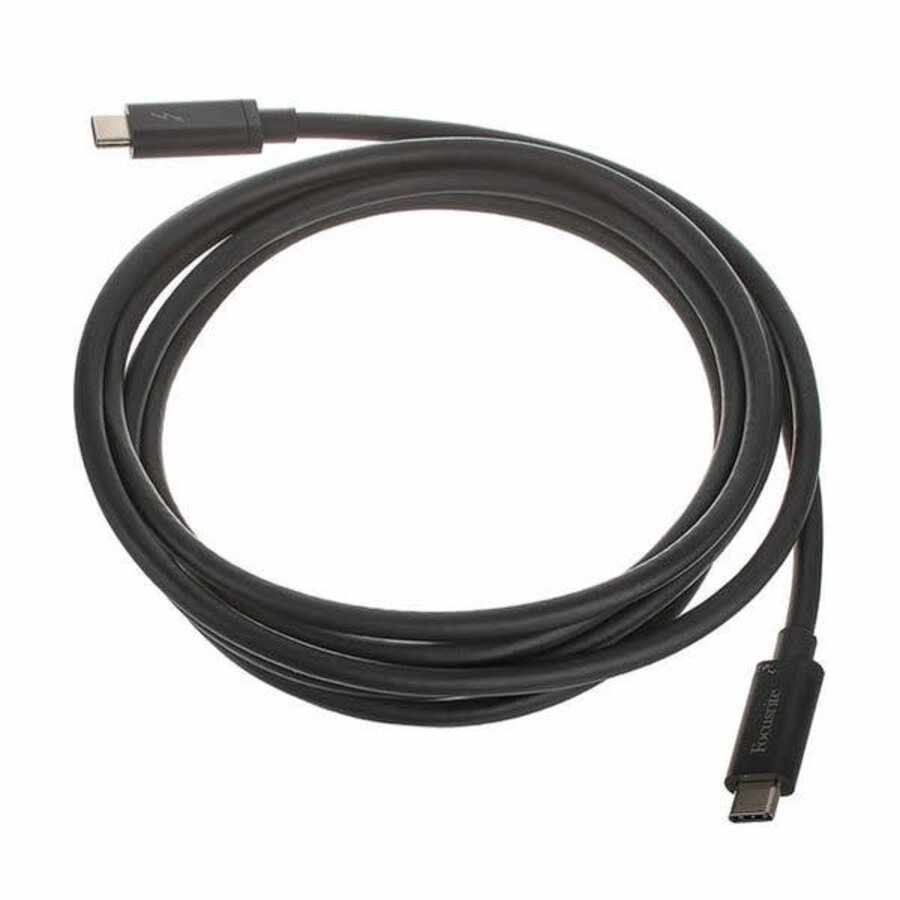

• 2x Thunderbolt 3
• 2x RJ45 ethernet Dante
• 2x Mini DigiLink
• 2 Stereo headphone outputs

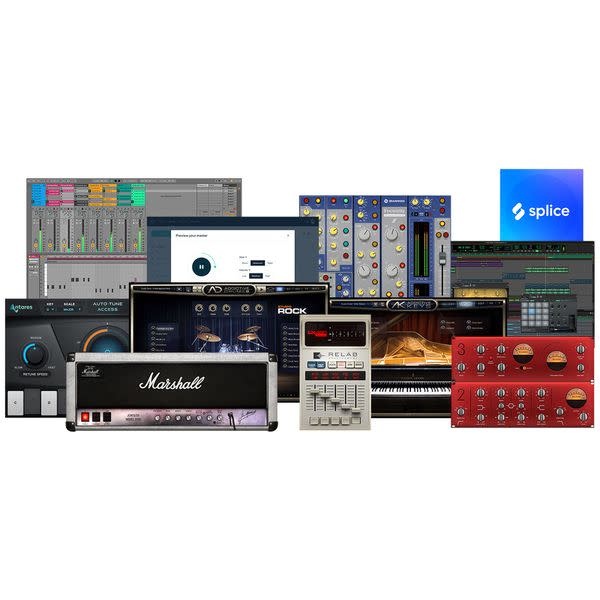

Hitmaker Expansion Plugins:

• LANDR - AI-based mastering tool (two-month subscription)
• Softube Marshall Silver Jubilee 2555 - Amp Sim
• XLN Audio Addictive Keys - Virtual Keyboard Instruments
• XLN Audio Addictive Drums 2: Studio Rock - Virtual Drum Library
• Antares Auto-Tune Access - Vocal Tuning
• Brainworx Bx_console Focusrite SC - Channel Strip
• Focusrite Red 2 & 3 Plug-in Suite - EQ and Compressor
• Relab's LX480 Essentials - Reverb
• Native Instruments MASSIVE, FAST Balancer
