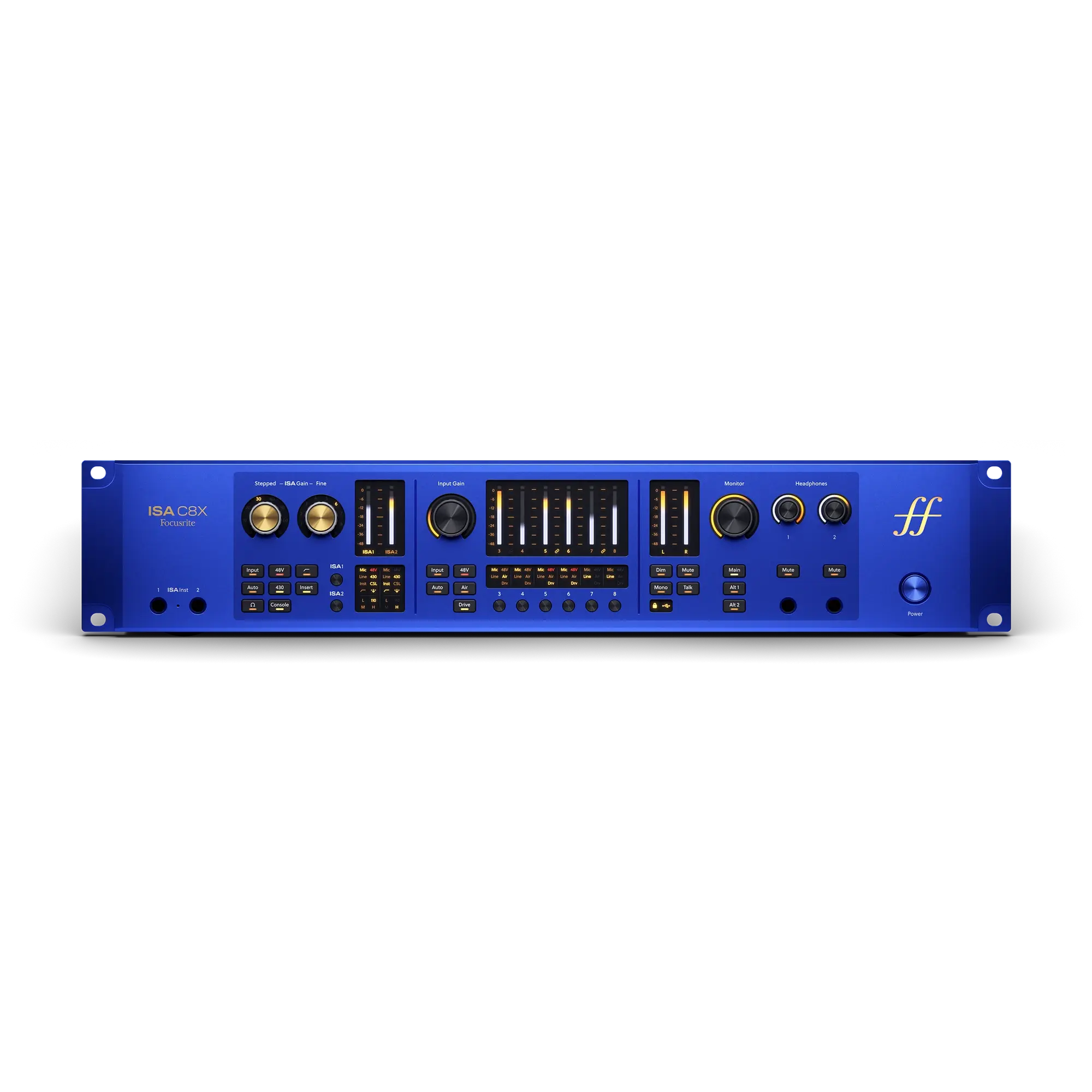

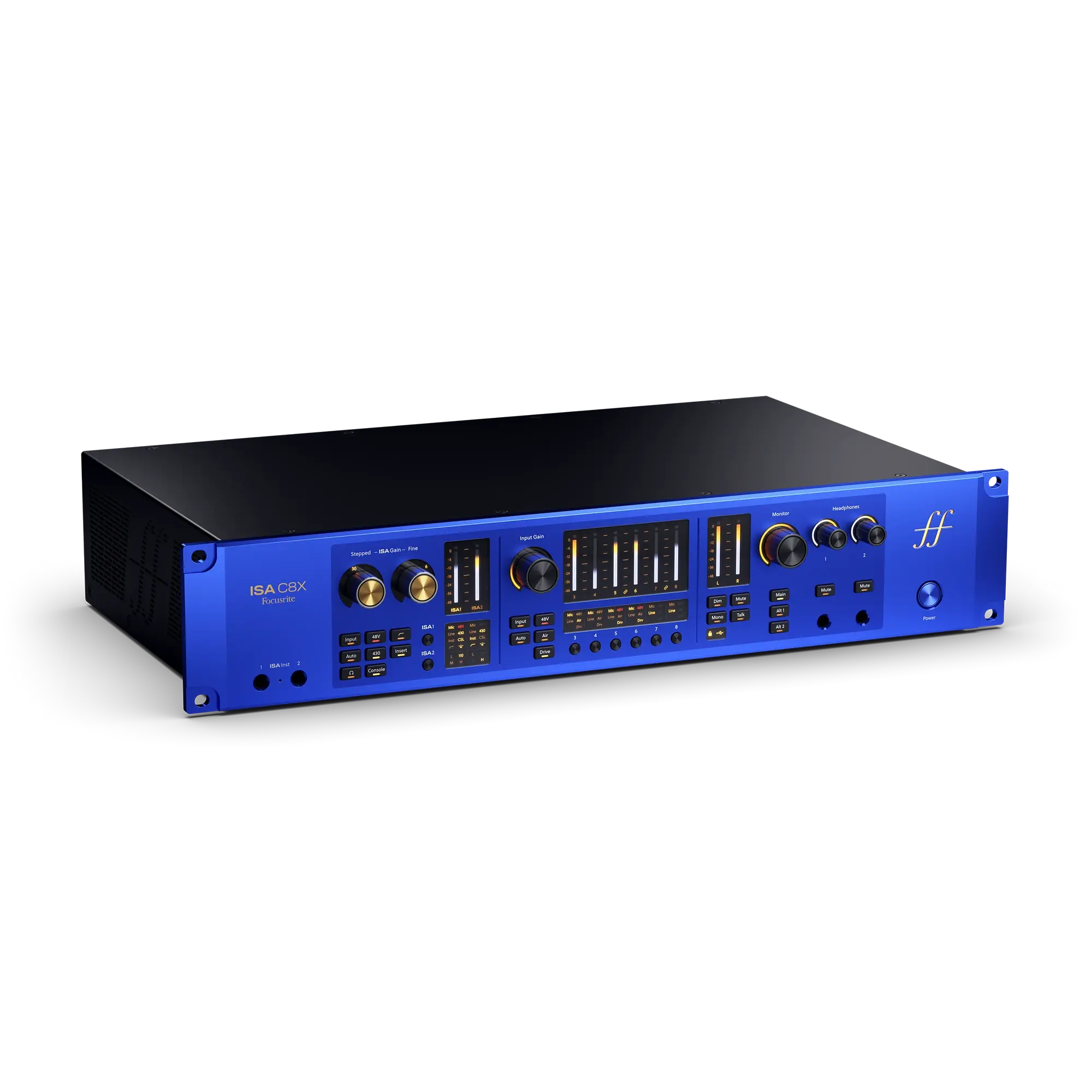

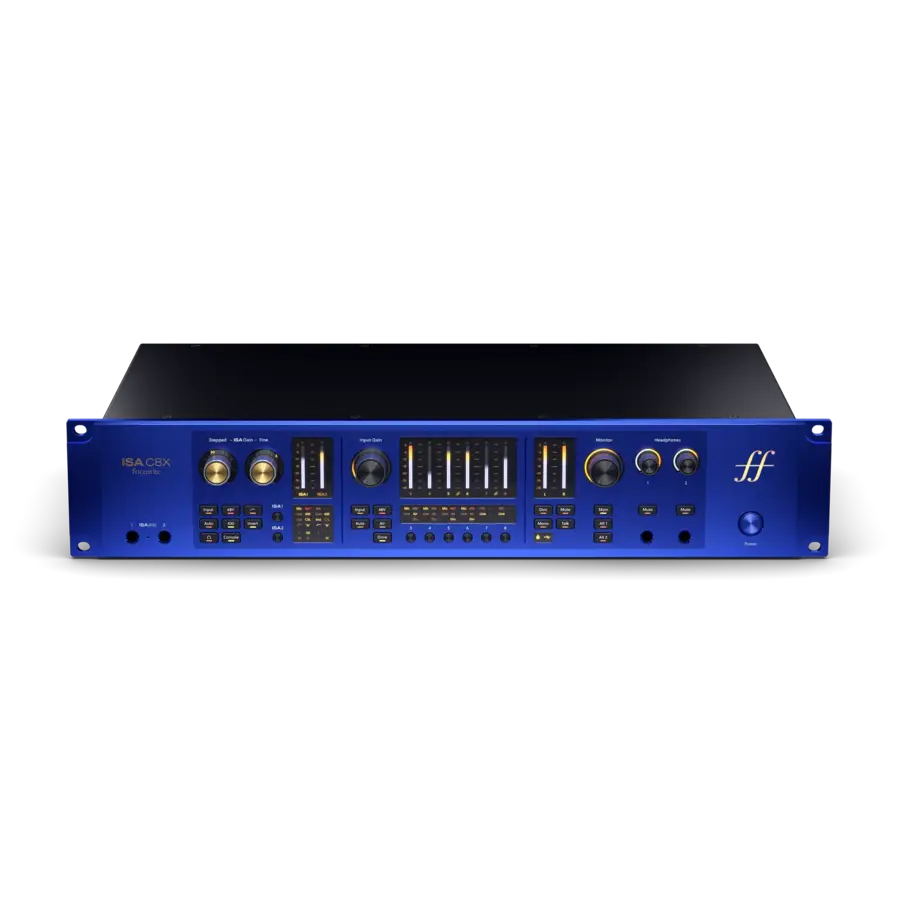

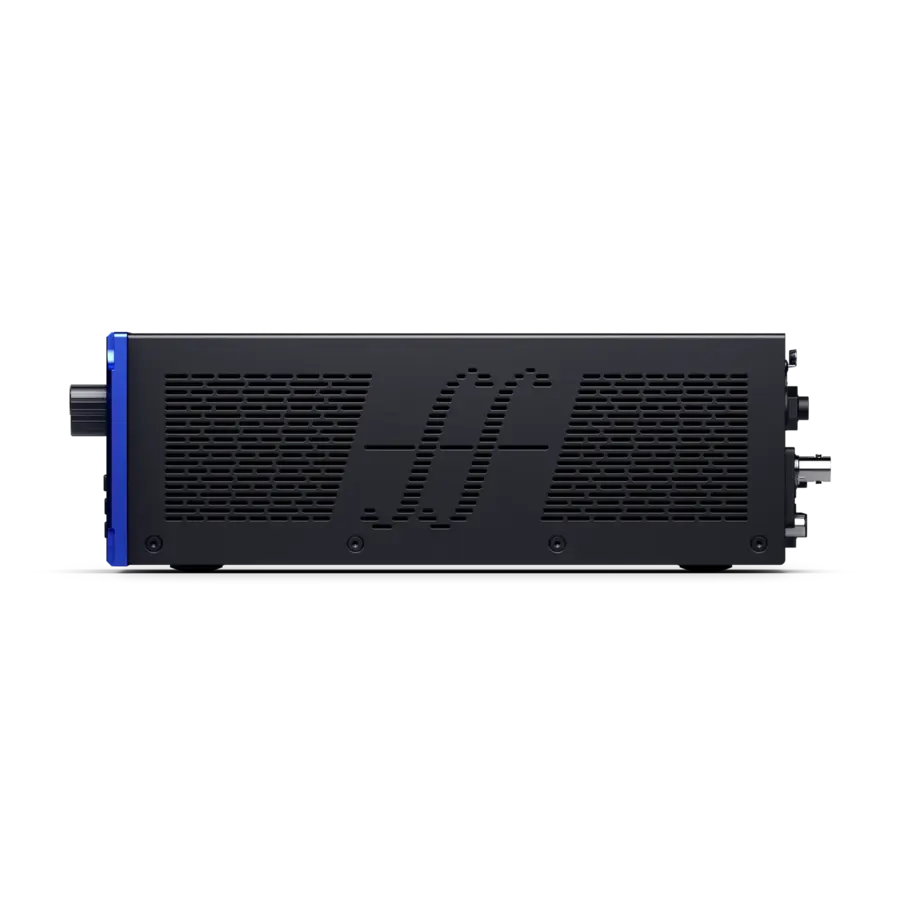

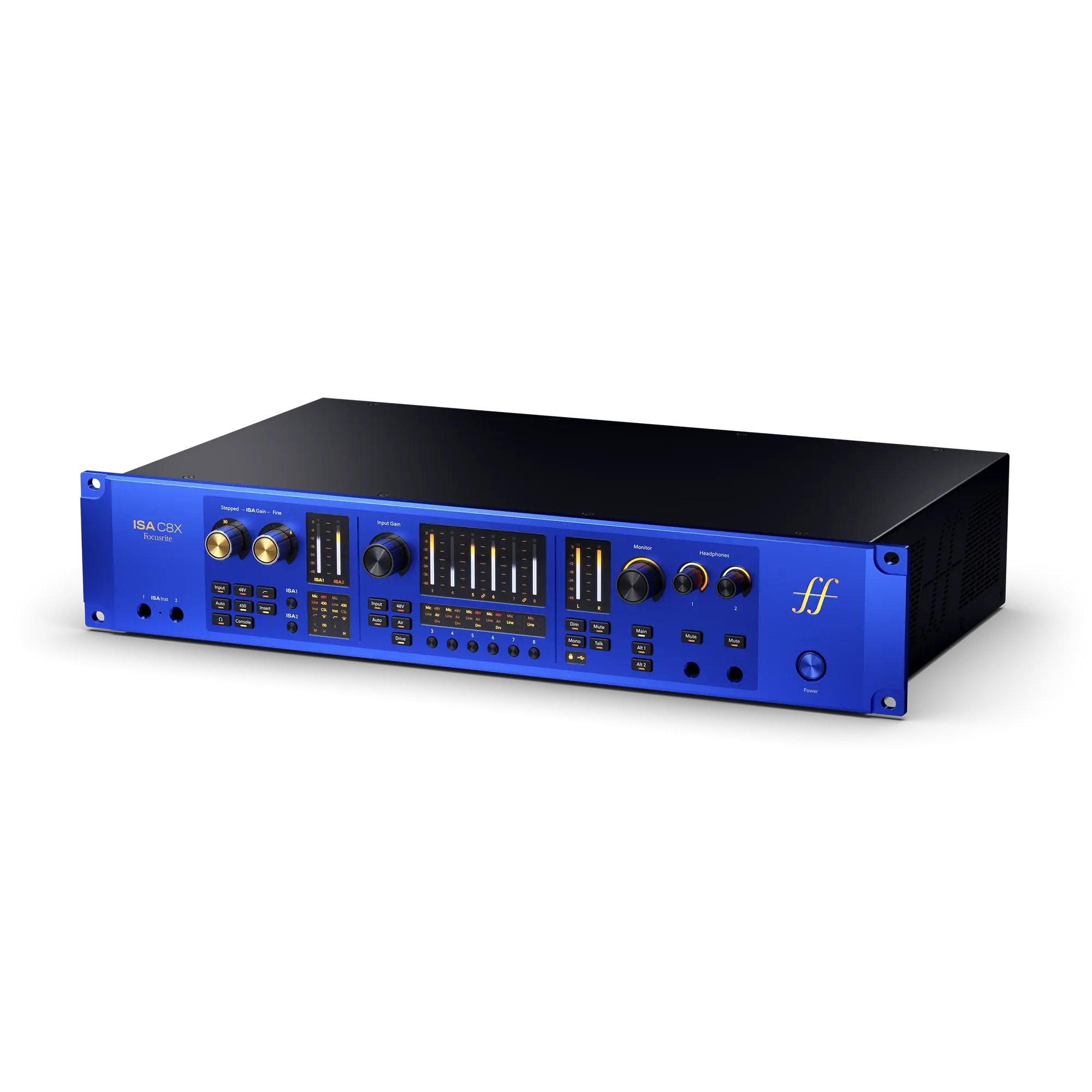

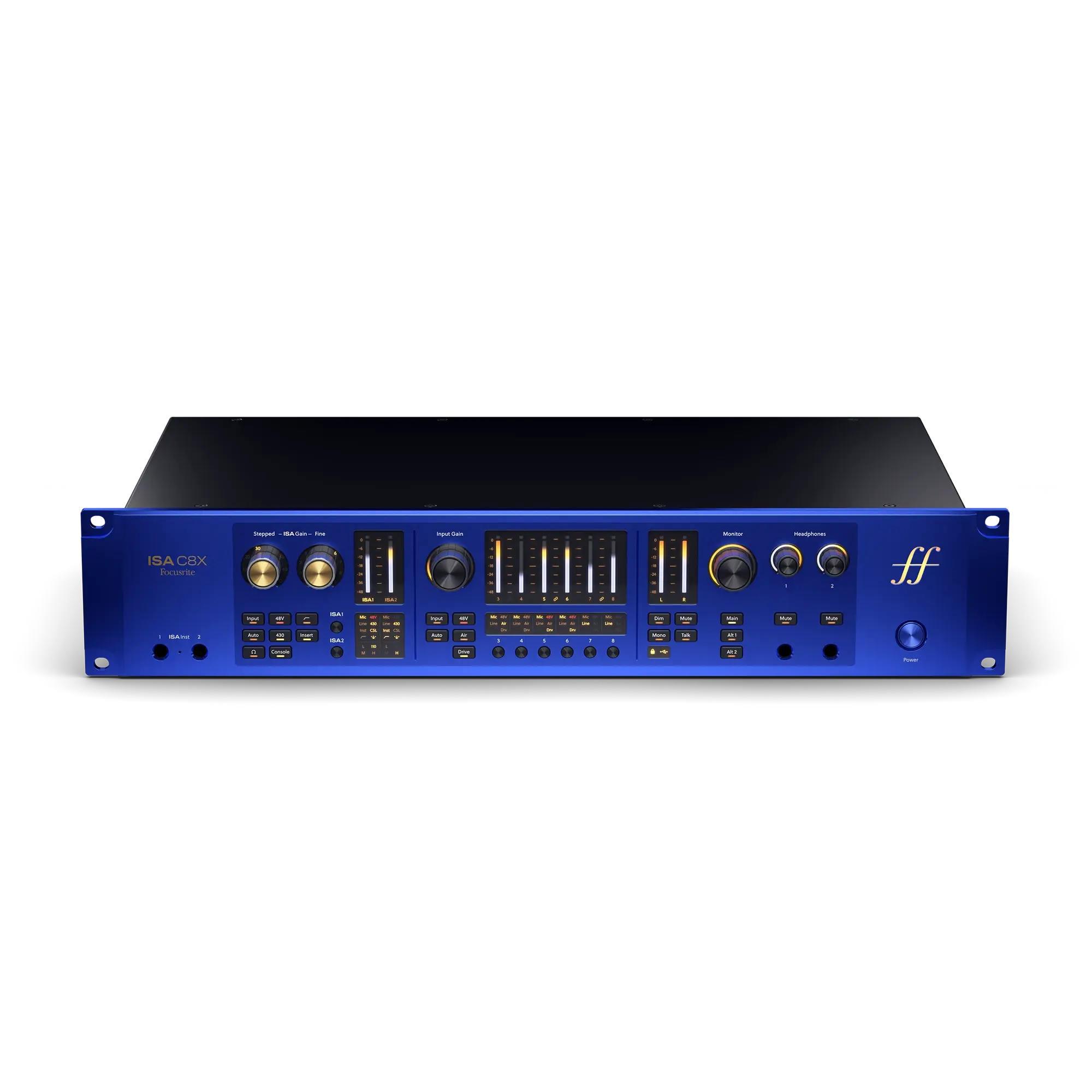

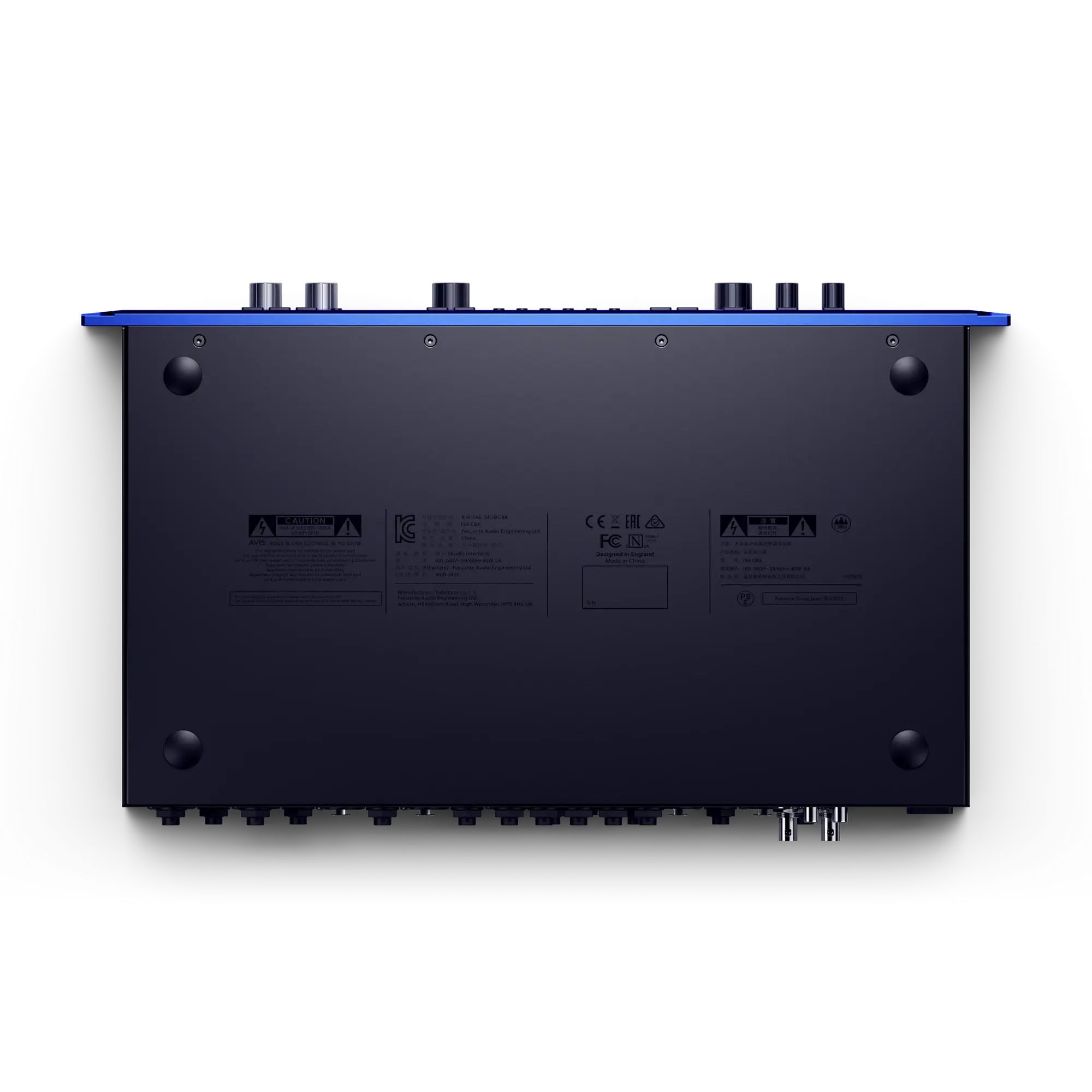

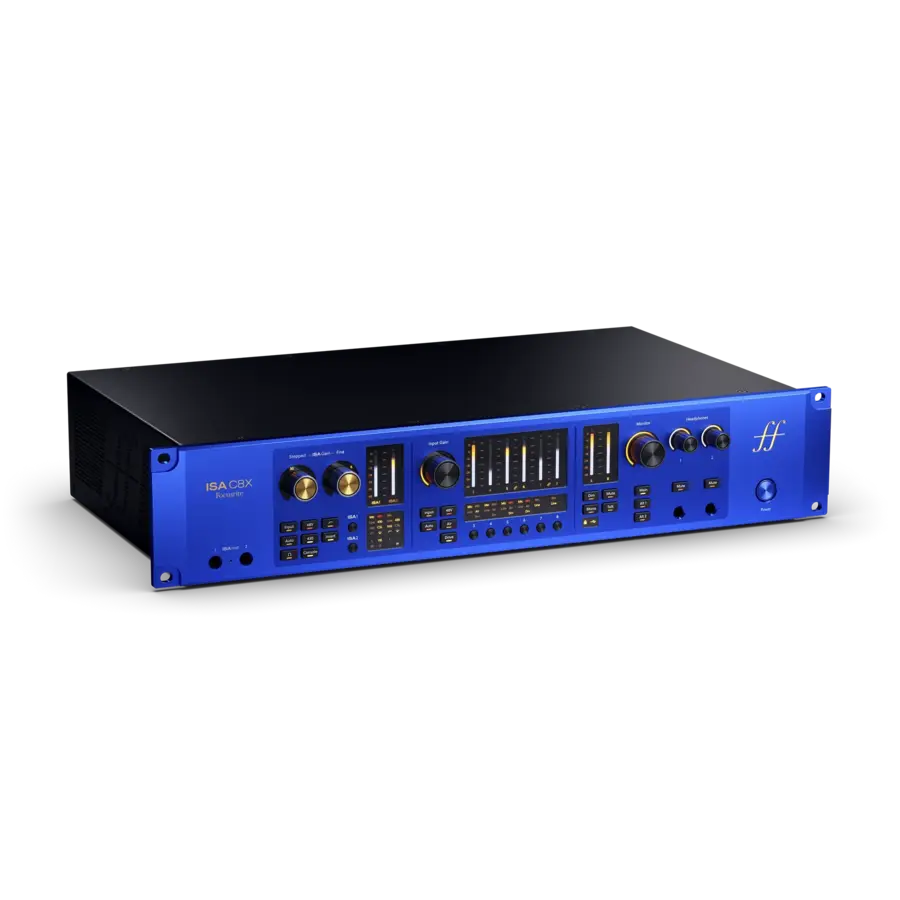

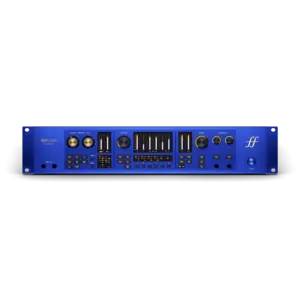

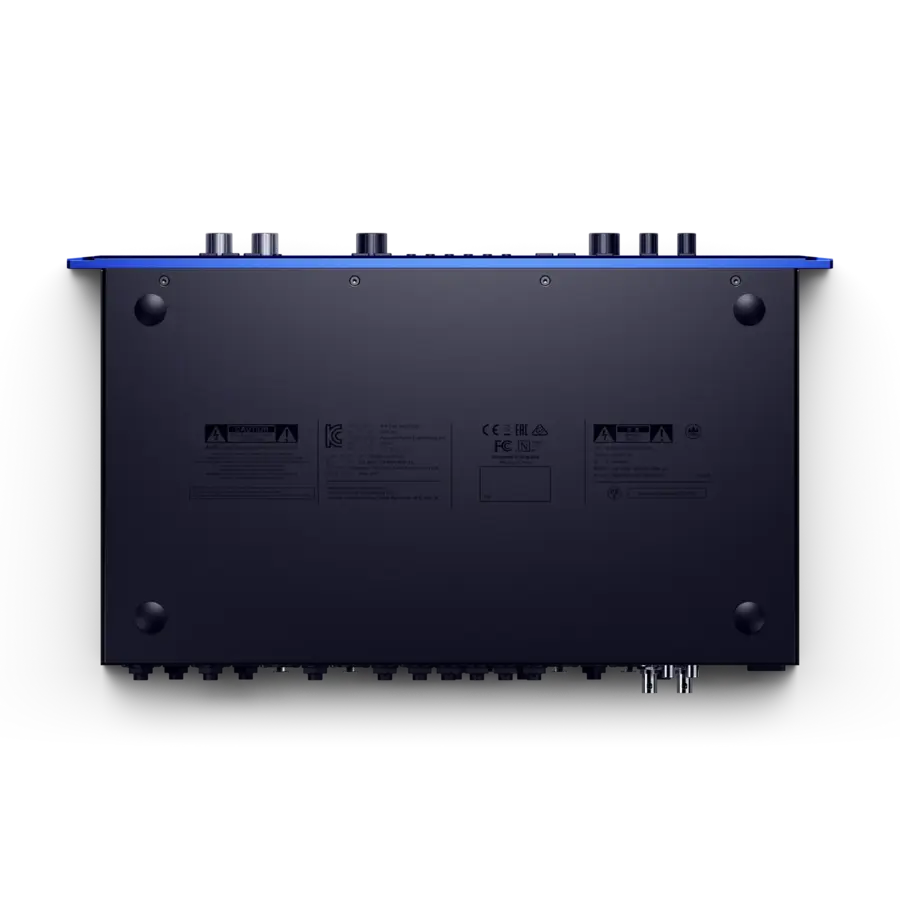

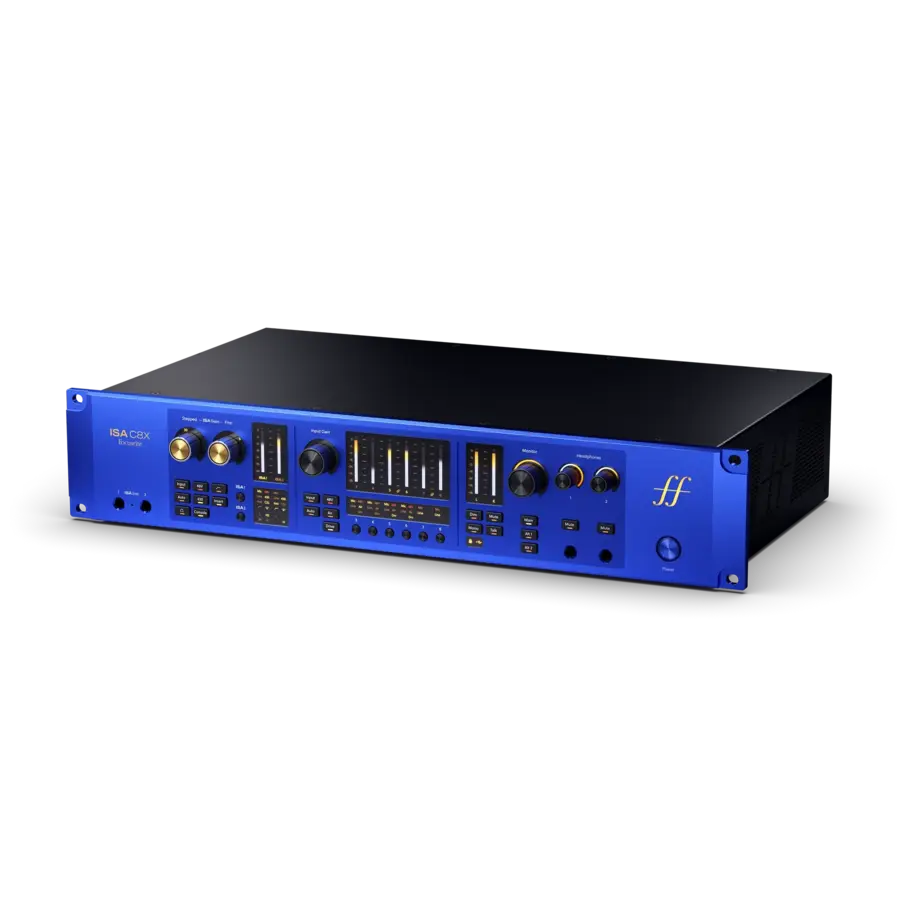

ISA C8X combines the trademark ISA sound with comprehensive remote control and all the analogue and digital I/O, routing, and recallability you need to run your entire studio, plus switchable impedance, balanced inserts, and high-pass filtering. The first two channels feature ISA preamps with classic Lundahl LL1538 transformers and Console and 430 Air modes for new tonal options. All eight are fully controllable from the front panel and via Focusrite Control 2.

Key features

• 2U rack-mounted, 26-in/28-out USB-C audio interface
• Eight remote-controlled preamps with up to 79dB of gain, two of which are ISA preamps with Lundahl LL1538 transformers
• All-analogue Console and 430 Air modes for tonal shaping
• 24-bit/192kHz AD/DA conversion with up to 125dB of dynamic range
• Additional Sonnox bundles available

USB-C Audio Interface

• With 26 inputs and 28 outputs, as well as two ISA and six additional microphone preamplifiers
• Two classic ISA microphone preamplifiers (Lundahl LL1538 input transformers) with full digital remote control, switchable impedance
• High-pass filter and up to 79 dB gain
• Six additional remote-controlled microphone preamplifiers with 69 dB gain, Air and variable Drive modes
• Auto-Gain function
• Talk back
• 24-bit/192 kHz AD/DA converters from the Focusrite RedNet series with 125 dB dynamic range
• +48V phantom power
• Level meter
• Monitor section
• Format: 19" / 2 U
• Dimensions: 482.6 x 89 x 292.8 mm
• Weight: 5.56 kg

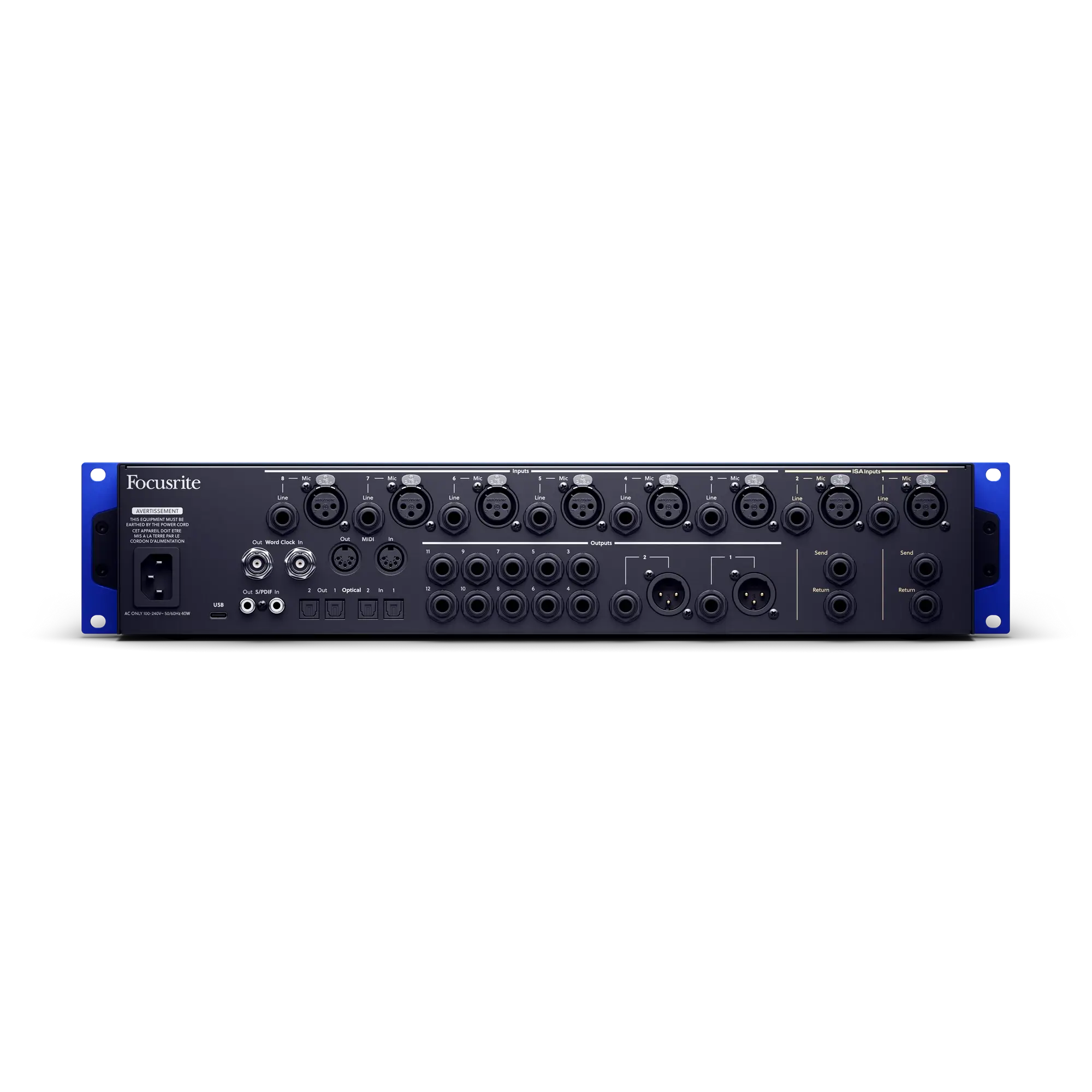

Connections:

• 8 x microphone inputs: XLR
• 8 x line inputs: 6.3 mm jack
• 2 x instrument inputs: 6.3 mm jack
• 2 x line outputs: XLR / 6.3 mm jack
• 10 x Line output 6.3 mm jack
• 2 x stereo hedphone output: 6.3 mm jack
• 2 x Send/Return: 6.3 mm jack
• 2 x ADAT input and output
• S/PDIF coaxial input and output
• MIDI input and output
• Word clock input and output
• USB-C
