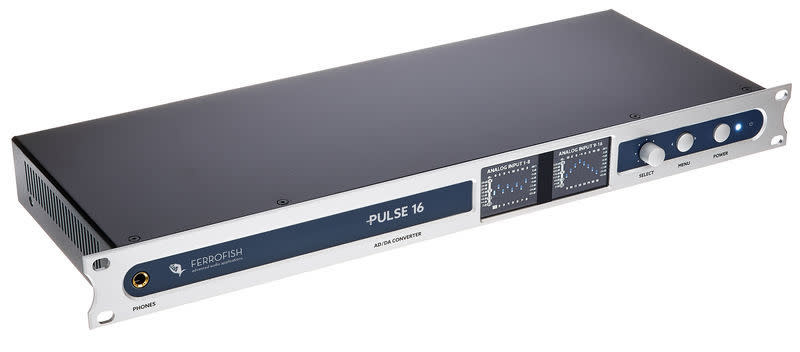

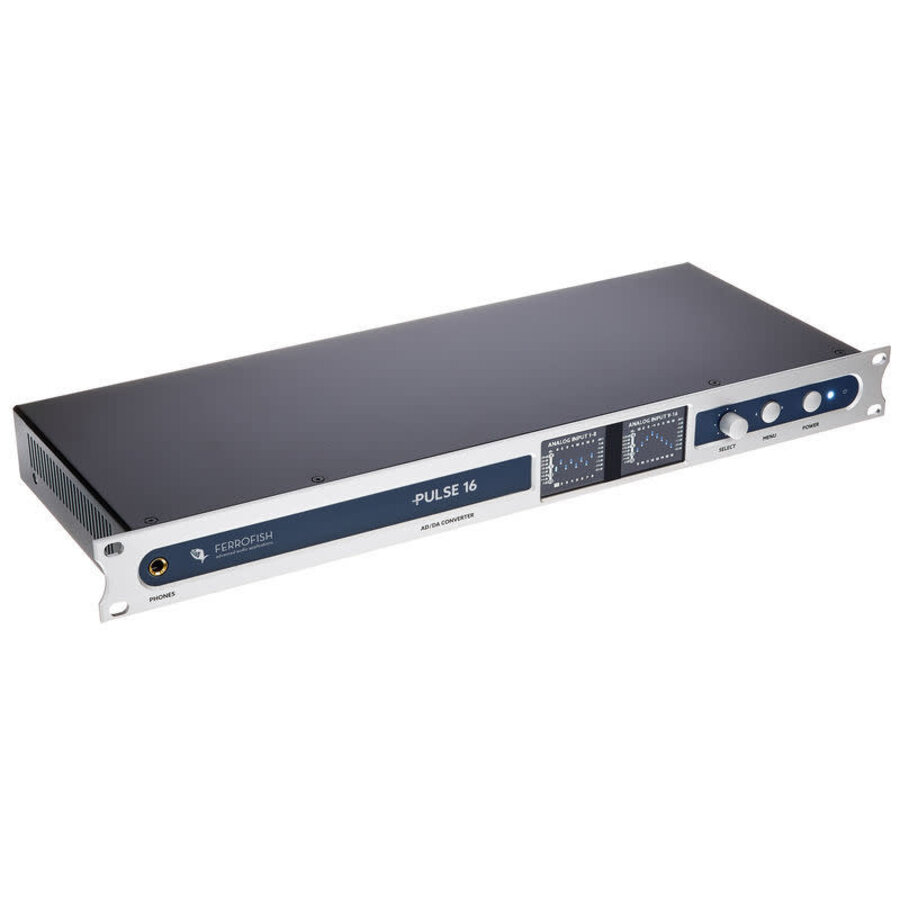

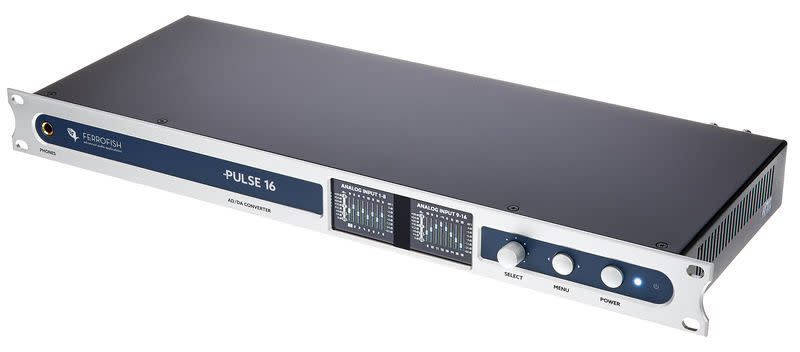

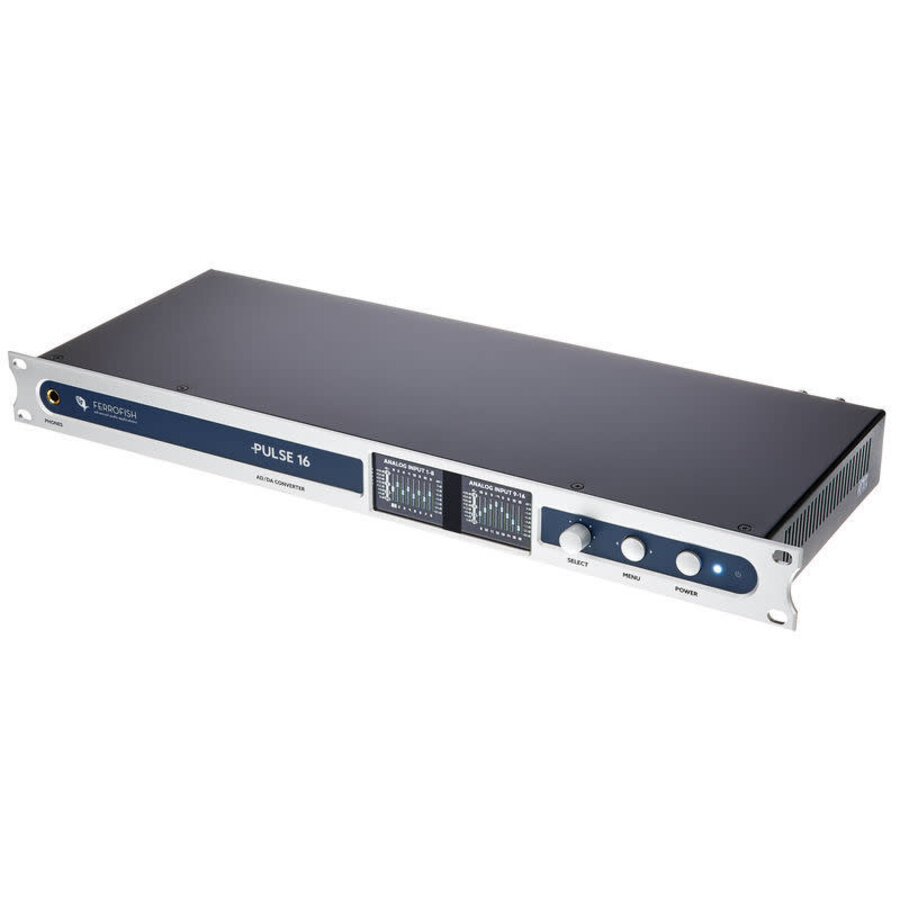

16 x 16 AD/DA ADAT Converter
825,62
(999,00 Incl. tax )
  • Article code 210000003774
  • SKU 210000003774
Something else from this brand? E-mail us!
Seen a better price? E-mail us!
  • Description

    Convert with style: Maximum quality. Most affordable.

    The PULSE16 converts 16 x 16 studio-grade balanced analog inputs and outputs up to 96kHz to ADAT I/O. As a cost-effective and mature interface, ADAT is already available almost everywhere – so expanding your studio with the PULSE16 by 16 x 16 analog channels is done in a few steps.

    The Low Latency converters, accompanied with a temperature-compensated clock and jitter reduction PLL, guarantees best crystal clear sound. All this packed in a compact 1HU, the PULSE16 delivers studio levels of up to +20dBu, individually adjustable in 1dB steps, brought to 32 TRS connectors. Thanks to the 4 x 4 ADAT interfaces, 16 x 16 channels can still be converted without any problems even at 96kHz.

    Configuring the device is a breeze thanks to the two TFT screens. No need to consult the manual, every information is displayed clearly on the screens. Remote control via MIDI and MADI is also possible.

    The headphone can be connected to any analog or digital input or output: ideal for control or monitoring.

    If your studio grows, the PULSE16 grows with it: MADI I/O can be added via a MADI-SFP module together with an upgrade of the firmware. The PULSE16 then becomes a full-fledged PULSE16 MX.



    Analog Inputs (AD)

    2 x 24 Bit A/D Converter

    16 x TRS ¼” (6.3mm), female

    • Digital gain: +20dBu … -8dBu, 1dB steps
    • Digital gain (+24dBu Option): +24dBu … -4dBu, 1dB steps

    Latency

    • @48kHz: 12/fs, 0.25ms
    • @96kHz: 9/fs, 0.09ms
    • @192kHz: 5/fs, 0.03ms

    OpAmps

    RC4580

    Level indicator

    TFT screen, 28 levels



    Analog Outputs (DA)

    2 x 24 Bit D/A Converter

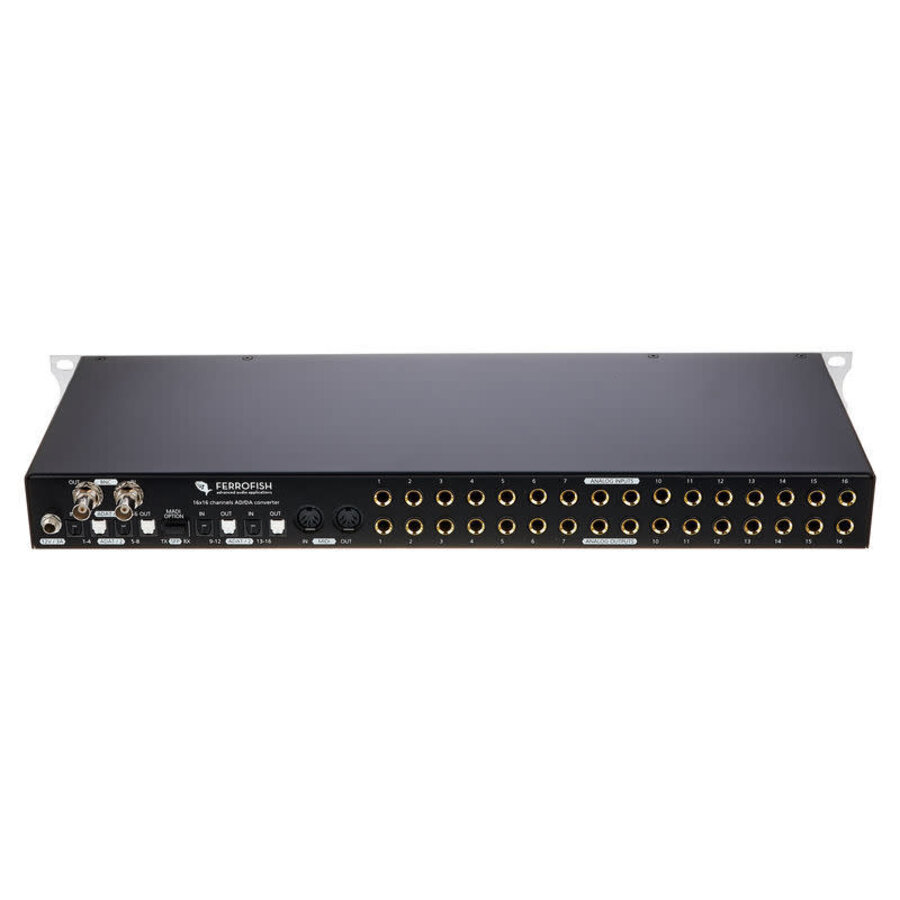

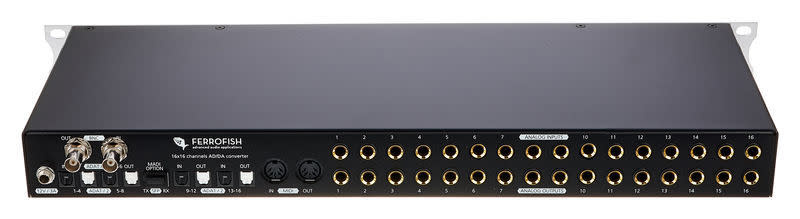

    16 x TRS ¼” (6.3mm), female

    • Digital gain: +20dBu … -8 dBu, 1dB steps
    • Digital gain (+24dBu Option): +24dBu … -4dBu, 1dB steps

    Latency

    • @48kHz: 7.8/fs, 0.16ms
    • @96kHz: 5.4/fs, 0.06ms
    • @192kHz: 6.6/fs, 0.03ms

    OpAmps

    RC4580
