Featuring the latest generation of A/D - D/A converters from ESS Tech, the new A32pro and A32pro Dante continue FERROFISH’s tradition of designing reliable, transparent audio devices with high-channel counts, operating at up to 192kHz sample rates.

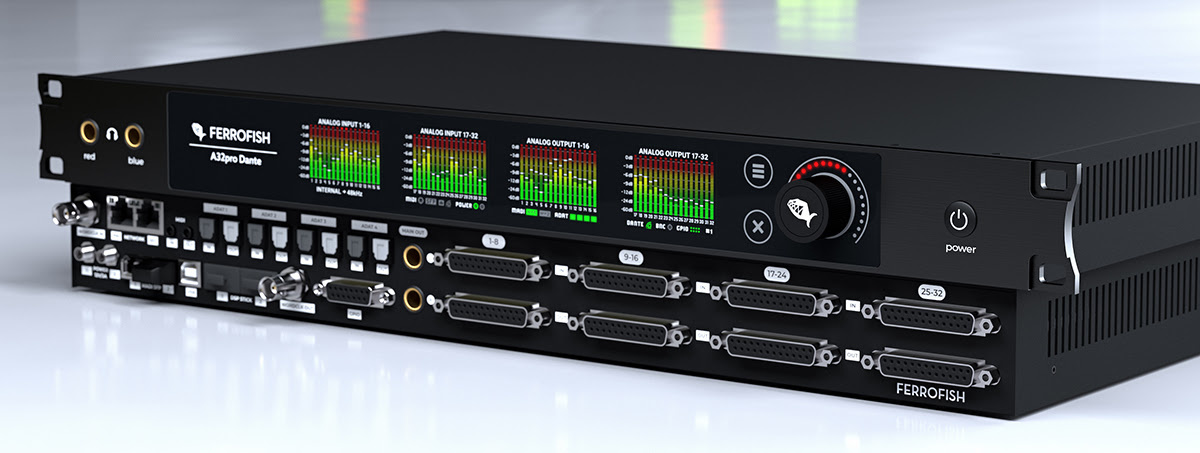

Alongside a newly-designed black finish, the FERROFISH A32pro and A32pro Dante feature updated front panels with touch-screen controls, making navigation and control over both device easier than ever before.
The addition of a main TRS output and dual headphone connections offers maximum monitoring and recording flexibility, whilst a new GPIO connection provides extended remote-control functionality.
A dual-slot bay is provided for future DSP expansions providing additional processing power for the A32pro and A32pro Dante’s on-board SHARC DSP processor.

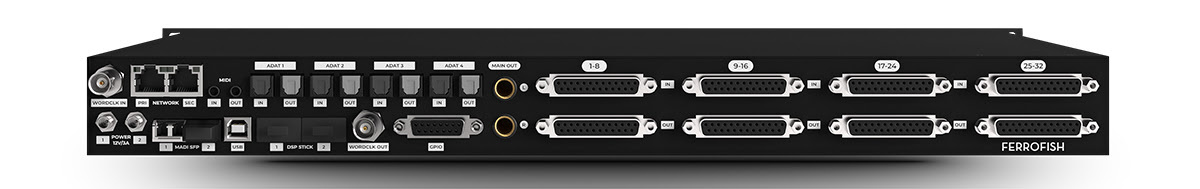

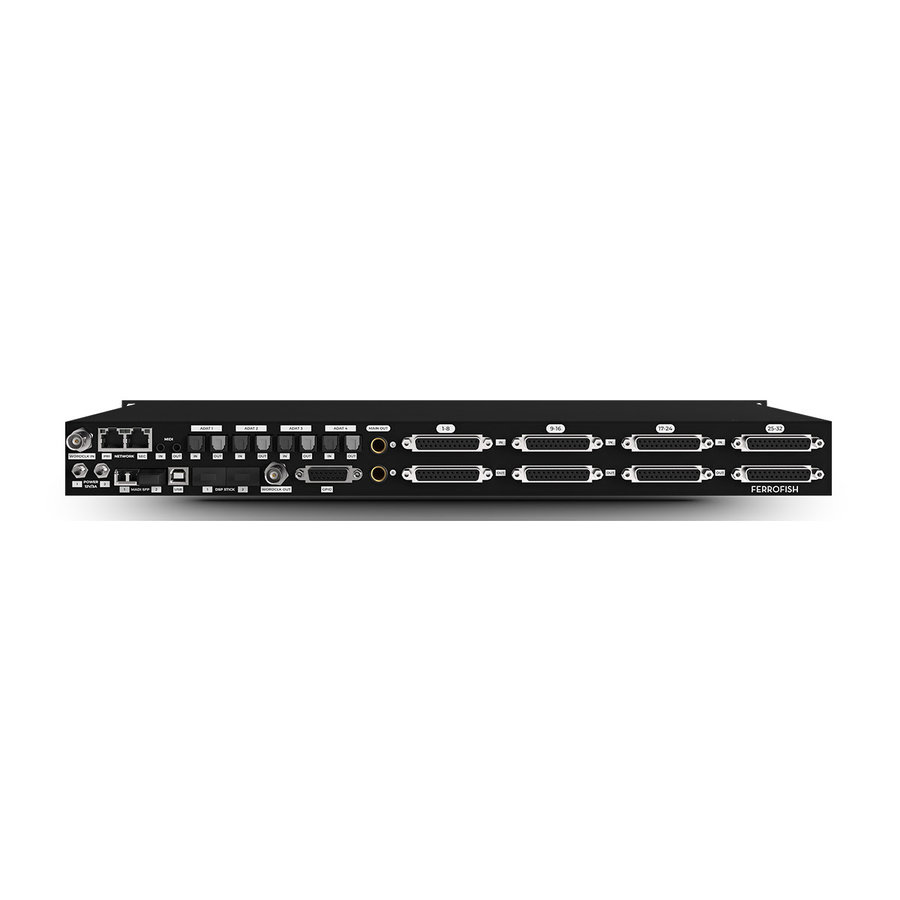

The Ferrofish A32pro and A32pro Dante each feature 32 analogue inputs and 32 analogue outputs on fully balanced DSub25 connectors in a 1U Frame.
Both devices support for up to 64 channels of MADI I/O via dual SFP slots, which can accommodate either optical or coaxial MADI SFPs, and can be run in tandem for added redundancy. Up to 32 channels of ADAT optical I/O is provided in each direction with full support to double sample rates of up to 96kHz.
The A32pro Dante also supports an additional 64 channels of I/O via Audinate’s popular Dante networking format, making it easy to integrate the FERROFISH A32pro Dante with any existing Dante network, and providing another layer of fail-safe protection alongside the included MADI and power switchover capabilities using a redundant Dante network.
Wordclock I/O is provided on BNC, with clocking also available via ADAT, MADI or Dante (A32pro Dante only), whilst MIDI I/O is provided on 3.5mm TRS connectors.
The new A32pro Series features a high-quality front-panel TFT display, providing on-board level-metering for all 32 input channels and 32 outputs channels simultaneously.
Front-panel control is both intuitive and user-friendly, with the new illuminated touch-sensitive encoder providing control over all aspects of the device - such as gains, output levels, routing, monitoring and clock settings – alongside the (also-touch-sensitive) display.
Any incoming or outgoing audio signal can be monitored directly from the front of the device, via either of the two independent on-board headphone outputs.
Features :
32x32 analog I/O channels, fully balanced on dSub25 (Tascam format)
Stereo TRS Main Out with dedicated DAC monitoring path
32x32 ADAT I/O channels on TOSLINK jacks with 96kHz support
64x64 MADI I/O channels on LC Multimode SFP module
Optical Singlemode and Coax SFP module optional available
64x64 DANTE I/O channels on dual Ethernet ports *
Wordclock I/O on BNC connectors with proprietary jitter reduction circuit
MIDI I/O on 3.5 mm TRS connectors (MIDI 2.0 pinout)
GPIO port for remote preset switching and alert monitoring on dSub15
Dual stereo headphone 1/4" TRS outputs with HQ-amp modules
Latest generation ESS A/D and D/A converters 192kHz samplerate
Highly intuitive four screens multitouch user interface
Illuminated touch sensitive high-res encoder
Flexible routing matrix
MIDI-over-MADI
Dedicated dual headphone monitoring matrix
Dual power input redundant system with monitoring and alert system
SHARC DSP for internal signal processing
Dual expansion slots for optional DSP sticks
Simple MIDI CC mode for remote control by simple MIDI commands
Remote controllable by RemoteFish app (Mac & Windows) *
19” 1U frame, fanless design
