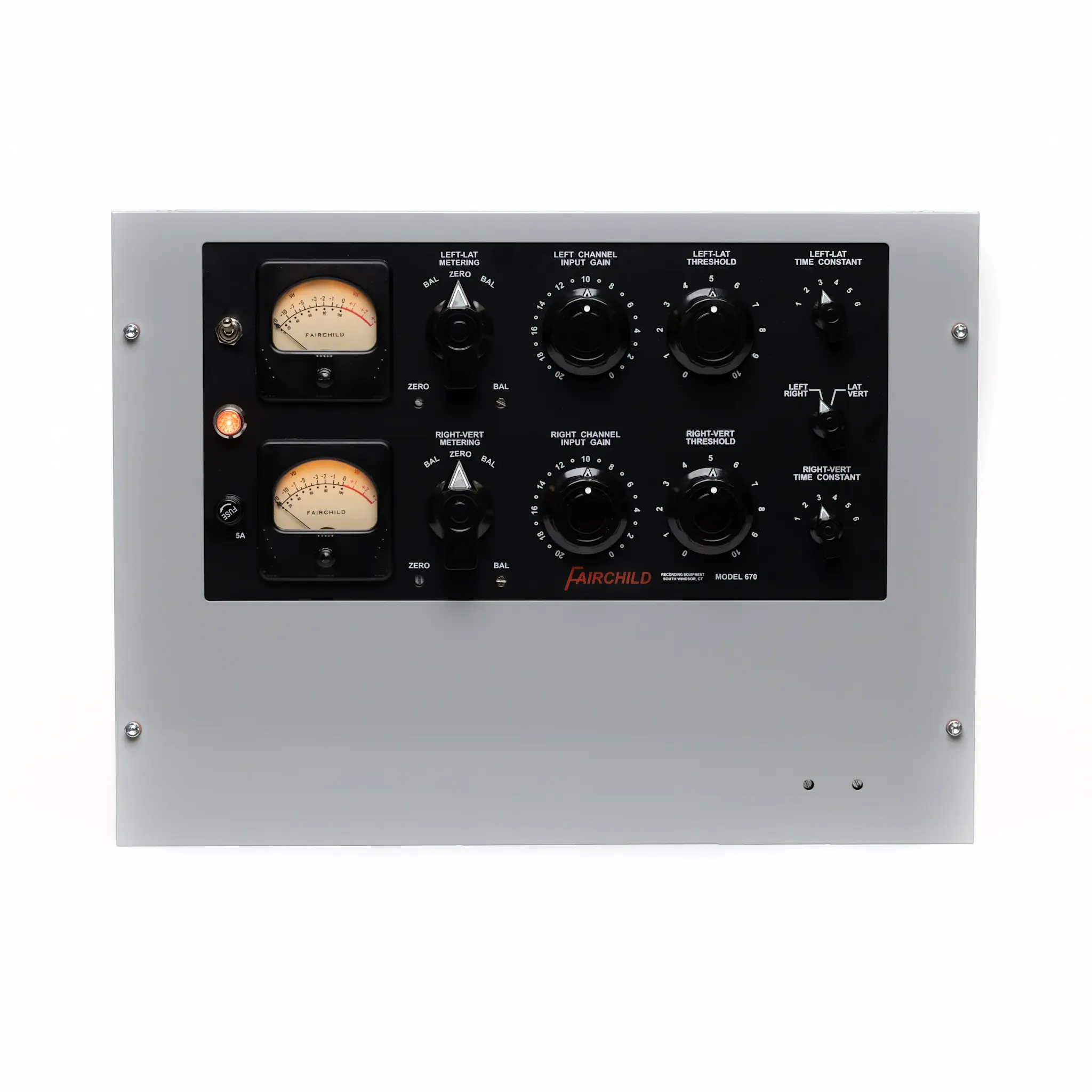

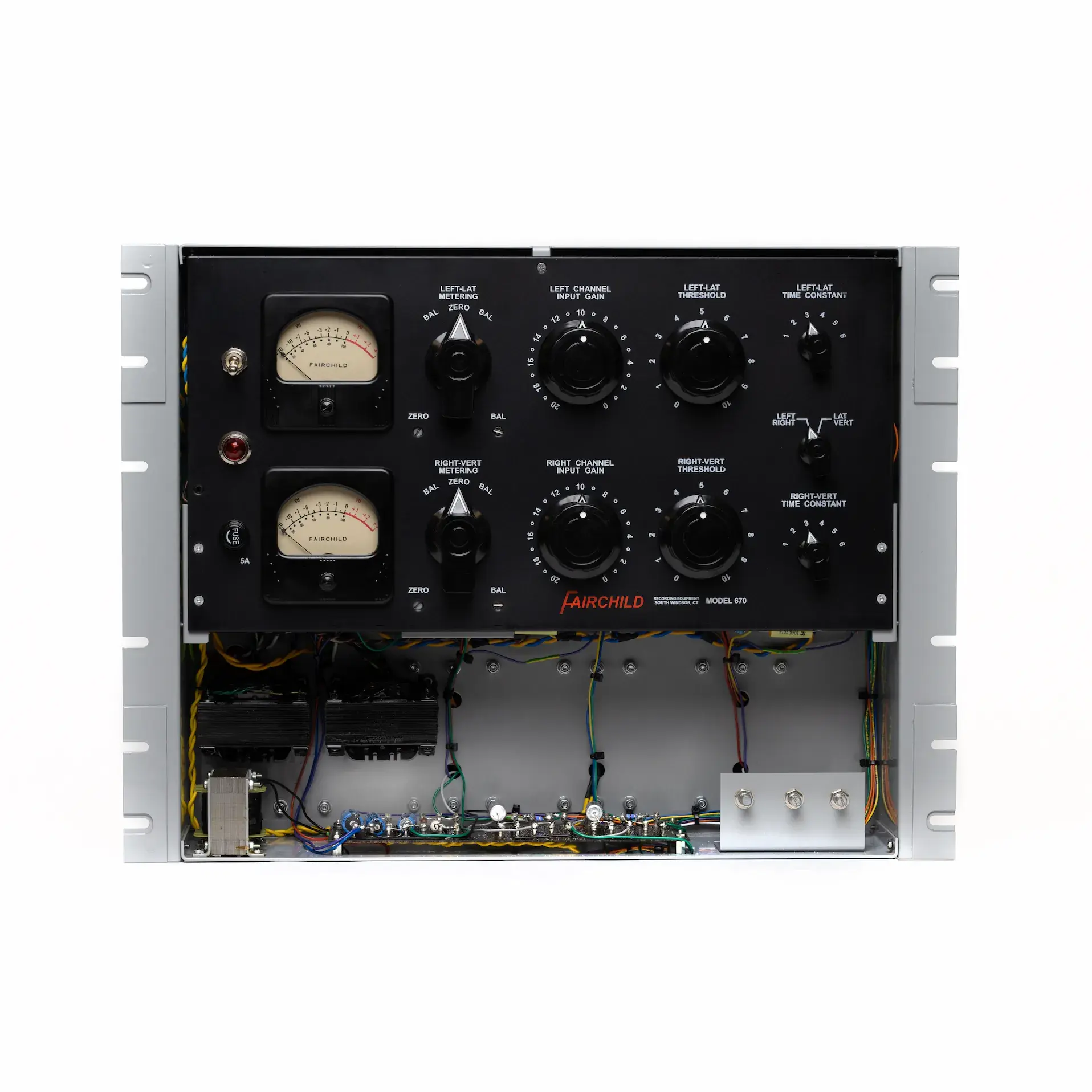

Fairchild Model 670 Stereo Compressor

€25.536,36
(€30.899,00 Incl. tax)
Continue shopping Asset 1Checkout

Fairchild Model 670 Stereo Compressor
Image 1 / 4
Fairchild Model 670 Stereo Compressor
Fairchild Model 670 Stereo Compressor
Fairchild Model 670 Stereo Compressor
Fairchild Model 670 Stereo Compressor
€25.536,36
(€30.899,00 Incl. tax )
  • Article code 210000010640
  • SKU 210000010640
- +
Asset 1Add to cart
Ordered before 18:00, delivered tomorrow! You got : 03:39 hours
Something else from this brand? E-mail us!
Seen a better price? E-mail us!
  • Description

    The original Fairchild 670 has a reputation as the best sounding and most versatile compressor ever made. Used on countless hit recordings over the years, its unique combination of tube driven amplification and gain reduction gives the 670 a wide range of compression effects, from subtle and transparent to heavy and pumping. The new vacuum tube Fairchild 670 compressor is faithfully recreated to provide modern producers and audio engineers with the classic sound of the first intelligent automatic volume control limiter. With its dual-channel design and unique compression characteristics, the Fairchild 670 is capable of adding warmth, depth, and character to virtually any audio signal. The vacuum tube technology used in the 670 adds a natural, organic quality to the compressed signal, providing that distinctive classic analog sound to both digital and analog productions.



    Key Features:

    • Dual mono/stereo operation
    • Six selectable time constants
    • Threshold, compression, and makeup gain controls
    • VU metering

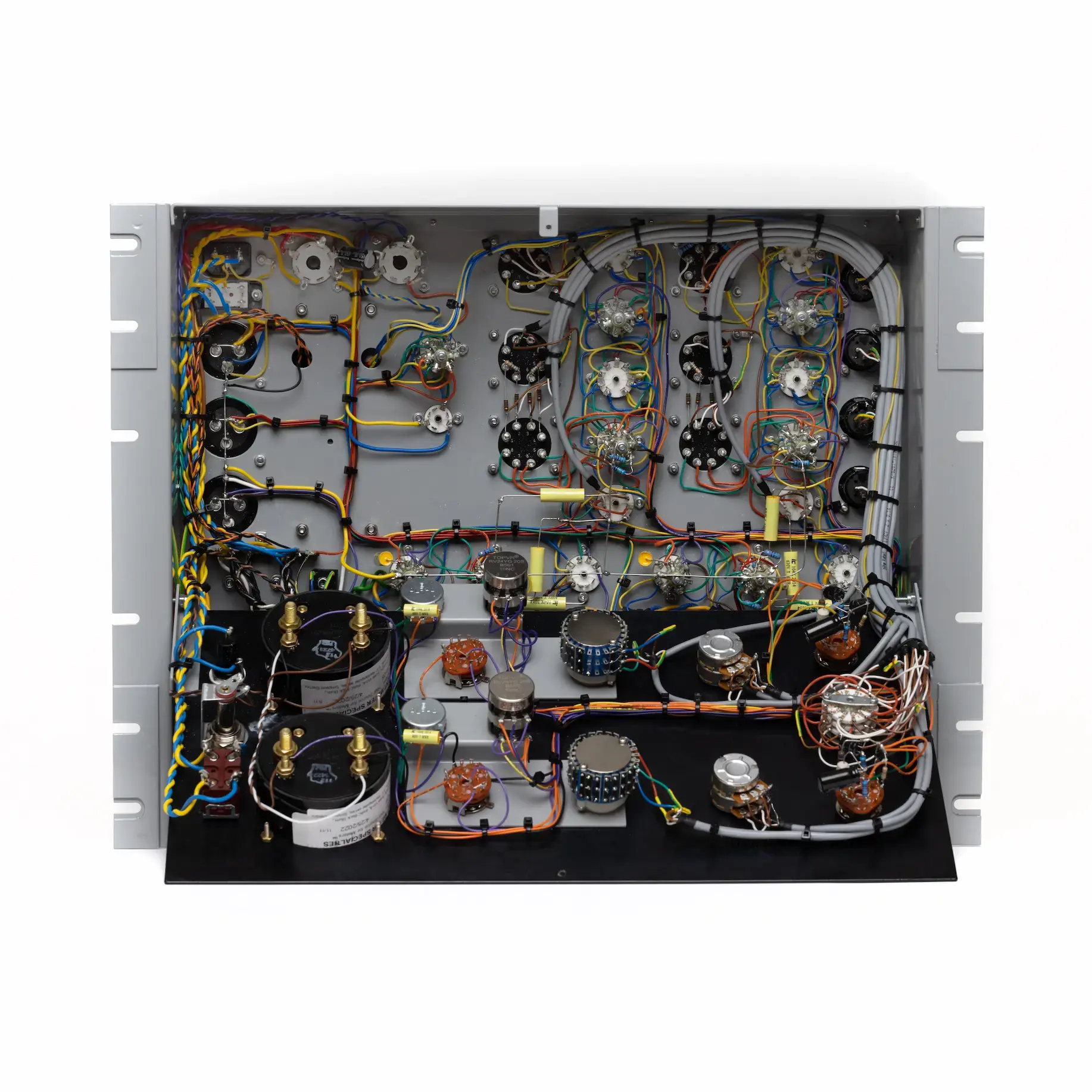

    • Hand-wired point-to-point construction
    • Custom-designed transformers
    • Tube-driven amplification



    TECHNICAL SPECIFICATIONS:

    INPUT AND OUTPUT

    IMPEDANCE: 600 Ω

    RANGE OF INPUT LEVEL: 0 dBm to +16 dBm

    OUTPUT LEVEL: +4 or +8 dBVU (+27 dBm clipping point)

    GAIN: +7dB

    FREQUENCY RESPONSE: 40 cycles to 15 kc +/- 1dB

    NOISE LEVEL: 70 dB below +4 dBm

    LIMITING NOISES: Below audibility

    INTERMODULATION DISTORTION: Less than 1% at any level up to + 18 dBm output (no limiting) Less than 1% at dBm limiting +12dBm output

    TIME CONSTANT ATTACK AND RELEASE TIMES:
    (Note: Positions 5 and 6 release times are automatic function of program material)
    Position 1) .2 ms / .3 sec
    Position 2) .2 ms / .8 sec
    Position 3) .4 ms / 2 sec
    Position 4) .4 ms / 5 sec
    Position 5) .4 ms / .2 sec individual peaks, 10 sec multiple peaks
    Position 6) .2 ms / .3 sec individual peaks, 10 sec multiple peaks, 25 sec consistently high program levels.

    COMPRESSION RATIO: A function of the amount of limiting as well as setting of the two threshold controls which can be set to operate at ratios from 1:2 to 1:30

    POWER REQUIREMENTS: 120 or 240 volts, 60 cycles AC, 3 amps.

    CONTROLS:
    a) 2 Input Gain controls: Step attenuator: 1 dB per step.
    b) 2 Threshold Controls: continuously variable.
    c) 2 Time Constant Switches: 6 positions so as to provide fixed and variable time constants for any type of program material.
    d) 2 Metering Switches: 3 positions so as to measure plate current of each control tube, or as a limiting indicator.
    e) Mode Switch: A-B positions: 2 independent limiters. Vertical-Lateral position: matrixing input and output, left and right in and out, limiting action vertical-lateral.
    f) On-off switch

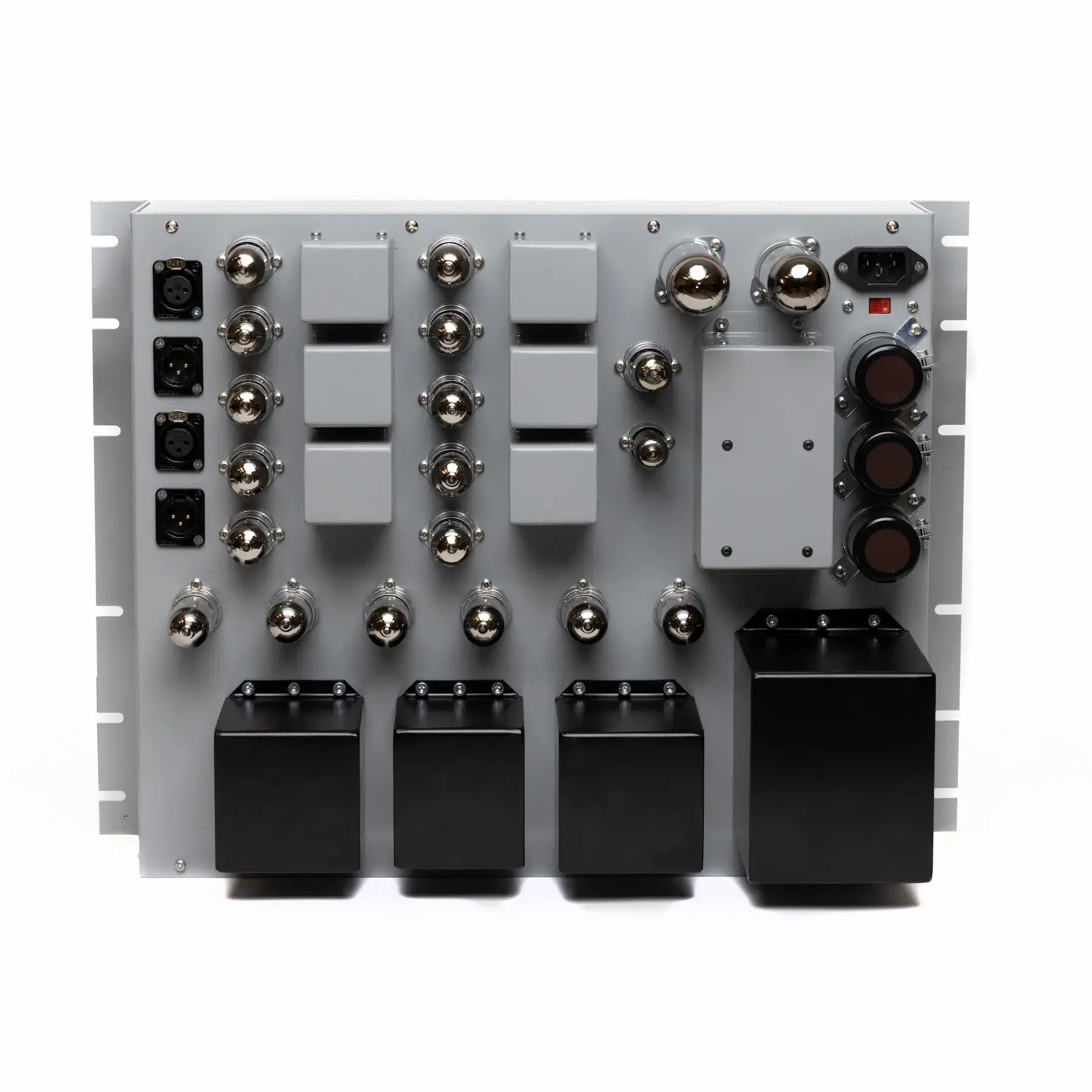

    INSTALLED TUBES: 8x 6386, 2x 12AX7, 4x 6973, 2x 12BH7, 1x E80F or (1x EF806), 1x 5651, 1x EL34, 1x GZ34
