Erica Synths Resonant Filterbank & Filterbank Expander

€387,60
(€469,00 Incl. tax)
Continue shopping Asset 1Checkout

Erica Synths Resonant Filterbank & Filterbank Expander
Image 1 / 2
Erica Synths Resonant Filterbank & Filterbank Expander
Erica Synths Resonant Filterbank & Filterbank Expander

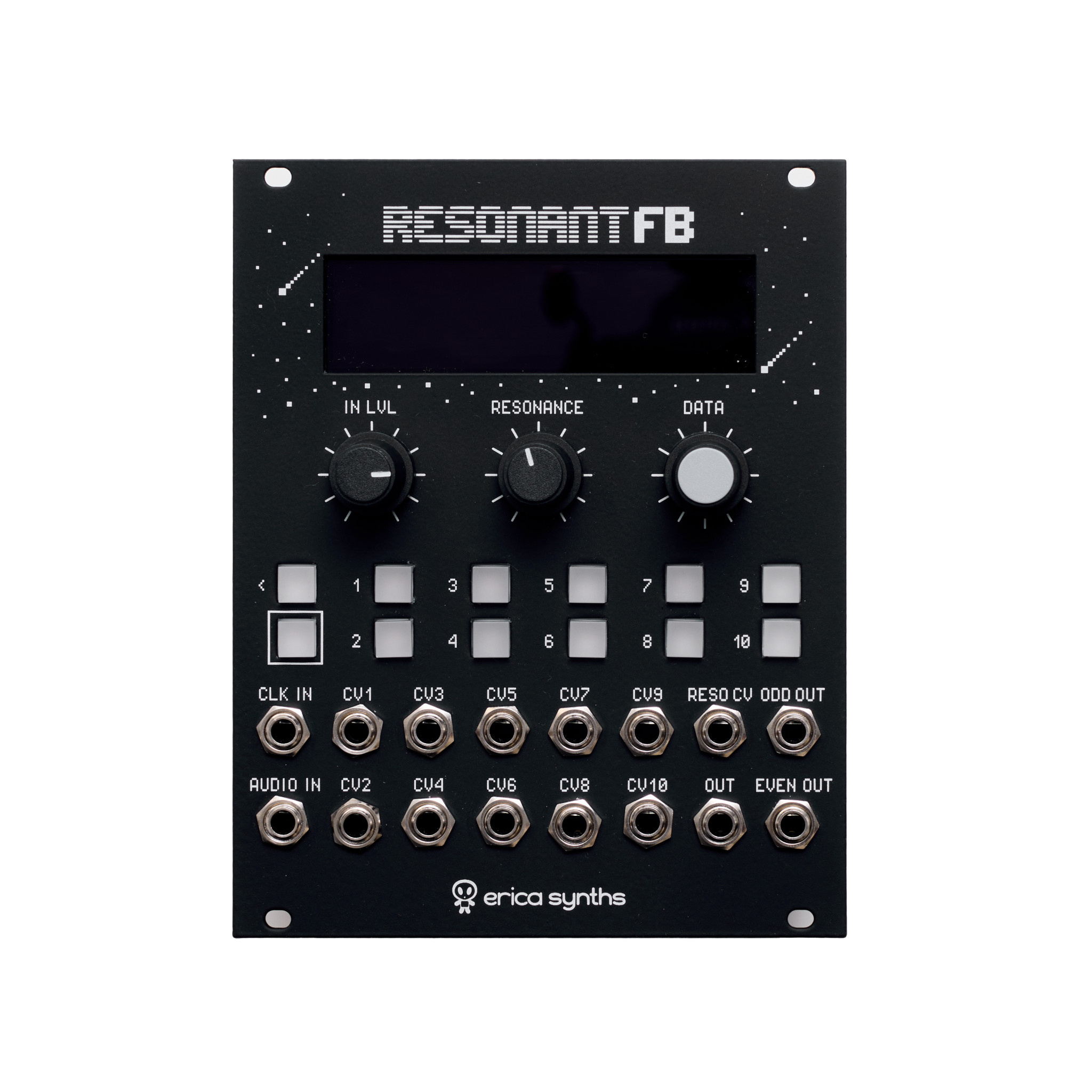

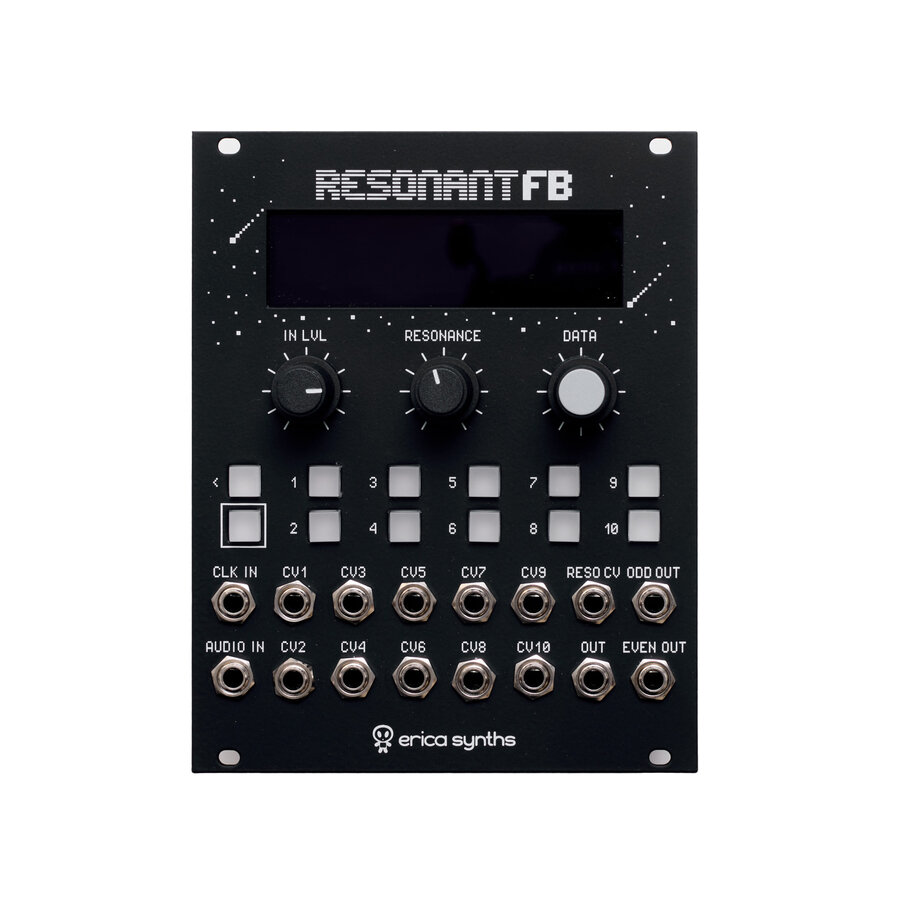

The Graphic Resonant Filterbank (FB) is a ten-band analogue filterbank with digital control over each bands’ boost or cut!
€387,60
(€469,00 Incl. tax )
  • Article code 210000008725
  • SKU 210000008725
- +
Asset 1Add to cart
Ordered before 18:00, delivered tomorrow! You got : 03:39 hours
Something else from this brand? E-mail us!
Seen a better price? E-mail us!
  • Description
    The Graphic Resonant Filterbank (FB) is a ten-band analogue filterbank with digital control over each bands’ boost or cut. Each band can be controlled individually via CV or manually, while complex control configurations turn the filterbank into an unconventional multimode filter and even an instrument in its own right when played with various resonance settings. The Expander module (works exclusively with the Graphic Resonant Filterbank and is available separately) provides hands-on adjustment of boost and cut for all bands.

    Features

    • Analogue 10 band filterbank
    • Saveable presets for filterbank, filter modes, dynamic EQ, and resonance settings
    • Main, even and odd outputs
    • Manual and voltage-controlled band boost/cut
    • Configurable resonance feedback loops
    • Manual and voltage-controlled resonance
    • Clock input for synchronization of events with a master clock source
    • Multimode filter mode
    • Spectral analyzer mode
    • Dynamic spectral compressor mode
    • Discrete and morphing pattern change
    • Configurable CV inputs
    • Expander module for immediate access to band levels
    • Skiff-friendly design



    "The new Erica Synths RESONANT FB is an unavoidable sonic masterpiece. After 40+ years dealing with electronic music synthesis, it is rare for me to get sonically surprised... THIS DID!  It is delightfully addictive, surprisingly fresh, powerfully gratifying, direct, responsive, allowing for a plethora of unique sounds, in any of its different modes.  (And yes, you can save your own presets too!)



    SPECIFICATIONS:

    Audio signal amplitude  10Vptp
    Bandpass filter frequencies 29Hz,61Hz,115Hz,218Hz,411Hz,777Hz, 1,5kHz, 2,8kHz, 5,2kHz,11kHz +-10%
    CV input amplitude (configurable) -10V - +10V
    Number of presets 128
    Panel width  20HP
     Module depth  30mm
    Power consumption (with EXP) 138(145)mA@+12V,50mA@-12V

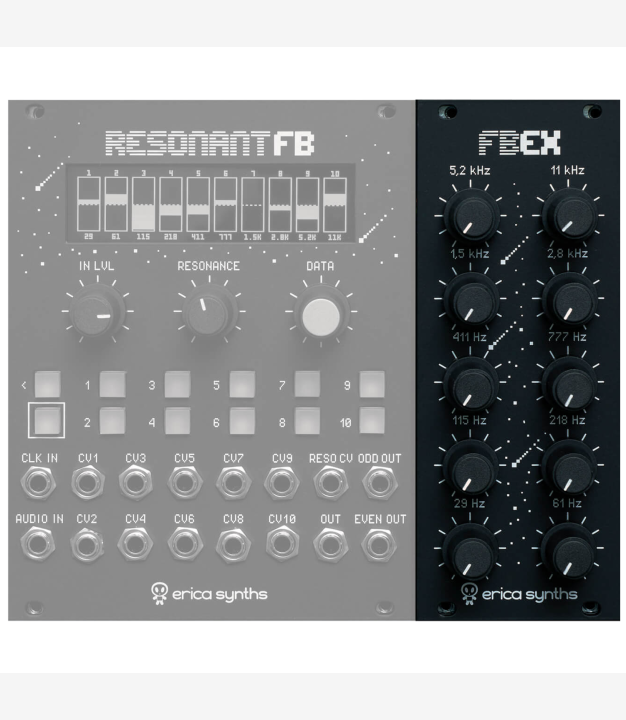

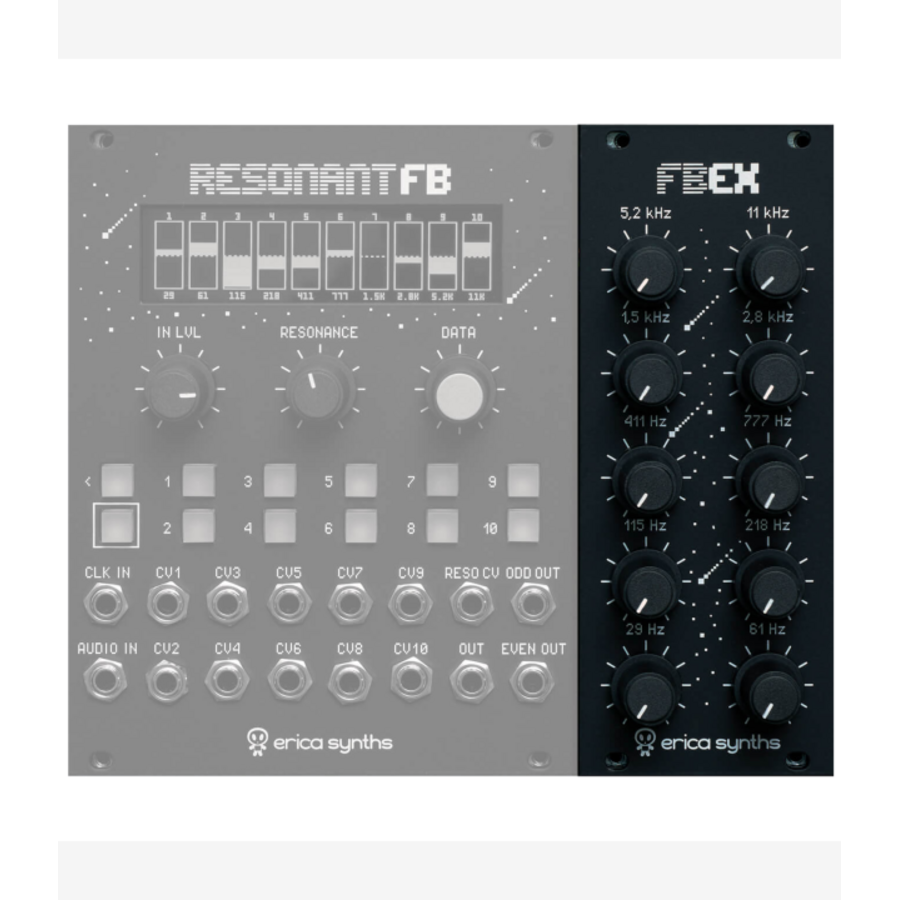

    This Expander module provides hands-on adjustment over all bands’ boost and cut without the need to select bands via pushbuttons on the Graphic Resonant Filterbank module. This makes sound design with the Graphic Resonant Filterbank much easier.
