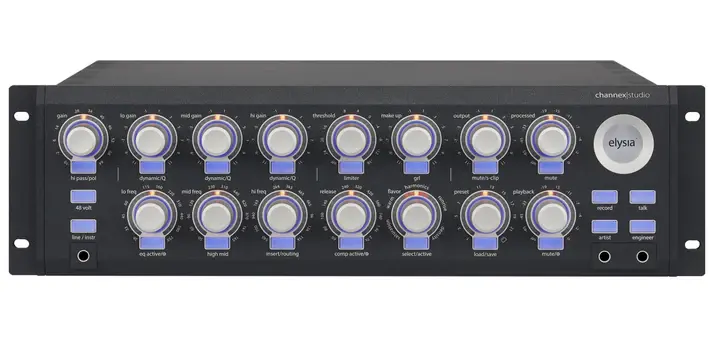

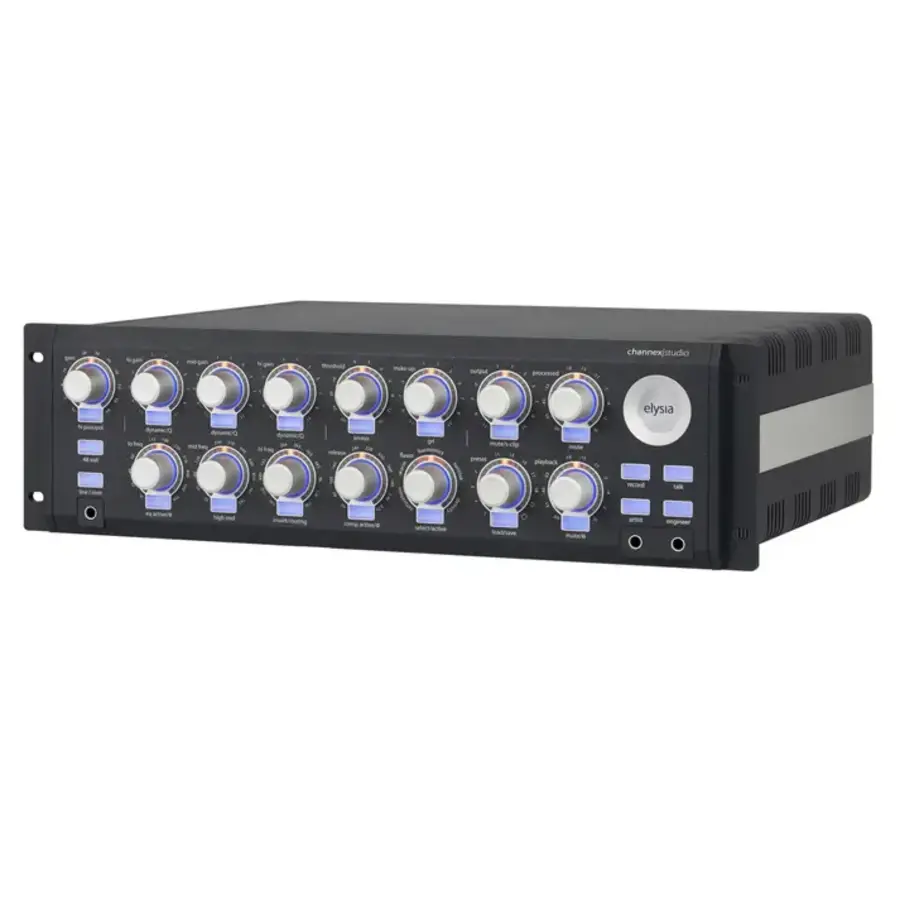

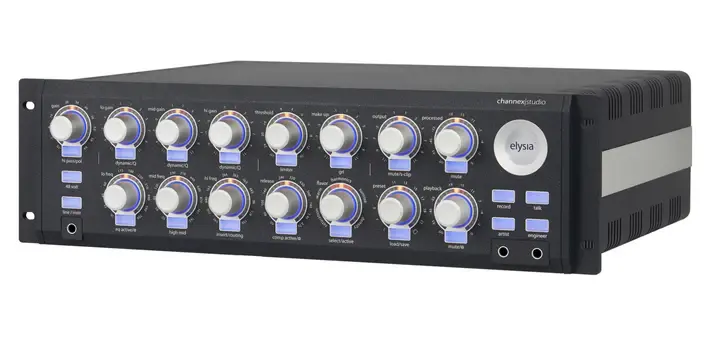

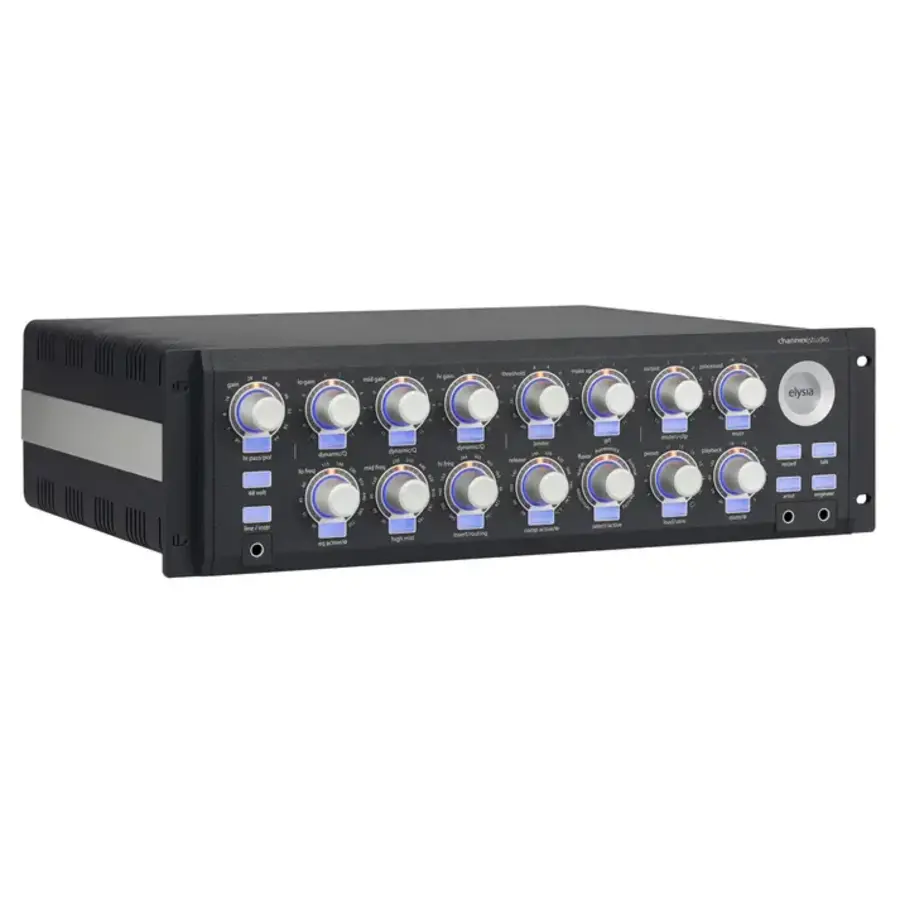

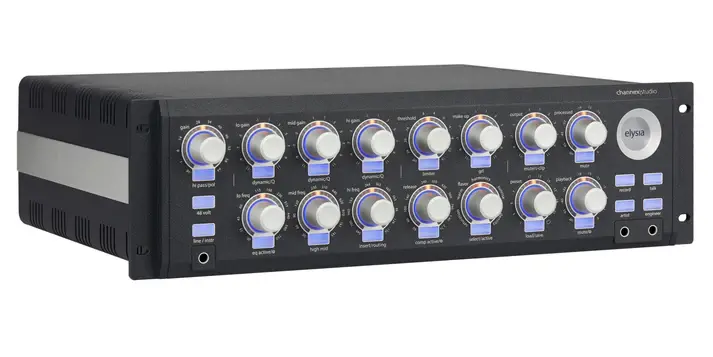

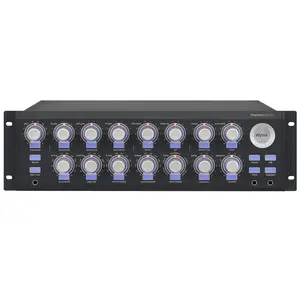

Elysia Channex|Studio

Delivery time send e-mail to [email protected]

A class-A recall channel strip for sessions, recoding and mixing.

Article code 210000011173
SKU 210000011173

€6.194,21

(€7.495,00 Incl. tax )

Article code 210000011173
SKU 210000011173

Something else from this brand? E-mail us!

Seen a better price? E-mail us!

Something else from this brand? E-mail us!

Seen a better price? E-mail us!

Description
Overview
What is channex|studio? In one sentence: A class-A recall channel strip for sessions, recoding and mixing.
To fully understand why we developed this device we want you to remind of our mission: It is to ensure that you get the best possible audio material for your recording. If the quality of the recording is already high during the process, mixing will be faster and easier for you. With the channex|studio you get a “mix-ready” audio signal as a starting point for your project. With this in mind, we’ve developed the ultimate recording front-end. The channex|studio features a high-end preamp, a dynamic equalizer, an easy-to-use compressor and a zero-latency monitor section, all in one device for your studio. Add color to your processing with the flavor option and choose and mix up to five different coloring options. Everything about the sound of channex|studio is truly analog. Coupled with full recall capability both on the hardware unit and via the plugin in your DAW session, this is the future of elysia hardware products.
Analogue 1-Channel Class-A Channel Strip with Recall Function

High-end preamp, dynamic EQ, compressor and limiter

64 dB gain (microphone/line/instrument)

4-band dynamic EQ with variable Q factors

Two-stage compressor/limiter with adjustable attack and release times

Gain reduction limiter and soft clipper for maximum control over signal dynamics, elysia Shell Metering for displaying level, gain reduction, Q factor and threshold

Flavour section (5 different tones that can be mixed as desired)

All parameters can be saved in full (up to 22 presets locally or via the channex|studio plugin)

Variable routing of all sections, including hardware insert

Latency-free monitoring section with 3 independent mixes

Talkback microphone input with separate preamp and +48V phantom power

Two headphone amplifiers

USB and ethernet connectivity

Format: 19" / 3 U

Dimensions (W × H × D): 483 × 133 × 374 mm

Weight: 6.8 kg

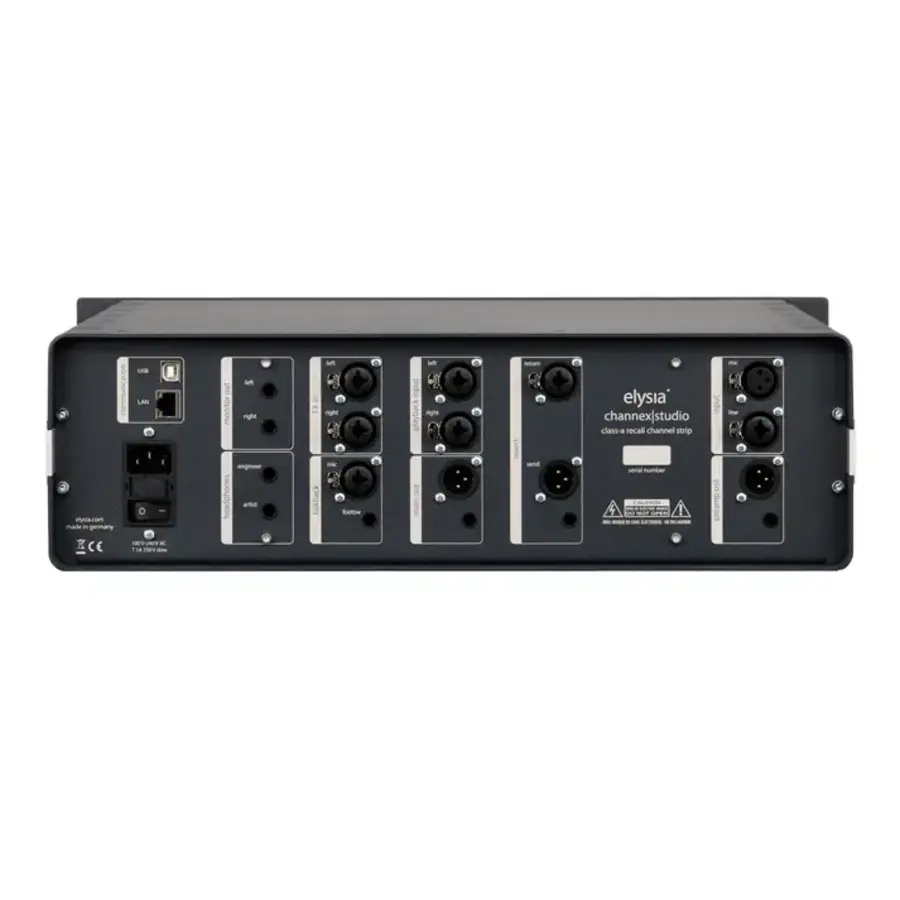

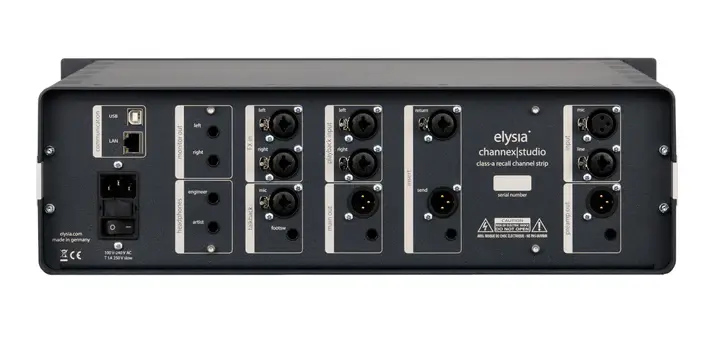

Connections:

1 microphone input: XLR

1 line/instrument combo input: XLR / 6.3 mm jack

1 preamp output: XLR and 6.3 mm jack

Insert send: XLR and 6.3 mm jack

Insert return: Combo XLR/6.3 mm jack

2 playback innput: Combo XLR / 6.3 mm jack

1 main output: XLR and 6.3 mm jack

2 FX inputs: Combo XLR / 6.3 mm jack

1 Talkback microphone input: Combo XLR / 6.3 mm jack

Footswitch input: 6.3 mm jack

2 monitor outputs: 6.3 mm jack

4 stereo headphone outputs: 6.3 mm jack (2x front, 2x rear)

USB

RJ45 Ethernet LAN
