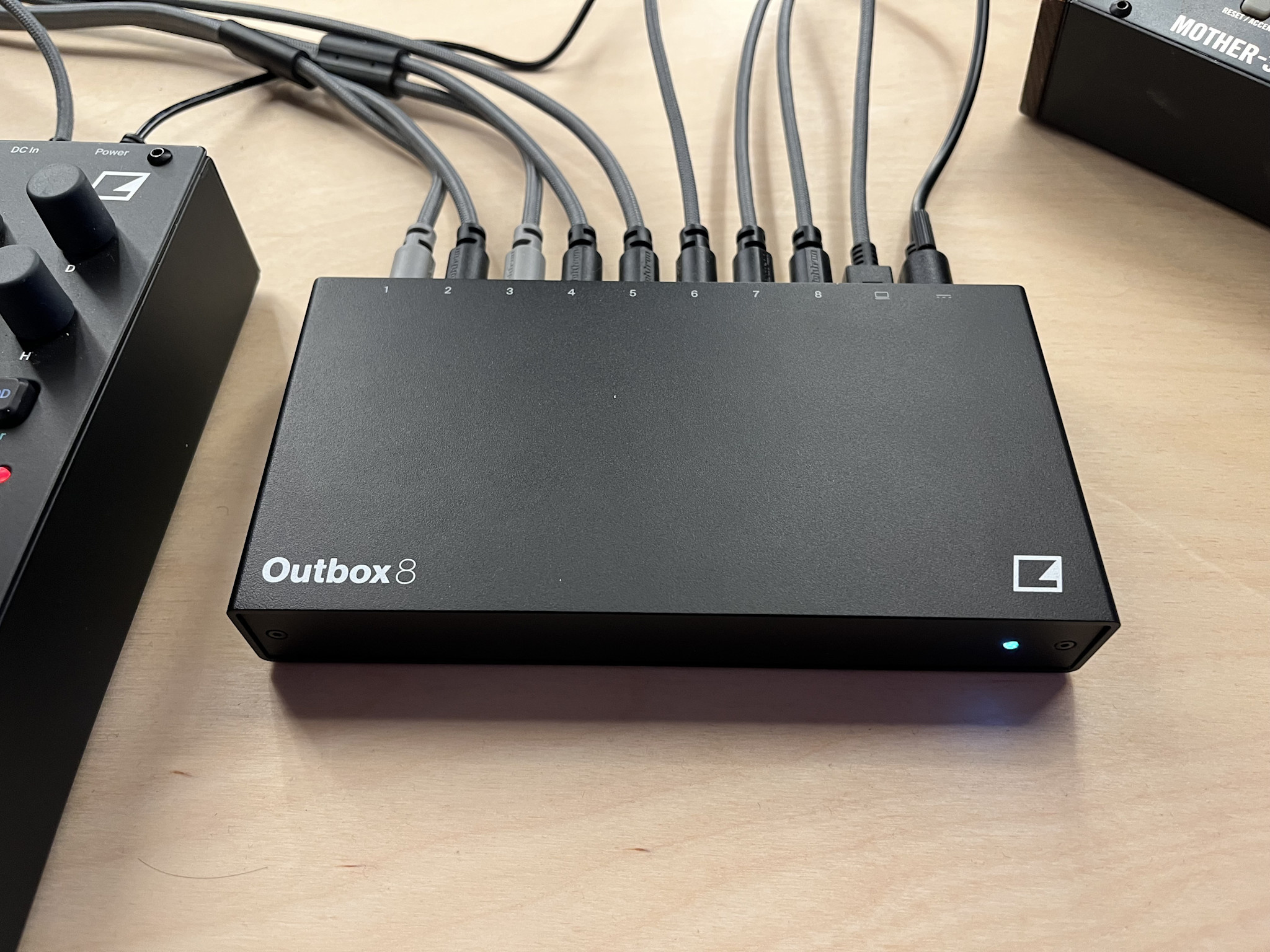

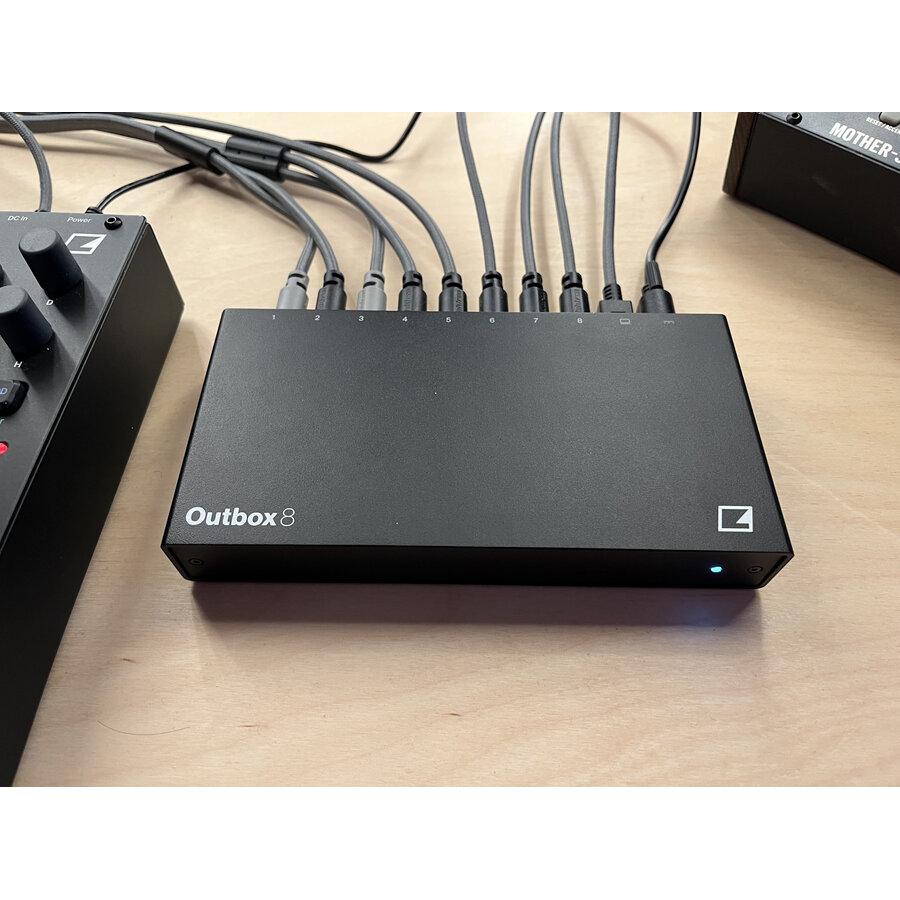

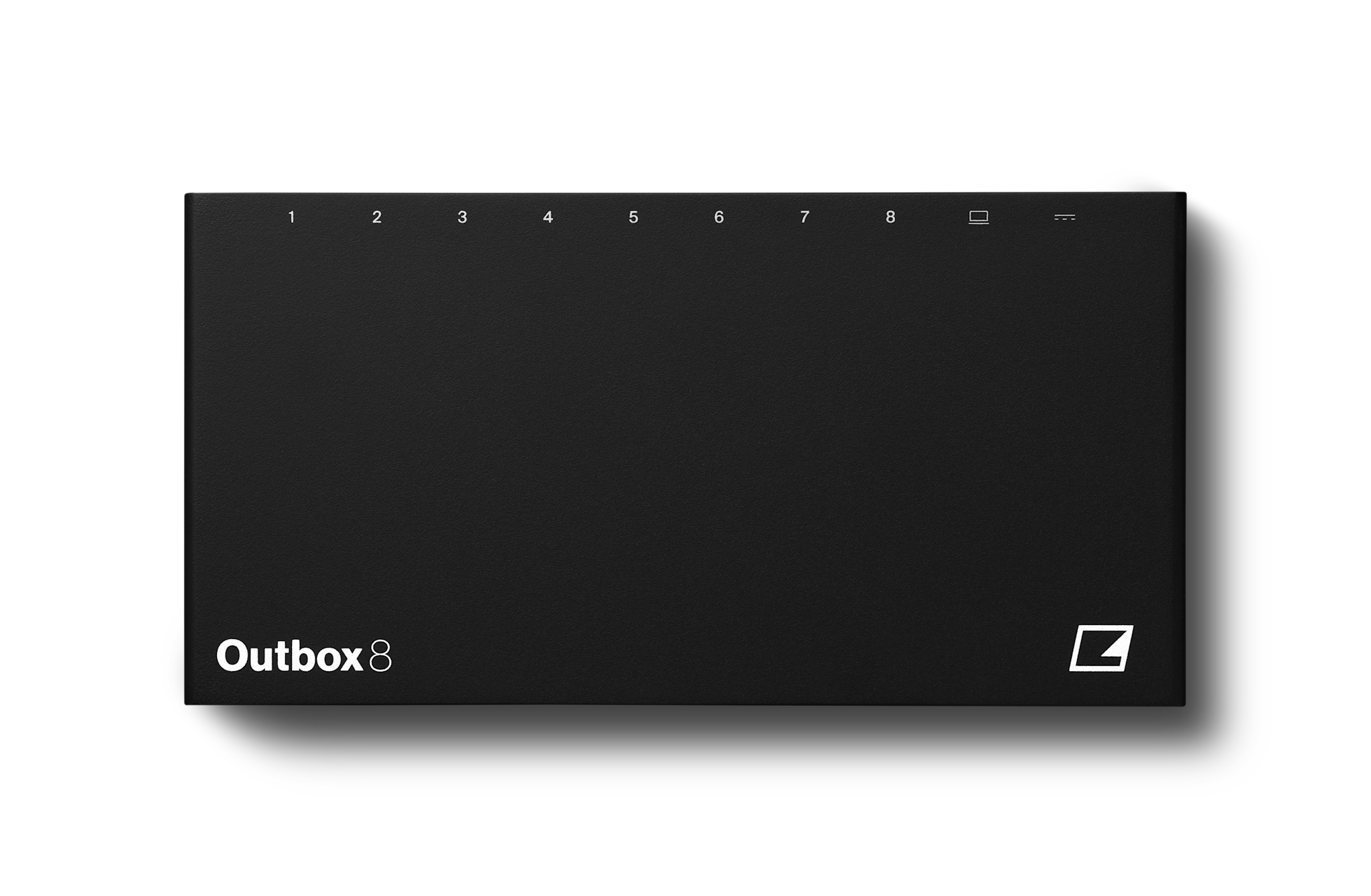

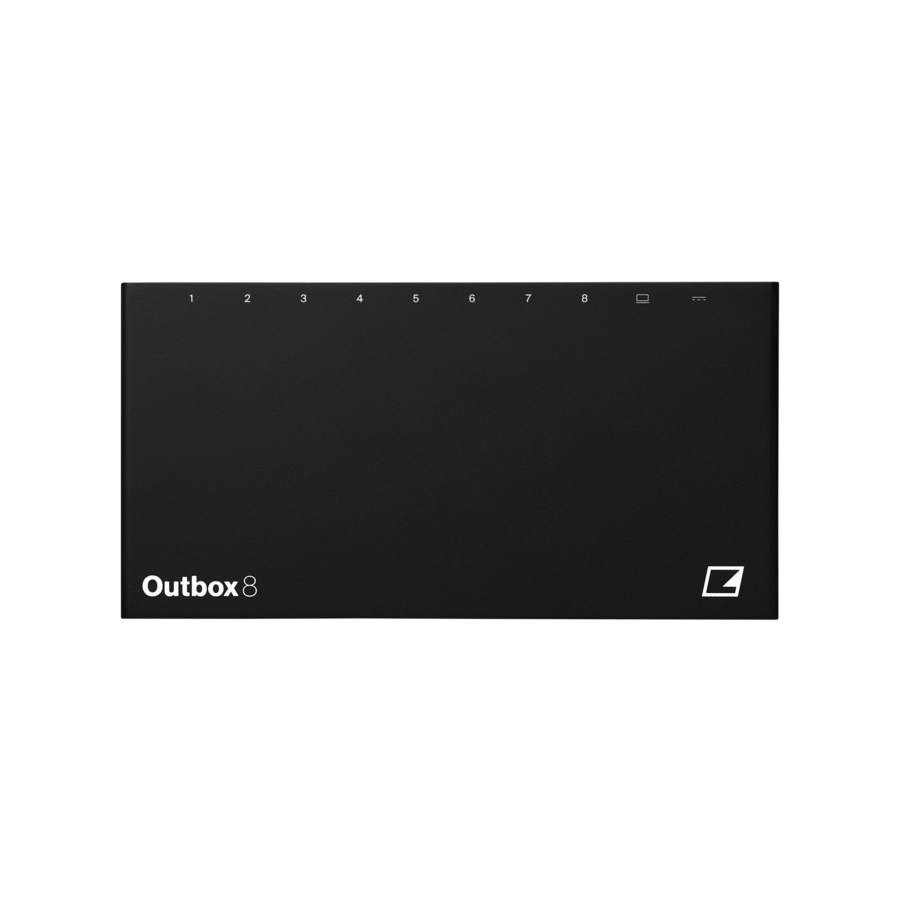

Outbox 8 is a versatile eight-channel audio/CV breakout box and USB host/device designed to expand yourconnectivity, with creative possibilities to boot.
It adds eight fully configurable physical outputs to a connecteddevice, letting you send audio and CV in any combination its capabilities allow.Route your audio to mixers, effects, and more-channel by channel. Or convert MIDI into CV signals to control yourmodular rig and other CV-controllable devices.
Whatever the moment calls for.Outbox 8 is compatible with Elektron Overbridge-enabled units, USB class-compliant MIDI devices, and many USBclass-compliant audio devices. USB MIDI support is broad, while audio compatibility can vary by manufacturer andfirmware; check Elektronauts forthe latest confirmed devices.
Outbox 8 also works as an audio interface, addingeight more outputs to your computer.Send audioOutbox 8 enables you to route individual tracks or submixesfrom your compatible Elektron machine for externalprocessing, mixing, or performance.
Send CVWith Outbox 8, you can assign outputs to CV duties-pitch, gate, trig, value lin, or clock-to bring modular andother CV-controllable gear into the same setup.MIDI to CVUse Outbox 8 as a dedicated USB MIDI-to-CV interface. Play, sequence, modulate, and synchronize modularsystems and other CV-capable instruments with your Elektron box.
Or connect a MIDI controller to play andcontrol them directly.Eight-output computer audioConnect Outbox 8 to your computer, tablet or phone and use it as an eight-output USB audio interface. Routechannels from your DAW to mixers, effects, monitors, or other external hardware, while also converting MIDI intoCV where needed.-------------
KEY SPECIFICATIONS8 ×

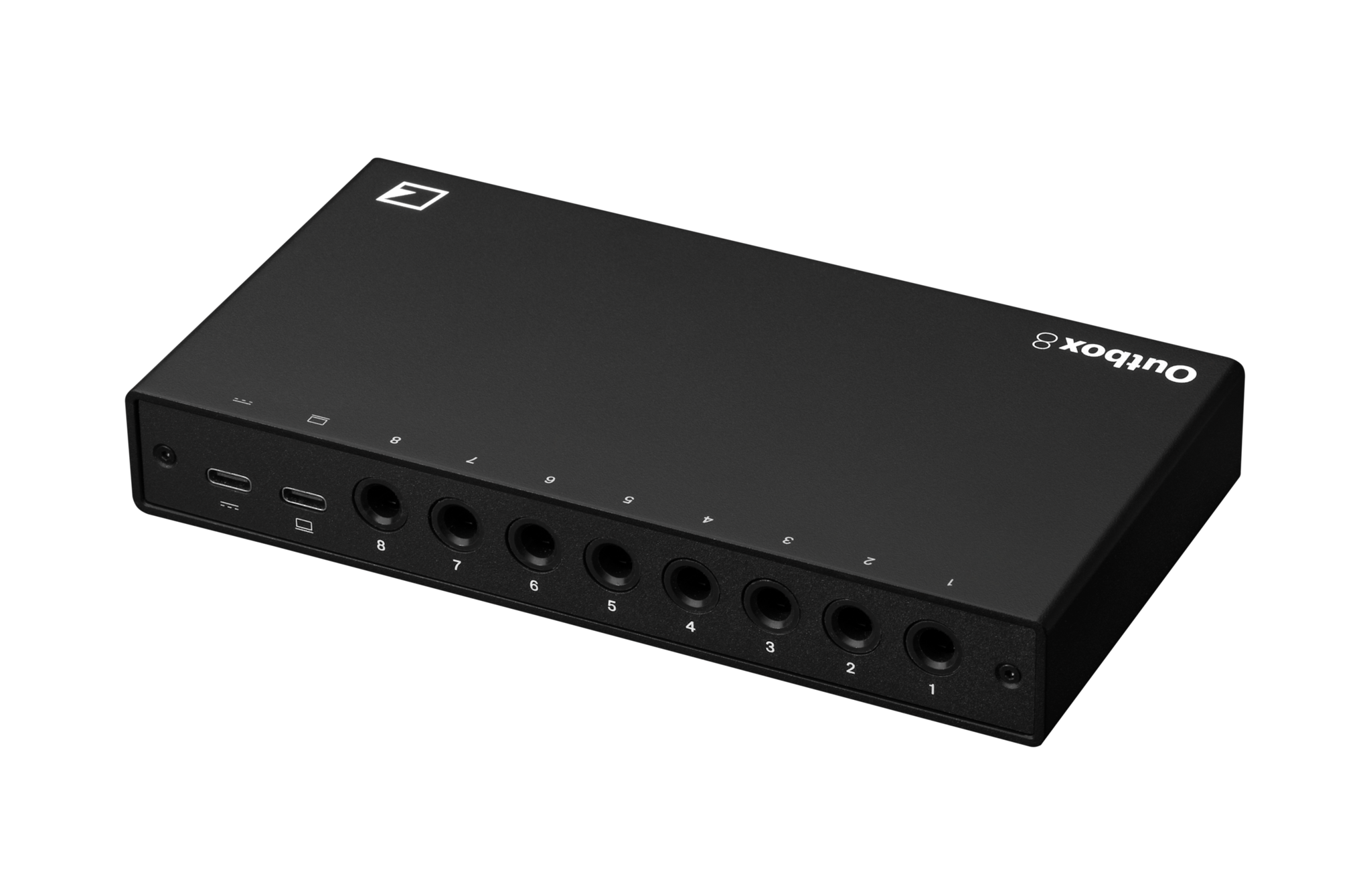

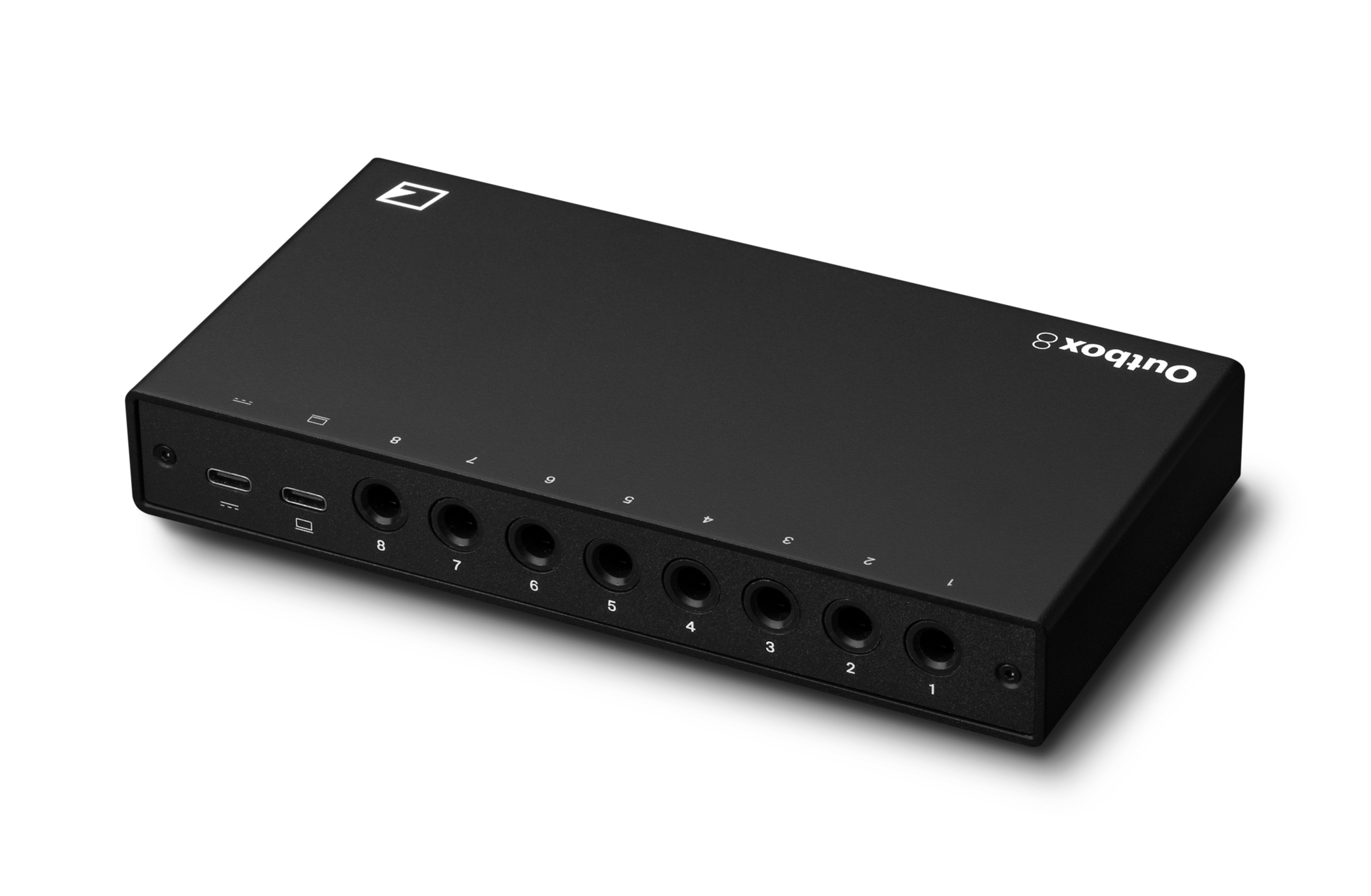

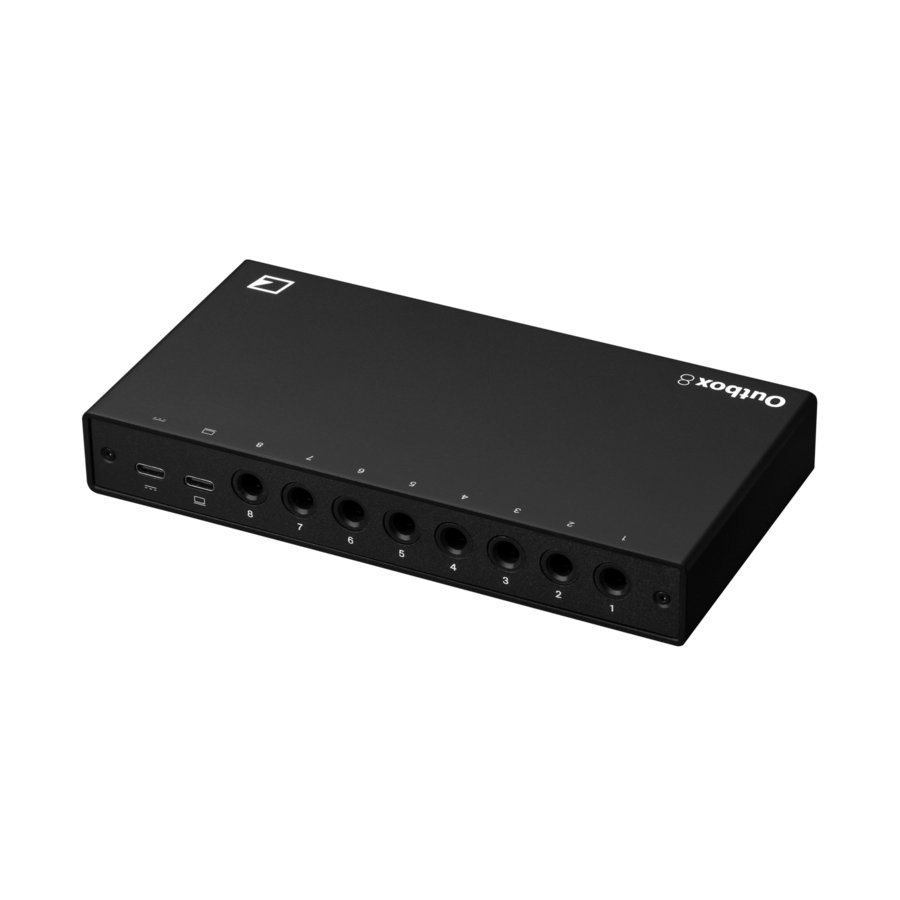

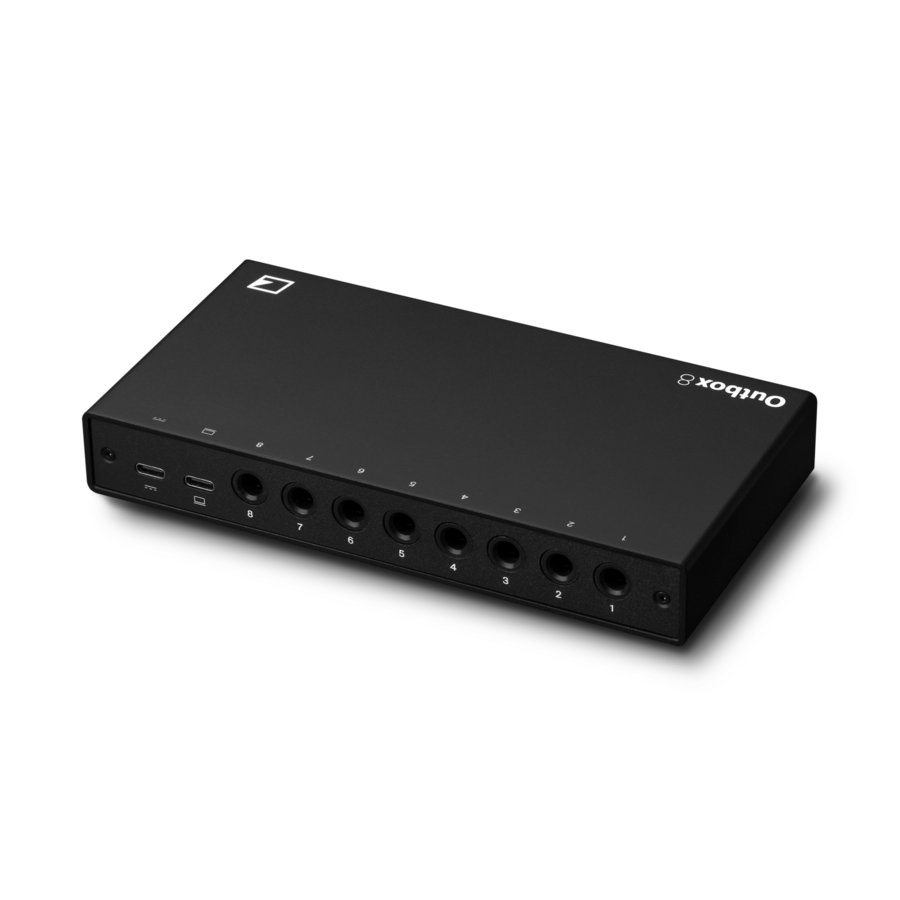

1/4” impedance-balanced DC-coupled audio/CV outputs
48 kHz, 32-bit D/A converters
CV output range: +/-5 VCV
signal types: GROUNDED, PITCH V/OCT, PITCH HZ/V, VALUE LIN, TRIG, GATE, and CLOCK1
USB Type-C power input1 × USB 2.0 High-Speed Type-C data port, supporting USB Power Delivery, dual-role data and dual-role power1
status LEDPower requirement: 5 V / 0.5 A / 2.5 W
higherDimensions: W 176 × D 90 × H 28 mm (including feet)Weight: approximately 0.35 kg
