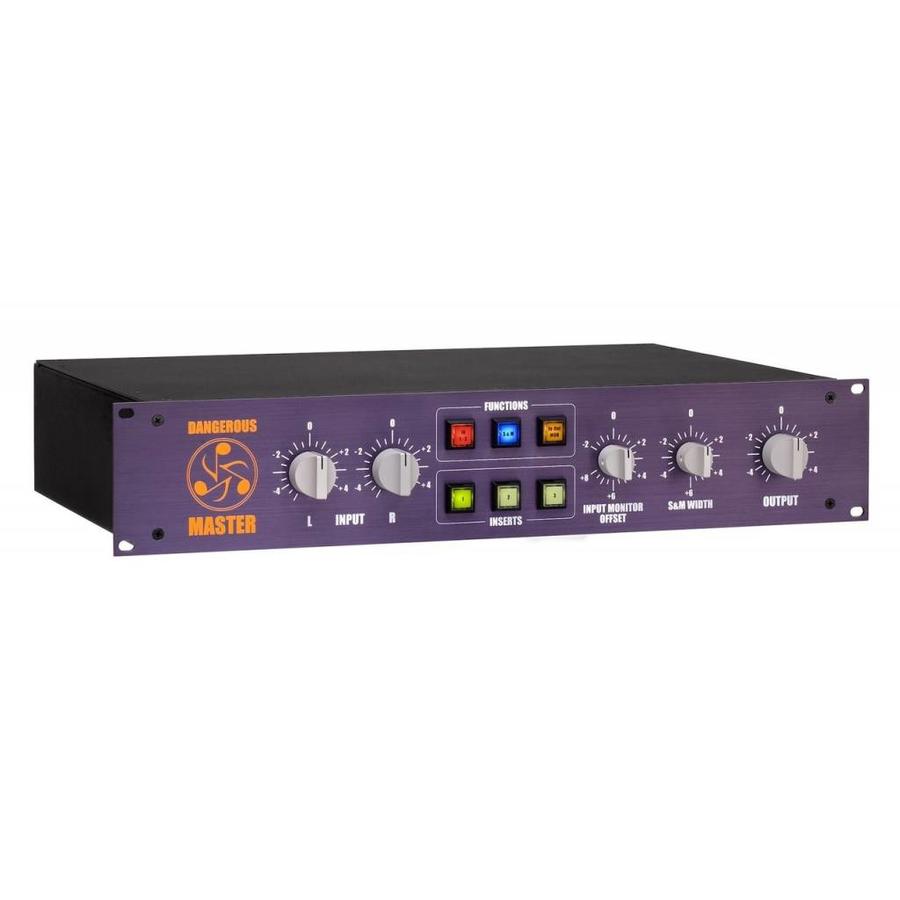

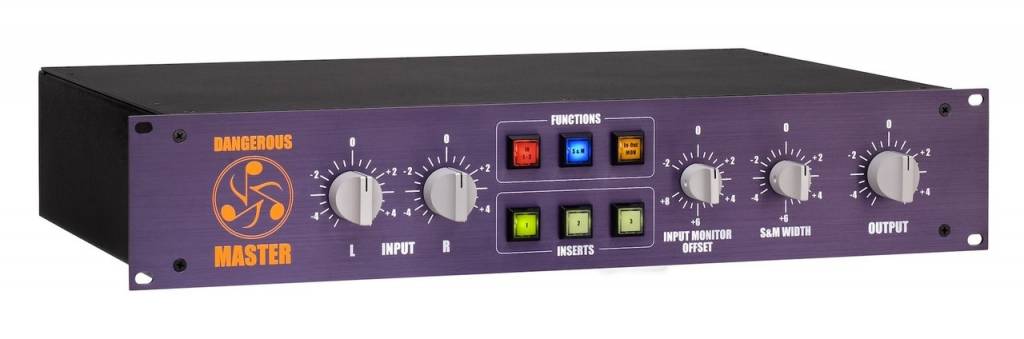

Mastering Console.

Specifications:

All connections are Balanced XLR, +4dBu nominal operating level

2 stereo inputs, 3 stereo outputs (one for monitoring)

3 insert loops

2nd insert capable of MS matrix operation

Input and Output controls:
+ – 5dB in 0.5dB steps

Input Monitor Offset:
-2 to +8dB in 0.5dB steps

Width control:
-4 to +6dB in 0.5dB steps

Attenuator accuracy:
> 0.01dB

THD+Noise in audio band:
< 0.0018%

IMD 60Hz + 4kHz 4:1
< 0.0025%

Crosstalk rejection:
Better than 111dB @ 1kHz

Headroom:
> +27dBu, +23dBu in the matrix under worst case conditions

Frequency response:
Better than 0.2dB down @ 1Hz and 100kHz

Noise floor:
< -92dBu total energy in the audio band
