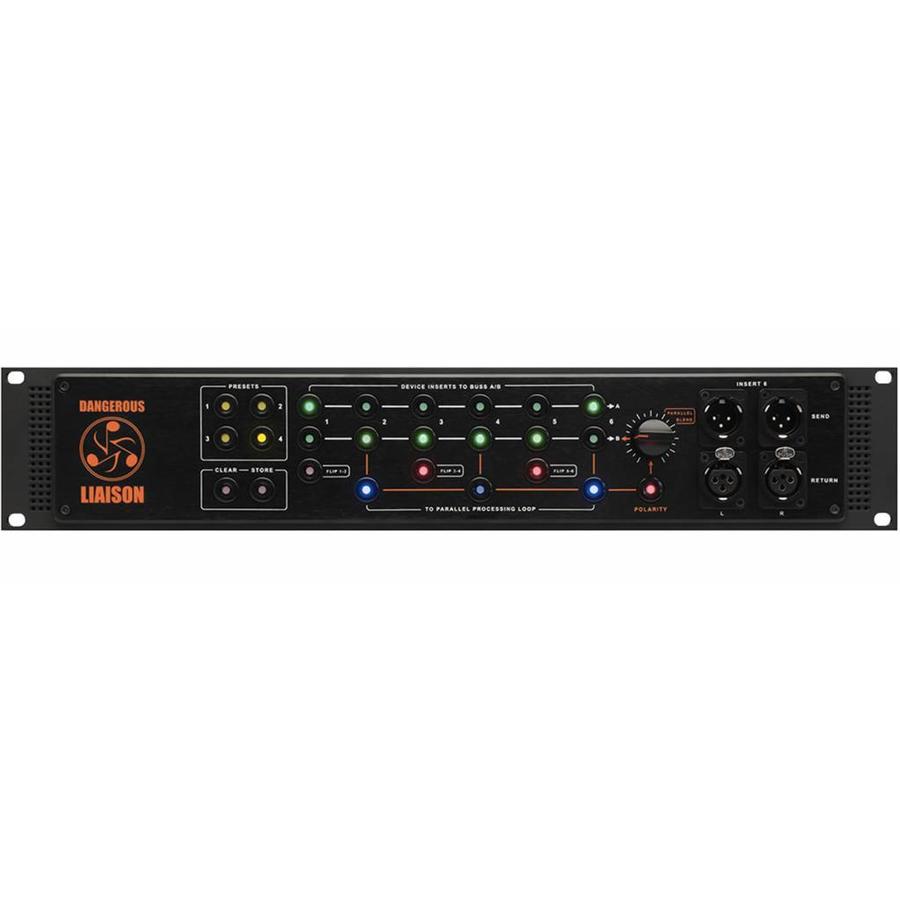

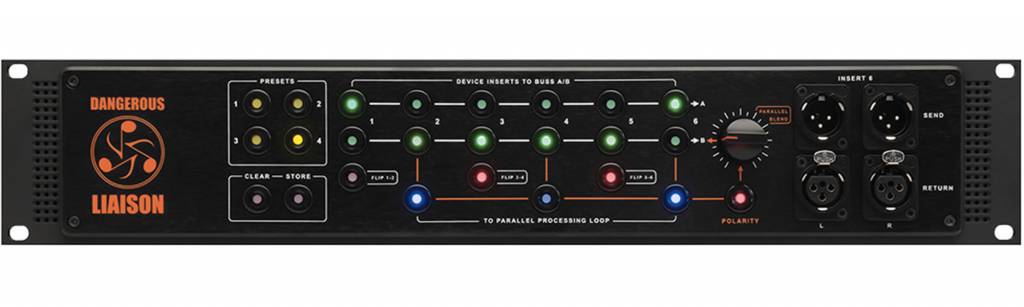

Instant recall is no longer just for digital. With the LIAISON from Dangerous Music you can store and recall complex analog patches that include up to six stereo or mono analog paths. You’ll experience the ease and quickness of digital plug-ins with your analog rig! Want to try your favorite mix-buss chain on a piano track? Or quickly compare two analog EQs within that chain? – just push a button. With the onboard, latency-free, audiophile-grade parallel buss, you can blend your processed and unprocessed signals for rock solid parallel effects that otherwise require elaborate large format consoles and patchbays. Recall any of your stored patches instantly, bring individual patches in and out of the signal path for gapless A/B comparisons, get your studio setup for the day’s tracking, mixing or mastering tasks in a flash, and do away with confusing, time-consuming patch recall sheets – all while getting crystal clear sound from all your favorite gear.

Specifications:

Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 100kHz

Frequency Response (Active Section) +0, -0.1dB from 10Hz to 100kHz

Maximum level > +28dBu

Noise floor < -94.5dBu 22Hz-22kHz bandwidth

THD+N < 0.002%

IMD < 0.003%

Crosstalk rejection (Passive Section) > 124dB

Crosstalk rejection (Active Section) > 113dB

Input Impedance: 20K Ohms

Output Impedance: 20 Ohms

Replacement Fuses:

USA 500mA fast blow for 120V
Europe 250mA fast blow for 240V
