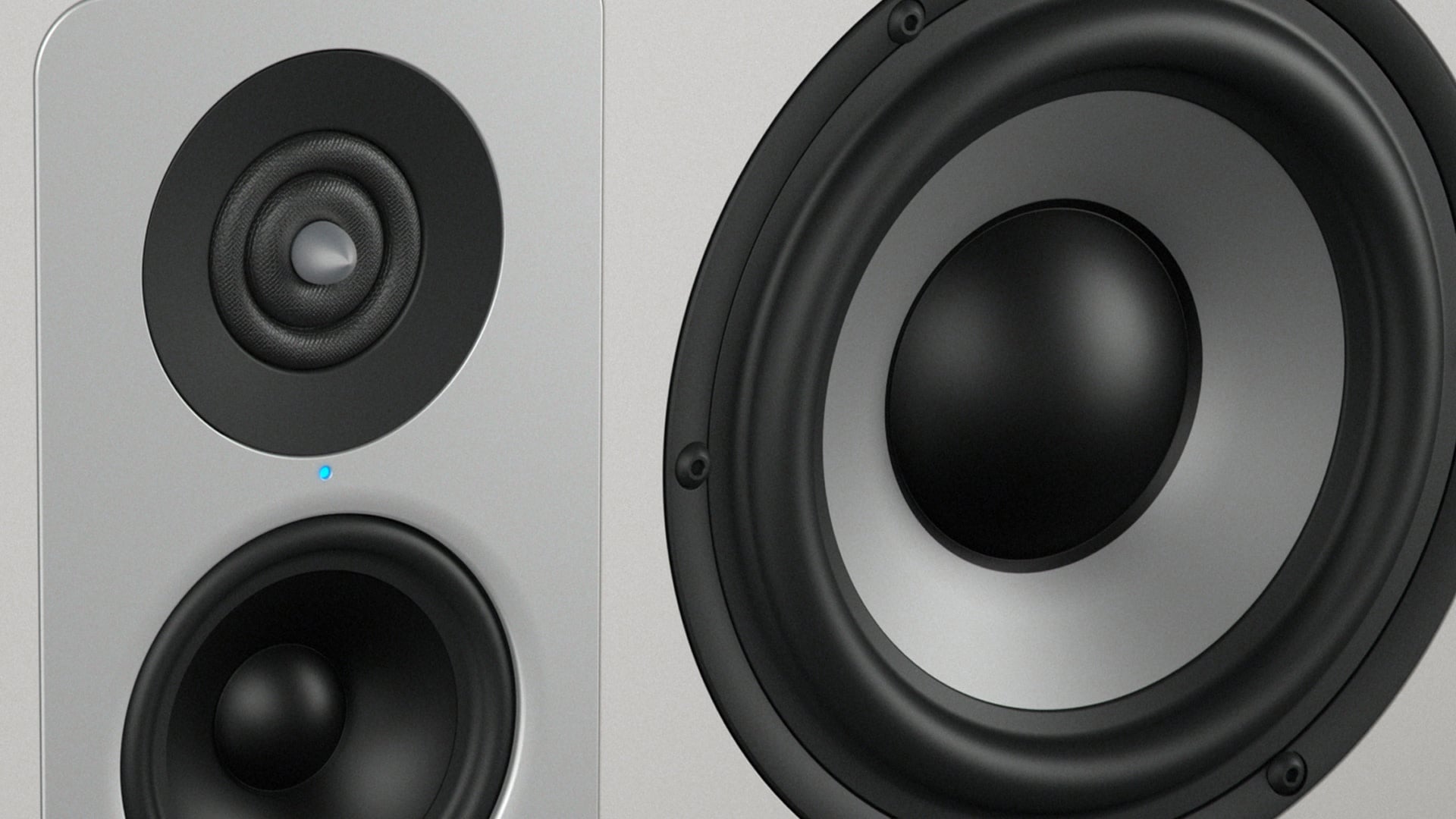

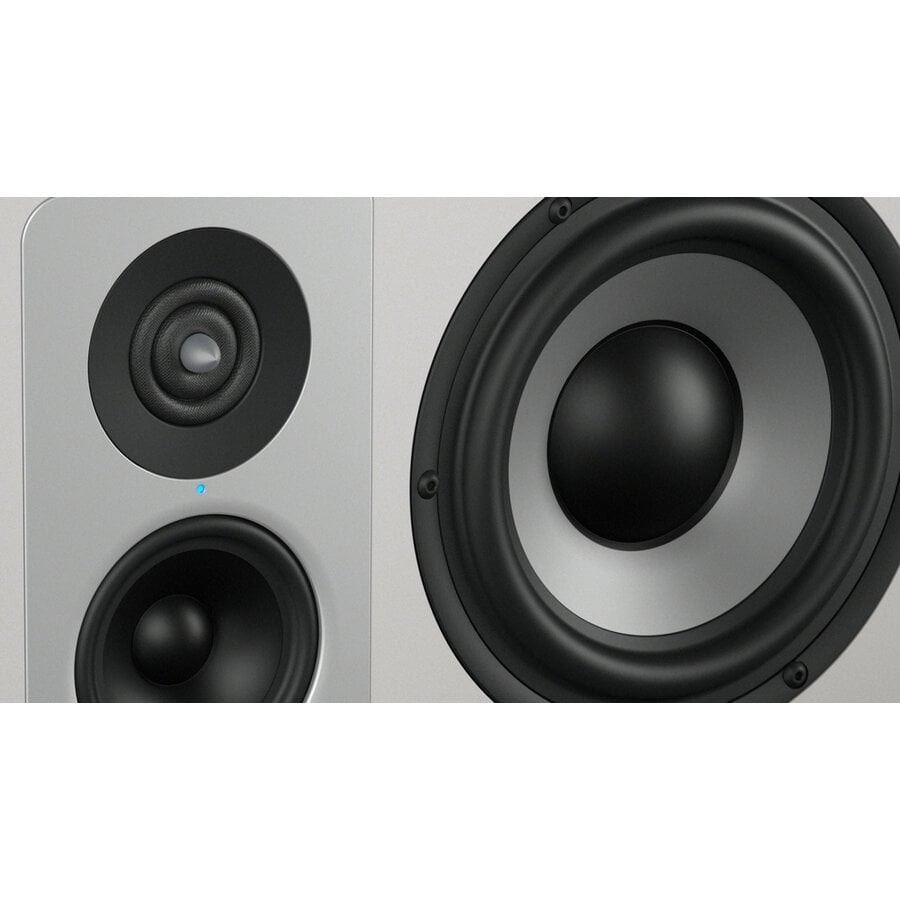

TWEETER
The new 1″ ring radiator tweeter design boasts a more powerful magnet and motor system, resulting in longer excursion capabilities, increased volume output, and reduced compression for a truly dynamic and captivating audio performance. To ensure consistent peak performance, an improved heat-sink system has been integrated, effectively regulating operating temperatures during extended use. Additionally, the addition of more copper shorting rings around the voice coil serves to eliminate distortion, delivering a pristine and accurate sound reproduction. The tweeter’s diaphragm is crafted from a high-quality fabric ring radiator material, while its housing adopts a sturdy aluminum enclosure and a solid aluminum face plug for superior rigidity and resonance control. Further enhancing its capabilities, the new tweeter incorporates Neodymium technology, culminating in a harmonious blend of precision, clarity, and unparalleled fidelity in high-frequency sound reproduction..

MIDRANGE

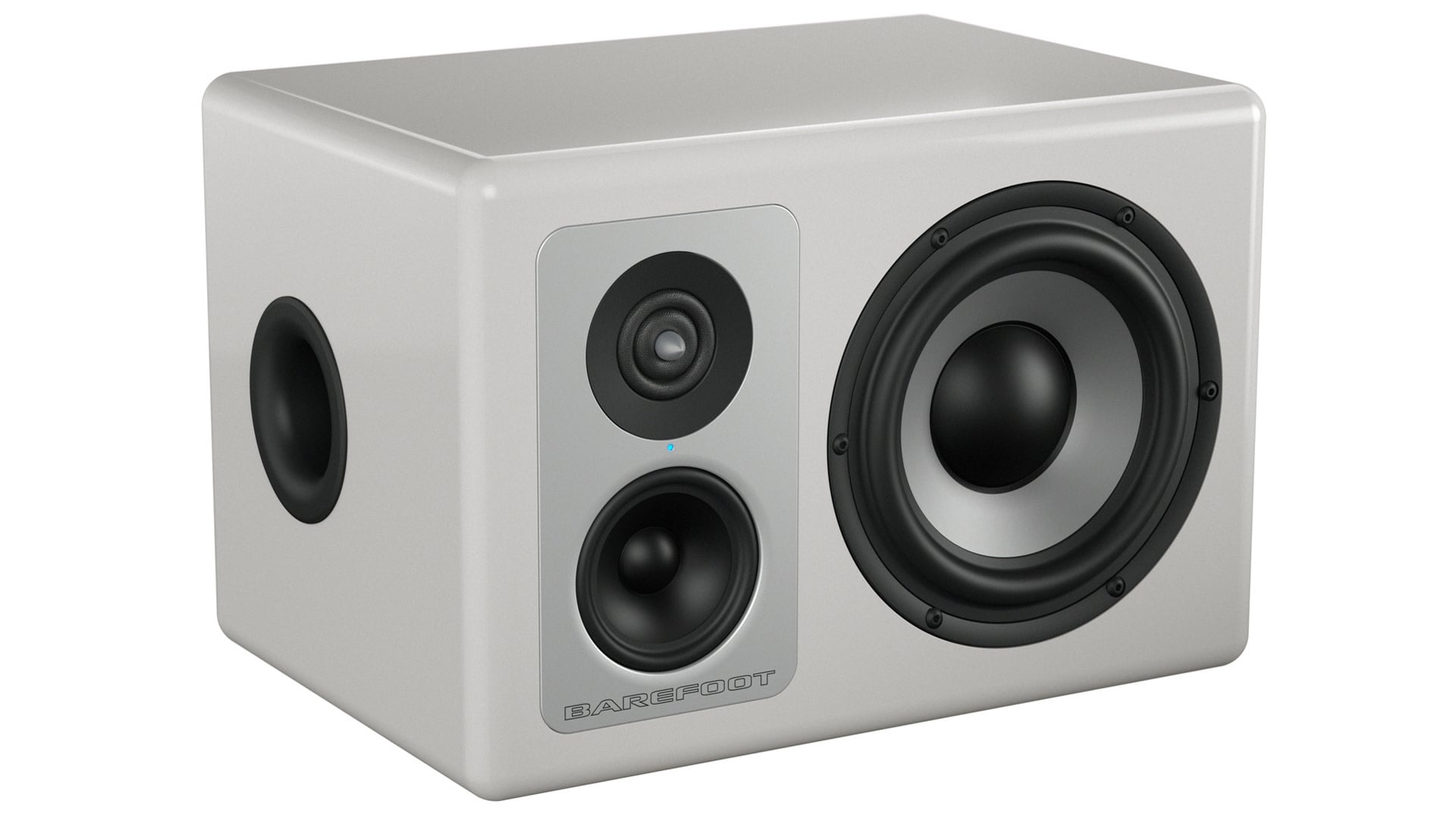

The Linear White Footprint®03 3.5″ midrange driver utilizes an aluminum cone, further contributing to the driver’s rigidity and resonance control, thus enhancing the overall audio fidelity. The inclusion of a larger, high-sensitivity power motor and additional copper shorting rings around the voice coil effectively minimizes harmonic distortion, resulting in pristine and accurate sound reproduction. The driver’s advanced magnet and motor system, combined with its longer excursion capability, enable it to achieve higher volumes while maintaining minimal compression. Moreover, an improved heat-sink system ensures reliable performance even during prolonged use

WOOFER
The Linear White Footprint®03 forward-facing 6.5″ aluminum cone woofer is driven by a robust 100W amplifier in each monitor, ensuring powerful and accurate bass reproduction. Its larger, high-sensitivity power motor, combined with additional copper shorting rings around the voice coil, effectively minimizes harmonic distortion, delivering pristine and accurate sound reproduction. With a more potent magnet and motor system, the new woofer design achieves longer excursion capabilities, resulting in louder and less compressed sound output. An improved heat-sink system ensures reliable performance even during extended usage, further solidifying the woofer’s durability and dependability.

AMPLIFIERS
The Linear White Footprint®03 features three Class D amplifier modules, each dedicated to a specific driver. The tweeter channel has a 60-watt amplifier, while midrange and woofer drivers are supported by separate 100-watt amplifiers. The amplifiers maintain a total harmonic distortion (THD) of less than 0.005% when delivering maximum power. This configuration ensures a well-balanced, powerful audio performance, optimizing signal levels for each driver and facilitating optimal sound reproduction.

SPectrally Optimized Conversion
SPOC™ (SPectrally Optimized Conversion) is introduced to the audio world through the Linear White Footprint®03. The new Barefoot patented technology incorporates an analog crossover section prior to the analog-to-digital conversion, allowing us to pass the high frequencies into the converter unattenuated. This yields 5-bit higher resolution or a 15 dB signal-to-noise ratio. Exclusive to monitors featuring SPOC™, this technology achieves a more transparent signal not found in any other monitor in its class.

DSP
The Barefoot Sound Digital Signal Processor (DSP) in the Linear White Footprint®03 is at the heart of this cutting-edge technology. DSPs play a critical role in enhancing and optimizing audio signals, elevating the listening experience to unparalleled heights. With a remarkable latency of an impressive 3 ms, this DSP ensures a near-instantaneous response, eliminating any perceptible delay for seamless audio reproduction. By optimizing the drive level, the DSP enhances the low-end frequency response, delivering deeper and more impactful bass. Additionally, distortion is significantly reduced, allowing for enhanced clarity and sonic accuracy. This enables audiophiles and professionals alike to experience every nuance of the sound with pristine detail.

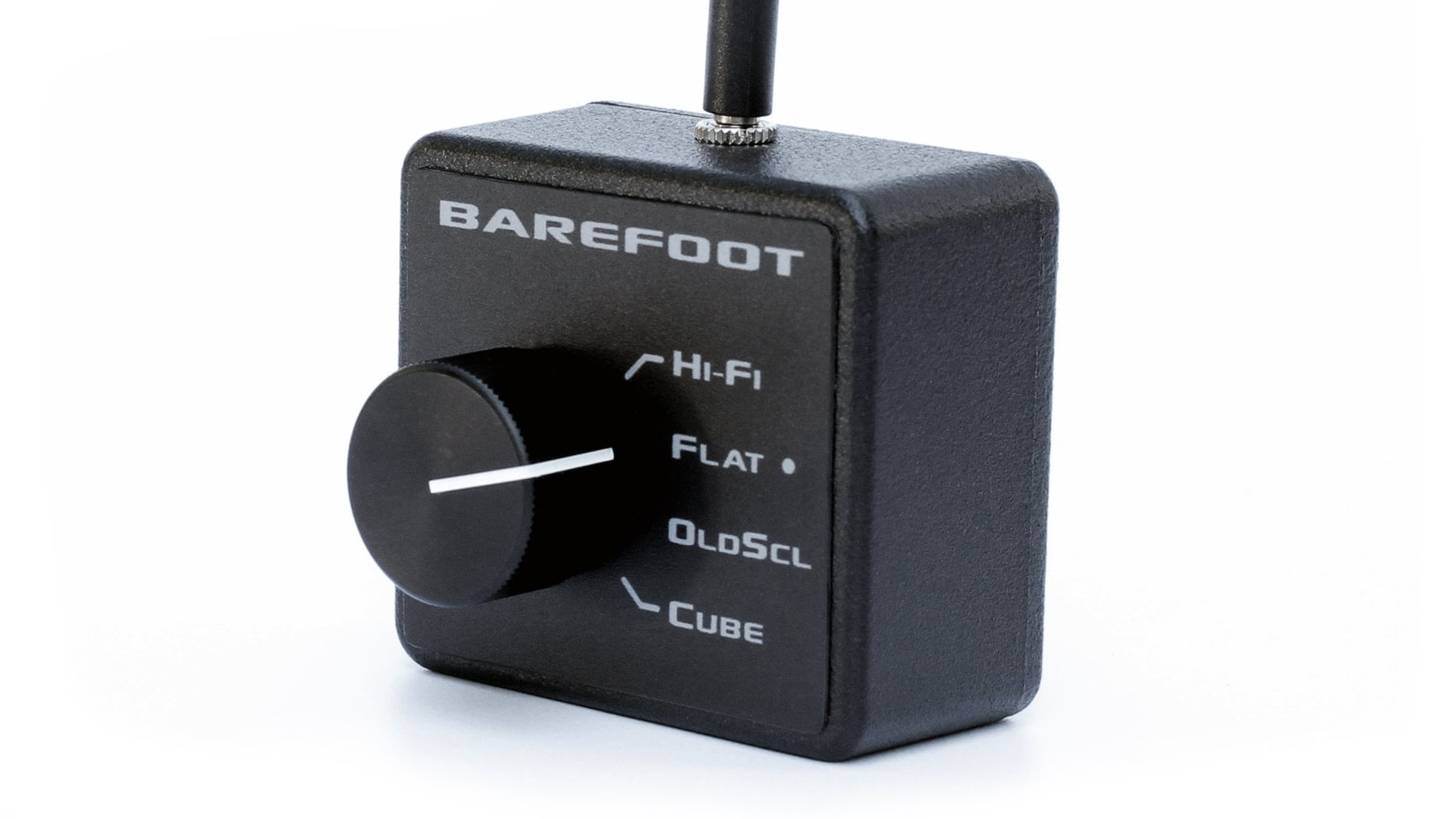

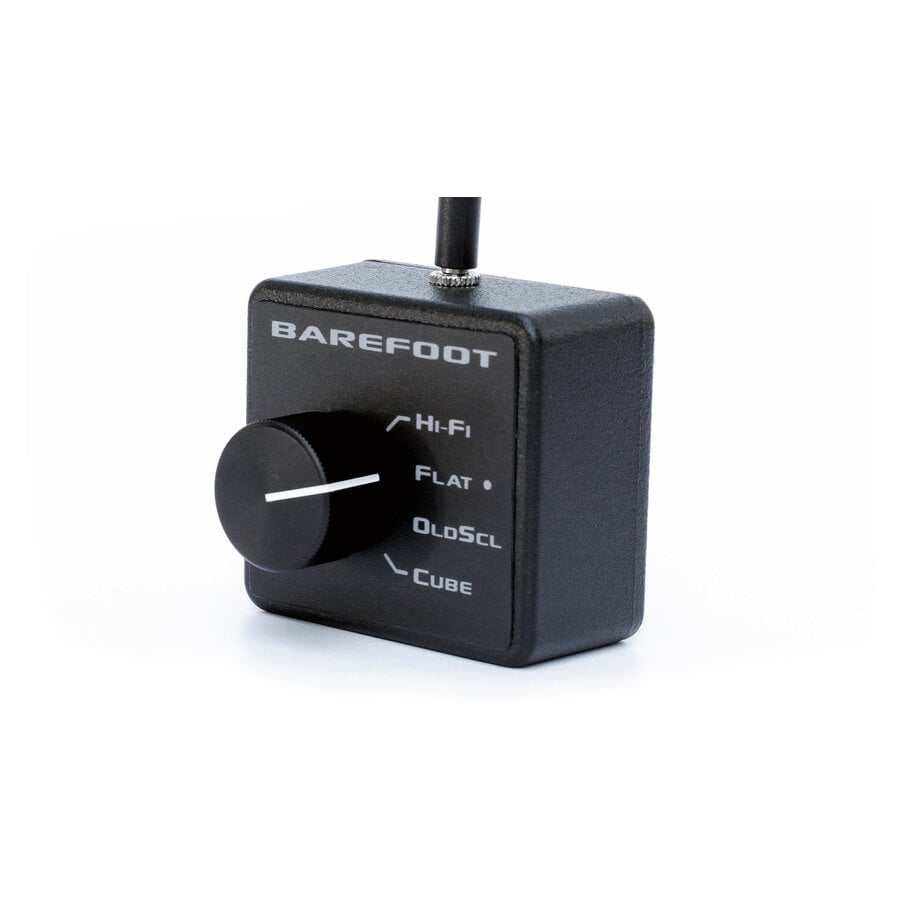

MEME™ TECHNOLOGY
Barefoot Sound’s Multi-Emphasis Monitor Emulation™ technology (MEME) elevates the adaptability of the Linear White Footprint®03, enabling it to seamlessly integrate into a wide array of applications, including playback rooms, mobile setups, homes, and production environments. MEME provides authentic emulations that faithfully model the performance and unique character of mix cube speakers, the renowned white coned speakers we are all familiar with, and consumer hi-fi speakers. This empowers the mixer with the convenience to effortlessly switch between these iconic monitors for reference purposes.
