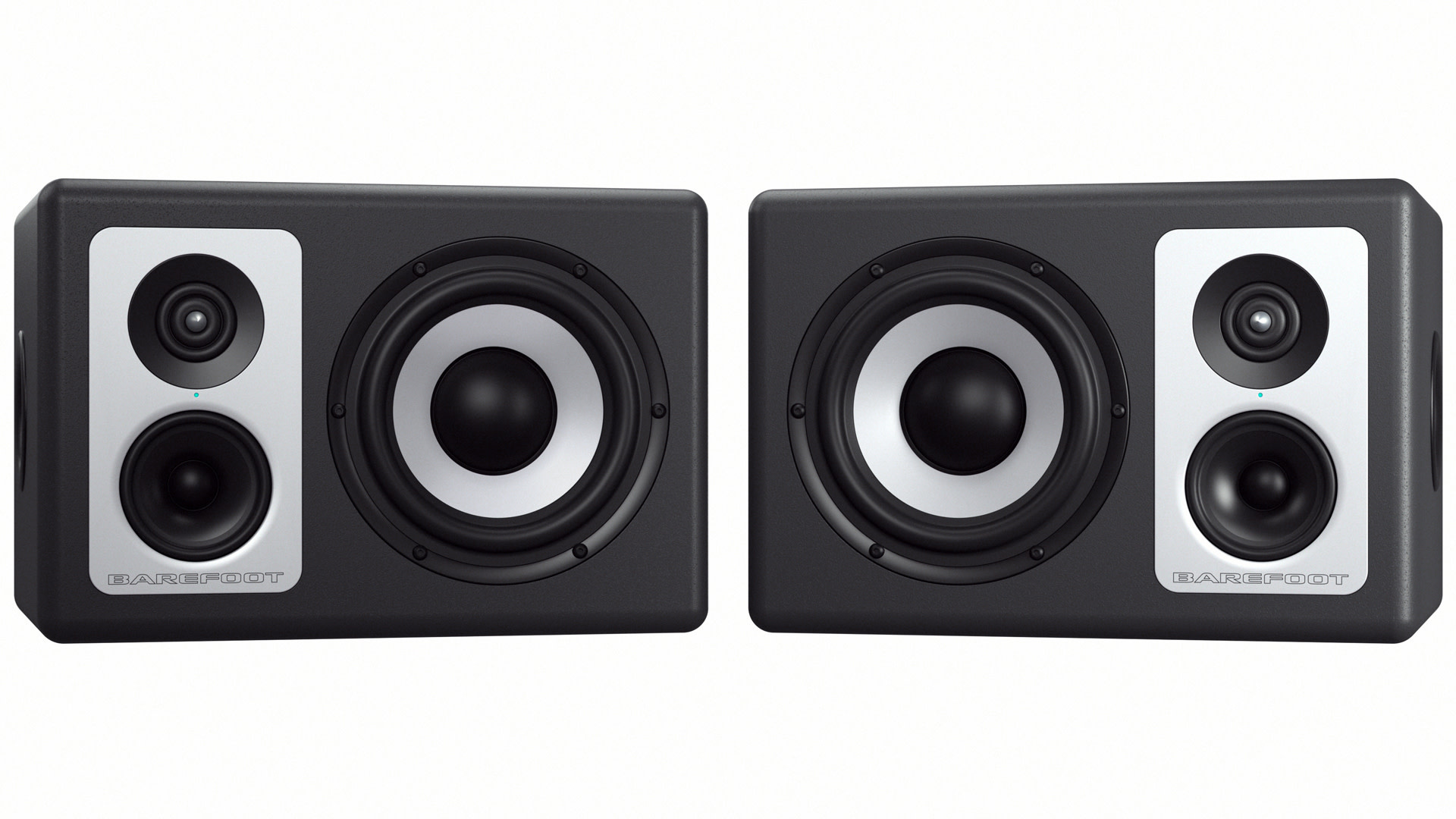

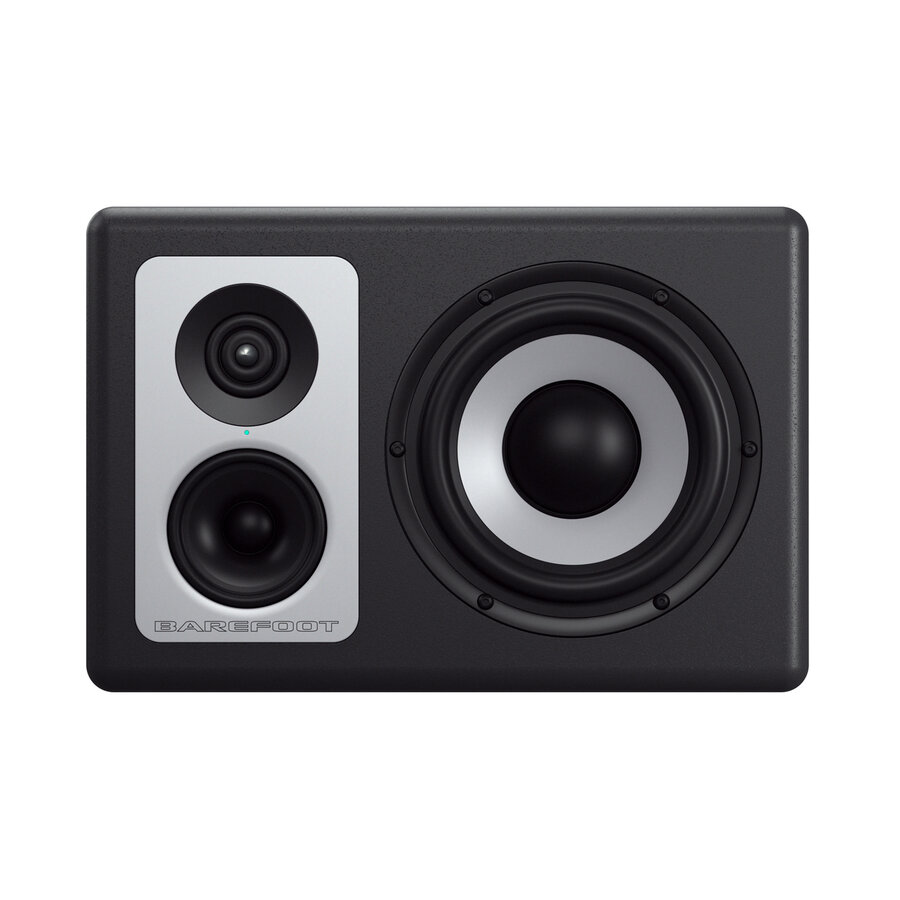

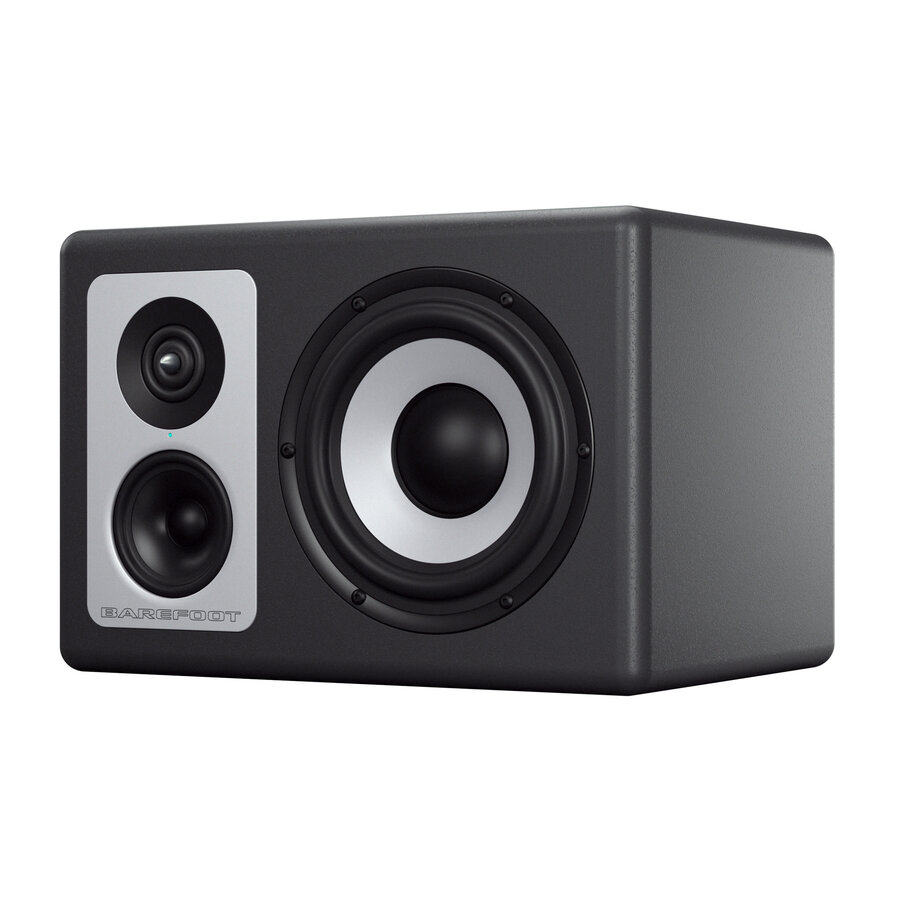

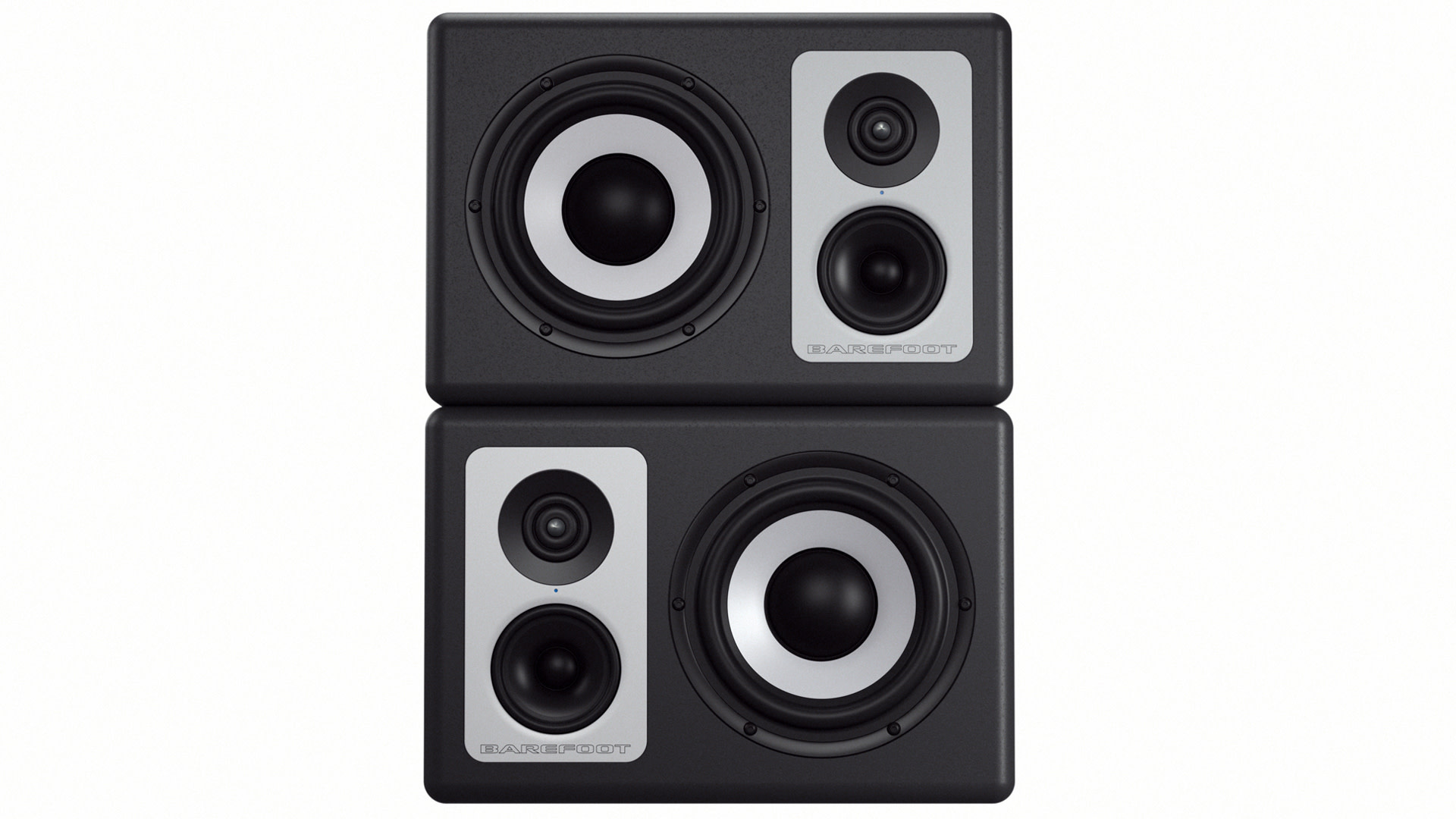

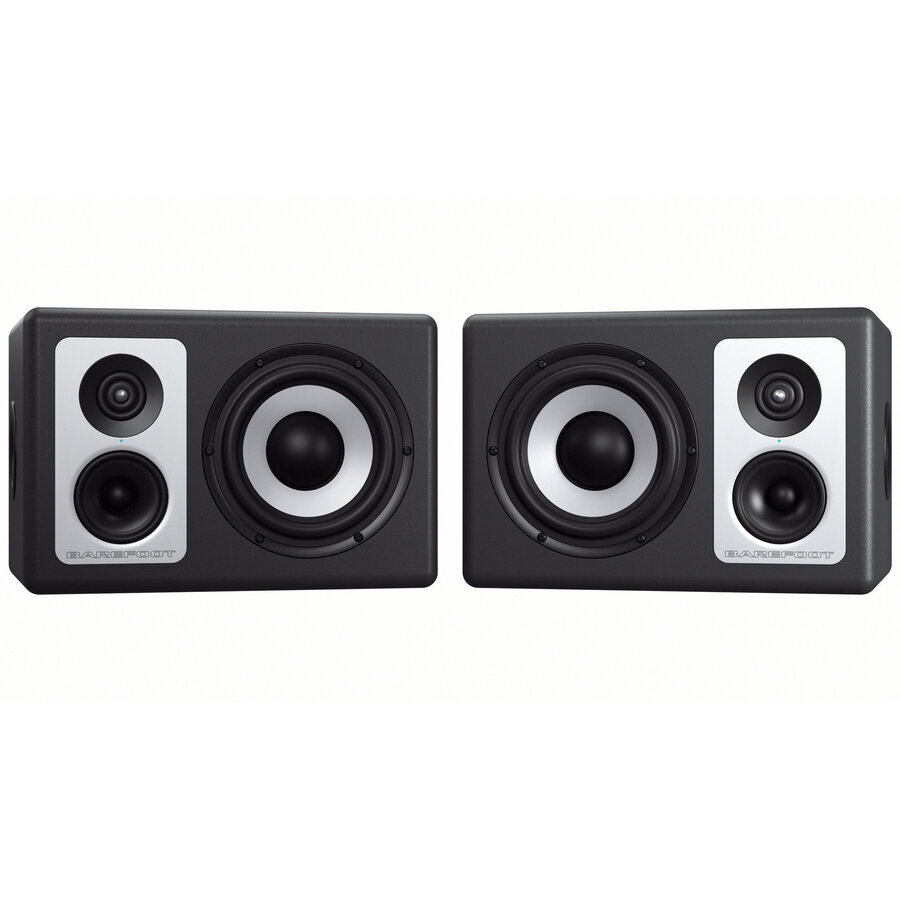

A TRUE 3-WAY ACTIVE PORTED DESIGN MONITOR EVOLVES BAREFOOT SOUND'S FOOTPRINT SERIES
€1.982,64
(€2.399,00 Incl. tax )
  • Article code 210000009660
  • SKU 210000009660
- +
Asset 1Add to cart
Ordered before 18:00, delivered tomorrow! You got : 03:39 hours
Something else from this brand? E-mail us!
Seen a better price? E-mail us!
  • Description

    THE STORY



    The saga continues as Barefoot Sound introduces the latest edition of the highly acclaimed Footprint series. Say hello to the Footprint03 – this tri-amplified 3-way studio monitor maintains the exceptional audio quality and design characteristics of its predecessors, the Footprint01 and Footprint02, all while offering a more compact design and an affordable price. Departing from the traditional sealed cabinet design, the Footprint03 embraces a fast transient ported speaker design, achieving remarkable low-end extension while upholding Barefoot’s renowned standards in cabinet construction. The cabinet’s Footprint Gray polyester coating, stress assembly techniques, and substantial weight contribute to stability and damping, combatting potential vibrations for an unparalleled listening experience.

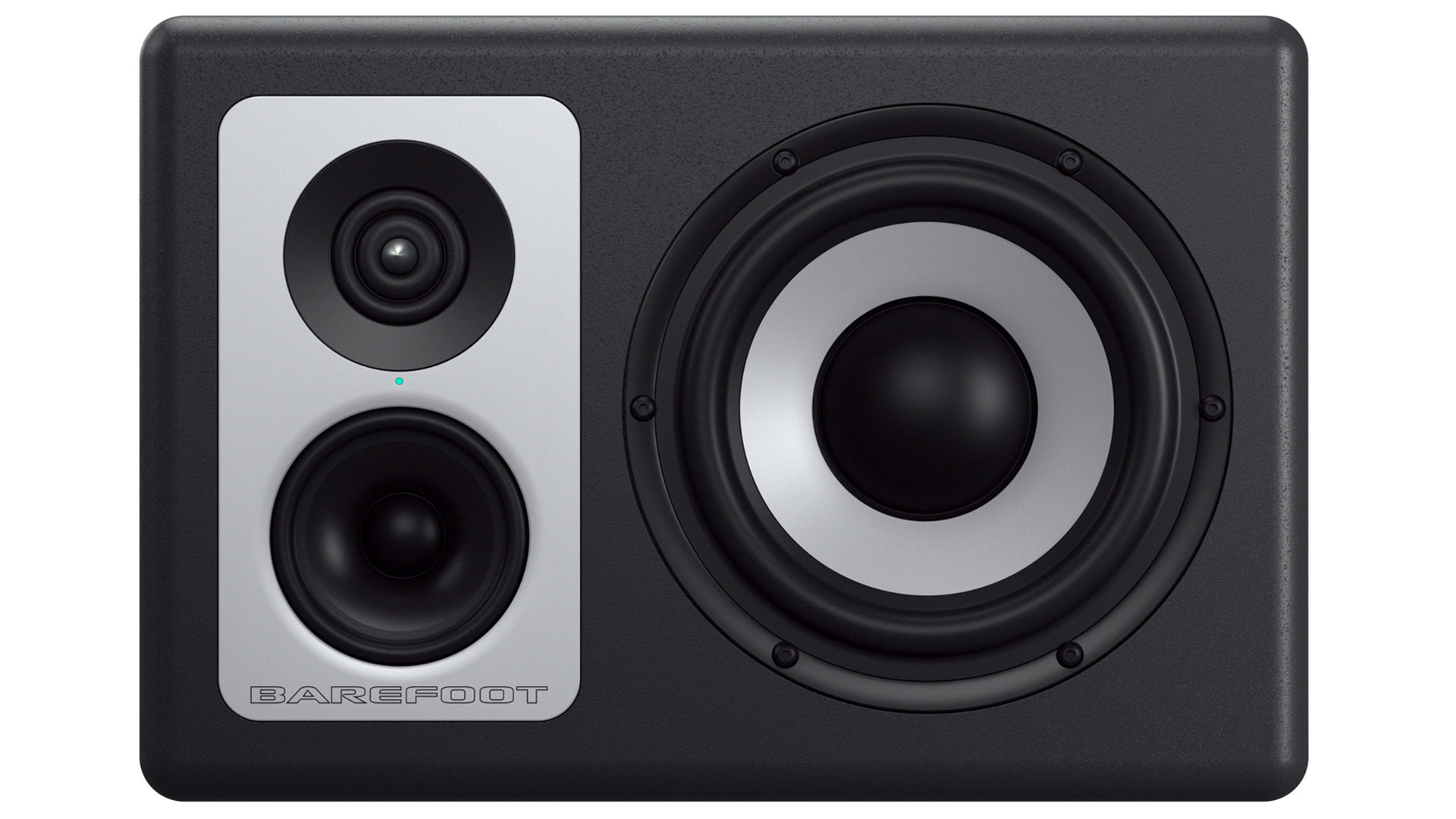

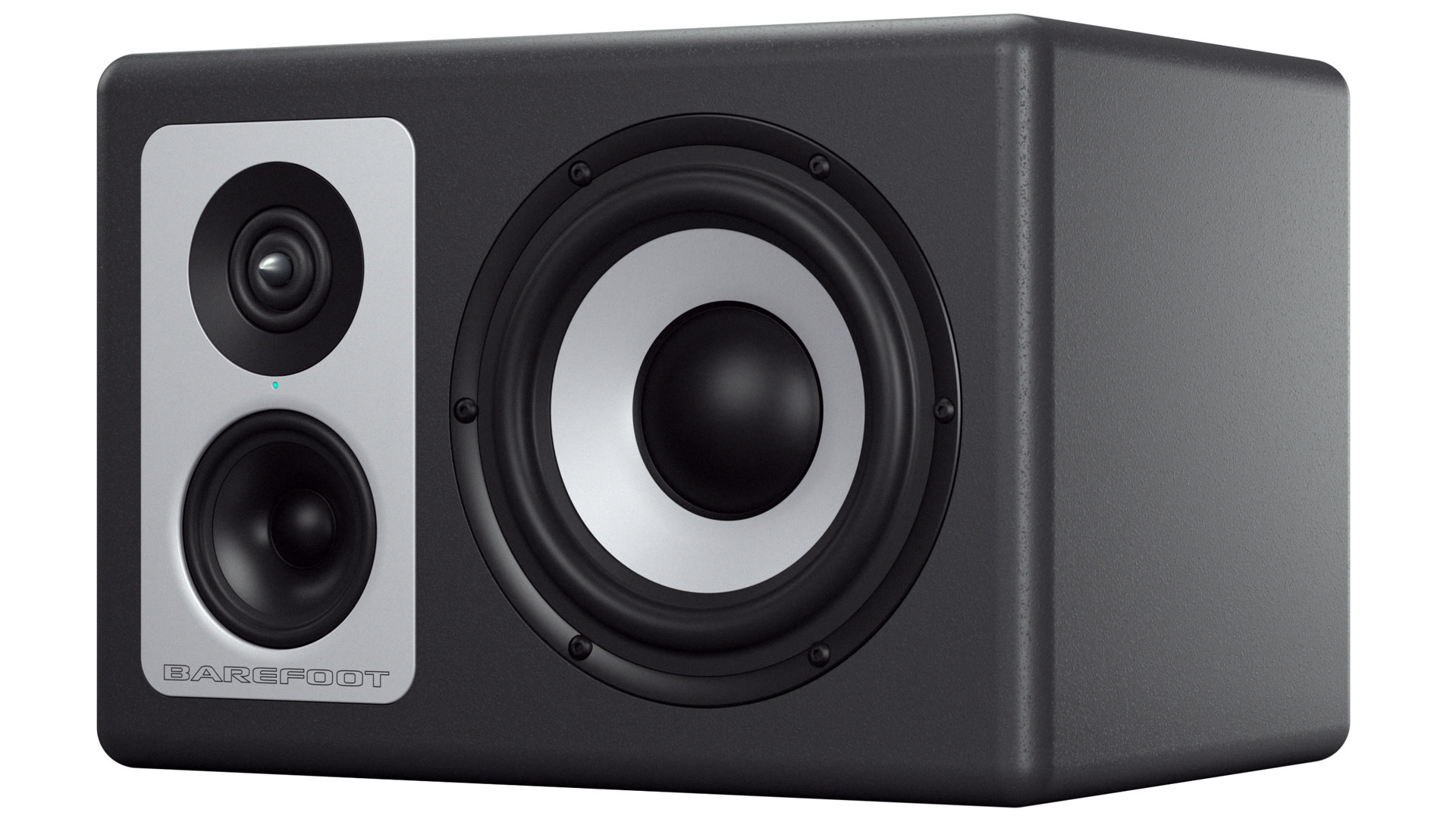

    Delving into the heart of the Footprint03’s innovation, the speaker boasts a 1″ ring radiator tweeter, a 3.5″ midrange driver with an aluminum cone, and a forward-facing 6.5″ aluminum cone woofer, each meticulously designed to enhance audio fidelity. The incorporation of advanced magnet and motor systems, copper shorting rings, and an improved heat-sink system ensure minimal distortion, longer excursion capabilities, and reliable performance even during extended use. The introduction of SPOC™ (Spectrally Optimized Conversion) technology and a groundbreaking Digital Signal Processor (DSP) further elevate the audio experience, providing higher resolution, reduced latency, and optimized frequency response for audiophiles and professionals alike. Barefoot’s MEME™ Technology adds another layer of versatility, allowing seamless integration into various applications, making the Footprint03 a true powerhouse in studio monitoring in a small package.



    DESIGN



    The goal at Barefoot Sound has always been to push the design limits of what is possible in a compact studio monitor. The Footprint03 is no exception; we are proud to introduce many new innovations in this model as well.



    PORTED

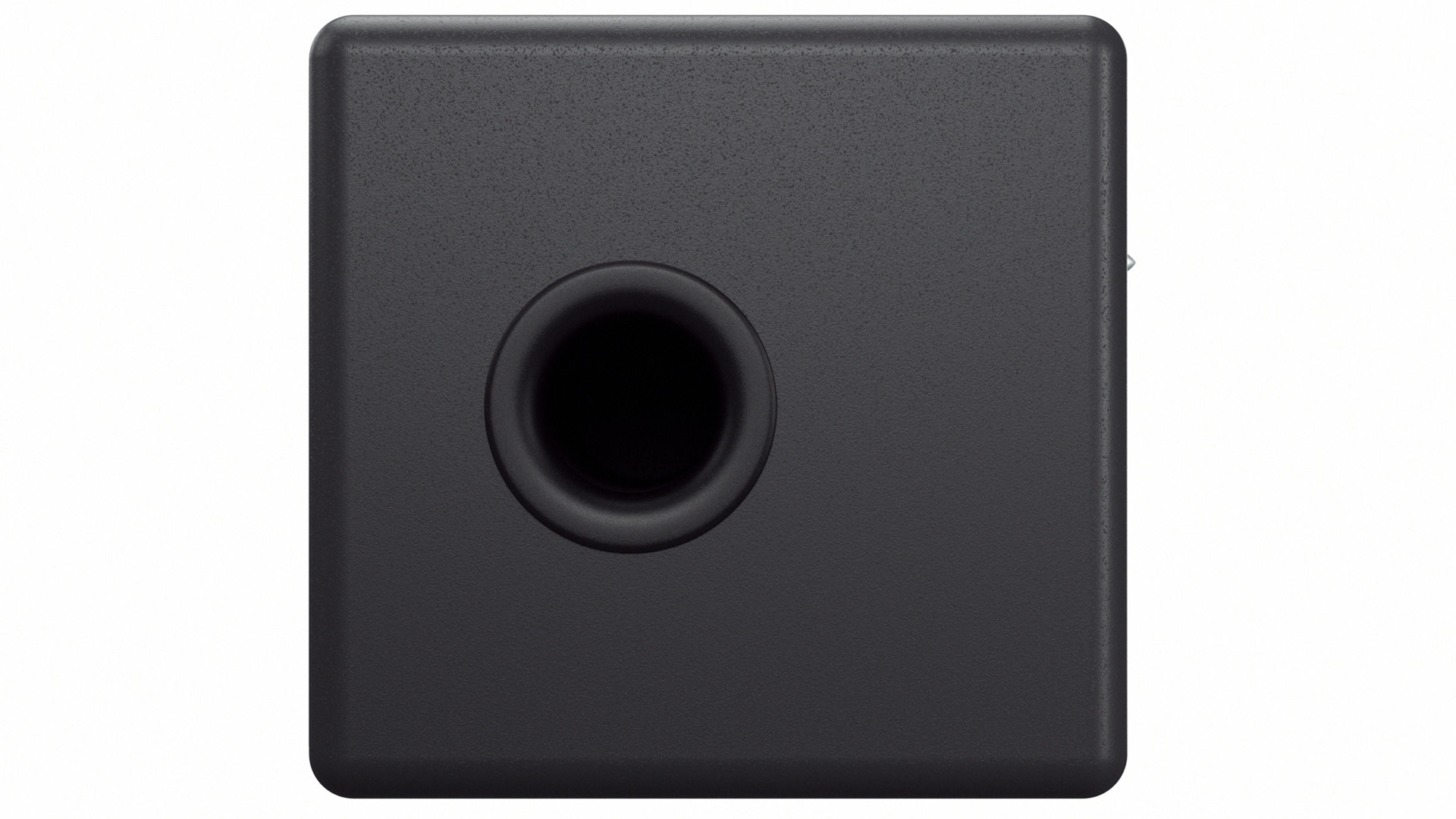

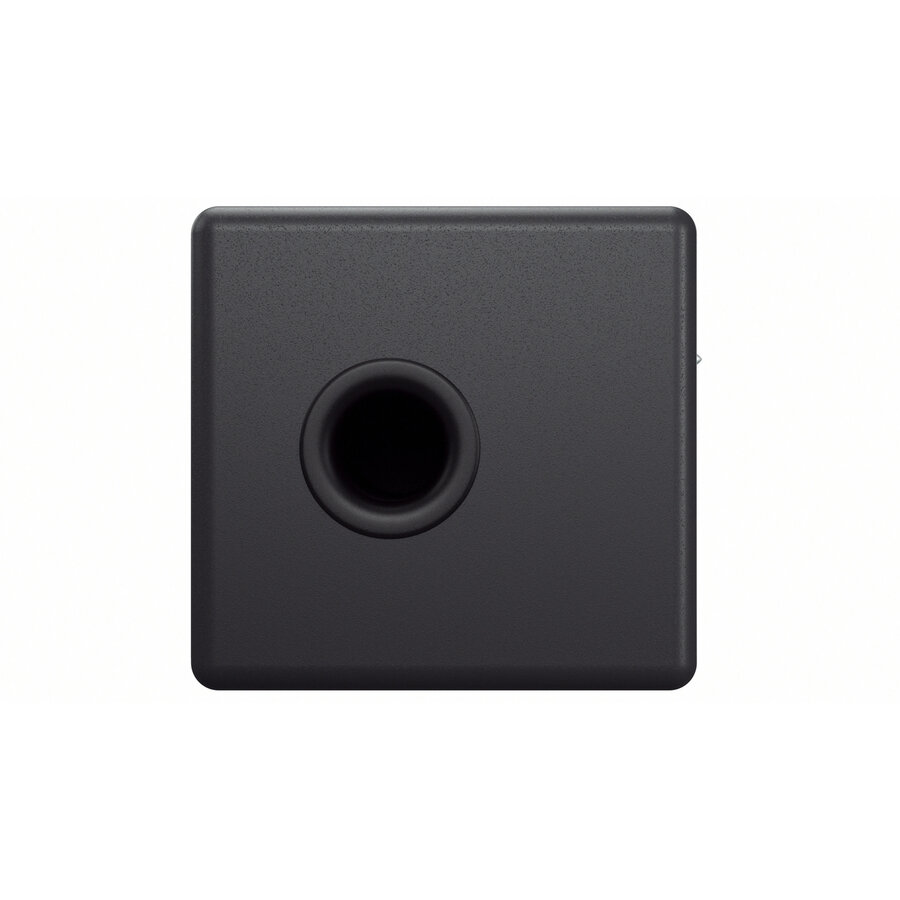

    Barefoot Sound, known for its sealed cabinets, proves its versatility with the introduction of a side-firing ported speaker design. Embracing this fast transient bass reflex system, they achieve remarkable low-end extension while maintaining Barefoot’s renowned standards in cabinet construction, comparable to their other acclaimed sealed cabinet designs.

    CABINET
    The cabinet boasts the well-known Footprint Gray polyester coating with its signature textured finish and is meticulously constructed using Medium-Density Fiberboard (MDF). Employing stress assembly techniques to enhance stability and damping, these cabinets are in line with the exceptional standards of all other Barefoot monitors. Their substantial weight further aids in combating any potential cabinet vibrations.

    MOUNTING

    Achieving the optimal multi-channel studio setup is effortless with Footprint03 monitors, thanks to their seamless integration with premium mounting solutions from Triad-Orbit or König & Meyer. These monitors, ideal for compact Atmos mixing rooms, provide unparalleled audio precision and quality, enhancing the acoustic experience in smaller studios while ensuring easy and versatile installation.


    DRIVERS & AMPS

    TWEETER
    The new 1″ ring radiator tweeter design boasts a more powerful magnet and motor system, resulting in longer excursion capabilities, increased volume output, and reduced compression for a truly dynamic and captivating audio performance. To ensure consistent peak performance, an improved heat-sink system has been integrated, effectively regulating operating temperatures during extended use. Additionally, the addition of more copper shorting rings around the voice coil serves to eliminate distortion, delivering a pristine and accurate sound reproduction. The tweeter’s diaphragm is crafted from a high-quality fabric ring radiator material, while its housing adopts a sturdy aluminum enclosure and a solid aluminum face plug for superior rigidity and resonance control. Further enhancing its capabilities, the new tweeter incorporates Neodymium technology, culminating in a harmonious blend of precision, clarity, and unparalleled fidelity in high-frequency sound reproduction..

    MIDRANGE
    The Footprint03 3.5″ midrange driver utilizes an aluminum cone, further contributing to the driver’s rigidity and resonance control, thus enhancing the overall audio fidelity. The inclusion of a larger, high-sensitivity power motor and additional copper shorting rings around the voice coil effectively minimizes harmonic distortion, resulting in pristine and accurate sound reproduction. The driver’s advanced magnet and motor system, combined with its longer excursion capability, enable it to achieve higher volumes while maintaining minimal compression. Moreover, an improved heat-sink system ensures reliable performance even during prolonged use

    WOOFER
    The Footprint03 forward-facing 6.5″ aluminum cone woofer is driven by a robust 100W amplifier in each monitor, ensuring powerful and accurate bass reproduction. Its larger, high-sensitivity power motor, combined with additional copper shorting rings around the voice coil, effectively minimizes harmonic distortion, delivering pristine and accurate sound reproduction. With a more potent magnet and motor system, the new woofer design achieves longer excursion capabilities, resulting in louder and less compressed sound output. An improved heat-sink system ensures reliable performance even during extended usage, further solidifying the woofer’s durability and dependability.

    AMPLIFIERS
    The Footprint03 features three Class D amplifier modules, each dedicated to a specific driver. The tweeter channel has a 60-watt amplifier, while midrange and woofer drivers are supported by separate 100-watt amplifiers. The amplifiers maintain a total harmonic distortion (THD) of less than 0.005% when delivering maximum power. This configuration ensures a well-balanced, powerful audio performance, optimizing signal levels for each driver and facilitating optimal sound reproduction.



    Pair of Active 3-Way Studio Monitors

    • Features a tri-amplifier design and a bass-reflex enclosure
    • 3-way system with a 6.5" woofer, a 3.5" midrange driver and a 1" ring radiator tweeter
    • Amplifier power: 100 W for the woofer, 100 W for the midrange driver and 60 W for the tweeter
    • Frequency range: 45 – 40,000 Hz (+/- 3 dB) or 50 – 22,000 Hz (+/- 1 dB)
    • Maximum sound pressure level: 101 dB continuous and 105 dB peak at 1 m
    • MEME provides authentic emulations that faithfully model the performance and unique character of mix cube speakers, the renowned white coned speakers we are all familiar with, and consumer hi-fi speakers. This empowers the mixer with the convenience to effortlessly switch between these iconic monitors for reference purposes
    • Active crossover at 400 Hz and at 3900 Hz
    • DSP-based signal processing with a latency of just 3 ms
    • SPOC technology: spectrally optimised signal processing with analogue frequency separation prior to analogue-to-digital conversion to increase resolution by 5 bits and improve the signal-to-noise ratio
    • Input impedance: 20 kOhm
    • AD conversion: 28-bit word length and 96 kHz sampling rate
    • Signal-to-noise ratio: = 100 dB

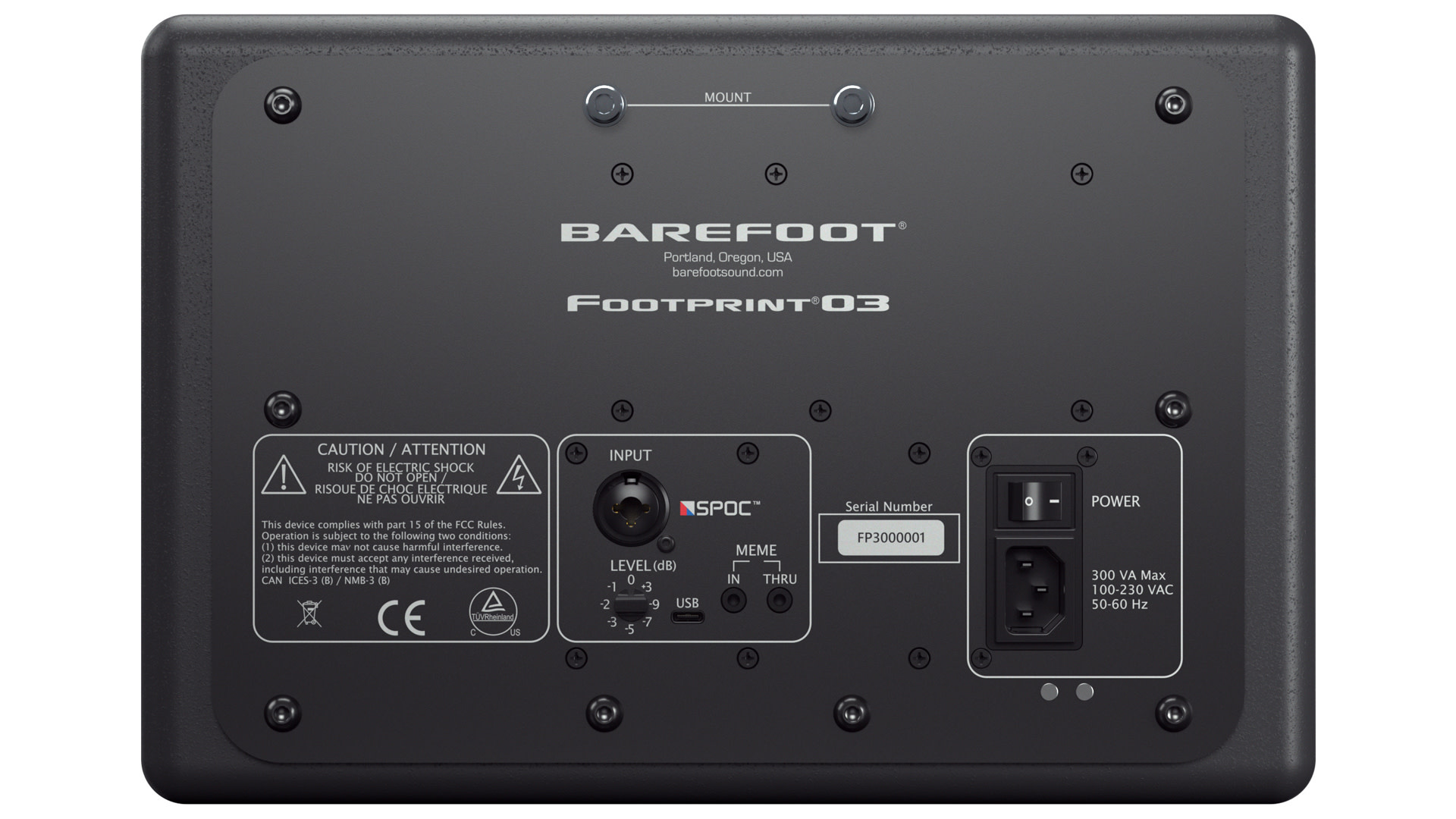

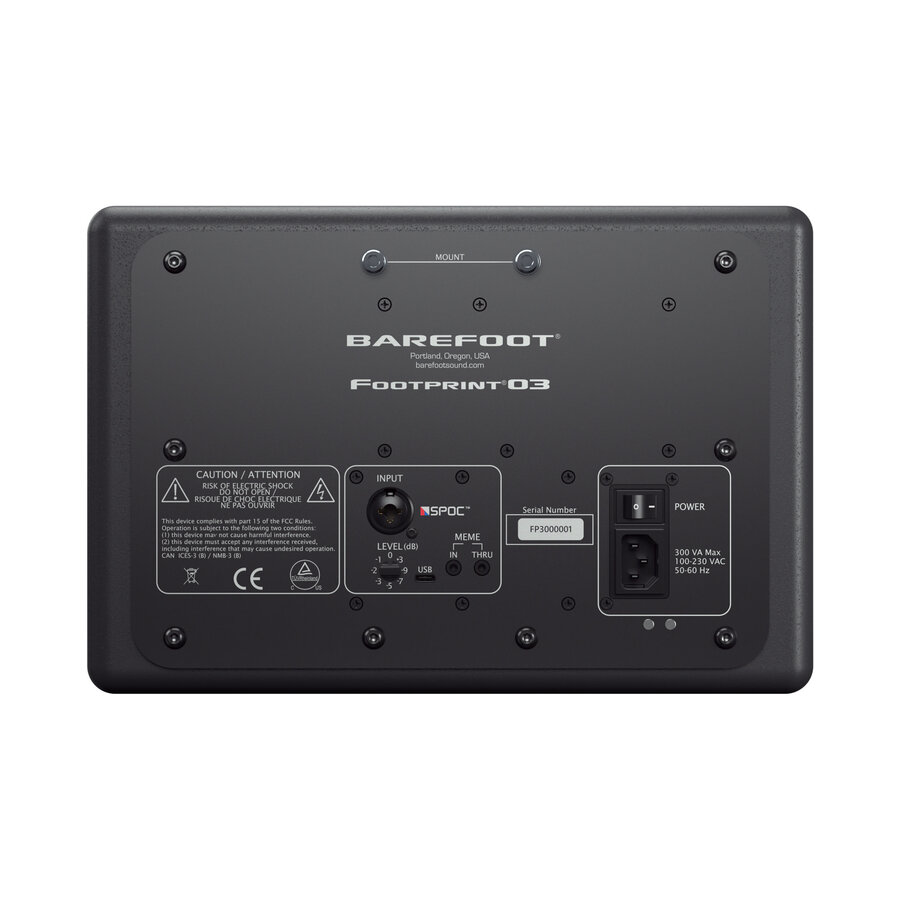

    • Input: 1 x XLR/TRS combo socket, balanced
    • MEME In and Thru connections: 3.5 mm stereo jack sockets (one each)
    • USB port strictly for factory calibration, maintenance, and firmware updates
    • Dimensions (H x W x D): 229 x 337 x 235 mm (per speaker)
    • Weight: 8.10 kg (per speaker)

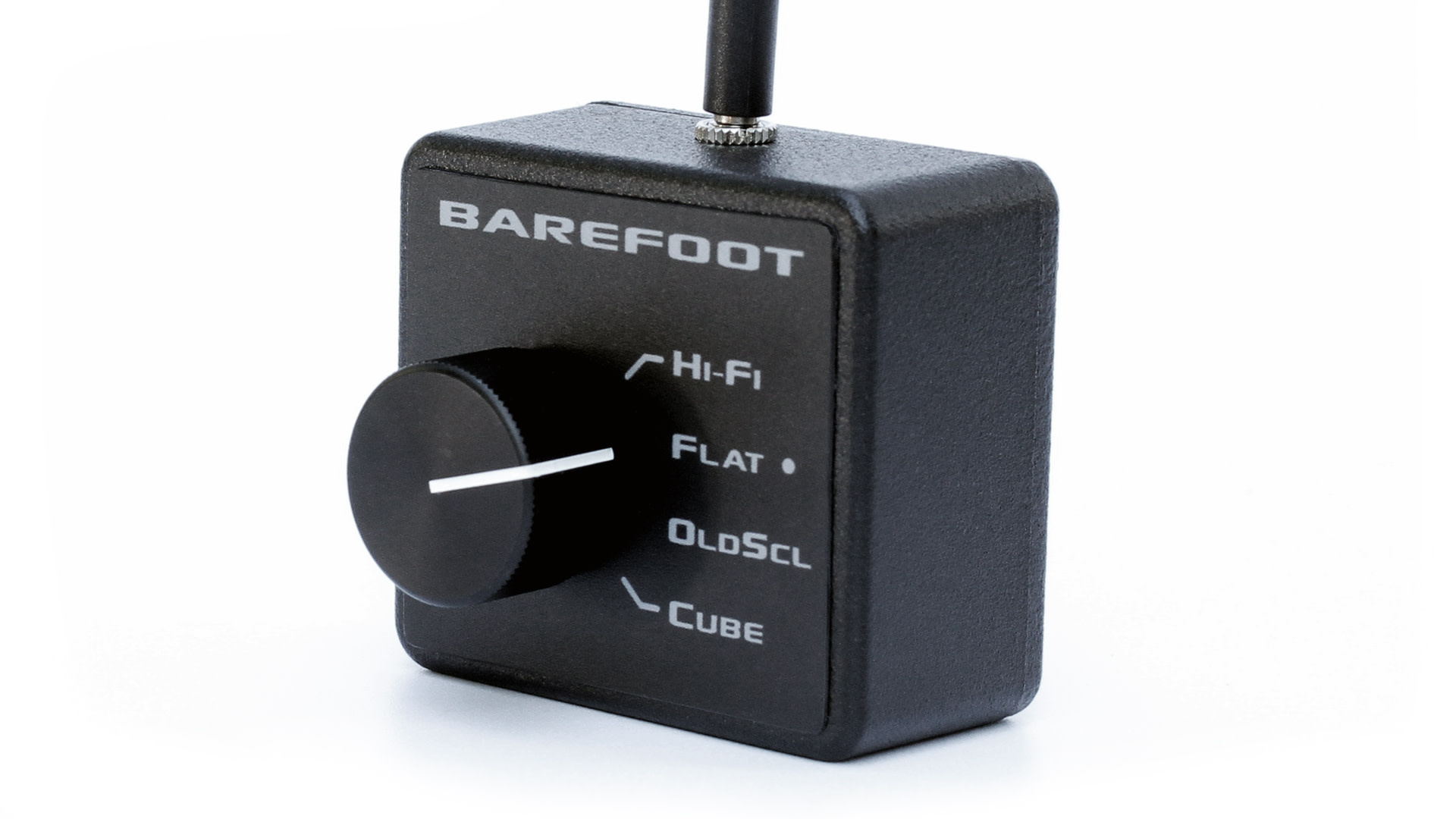

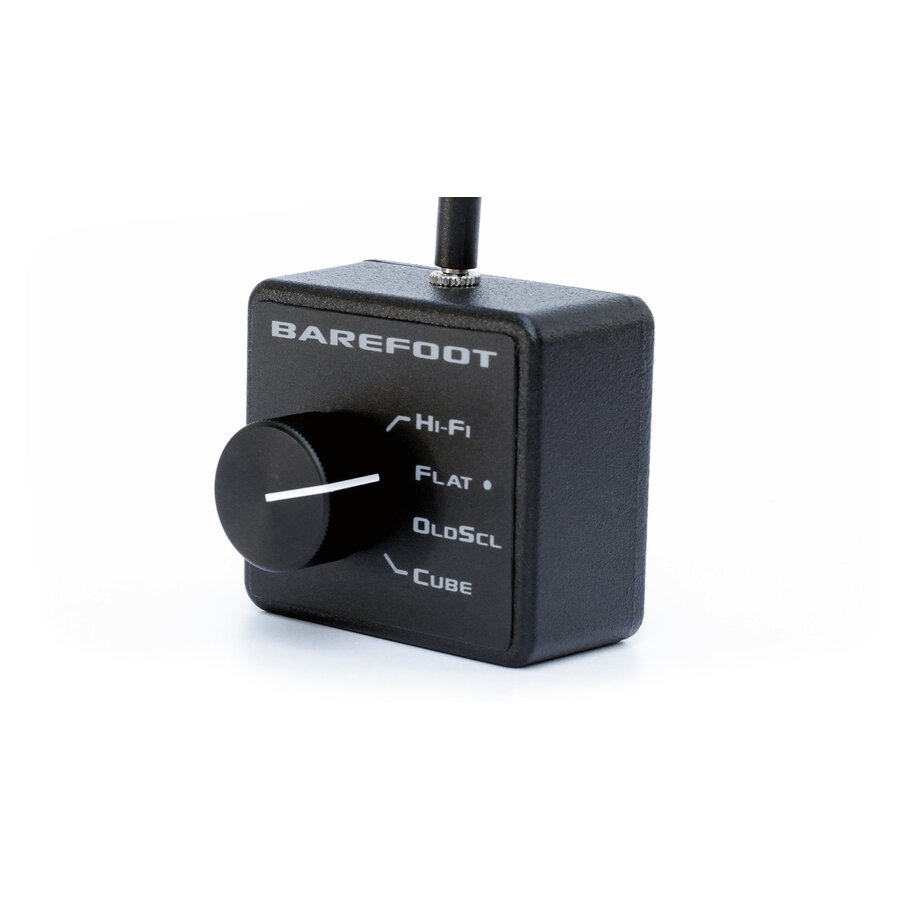

    • Includes MEME Voice Selector switch
    • Price per pair
