CLASSIC SAFETY-NET MONITORS LET YOU MIX LIKE IT’S ALREADY OUT THERE.
We’ve all been there… your mix sounds perfect; tweaked to perfection.
And then the moment you hear it in your car, you realize it sounds awful.
How many times are you going to go back and forth from your studio to
your sedan before losing your mind?!
MixCubes are here to preserve your valuable sanity. MixCubes serve to
replicate the wide range of bass-challenged consumer listening devices
such as phone speakers, TVs, clock radios, laptops, wireless audio
devices, and more. While MixCube Actives are great for checking your
mixes for mono compatibility, they’ve been engineered for perfectly
matched stereo performance as well.
MixCubes are a huge upgrade from the original 5C Sound Cubes,
featuring a newly engineered cabinet; a more smooth, open, and
transparent driver; and an over-engineered power amplifier. We made
all of the improvements we could while retaining the original sonic
character of the classic 5C.
MixCube Active: Mix like it’s already out there.
OVERSPEC’D ELECTRONICS WITH A PROPRIETARY DRIVER.
When developing the MixCubes, we took inspiration from a lauded studio
workhorse — but chose not to be limited by it. Instead, we updated the
mix session classic for modern production needs, creating an overspec’d
build for long-haul reliability.
The 5.25” die-cast, polished aluminum frame driver/cone assembly is a
proprietary design built to to exceed the performance of the originals. The
driver cone is custom-designed using a pulp/mica blend for light weight
and rigidity; Y-40 mil-spec magnets ensure high power and low distortion.
We designed the amp module from the ground up to be a true
professional-grade amplifier built from the ground up with over-spec’d
component selection.The result is a no-compromise amp with robust
headroom characteristics that rivals the performance of much higher-
priced studio rackmount amps.
The enclosure is built with dense MDF to reduce unwanted resonance,
while the bottom of the cabinet has a 7 mm thick neoprene pad to serve
as a skid-resistant acoustic isolator. Add the acoustic considerations to
the MixCube’s robust internal shielding, and you can expect nary a noise
issue to be heard wherever you set them up.
THE LITTLE MONITORING SOLUTION YOU’VE BEEN MISSING.
The small footprint of the MixCubes makes them easy to add to mixing
setups where desk space can be hard to come by, and a recessed,
industry-standard 5/8”-27 mic stand mount is built into the bottom for
more versatile monitoring configurations. Just grab a spare mic stand,
and you’re good to go!
Reality-check your mixes with confidence. Because with MixCubes, the
listener’s perspective is already built right in.
MixCube Active: the reality check your mixes need.
Available in Black, Creme, Red, and White.
MixCube Active Specifications
- SYSTEM TYPE:
Active (Self-powered) shielded full-range
- PRACTICAL FREQUENCY RESPONSE:
200 Hz - 10 kHz
- IMPENDANCE:
Nominal 8Ω
- MAX SPL:
104db @ 1 meter = 1%THD (PINK NOISE)
- AMPLIFIER TYPE:
Class A/B
- AMPLIFIER POWER:
60 watts RMS@ .005% THD (1KHz)
- AMP FREQUENCY RESPONSE:
22Hz-50KHz +0dB/- 3dB (90Hz-50KHz
+/-0dB)
- NOISE:
S/N -113 dB
- SENSITIVITY:
0dBu (.775VRMS) input at maximum
volume (+6dB) = 104dB SPL
- DRIVER:
Proprietary design 5.25" cast aluminum
frame / paper cone / shielded
- CABINET:
Sealed / 18mm MDF / Dacron acoustical
stuffing

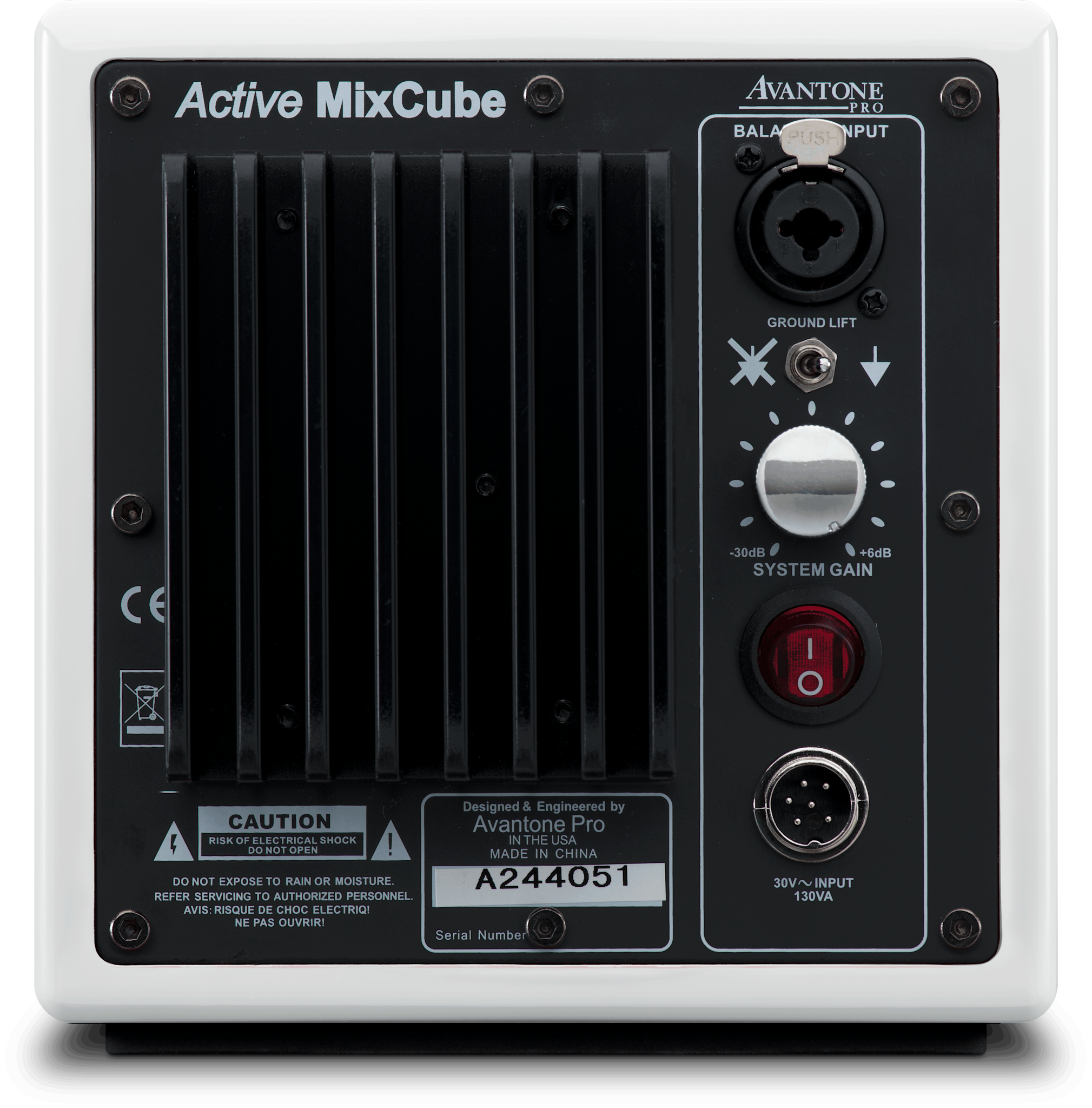

- INPUTS:
XLR & TRS (COMBO JACK) +4/Balanced
and -10 unbalanced
- WEIGHT:
7.38 lbs / 3.35 kg (per monitor)
- DIMENSIONS:
Width: 165 mm / 6.5”
Depth: 199.5 mm / 7.85”
Height: 171 mm / 6.75”
