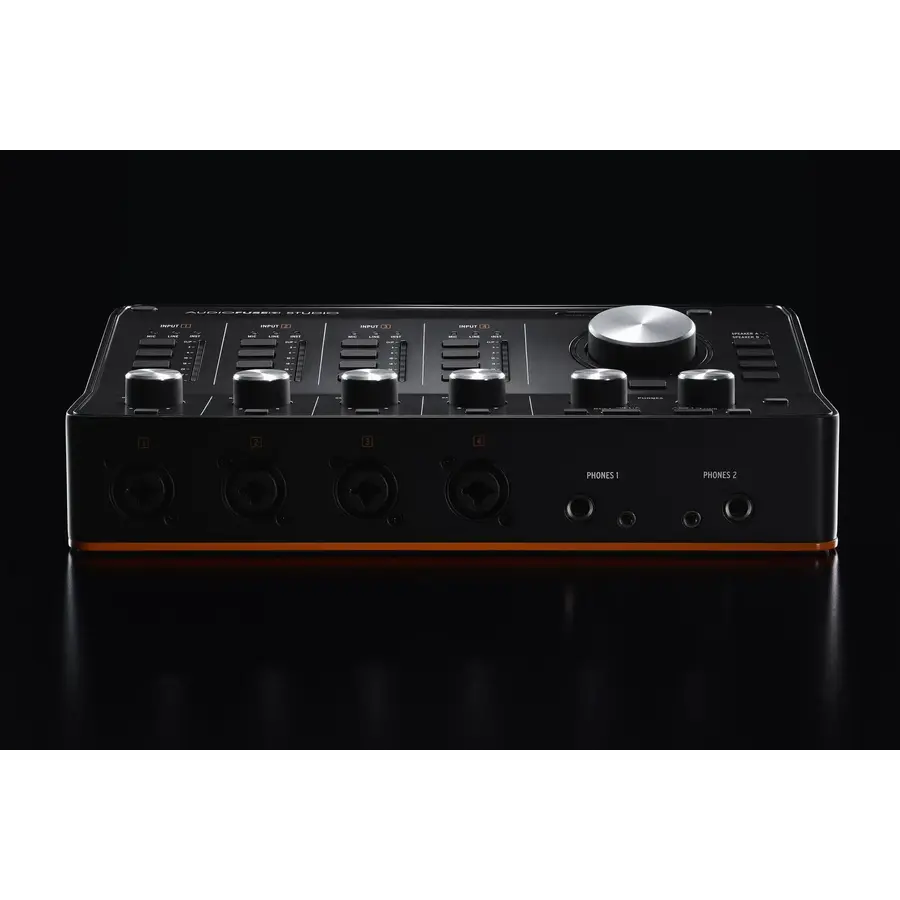

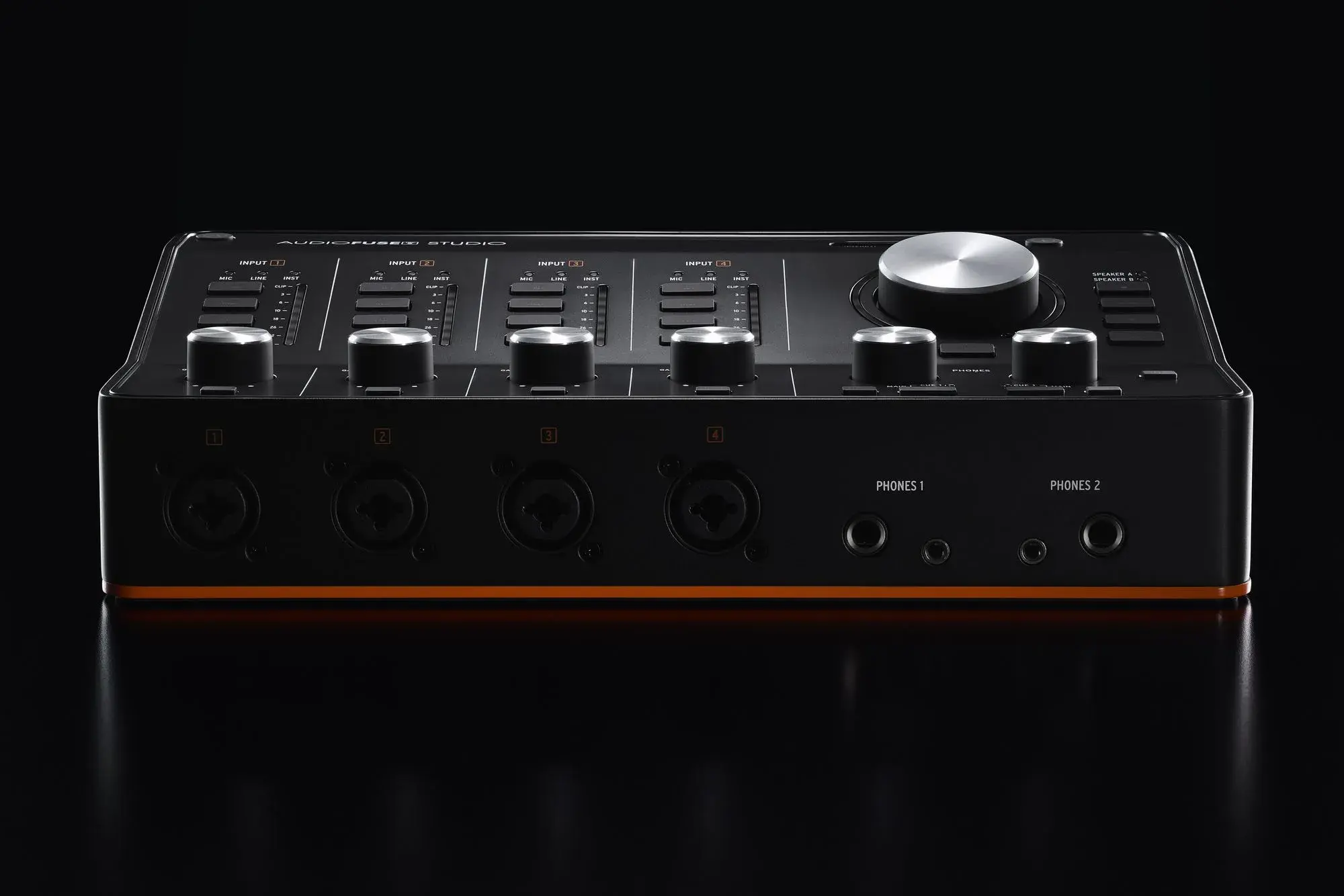

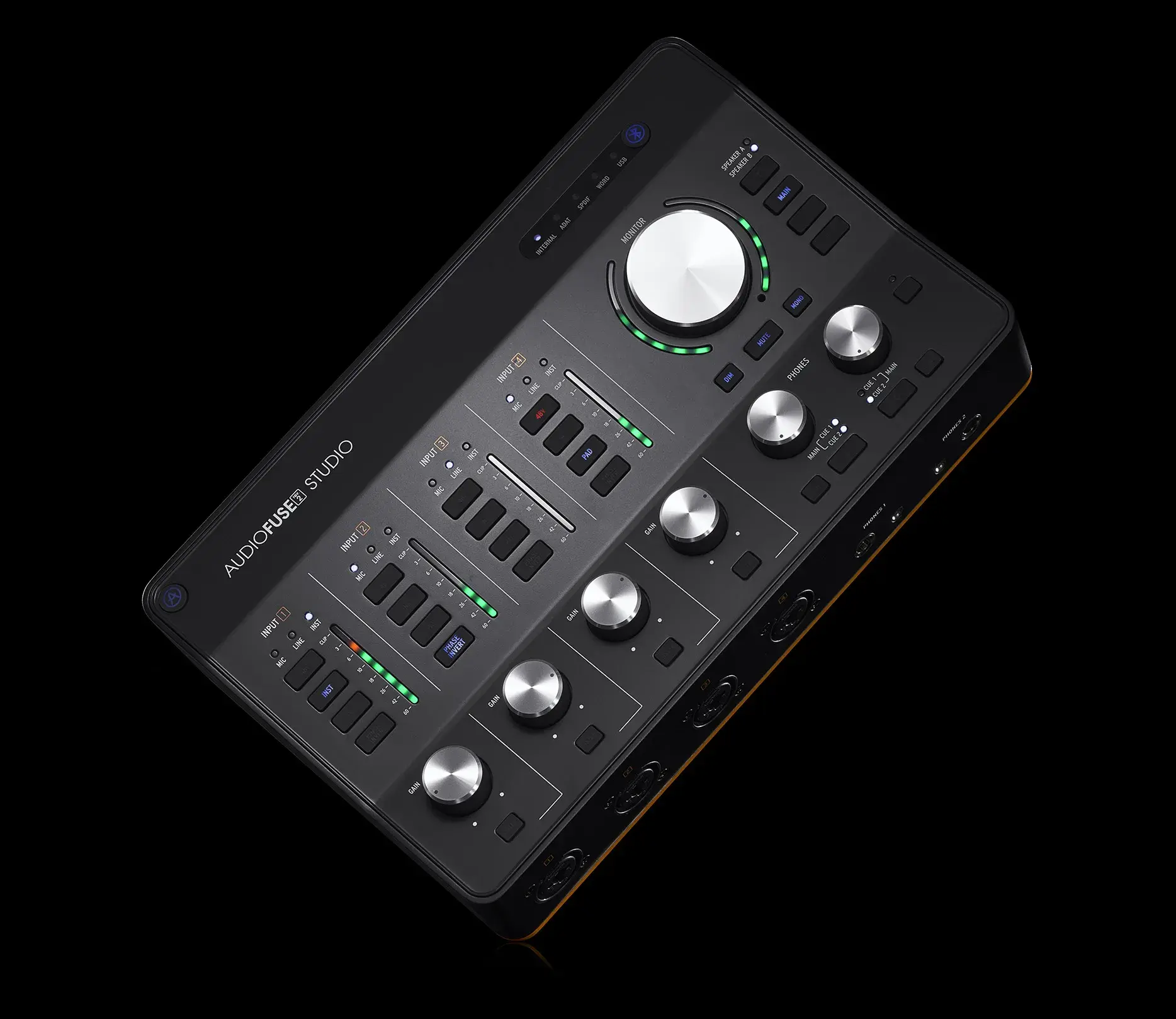

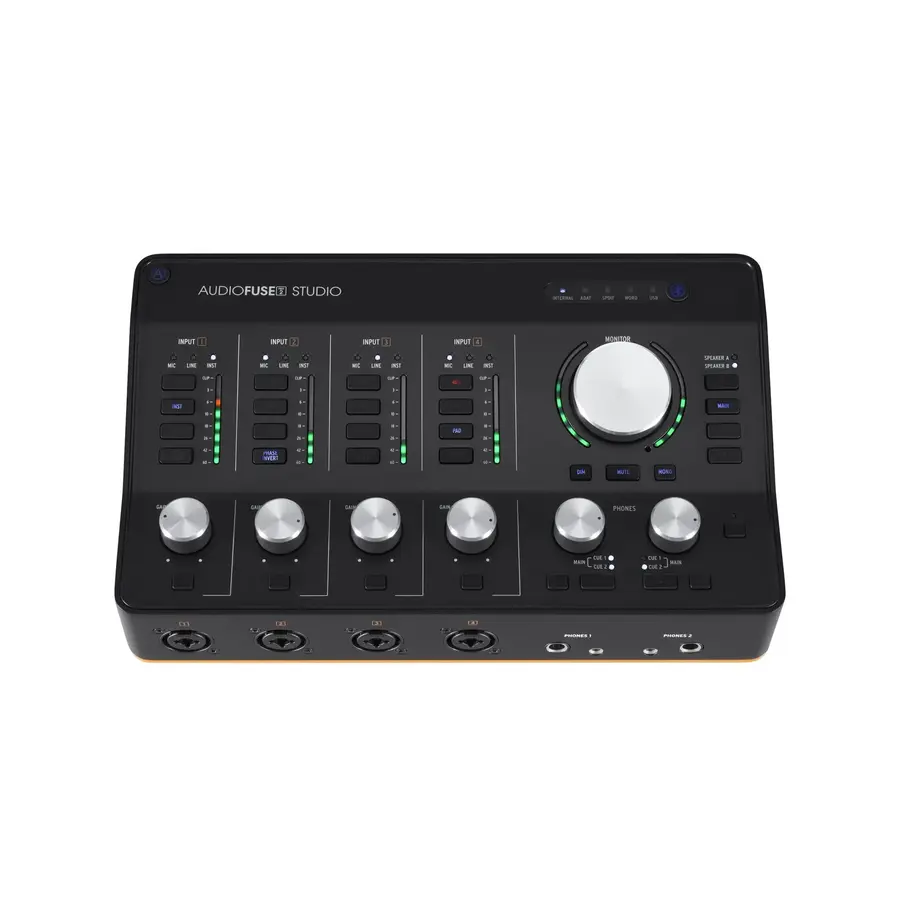

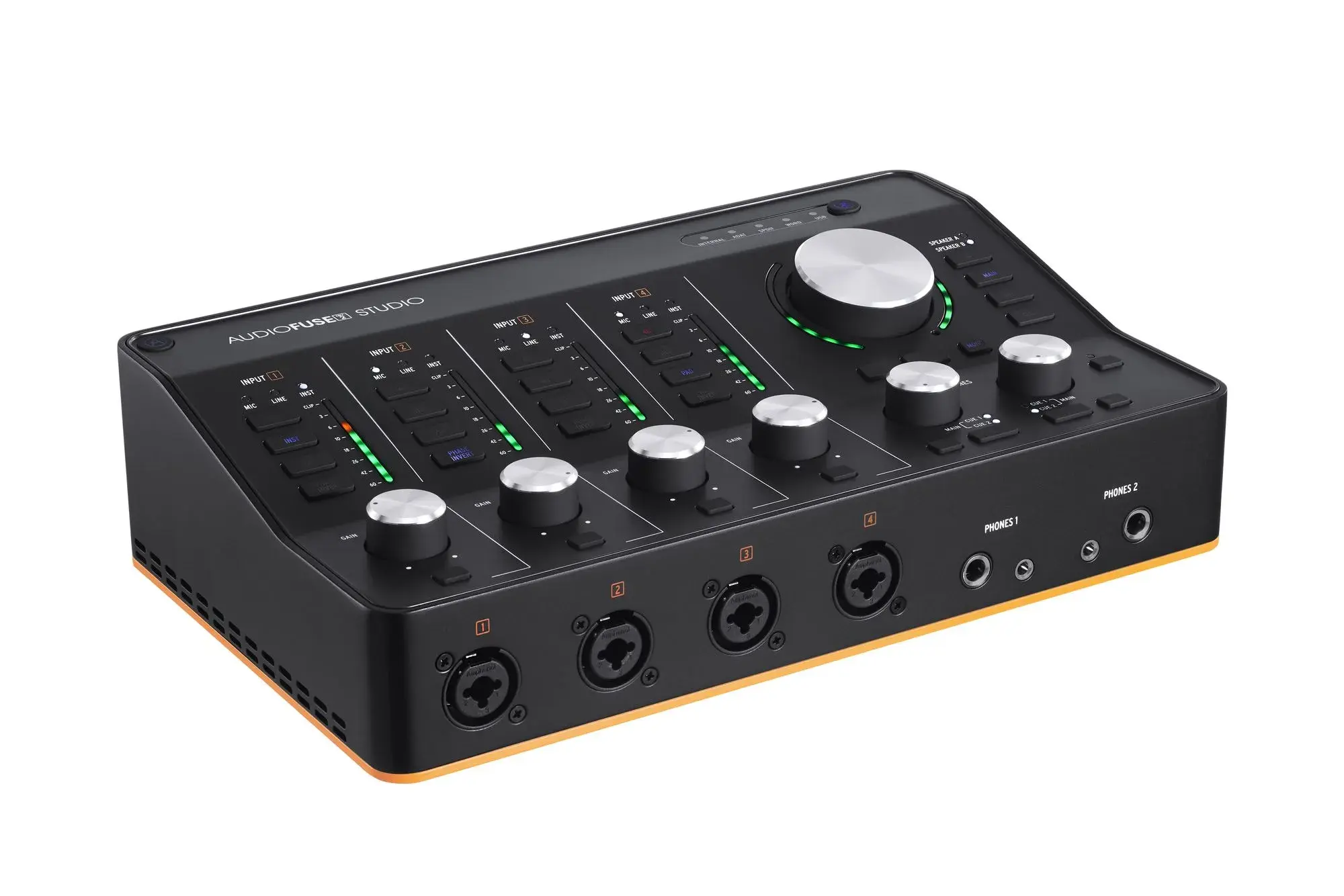

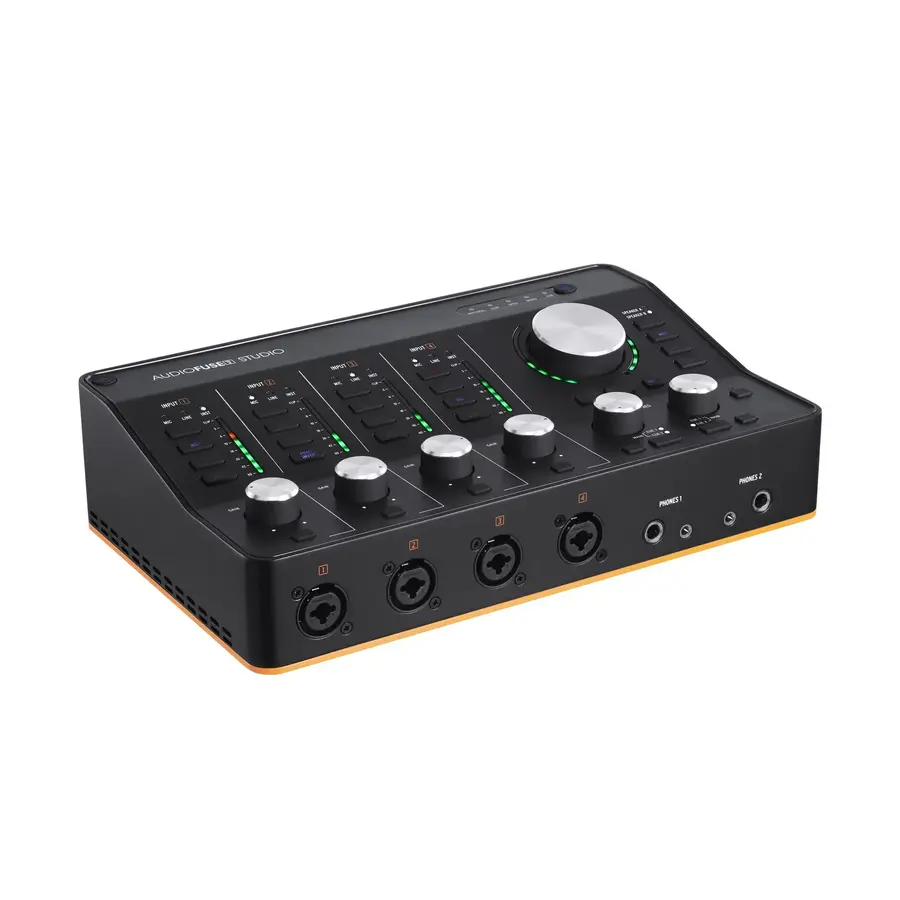

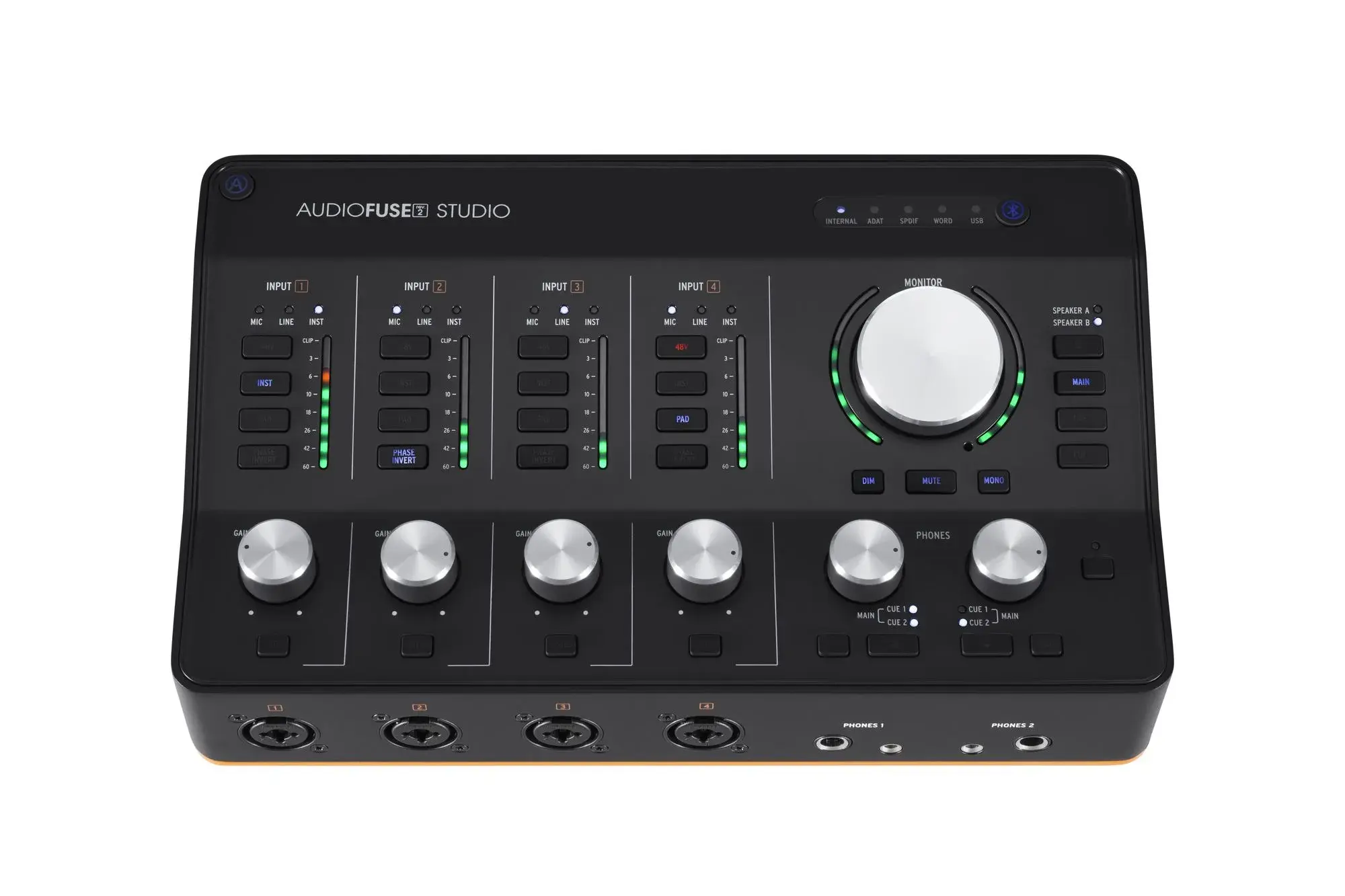

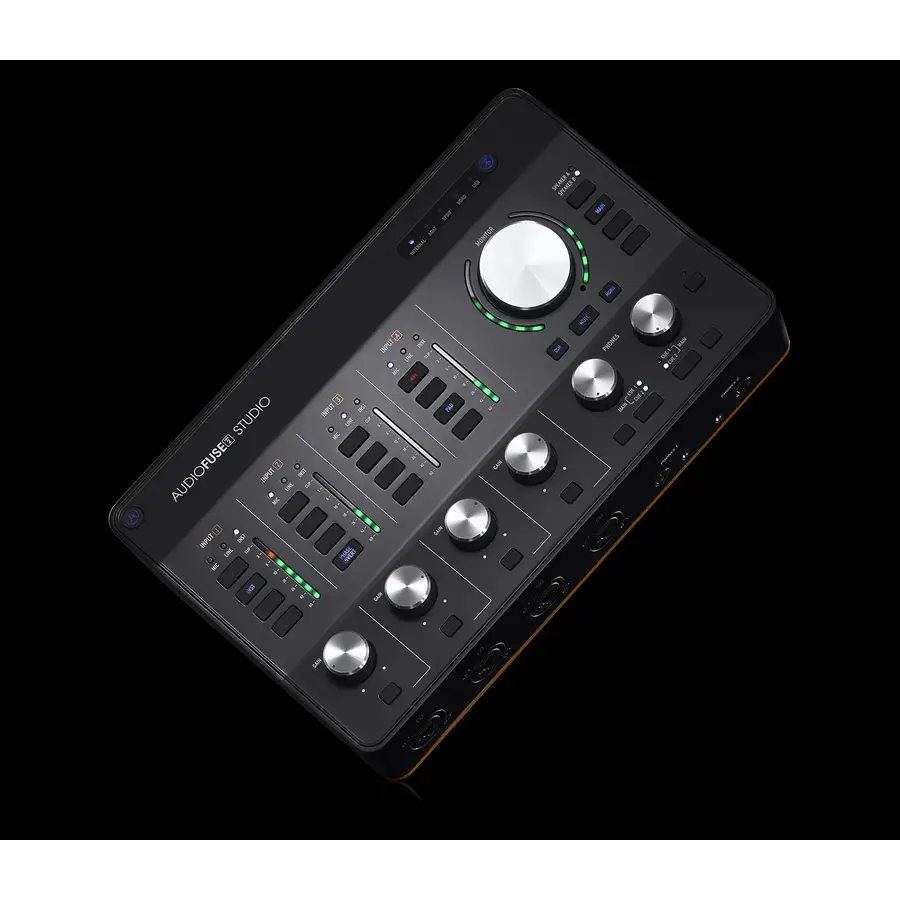

USB-C Audio Interface

• Desktop interface featuring four DiscretePRO mic preamps with up to 72 dB of gain, eight analogue inputs, flexible monitoring functions and integrated Bluetooth audio streaming
• For studio applications with analogue and digital connectivity
• 24-bit / 192 kHz AD/DA converters
• Equivalent input noise (EIN): -129 dBu
• Dynamic range: 119 dB
• Bluetooth receiver with support for AAC, aptX, aptX HD and aptX Low Latency
• Integrated monitor controller with dim, mute and mono functions
• Two independently adjustable headphone outputs
• Integrated multi-port USB hub for external devices
• Phono input (Inputs 5–6) with built-in RIAA pre-amplifier for turntables
• AudioFuse Control Centre software for configuration and routing
• Dimensions (W x D x H): 265 x 160 x 72.7 mm
• Weight: 1.6 kg

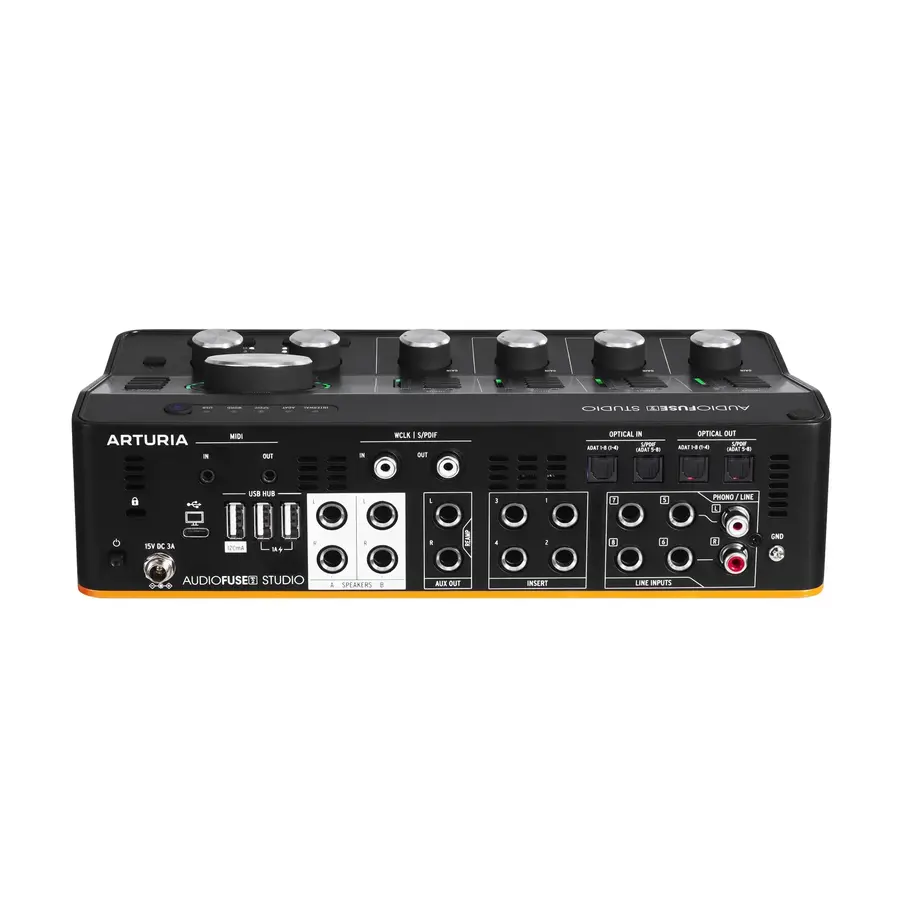

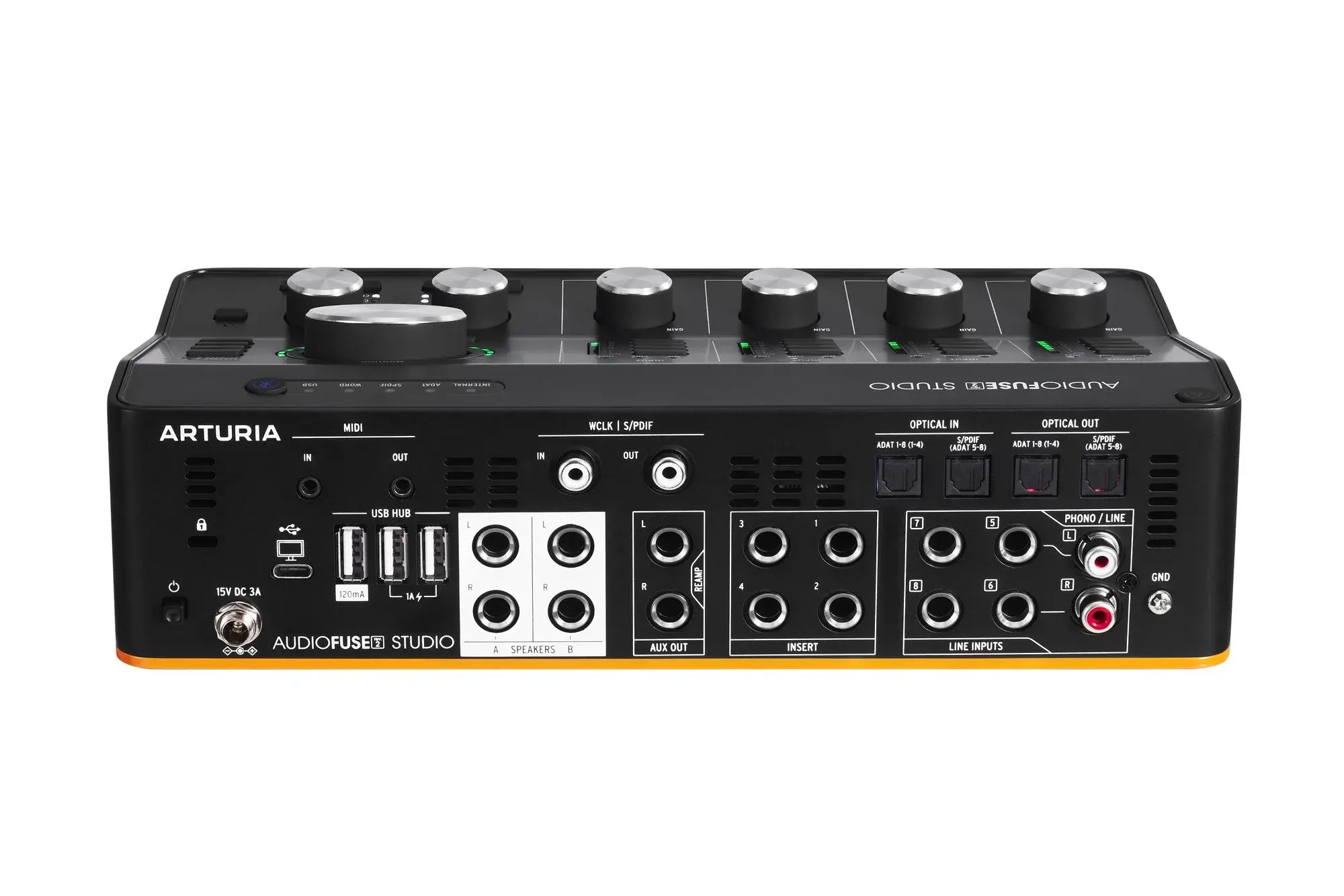

Connections

• 4 mic/line/instrument inputs: XLR / jack combo socket
• 4 line input: 6.3 mm jack
• 4 line outputs: 6.3 mm jack
• 4 analogue insert channels: 6.3 mm jack
• 2 aux/reamping outputs for guitar reamping applications: 6.3 mm jack
• 2 headphone outputs: 6.3 mm and 3.5 mm jack

Digital connections:

• ADAT In/Out for up to 8 additional channels at 96 kHz
• S/PDIF
• Word Clock In/Out
• MIDI In/Out and USB-C

Included software (Download):

• Analog Lab Intro
• Pre 1973
• Pre V76
• Pre TridA
• Comp FET-76
• Comp DIODE-609
• Delay TAPE-201
• Filter MINI
• Rev PLATE-140
• Chorus JUN-6
• Phaser BI-TRON

Included in delivery:

• Power supply unit
• USB-C to USB-C cable
• USB-C to USB-A cable
• MIDI DIN breakout adapter
• DiscretePRO certificate with individual calibration documentation
