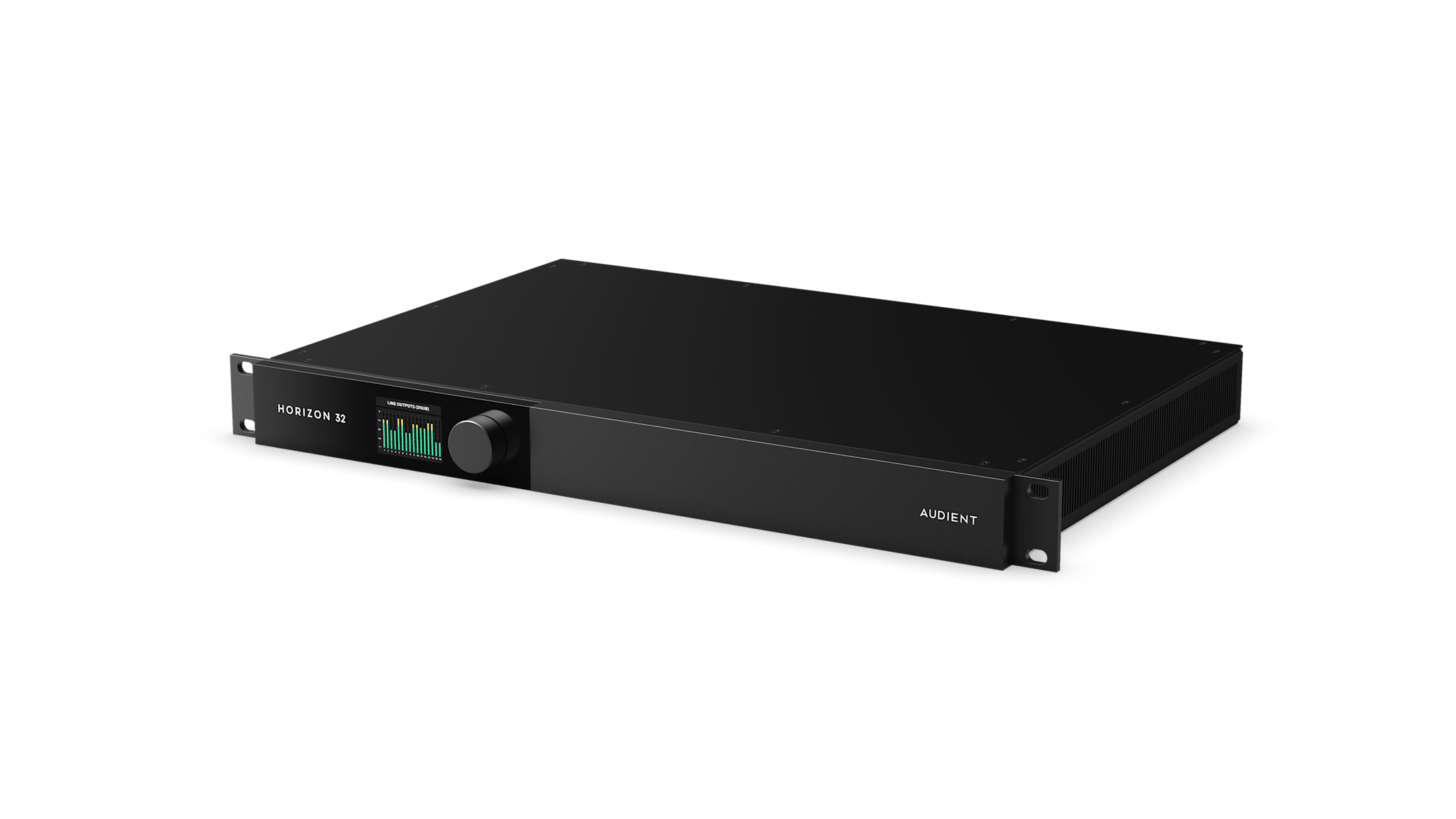

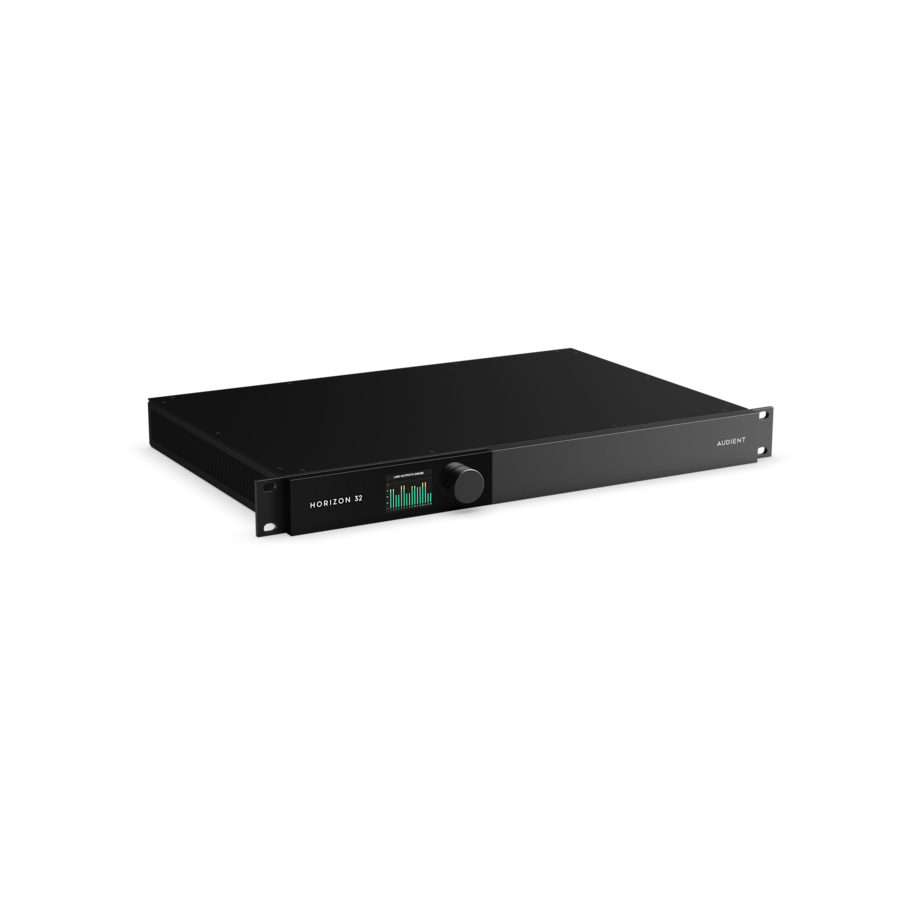

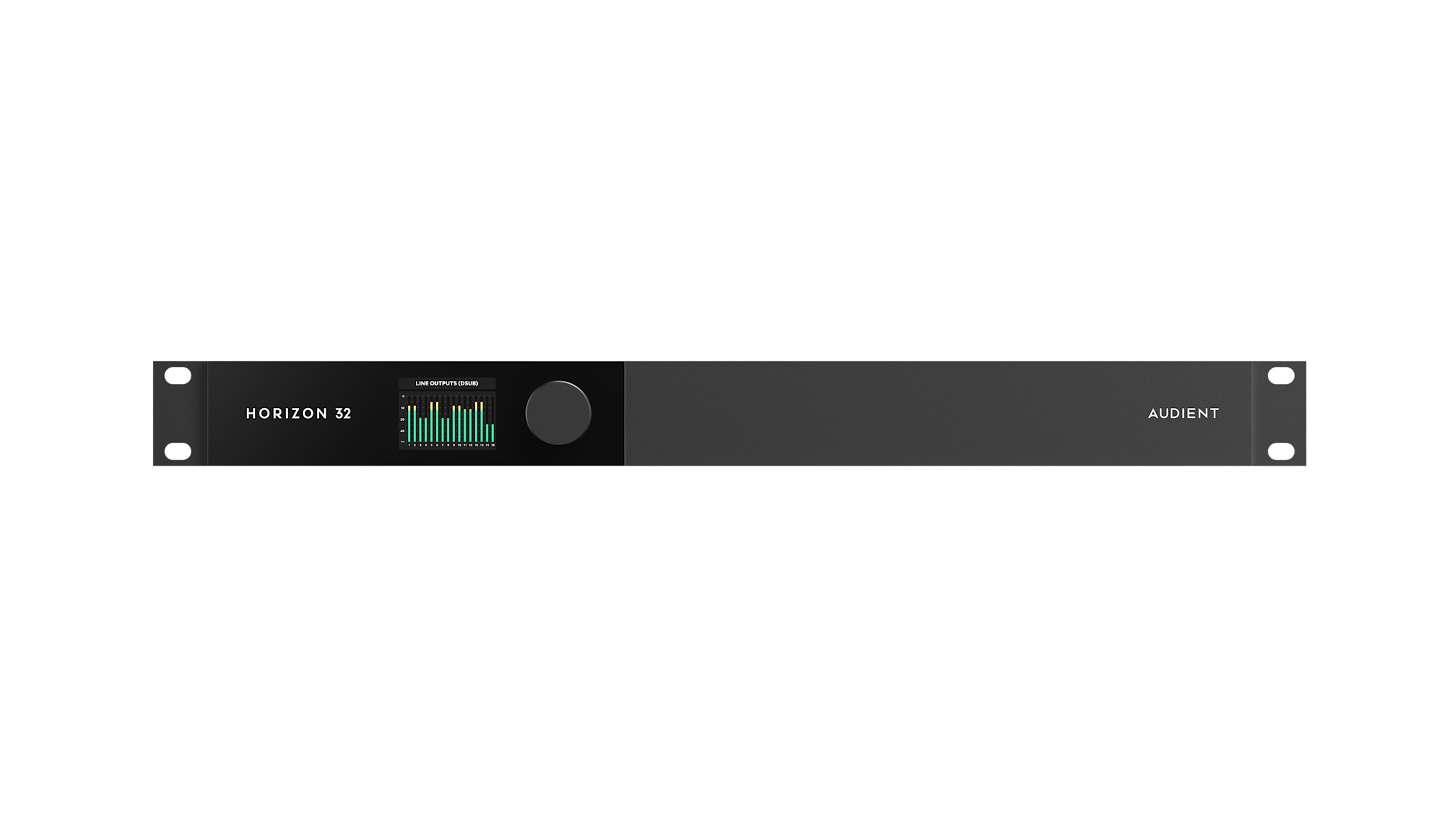

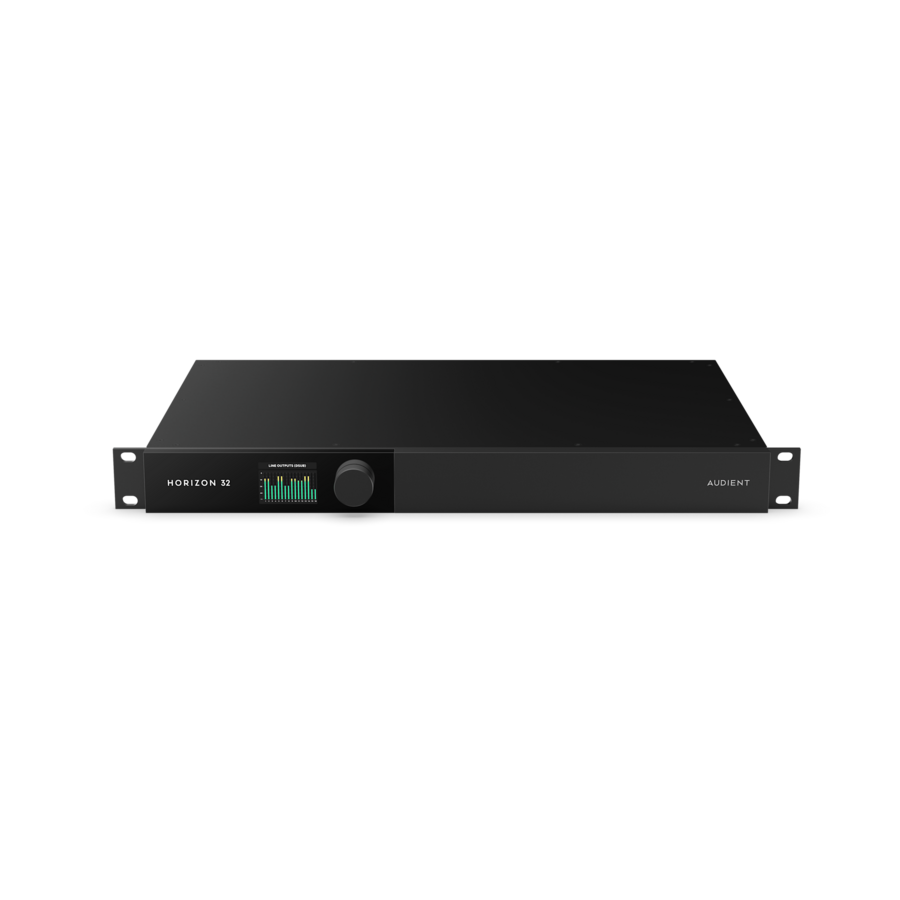

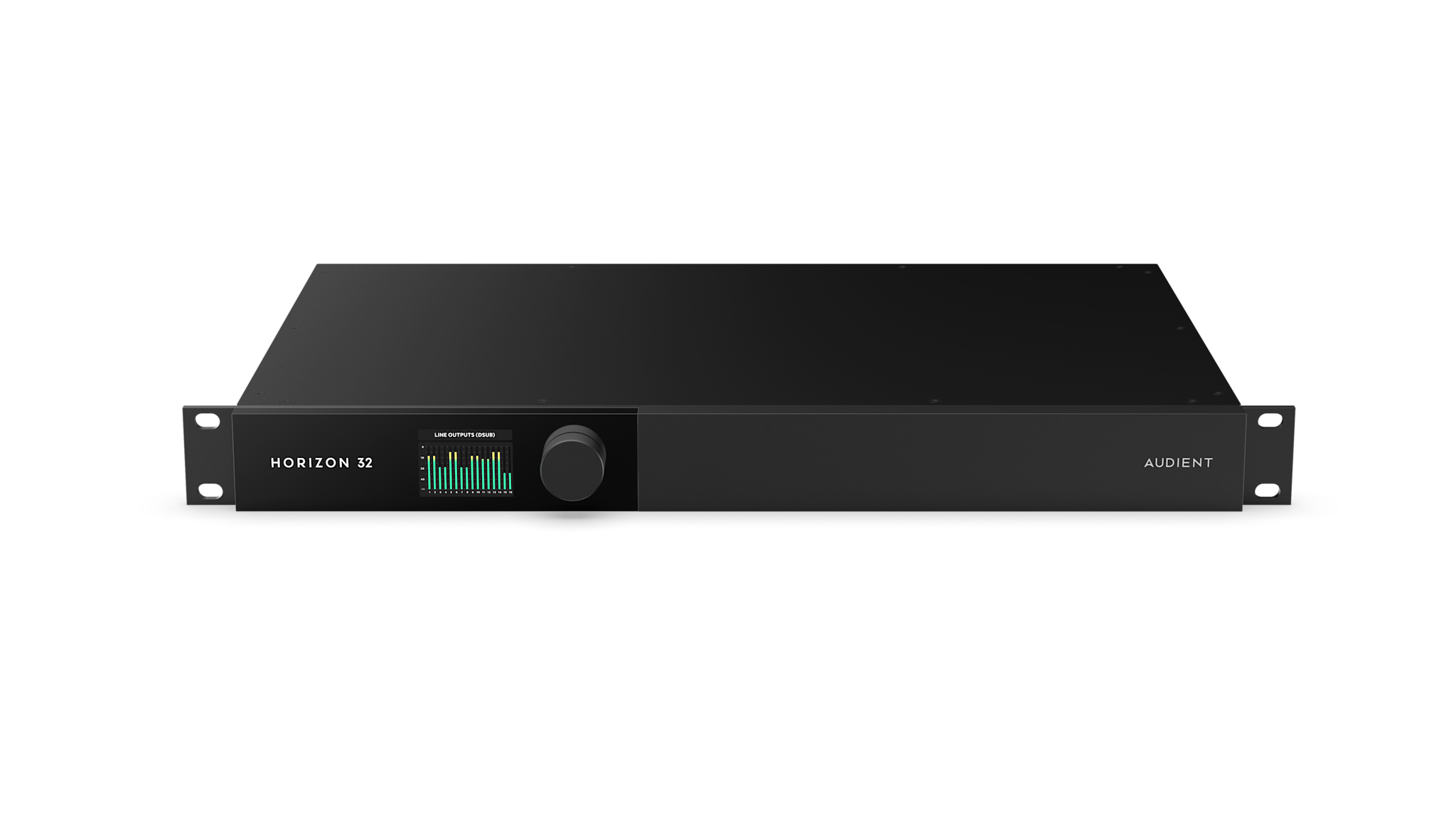

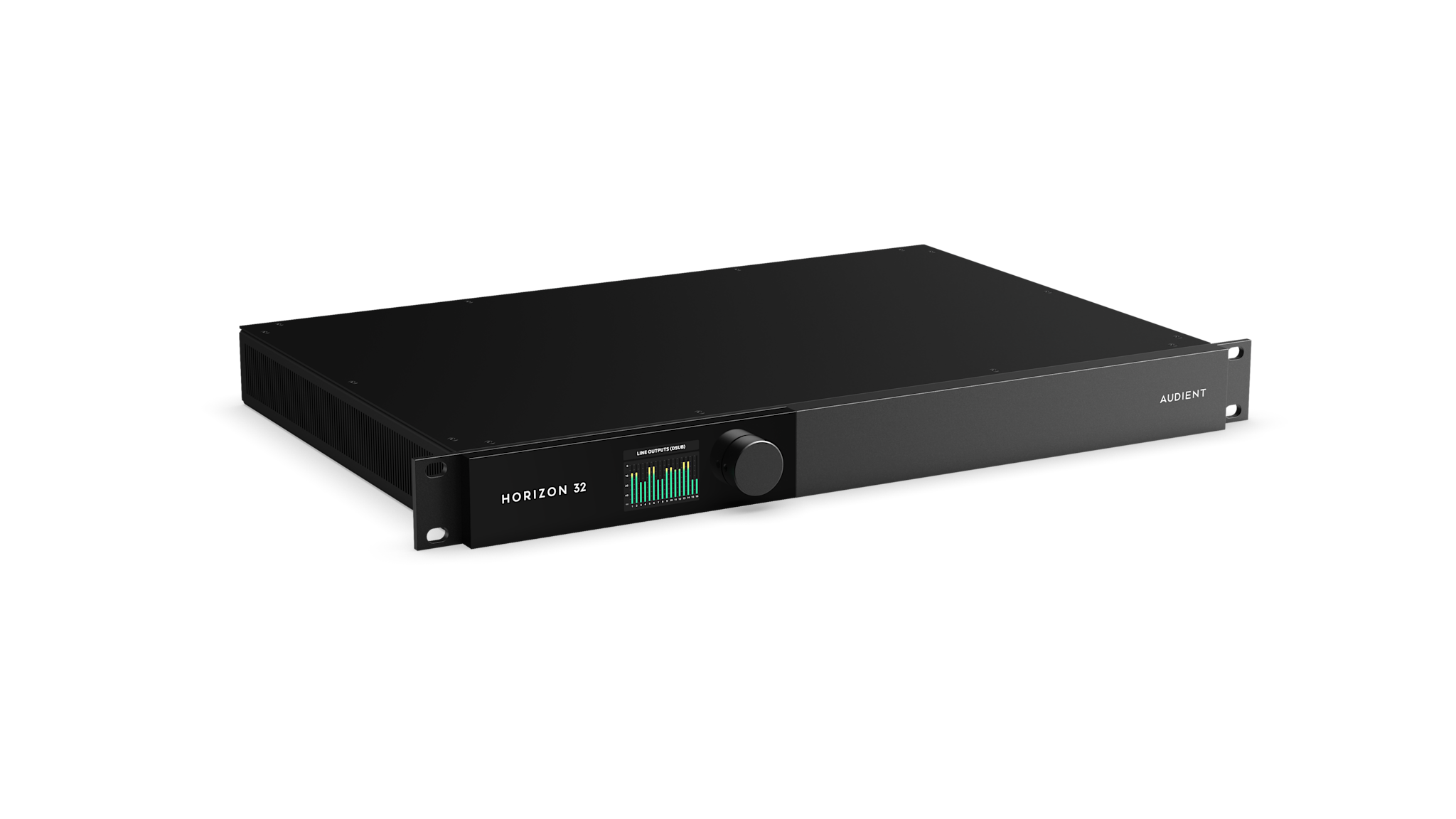

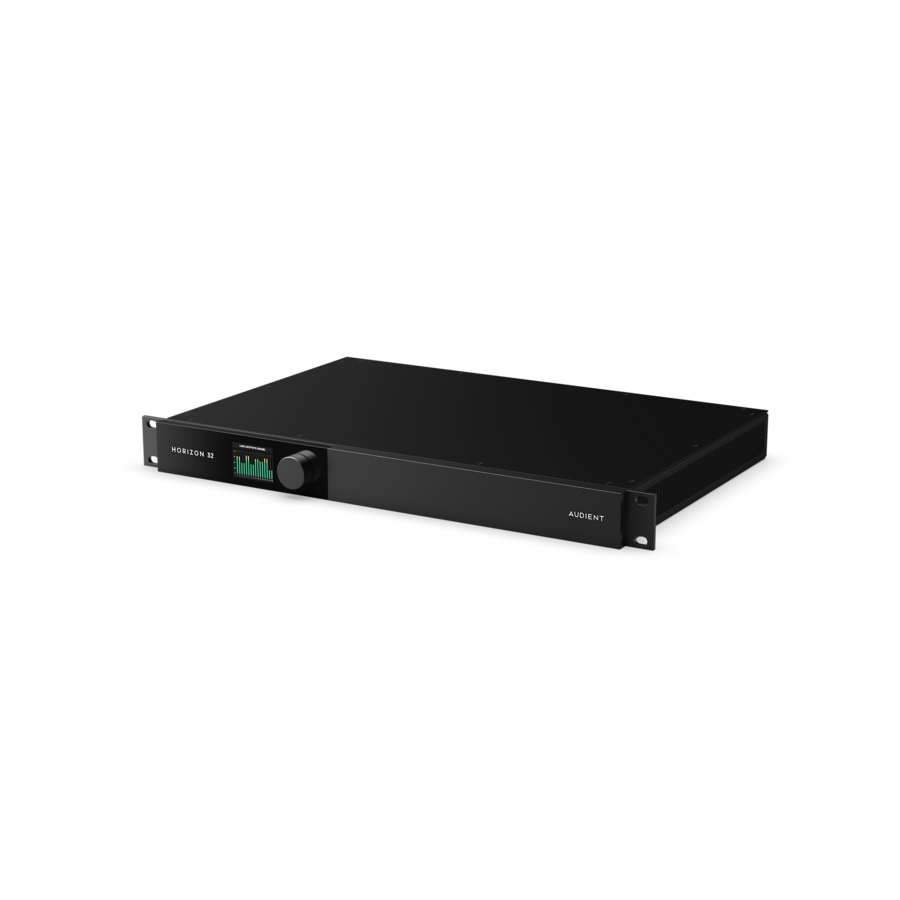

The Horizon 32 is a 50-in / 50-out Thunderbolt™ 3 audio interface and converter

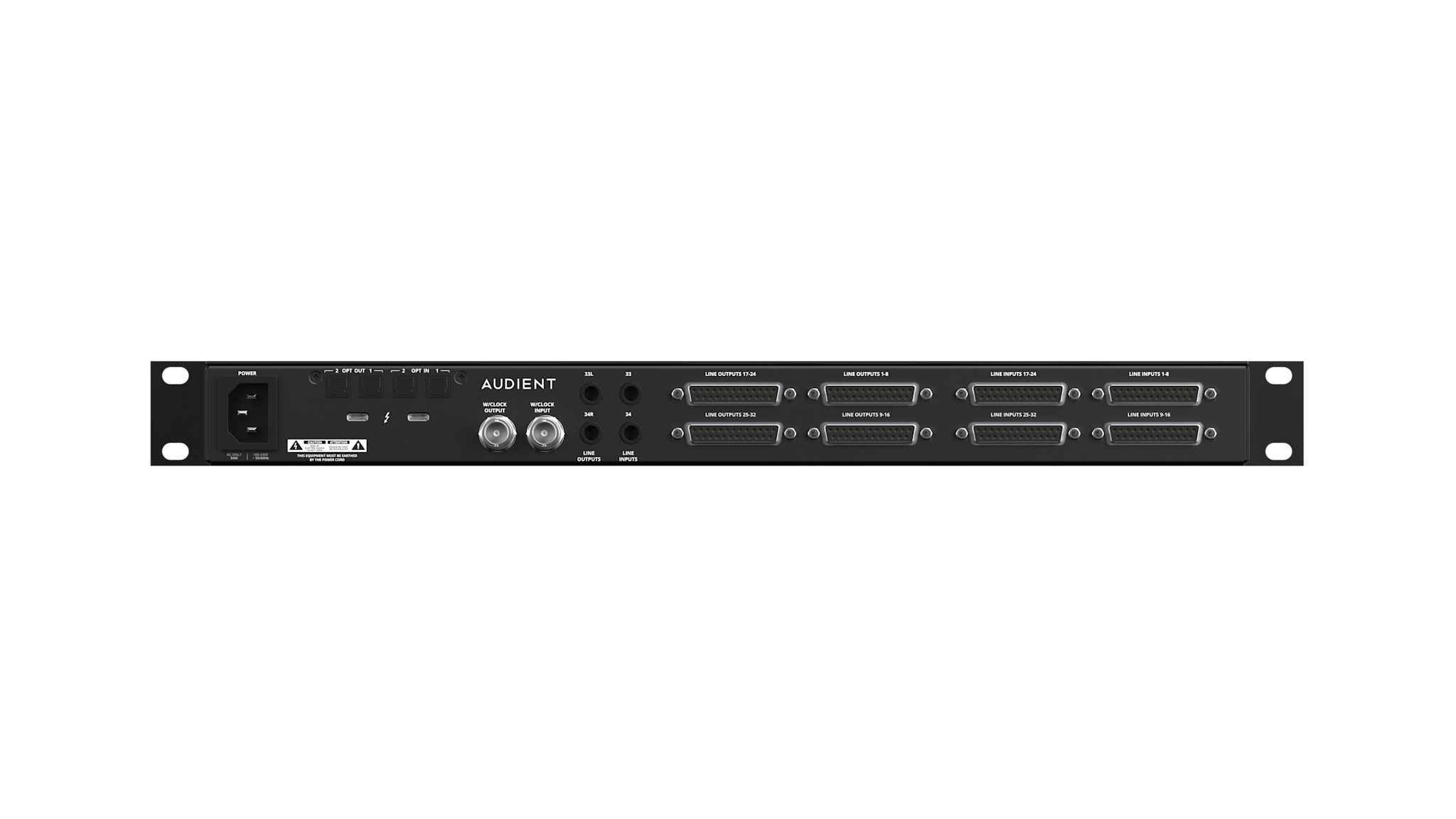

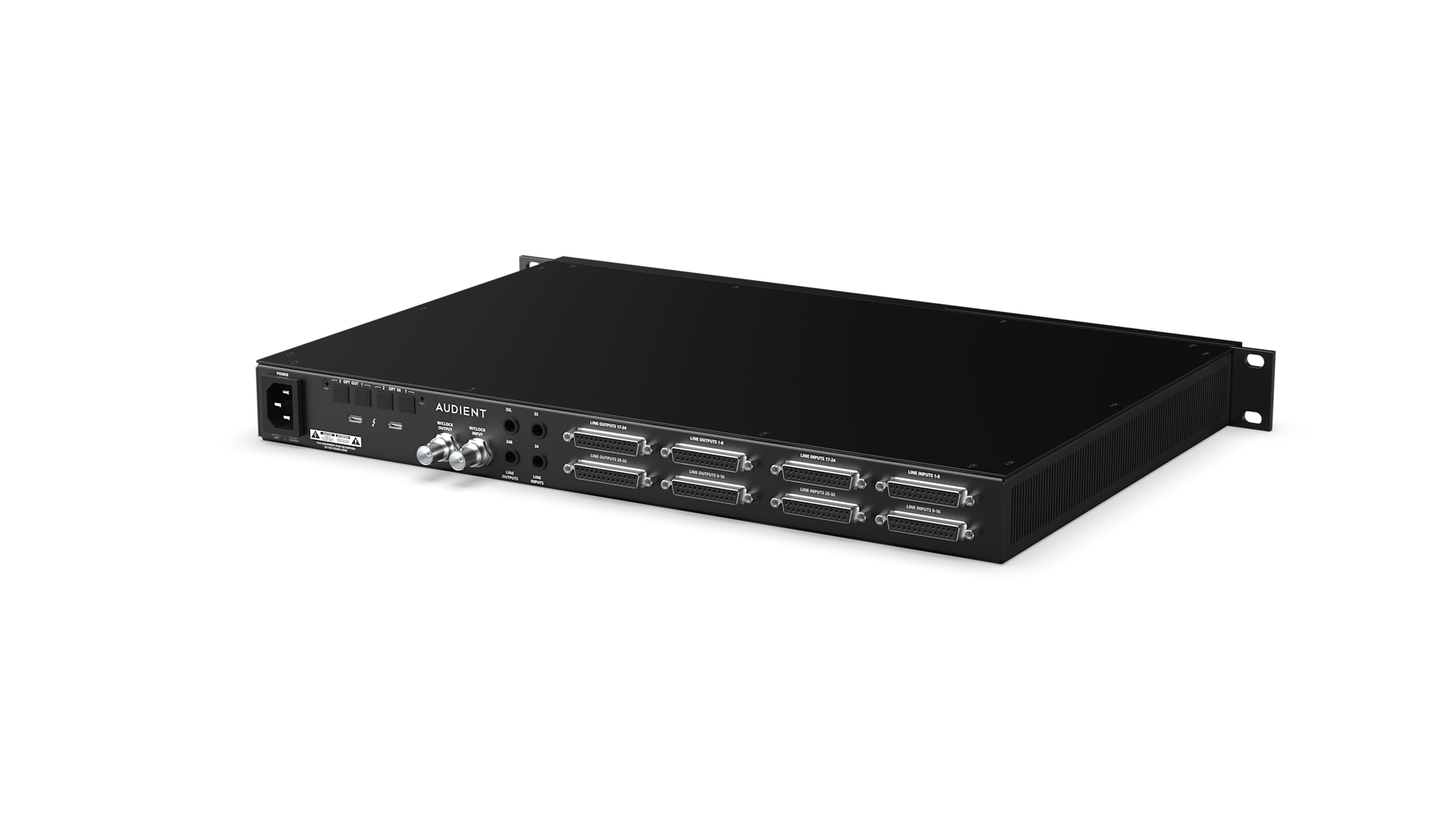

built around 32 channels of line I/O over eight DB25 connectors and 32-bit
conversion at 133dB dynamic range. With a dedicated mix-bus path and 0.99ms
round-trip latency, the Horizon 32 bridges an entire large-format console or large
FX rack to the DAW from a single rack unit — designed for the studio or facility
running the highest channel counts.

Features
● 50-in / 50-out connectivity over Thunderbolt™ 3

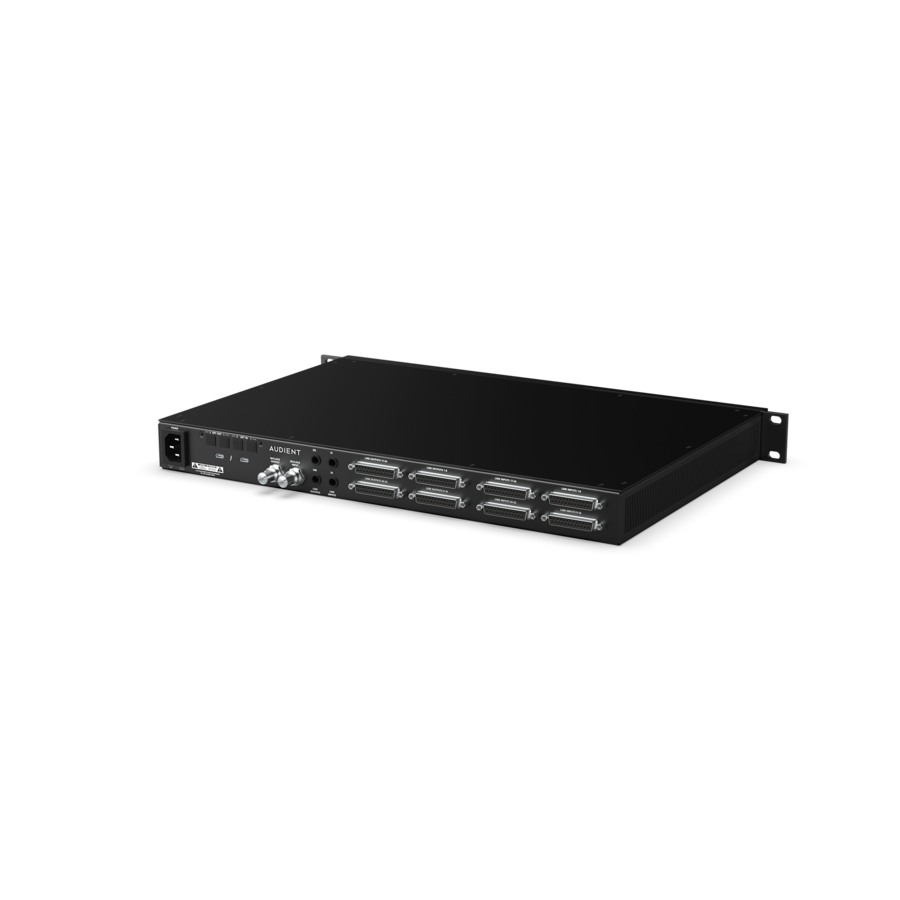

● 32-in / 32-out primary line I/O over eight DB25 connectors
● Dedicated stereo mix-bus inputs for printing your master
● Dedicated stereo monitor outputs for independent reference listening
● 32-bit / 192kHz conversion, 133dB dynamic range
● 0.99ms round-trip latency (192kHz, 64-sample buffer)
● Dual ADAT I/O — 16 channels of digital expansion
● Horizon Control software — virtual patch bay, custom monitoring and
extensive metering
● Advanced monitor control — mono, polarity, dim and reference level
● Selectable reference levels (+18dBu, +24dBu) and BNC word clock I/O
● Scalable architecture — daisy-chain up to four Horizon units on a single
driver, with a system maximum of 200 × 200 I/O
● 1U all-metal chassis, three-year warranty
● macOS, up to 192kHz

Why the HORIZON 32?

The 32 bridges an entire console or large outboard rack to the DAW from a single
rack unit. Thirty-two channels of line I/O over eight DB25 connectors capture every
channel uncoloured through 32-bit conversion at 133dB dynamic range, and a
dedicated mix-bus path keeps a clean route for the master print. With 0.99ms
round-trip latency you monitor through native plugins with no perceptible lag,
and Horizon Control gives you one panel to command routing, monitoring and
metering across the whole rig. As sessions grow, daisy-chain up to four units for
200 in and 200 out on a single driver, without ever changing your workflow.
Welcome to the New Standard.
