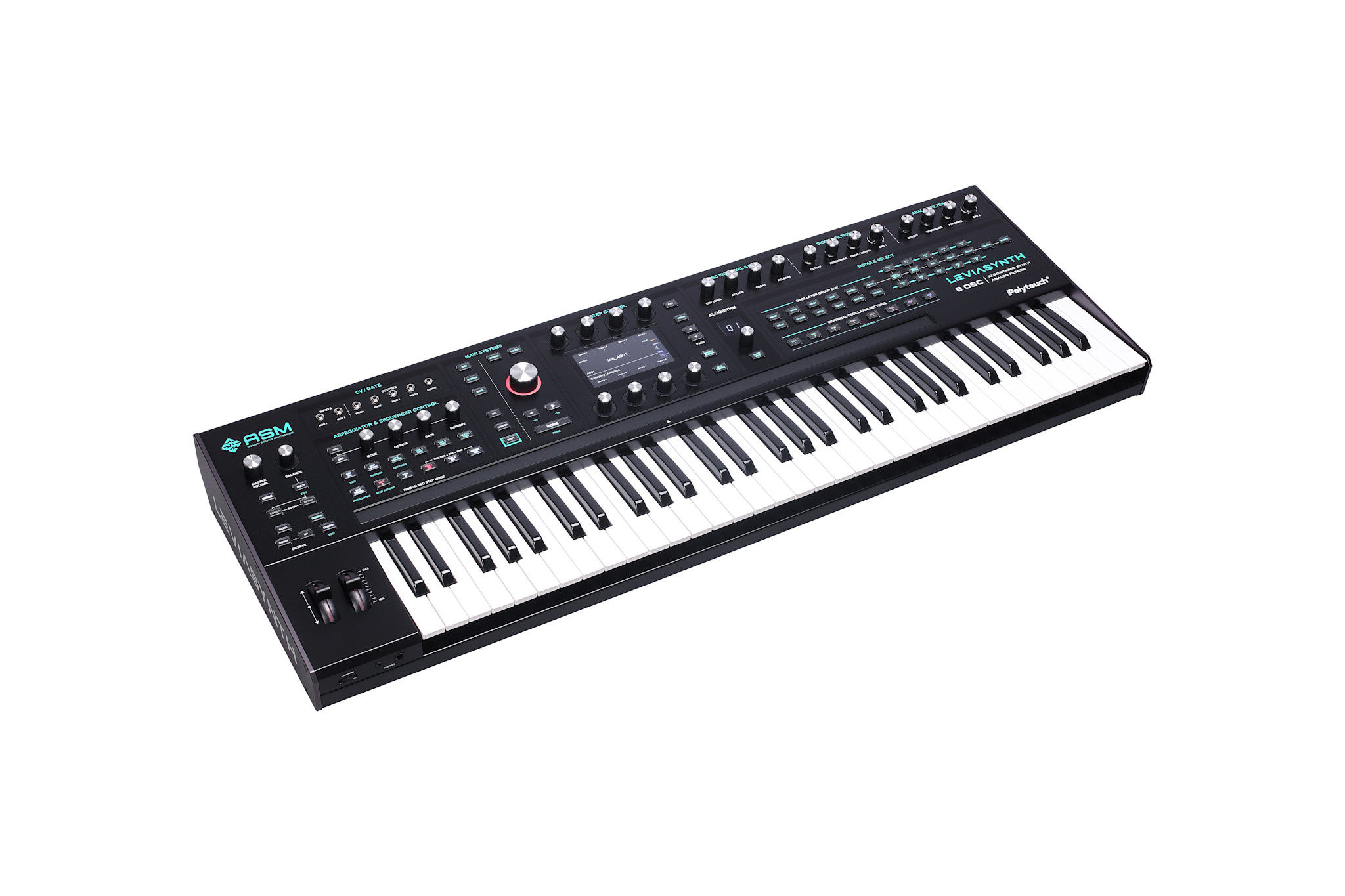

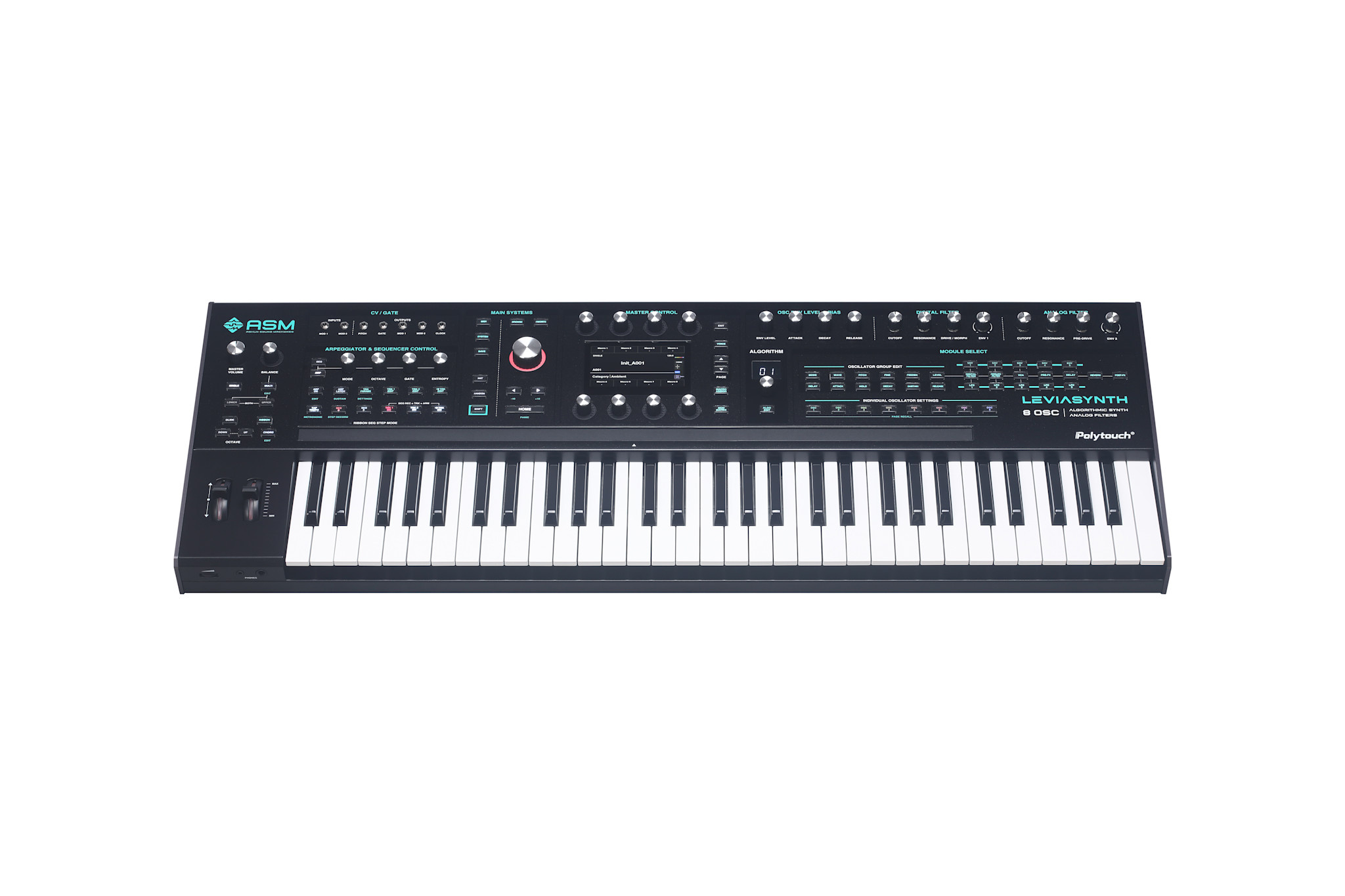

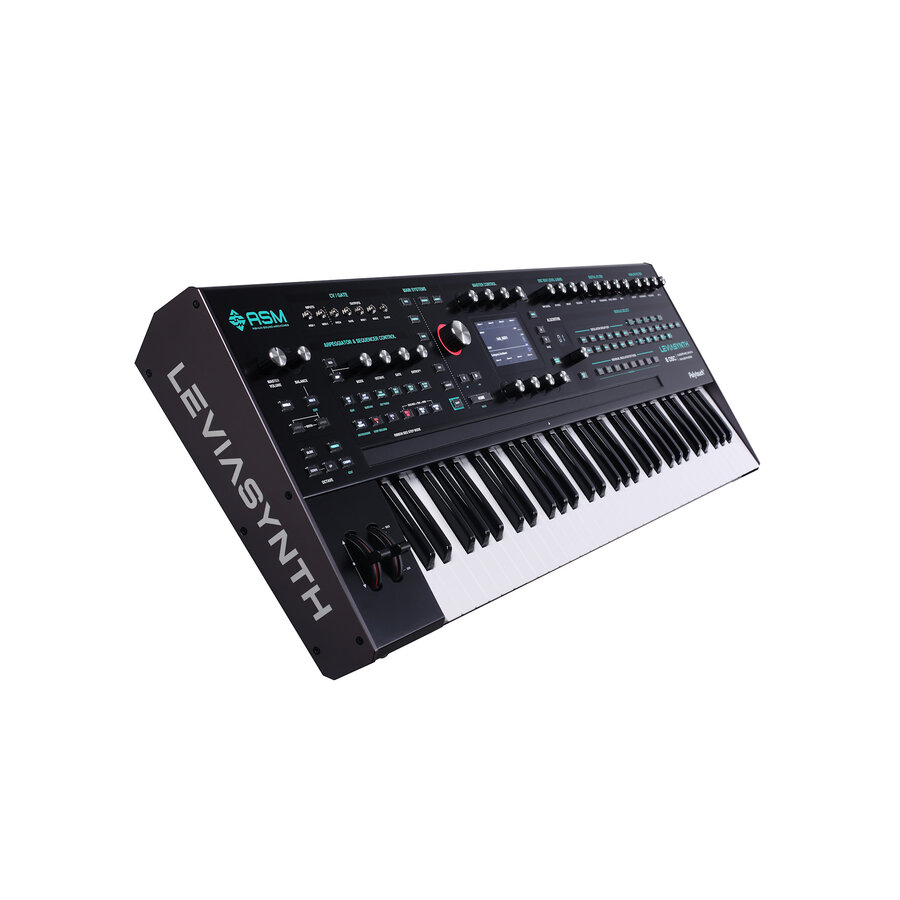

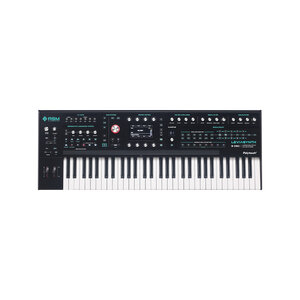

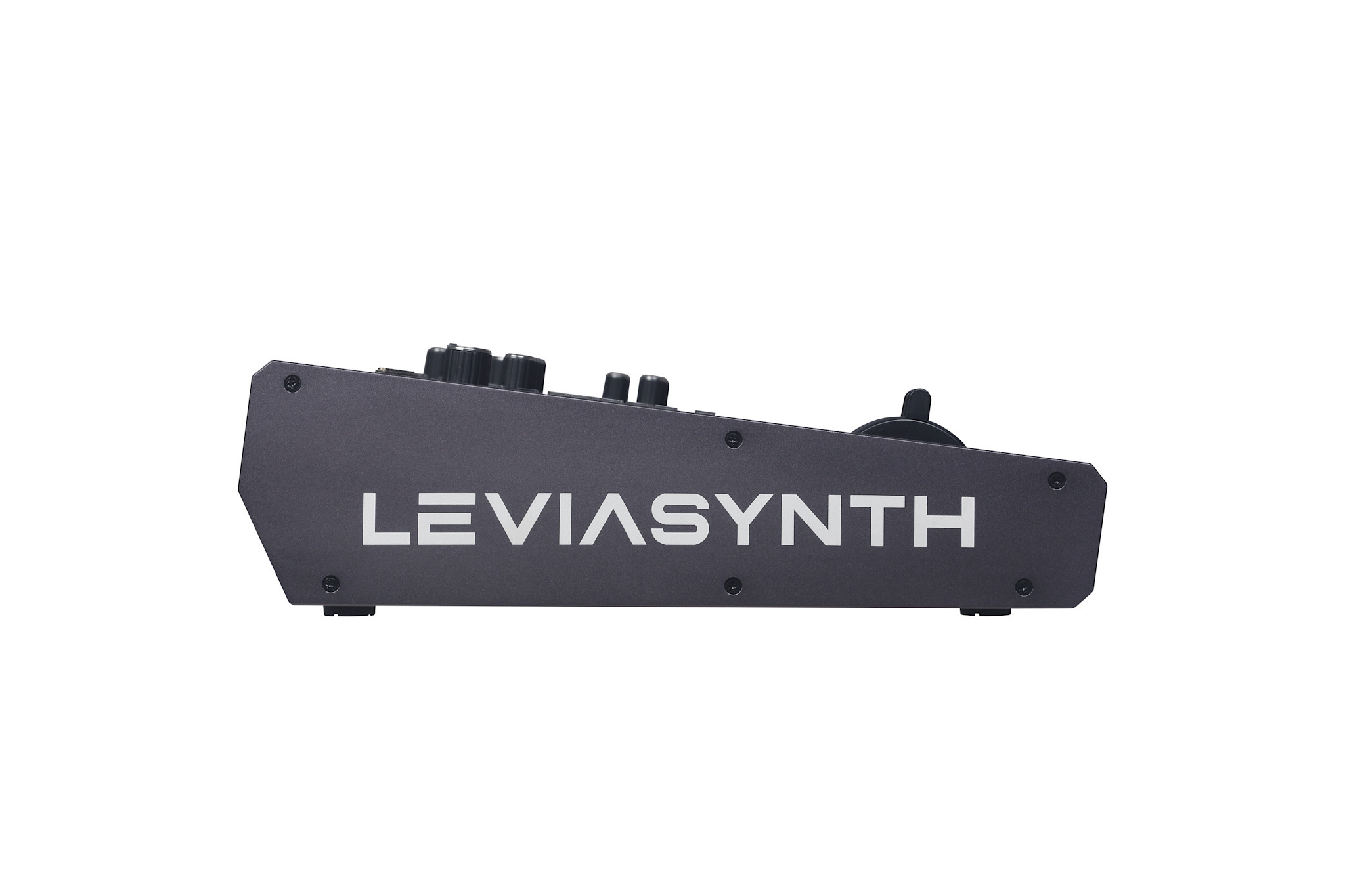

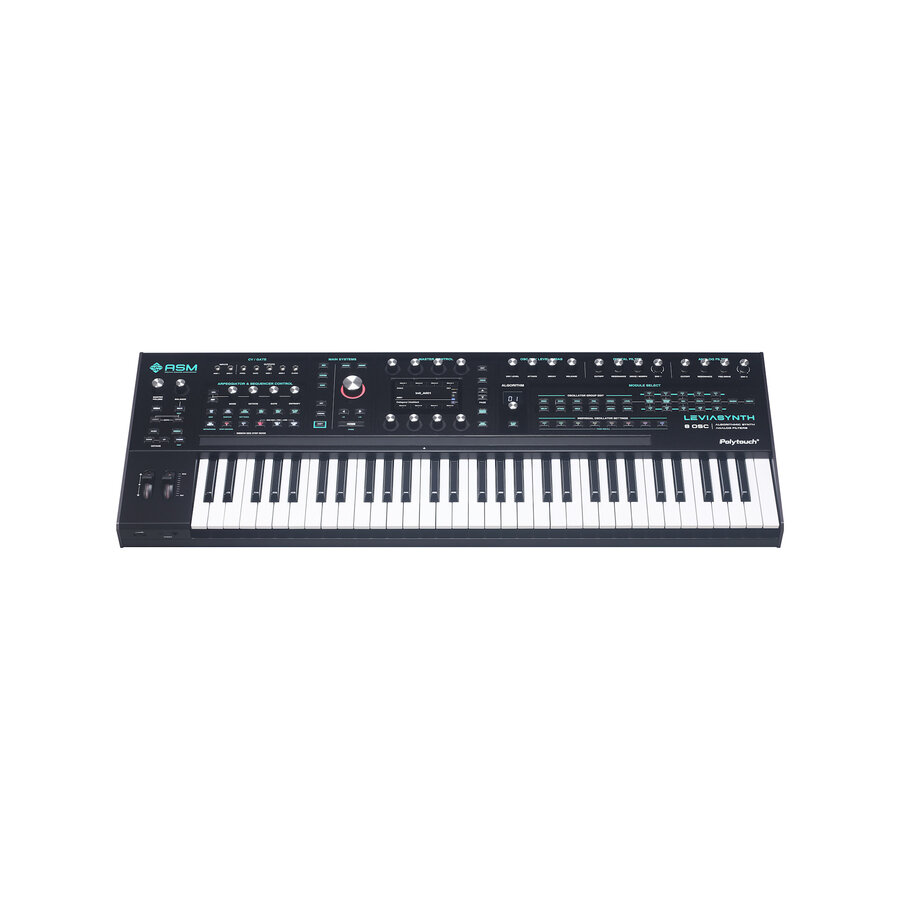

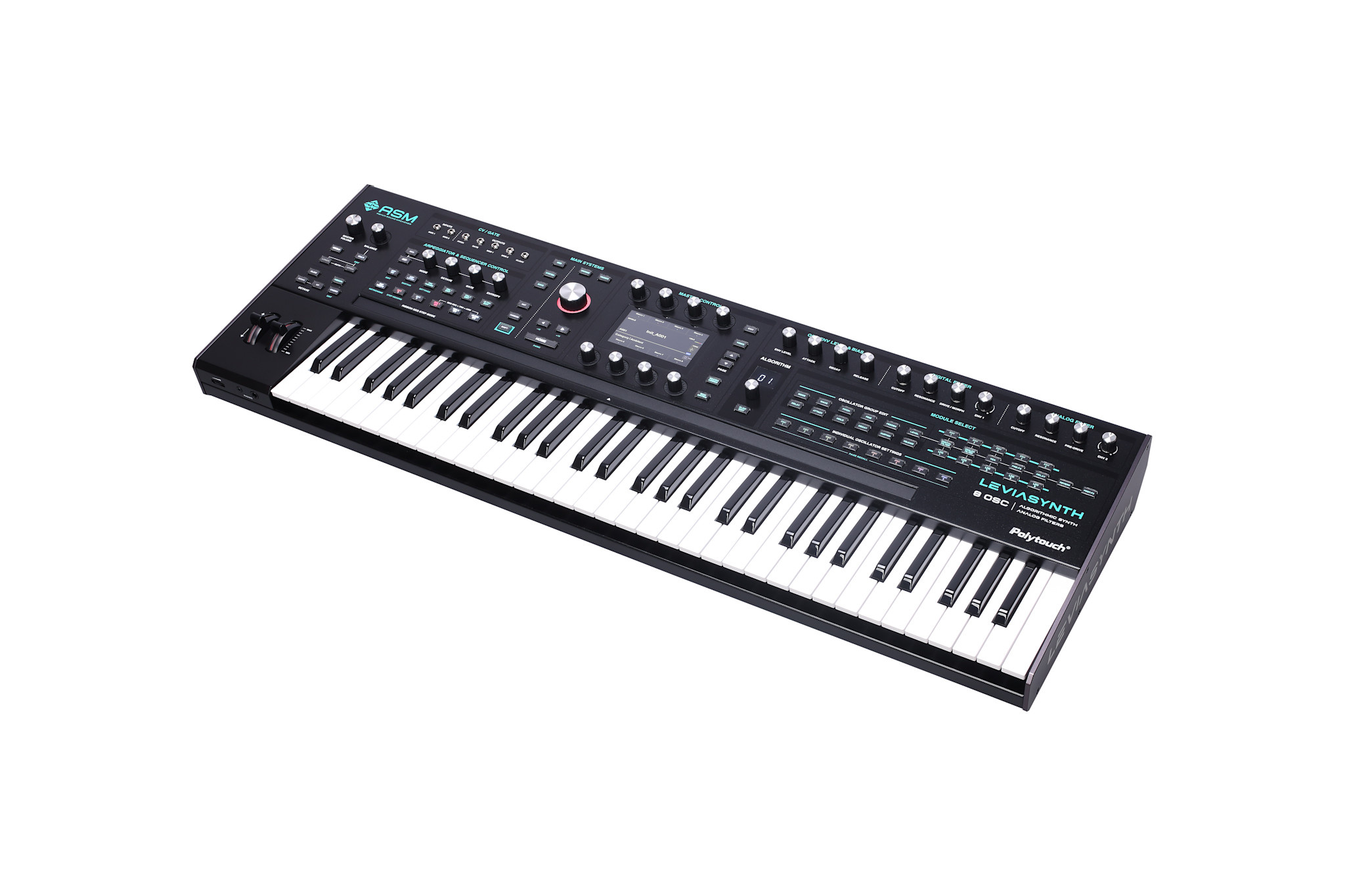

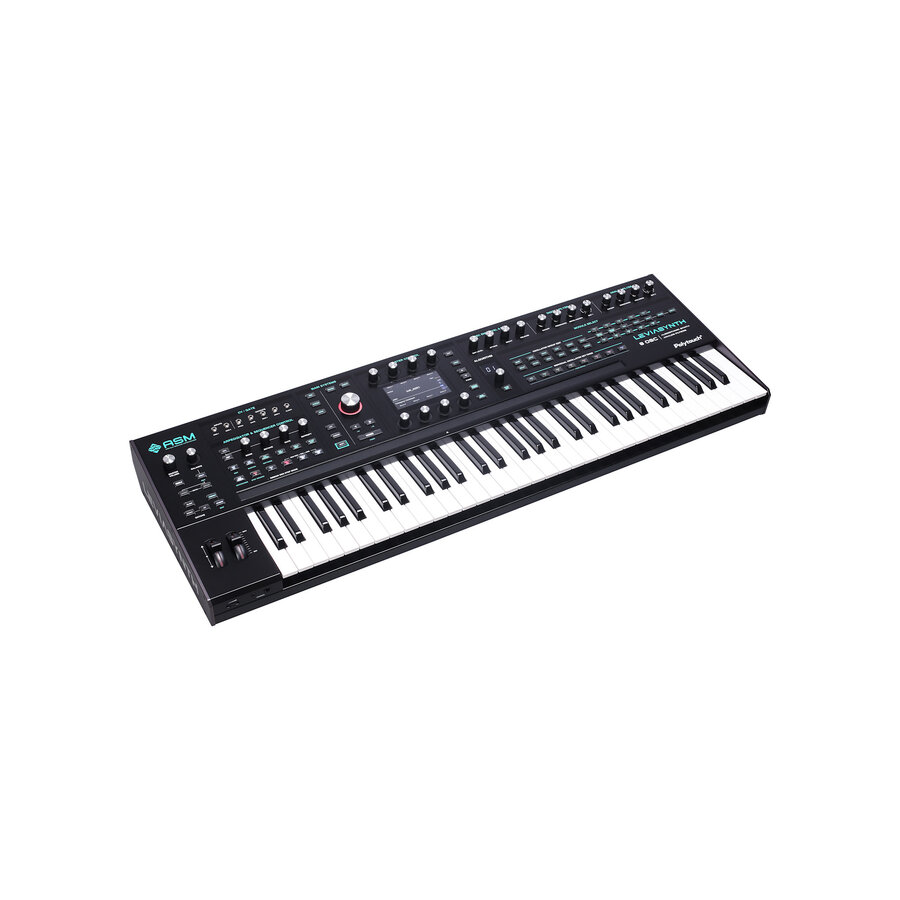

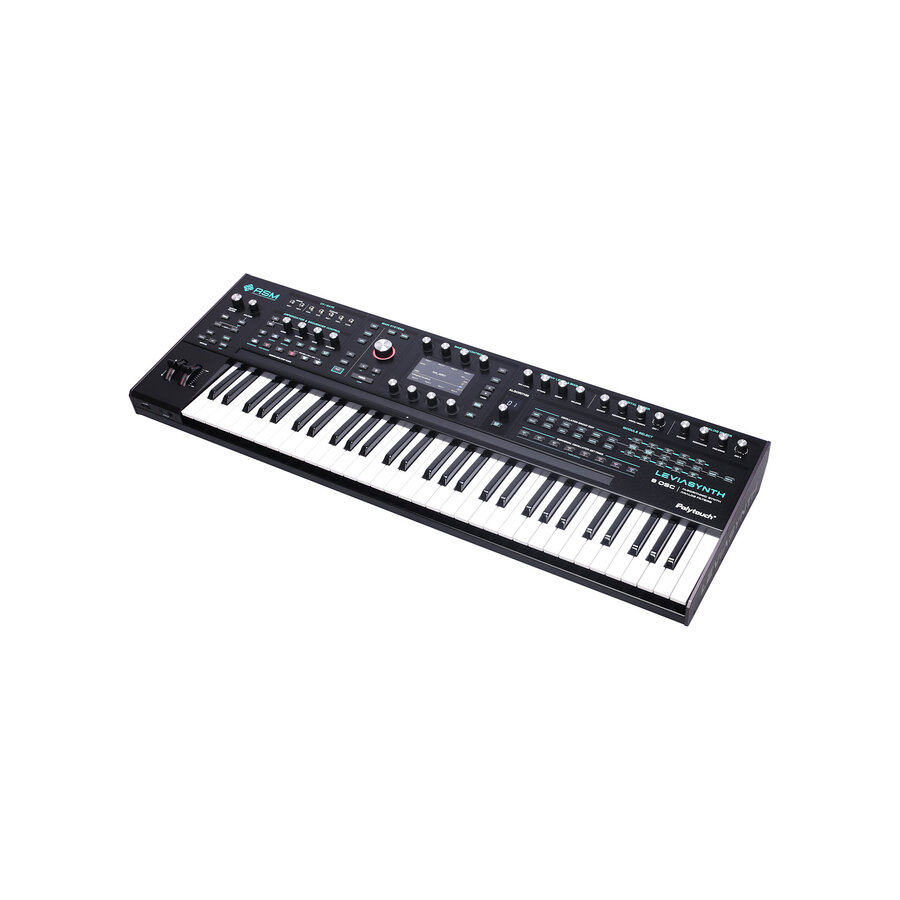

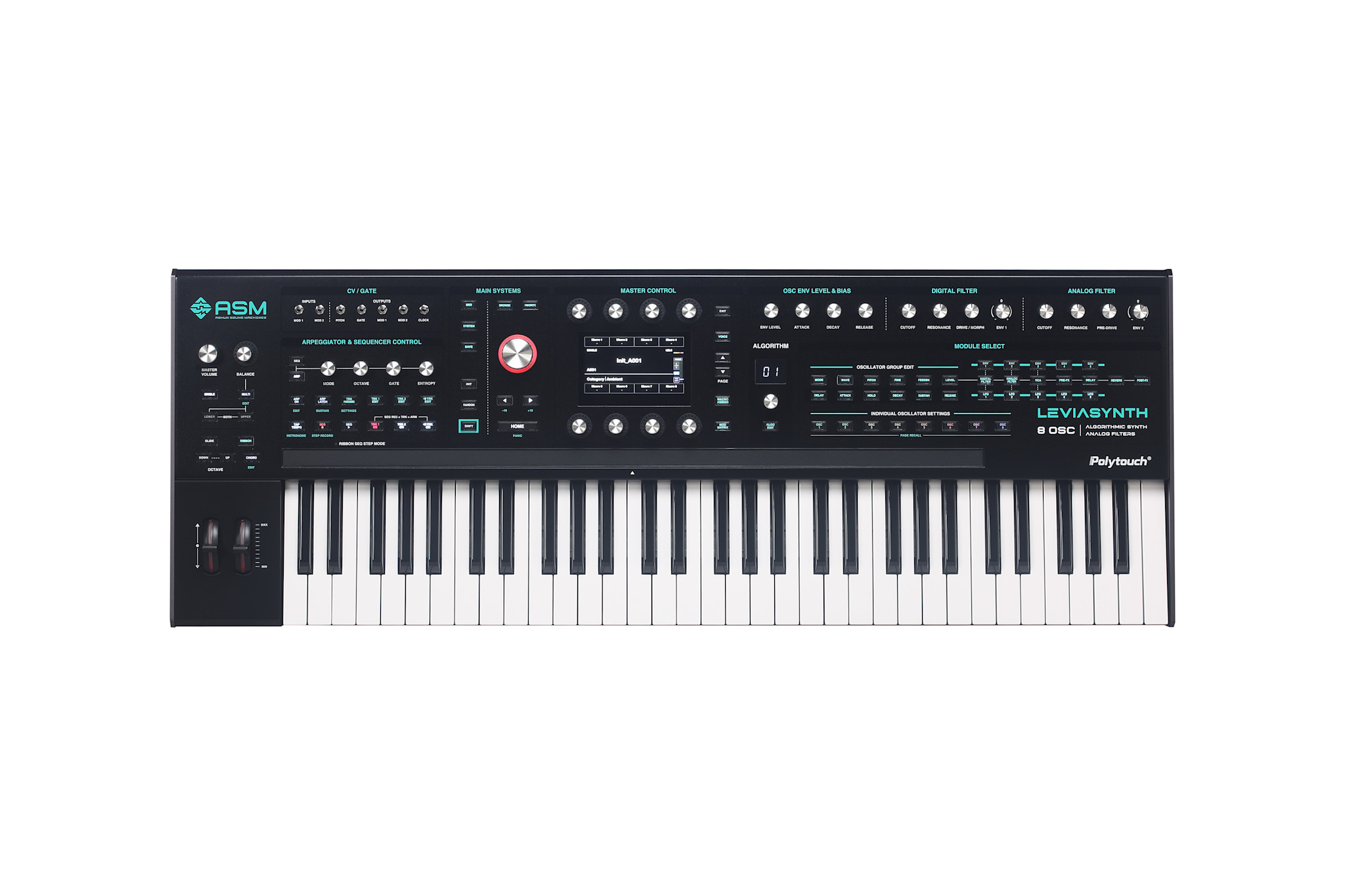

The Leviasynth Keyboard is a new hybrid algorithmic synthesizer from ASM.

Offering 16 voices with 8 oscillators per voice and a combination of analog and digital filters, the Leviasynth is truly a sound designer's dream synthesizer.

The 61-note Polytouch® polyphonic aftertouch keybed together with the 4-octave ribbon controller offers an unsurpassed playing experience, and the Leviasynth is also MPE-compatible.

The multi-color touch screen and intuitive user interface make patch programming a breeze. The oscillators can be arranged in groups known as algorithms, which define how they affect each other.

There are 144 preset algorithms available, and one additional algorithm can also be customized per patch. In addition, algorithm morph offers a nearly unlimited number of configurations for the oscillators. There are over 300 waveforms available for each oscillator, and 7 independent oscillator modes for maximum timbral diversity.

The 3-track sequencer records both note and macro automation, and the arpeggiator features a new Entropy function for advanced realtime note manipulation. Single mode allows for all 16 voices to be active per patch, and Multi mode allocates the voices into two parts of 8 voices each, where layers or splits are easily set up. The free ASM Patch Manager for Mac and PC enables easy firmware updating and patch management.

Specifications:

Type: Hybrid Synthesizer

Sound Engine Type: Algorithmic

Analog/Digital: Digital and Analog

Number of Keys: 61

Type of Keys: ASM Polytouch® Polyphonic Aftertouch Keyboard, On/Off Velocity-sensitive

Other Controllers: Ribbon Controller, Pitch Bend, Mod Wheel

Polyphony: 16 voices (Full/Layer/Split)

Number of Patches: 1024 Single mode patches, 640 Multi mode patches

Oscillators: 8 x oscillators (over 300 waveforms)

LFO: 5 per voice (Sine, Triangle, Saw Up, Saw Down, Square, Pulse27%, Pulse13%, S&H, Noise, Random, Step), Tempo syncable, Semitone Lock

Envelopes: 1 per oscillator plus 5 per voice, Tempo syncable, up to 4 variable trigger sources

Analog Filter: 4-pole Low Pass (24 dB/octave)

Digital Filter: 18 types (LP-BP-HP, LP-NO-HP, LP Ldr12, LPLdr24, LP Fat12, LP Fat24, LP Gate, LP MS20, HP MS20, LP 3-Ler, BP 3-Ler, HP 3-Ler, LP Stn12, BP Stn12, HP Stn12, LP 1 Pole, LP 8 Pole, Vowel)

Effects: 9 Insert Effects, 5 Delays, 4 Reverbs

Effects Types: Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor, Distortion, Delay, Reverb
Arpeggiator: 9 modes (Up, Down, Up&Down, Up/Down, Order, Random, RandOnce, Chord, Phrase), plus 9 variables (Entropy, Octave Mode/Range, Gate, Length, Swing, Ratchet, Chance, Step Offset)

Other: Mod Matrix (32 slots), Macro Controllers (8), Favorites (unlimited), Randomizer (two variable types), MPE compatibility, Microtuning

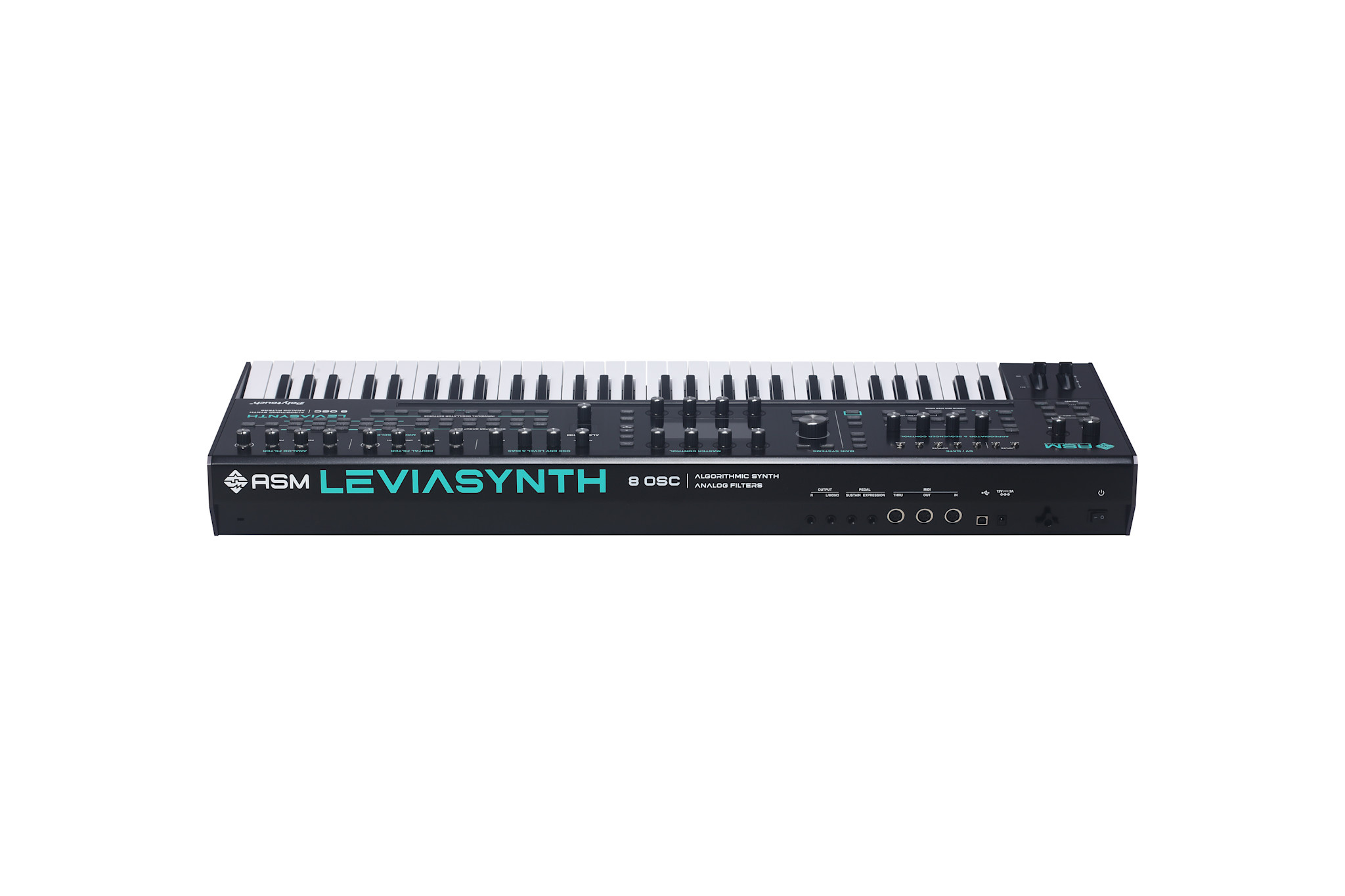

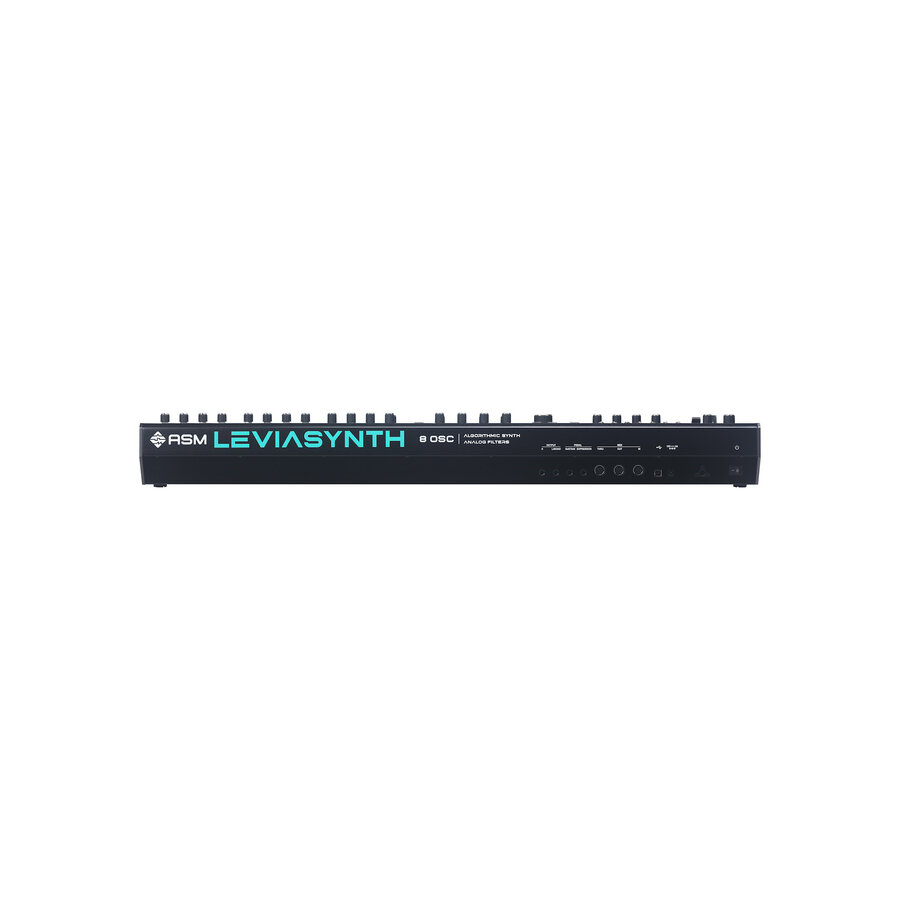

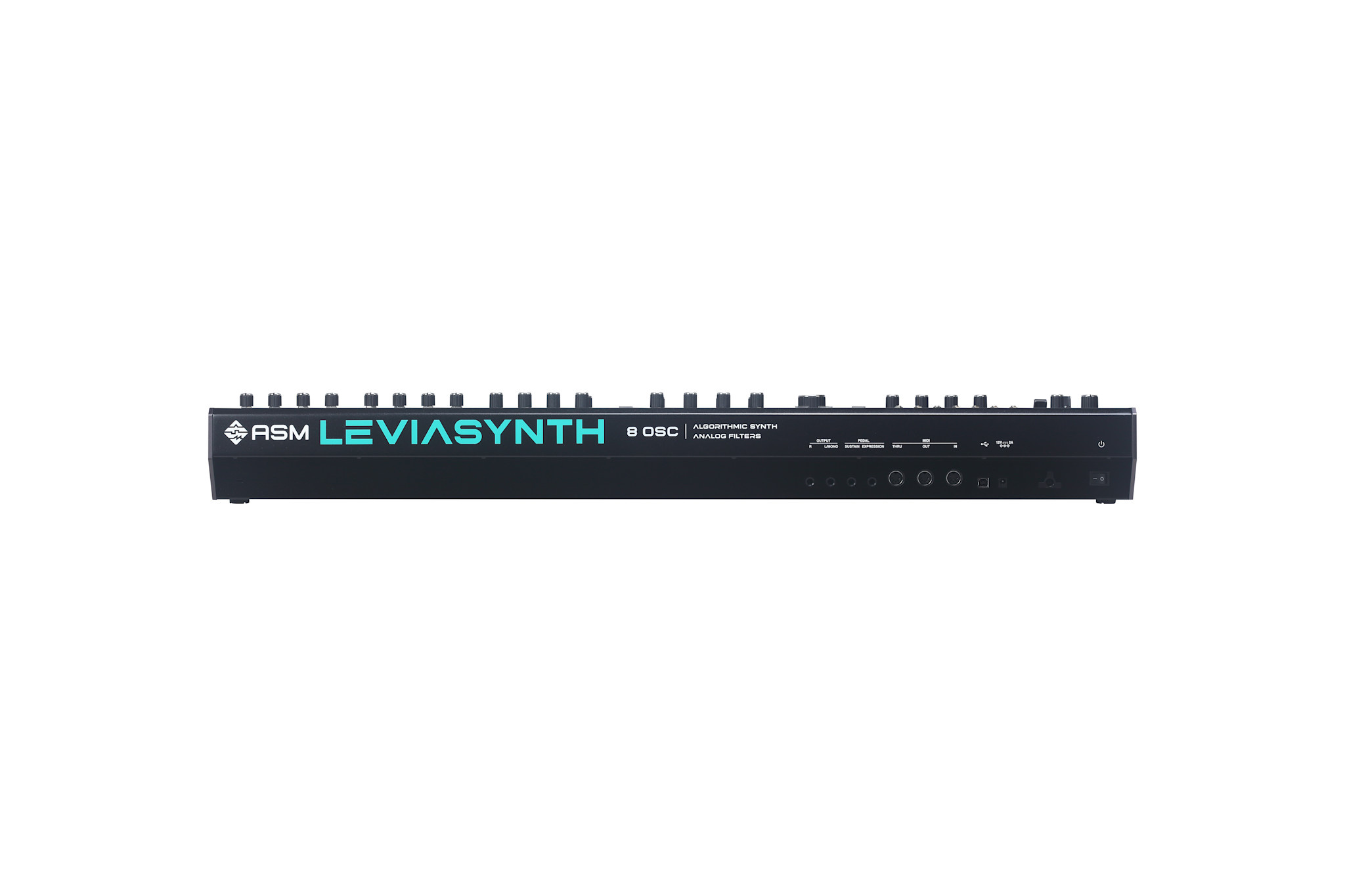

Audio Outputs: 2 x 1/4" Balanced (L/Mono, R)

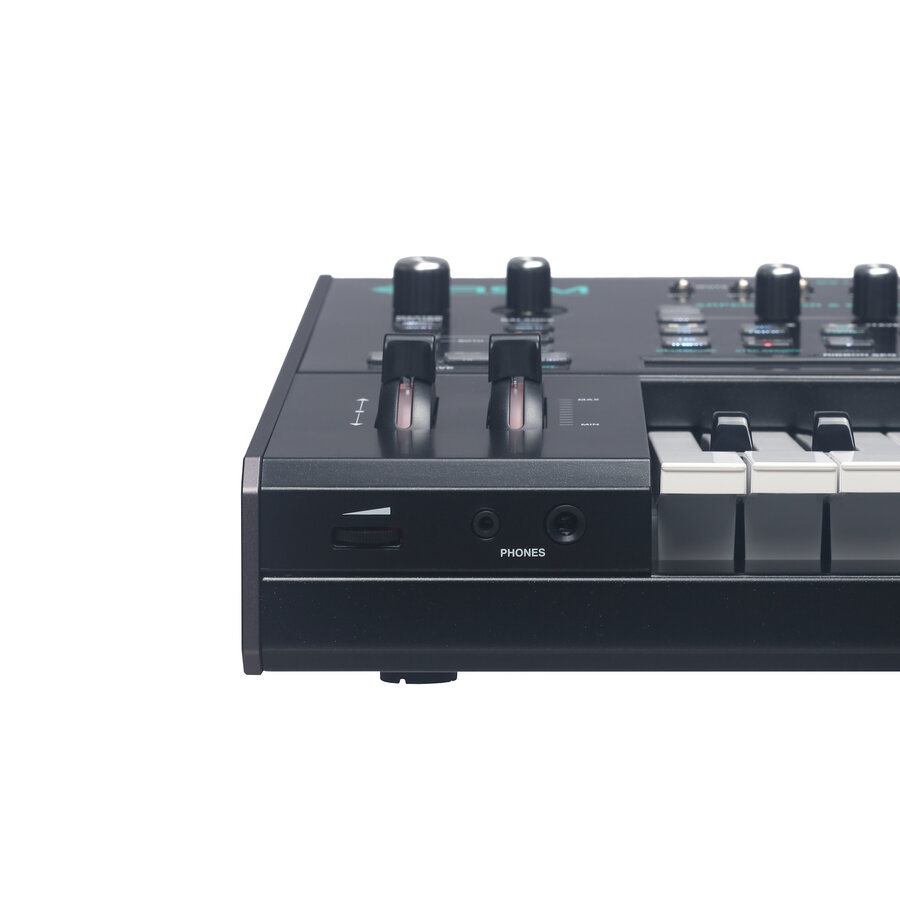

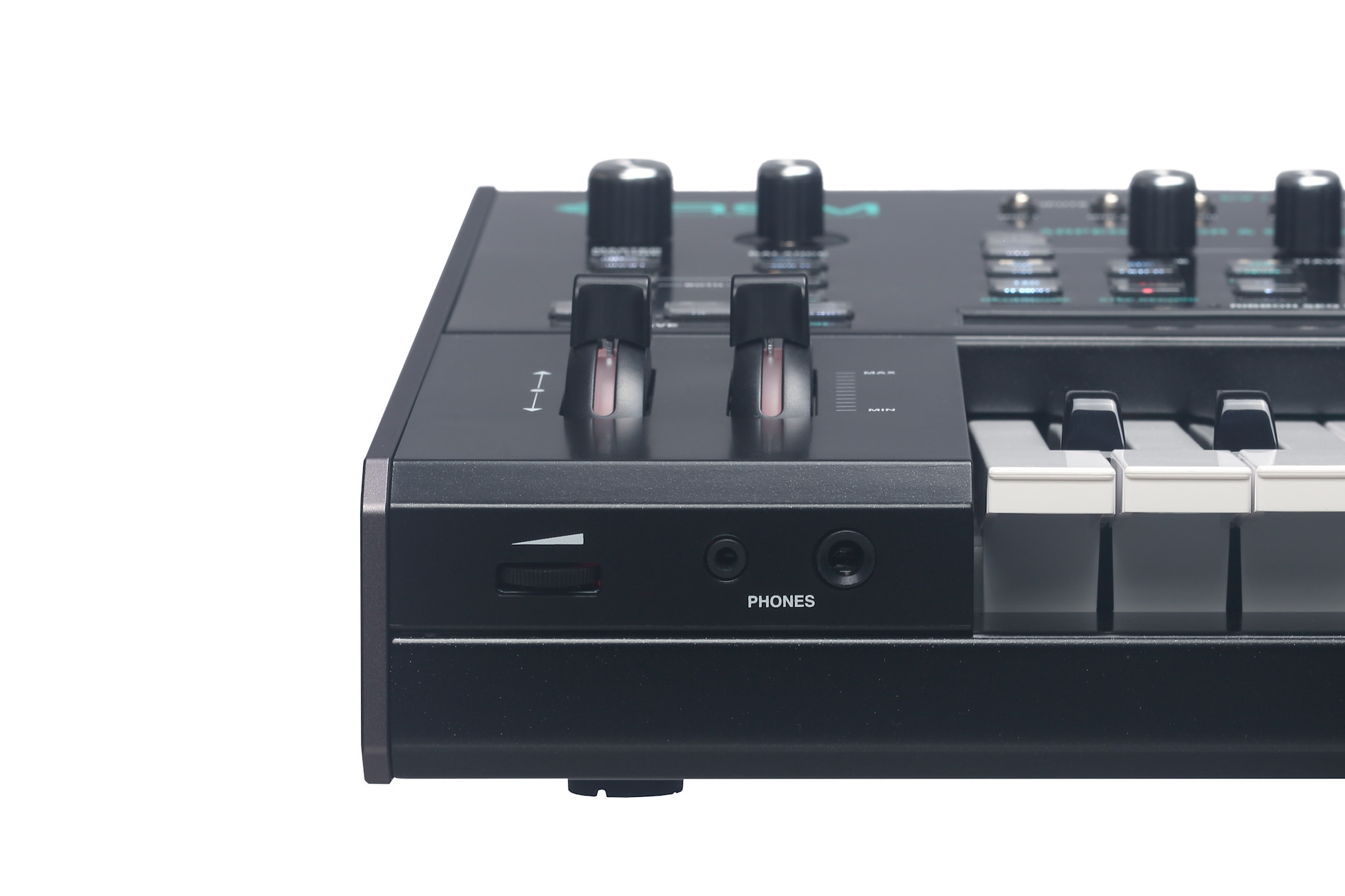

Headphones: 1 x 1/4", 1 x 1/8", Separate volume control

USB: 1 x Type B

MIDI I/O: In/Out/Thru

Pedal Inputs: 2 x 1/4" (expression, sustain)

Other I/O: 2 x 1/8" Inputs (Mod 1, Mod 2), 5 x 1/8" Outputs (CV, Gate, Mod 1, Mod 2, Clock)

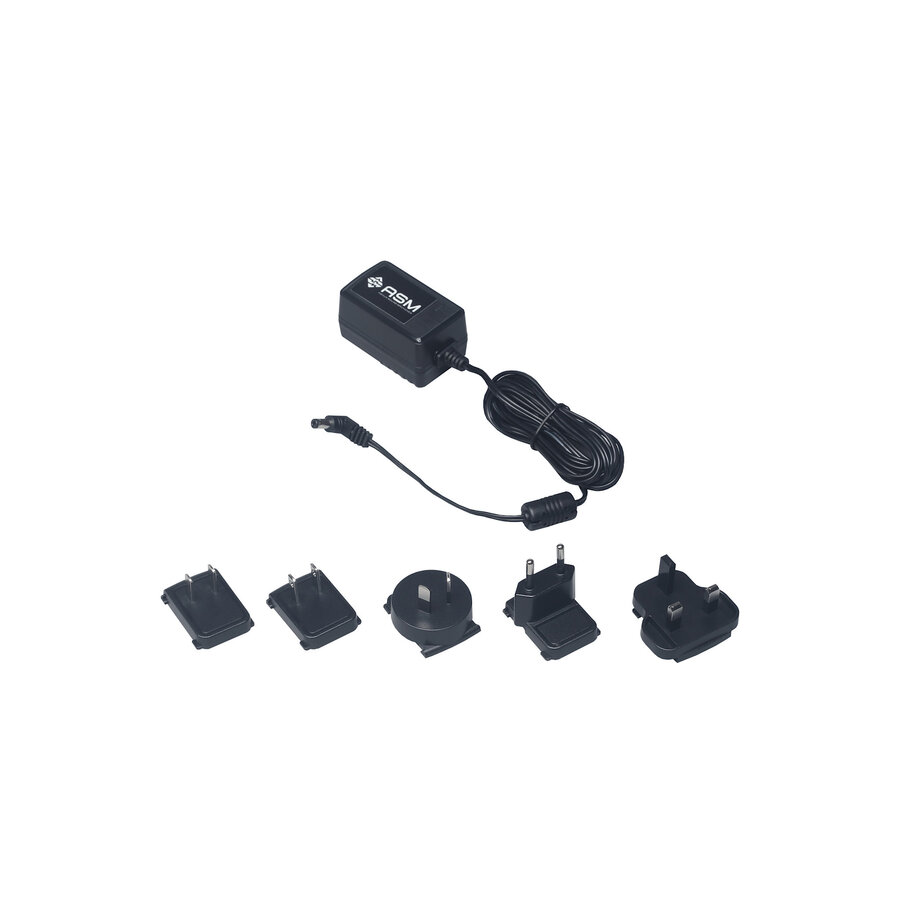

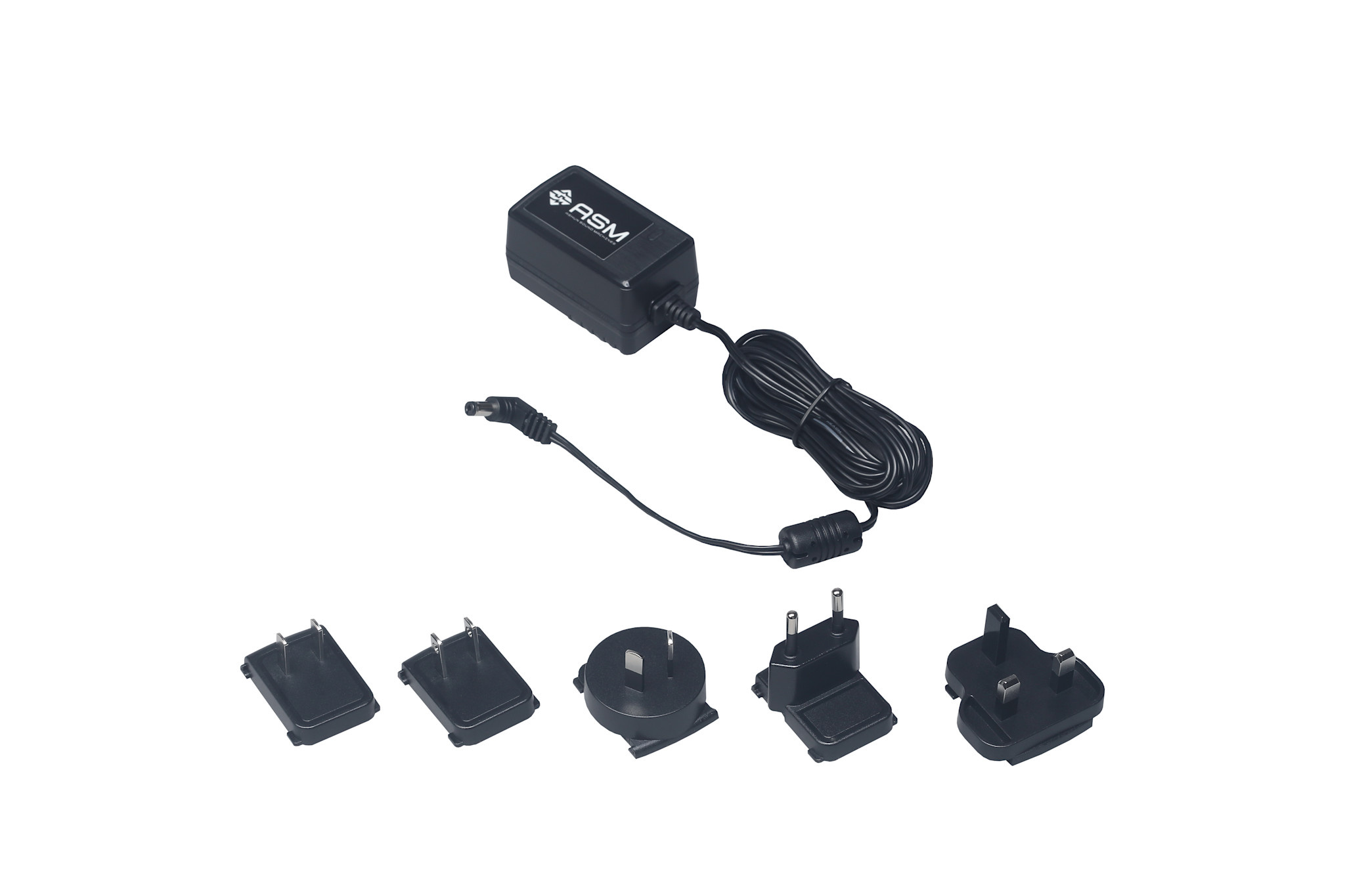

Power Supply: 12V 2A DC switchable power supply

Height: 4.55" / 11.55cm
Width: 38" / 96.5cm
Depth: 13.62" / 34.6cm
Weight: 26.9lbs / 12.2kg
