8804
Transform the 8816 into a tabletop Neve® console with the 8804 fader pack

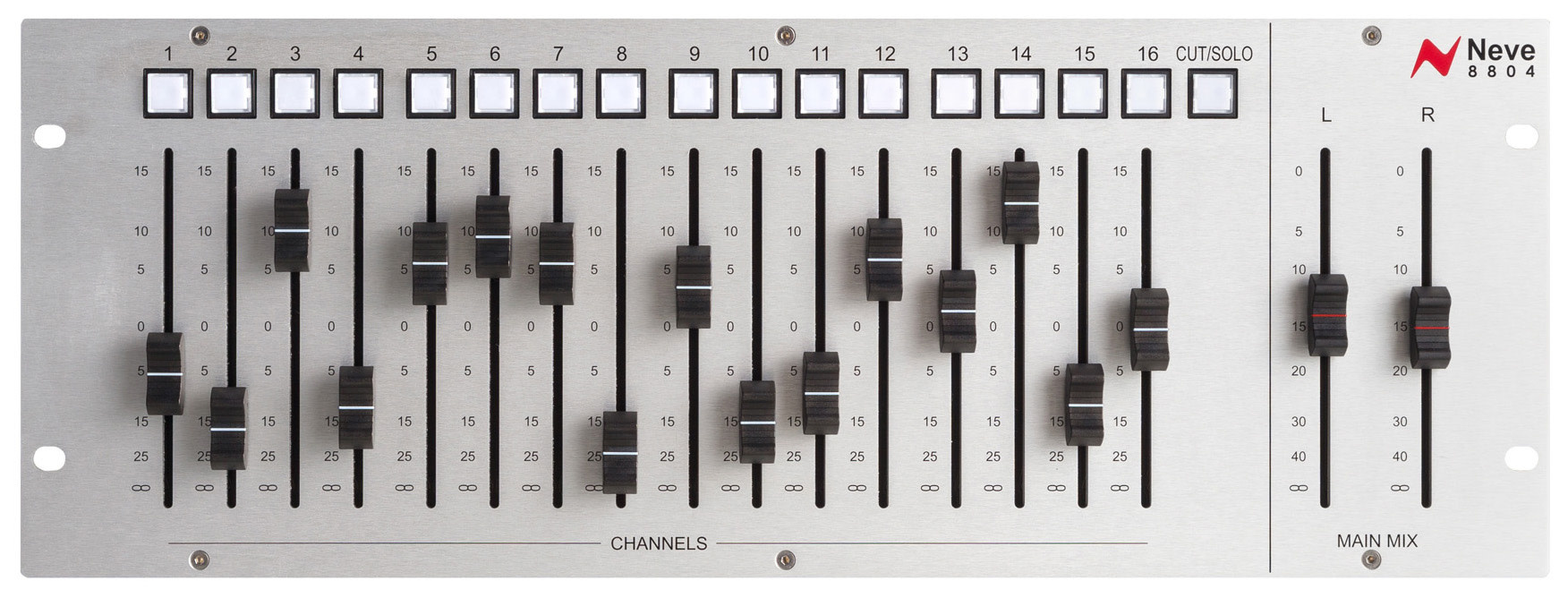

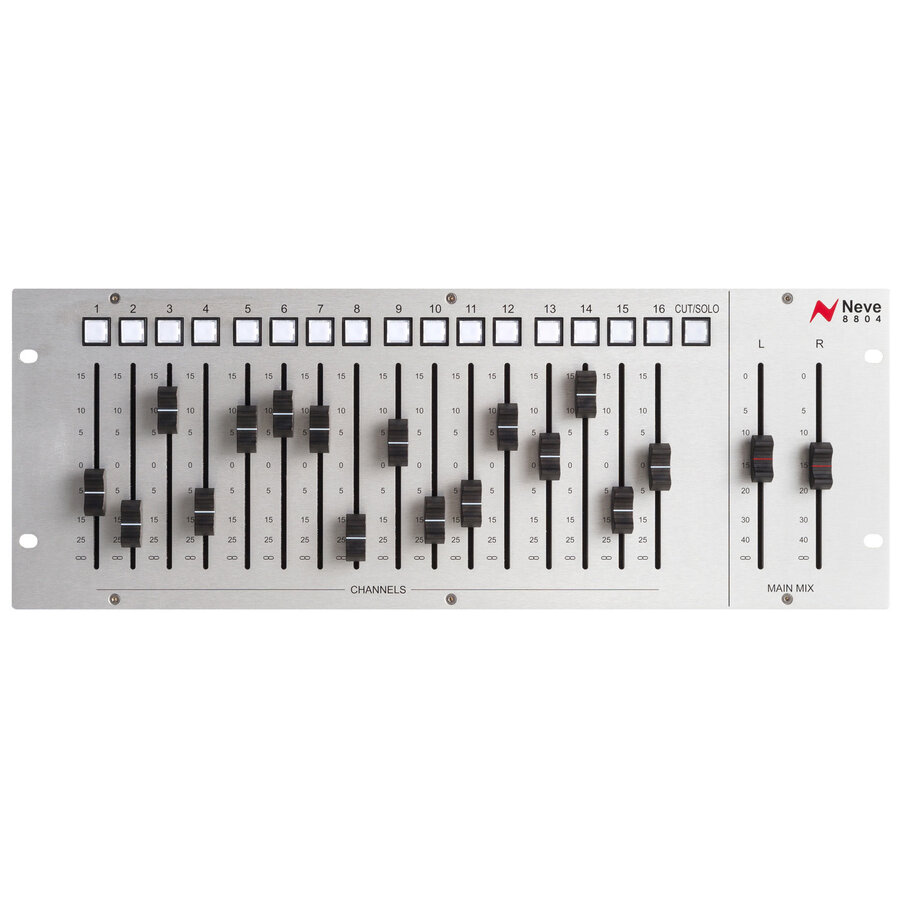

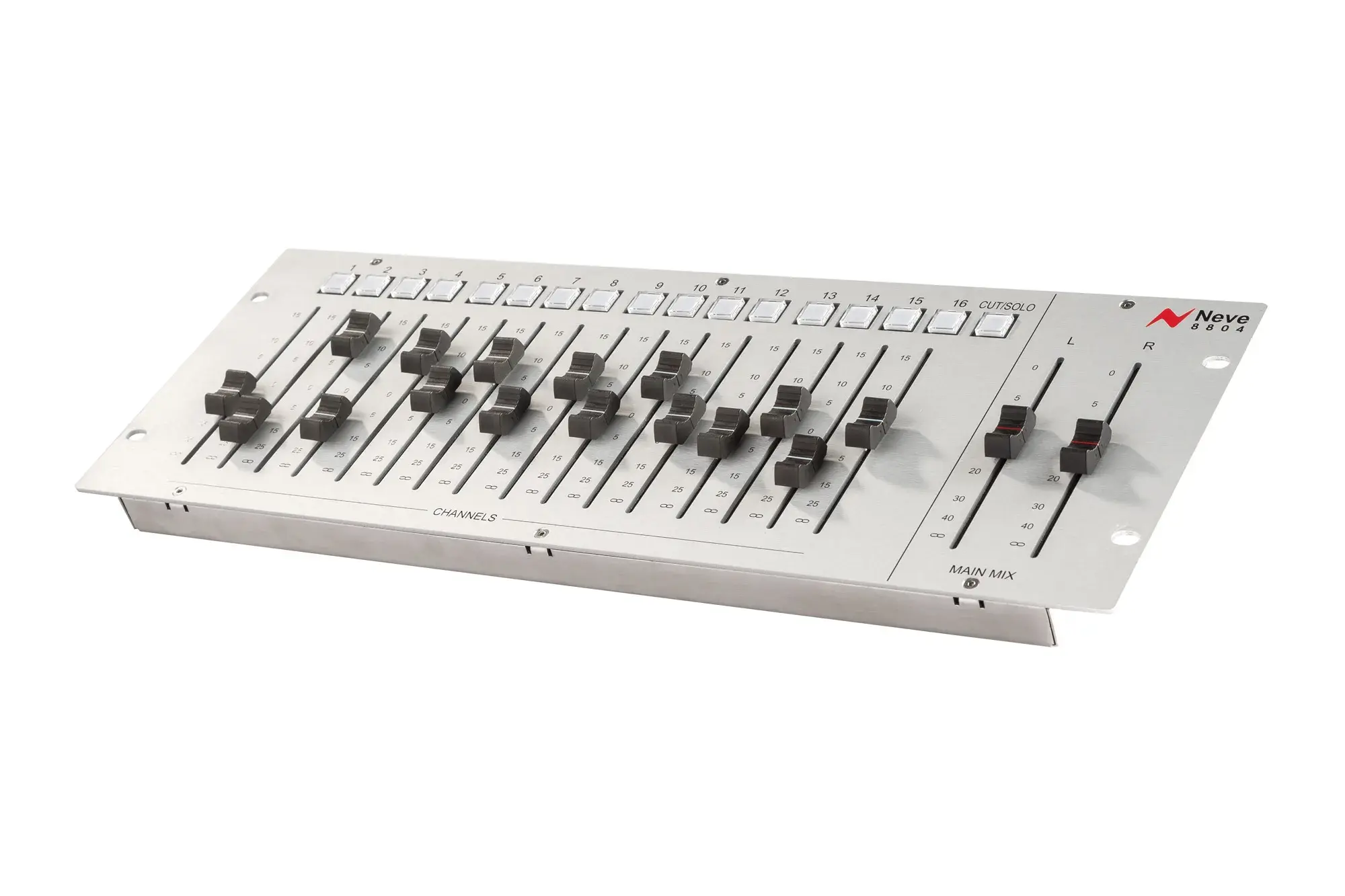

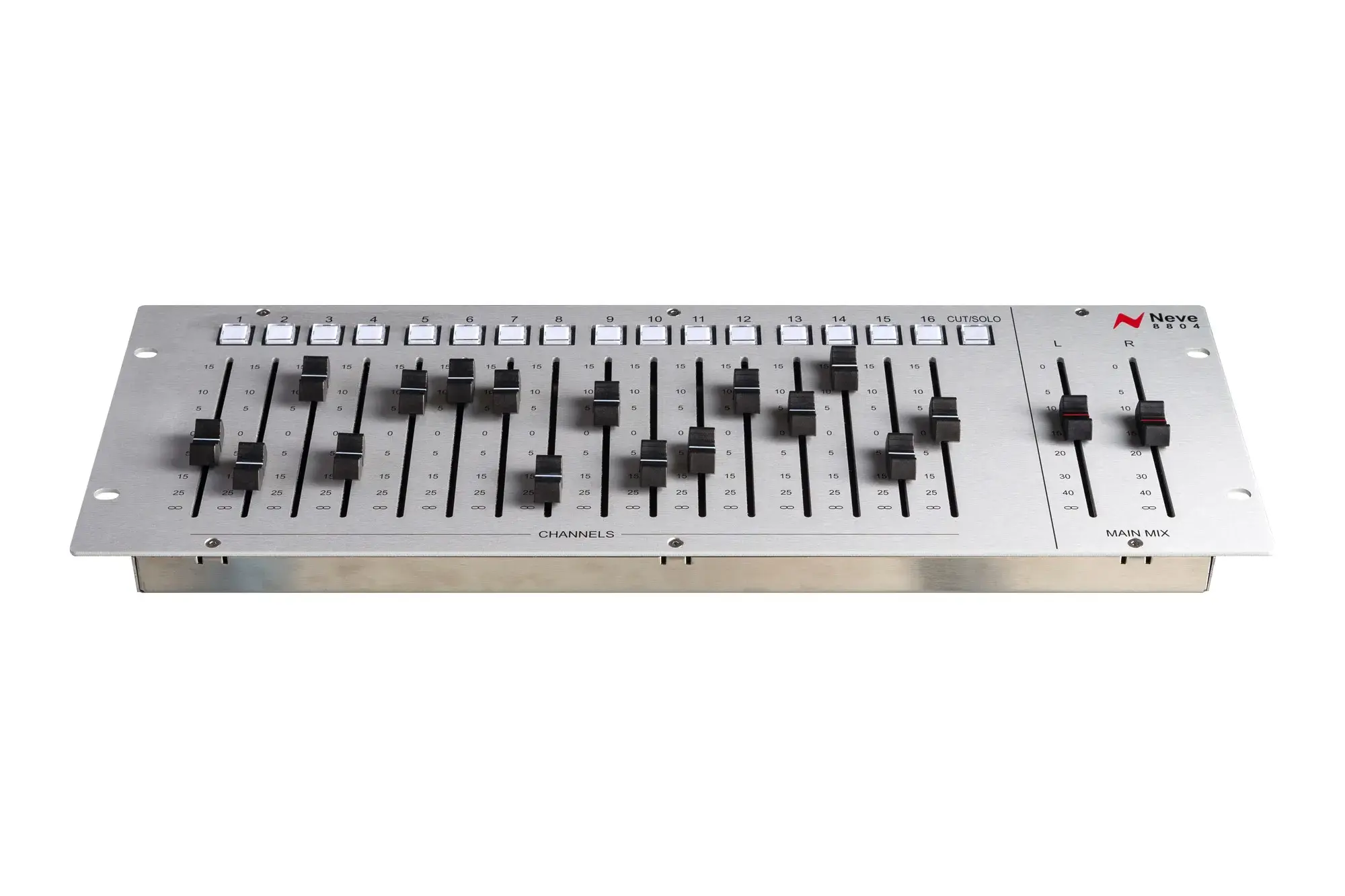

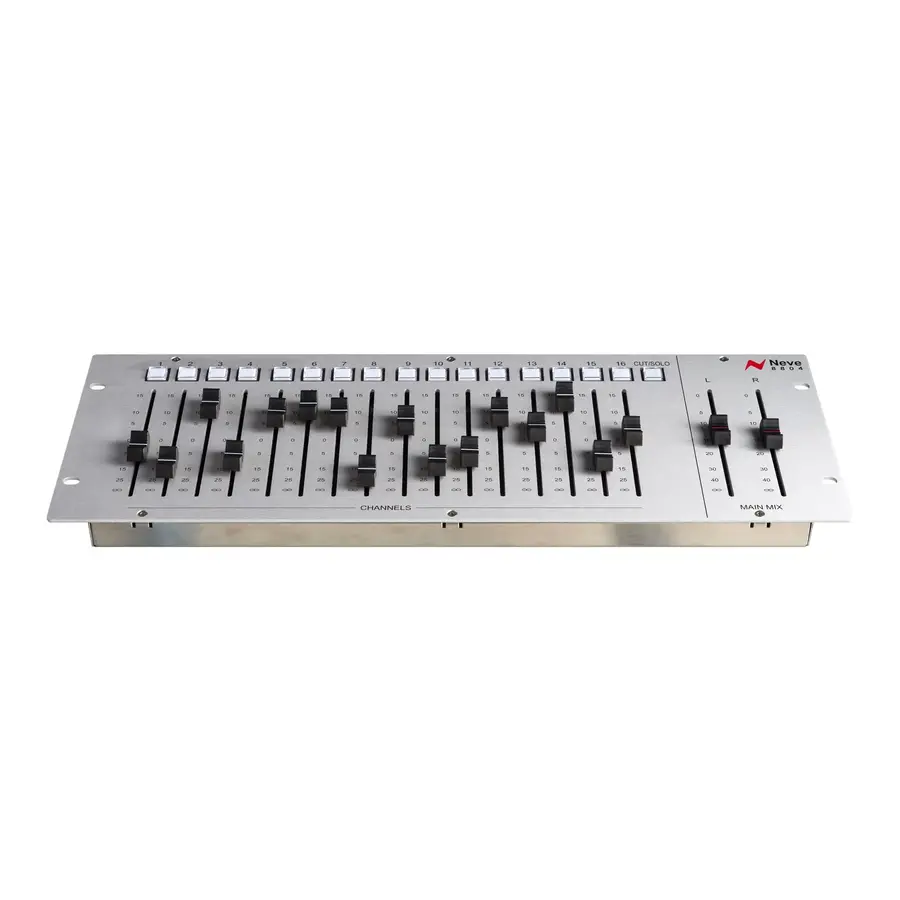

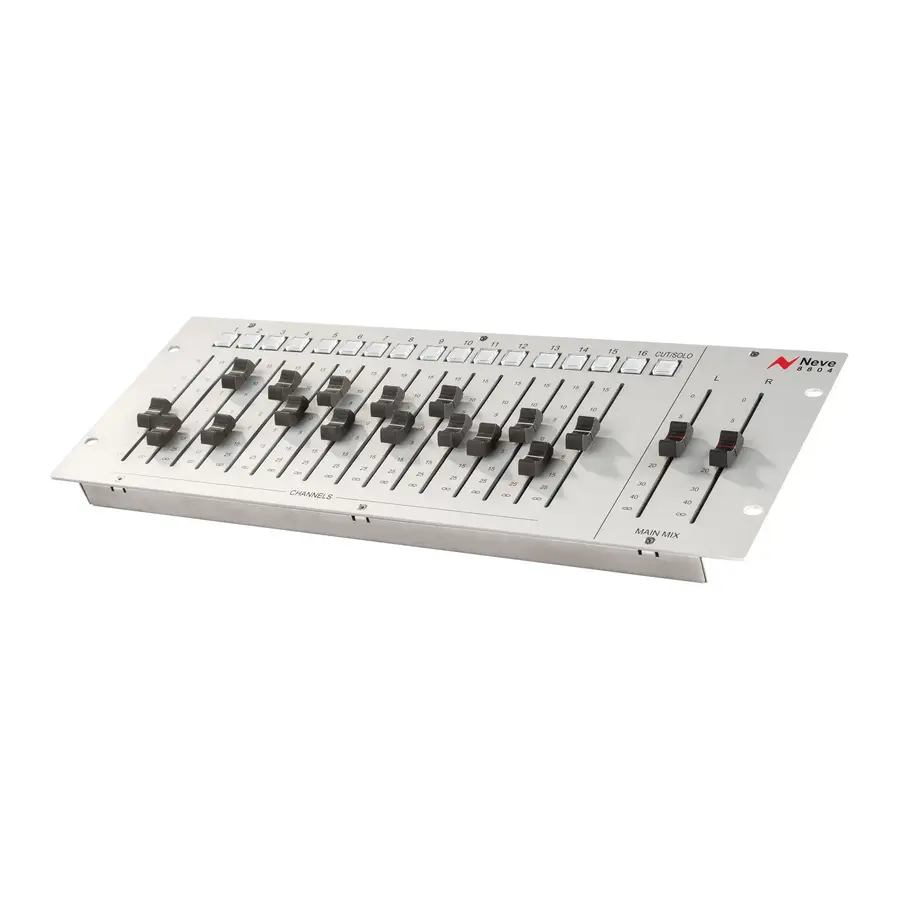

Designed for rackmount or tabletop use, the 8804 features 16 long-throw channel faders, with associated cut & solo switches, and two master faders. The faders’ solid feel as you adjust to the mix, the convenience of Total Recall™ of all parameters, and the pristine sound quality make the 8804 a must-have product in tandem with the 8816.
Hands-On Control
There’s no substitute for real hands-on fader control when it comes to real console feel. By adding the 8804 to the 8816 Summing Mixer, the two units form a fully-fledged Neve® console.
Long-Throw Faders
Eighteen total long-throw faders deliver ultimate precision for finely tuning an 8816 mix. Each fader runs from -inf to 0dB at the central position and up to +15dB at the top.
Independent Master Faders
The 8804’s features separate left and right main mix faders. This unique layout allows for fine stereo balancing at the crucial master stage.
Linked Switch Controls
The Neve® recall software forms a software bridge between the 8816 and 8804 units, linking solo and cut switches for seamless integration.
Direct Outputs
Adding an 8804 to your 8816 gives you access to a host of new features and capabilities! The 8804 has 16 direct outputs via D-Type connection; these outputs add even more flexibility when recording through the 8816, allowing individual ‘stems’ to be tracked pre or post-fade from all 16 inputs.
8816 Aux Send
Adding an 8804 to your 8816 opens up the possibility of using the 8816’s level pots as aux sends – ideal for an additional cue mix or as reverb sends into your favourite outboard FX units.
Rackmount or Tabletop

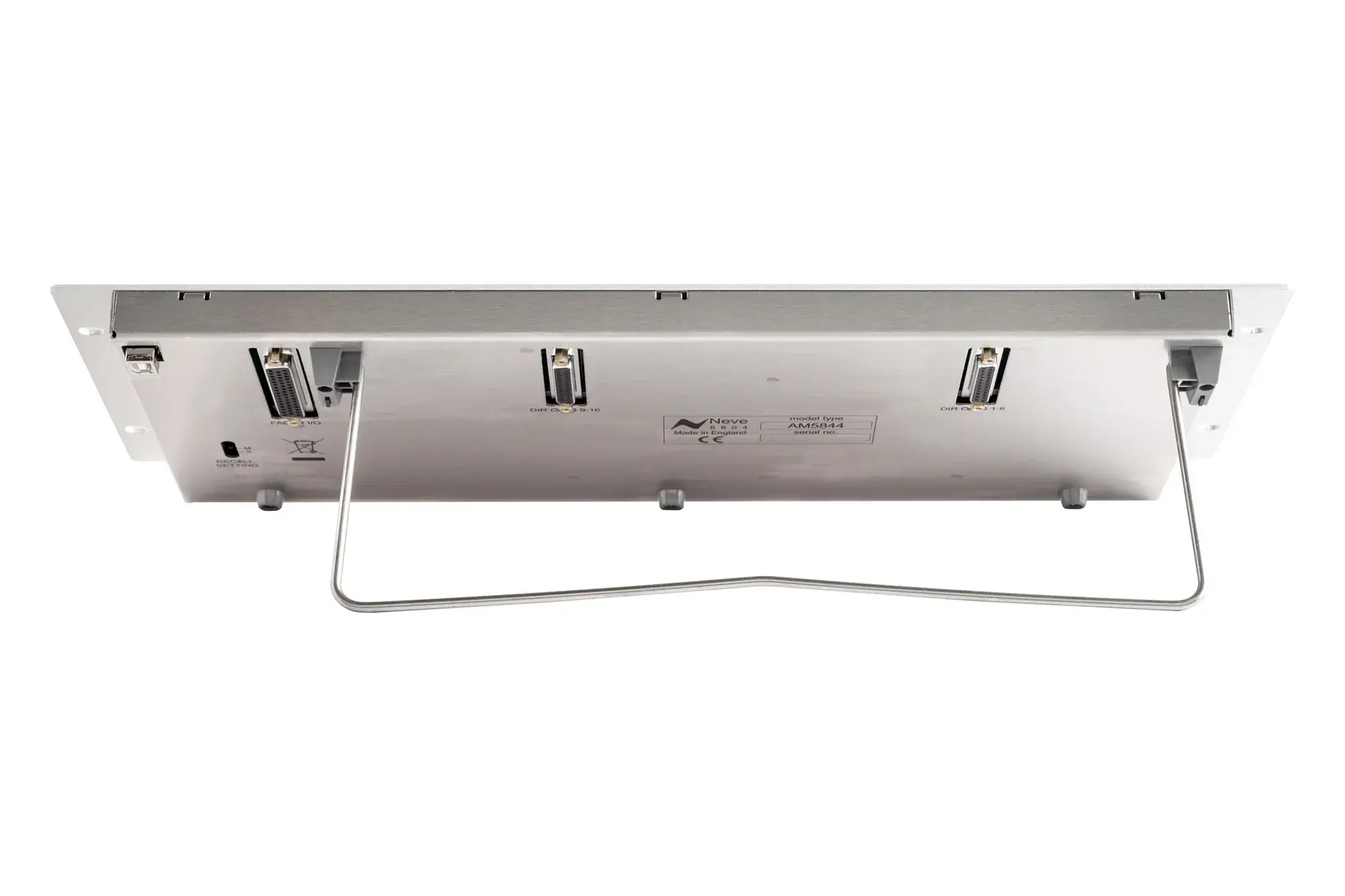

Depending on your studio setup, the 8804 can be mounted multiple ways – rack-mounted into a 4U 19″ frame or mounted onto your studio desk using the built-in stand or optional tabletop side cheeks.
Total Recall™ Software
Every fader position and switch setting on the 8804 can be recalled quickly via the Neve® recall software. The interactive recall application tracks and follows manual fader positions allowing you to recall your mix sessions in seconds.
General Specification
- High-quality long-throw fader module for use with popular 8816 Summing Mixer
- Hand-made by Neve in Burnley, England
- 16 Channel Faders and 2 Master Faders
- 16 Mute/Solo Switches
- 16 Direct Outputs Allow 8816 level pots to become auxiliary sends
- Instant Recall of settings stored on PC or Mac via USB
- 4U rackmount or tabletop operation using built-in stand or optional Neve 8804 side cheeks
Audio Performance
- Level: Channel 1 to 16: -∞ to +15dB, Mix Left and Right: -∞ to 0dB
- Frequency Response: +/- 0.2dB: 10Hz to 20kHz, +/- 0.5dB: 10Hz to 40kHz
- Distortion: Measurement Bandwidth: 10Hz to 80kHz – Fader at 0dB: distortion < 0.005% (20Hz to 20kHz)
- Noise: Measurement Bandwidth: 10Hz to 22kHz – Fader at 0dB: noise < 90dBu (20Hz to 20kHz)
Dimensions
- Width: 48.2cm (19 inches)
- Height:17.6cm (6.9 inches) (3U)
- Depth: 3.2cm (1.3 inches) – when flat mounted
- Weight: 2.1kg (5 lbs.)
