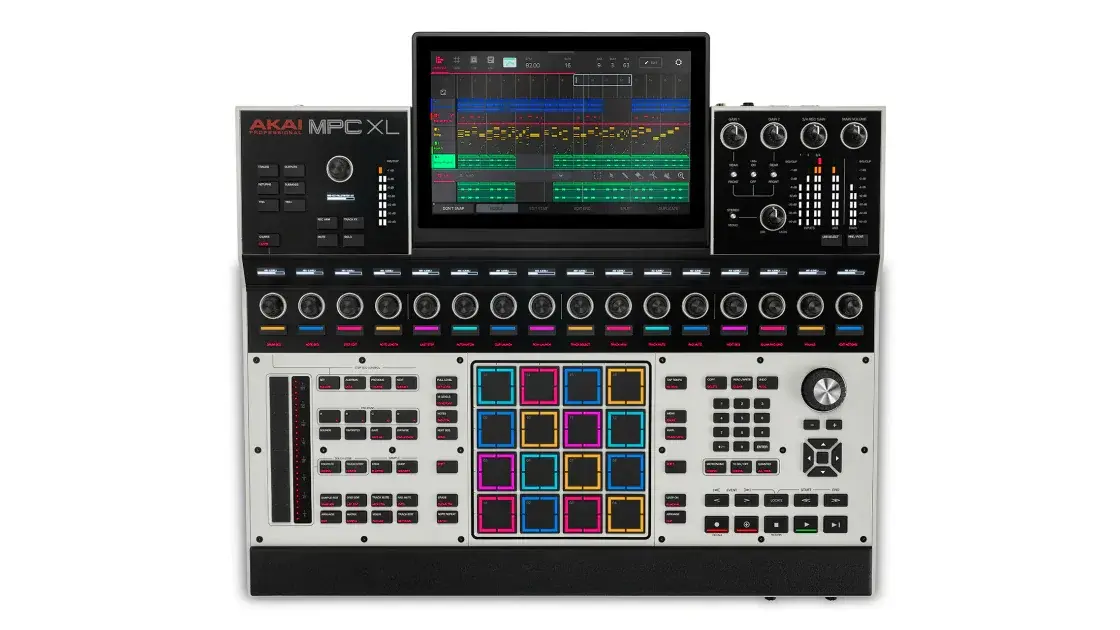

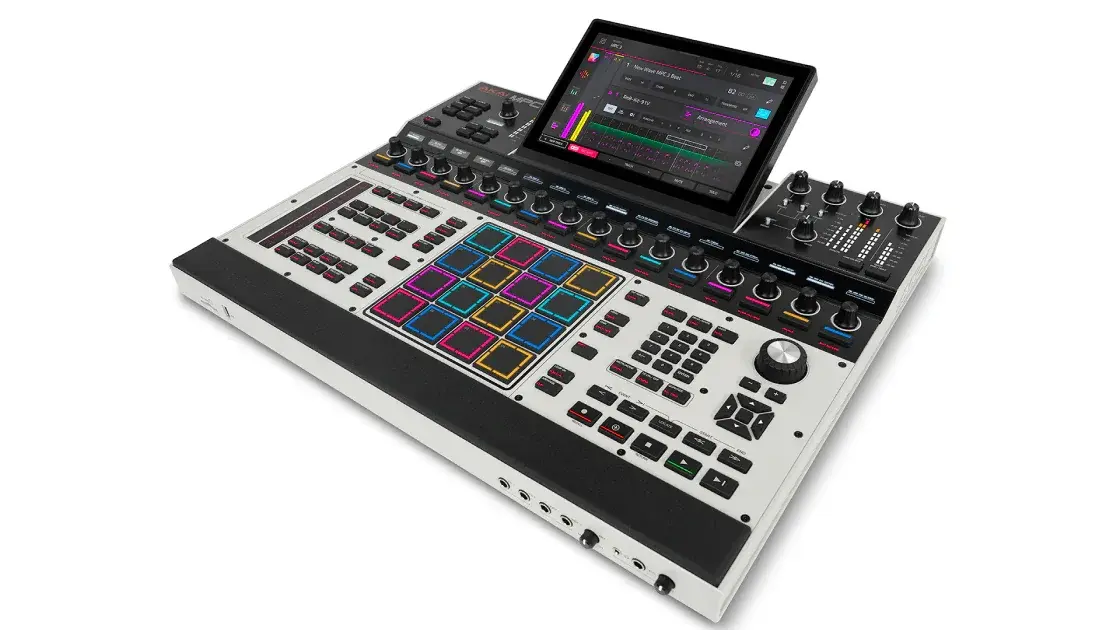

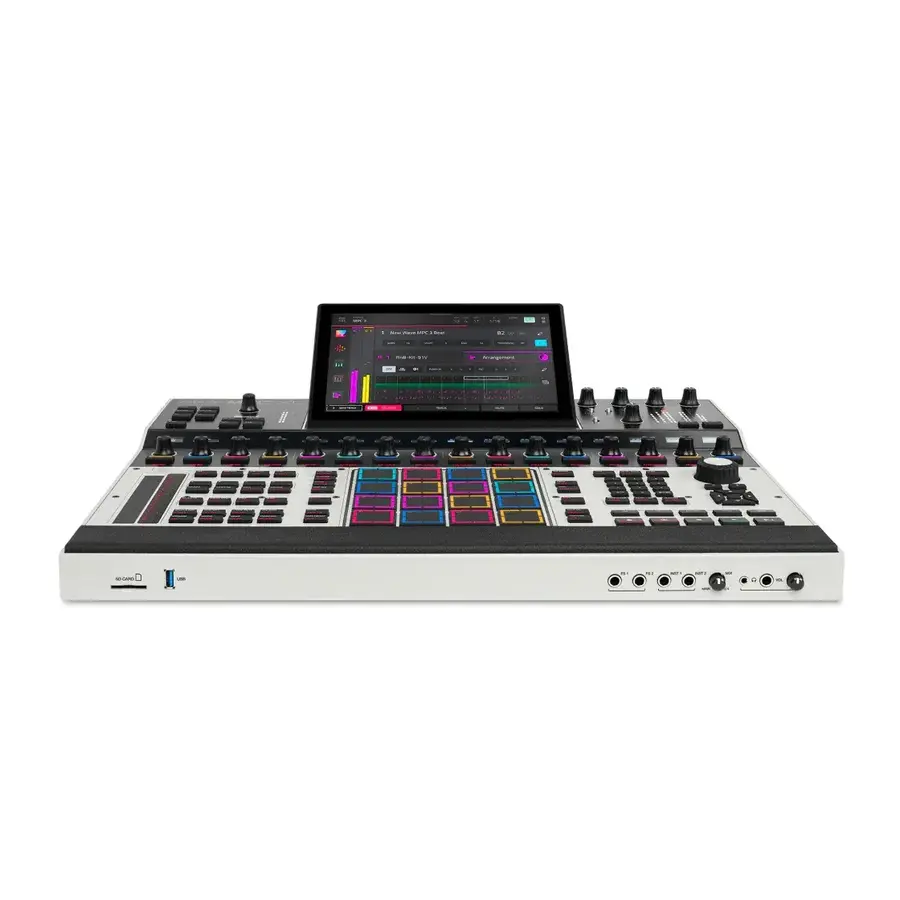

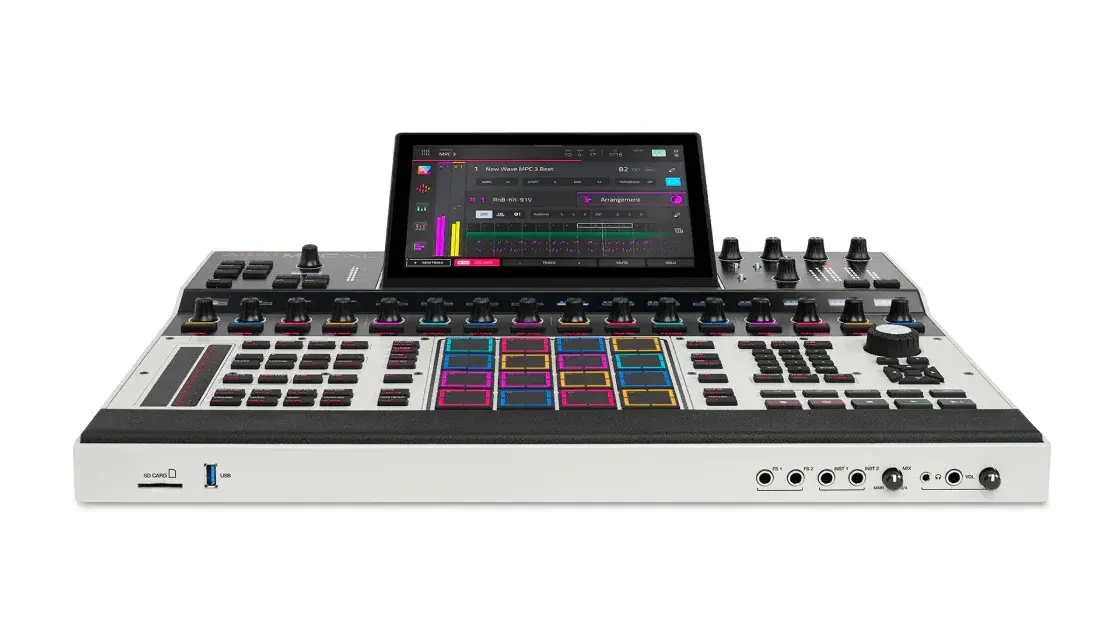

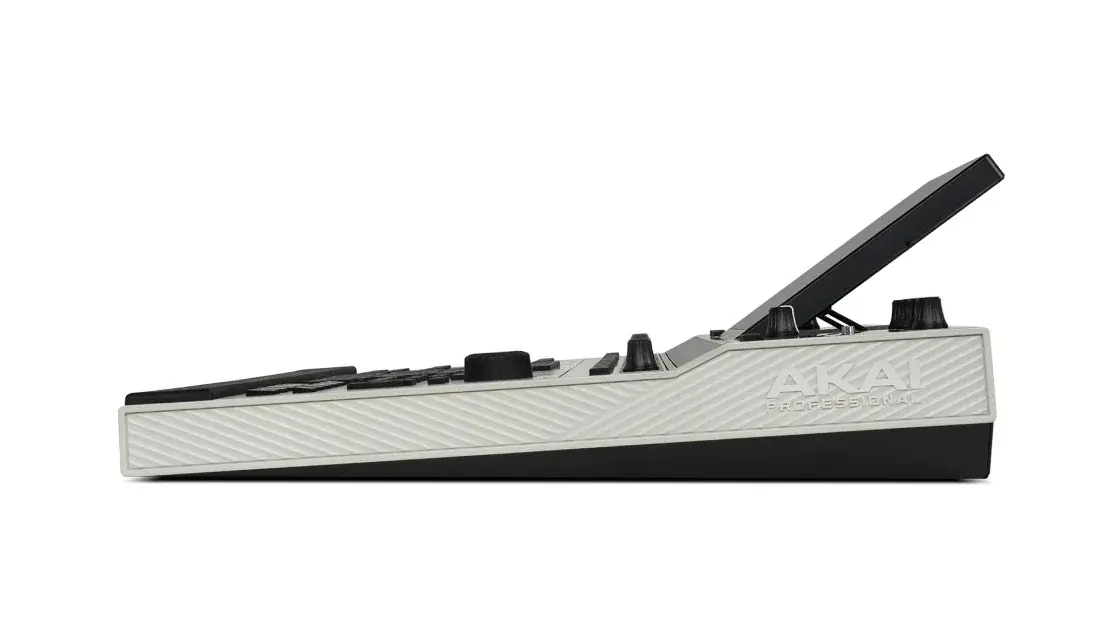

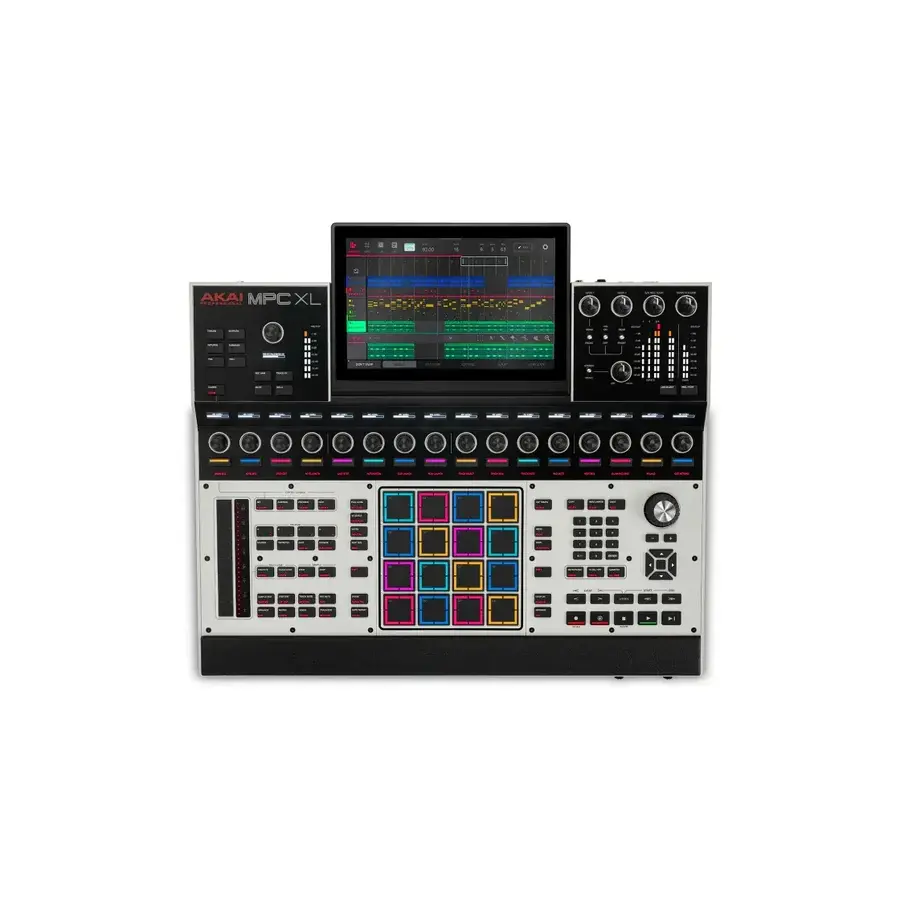

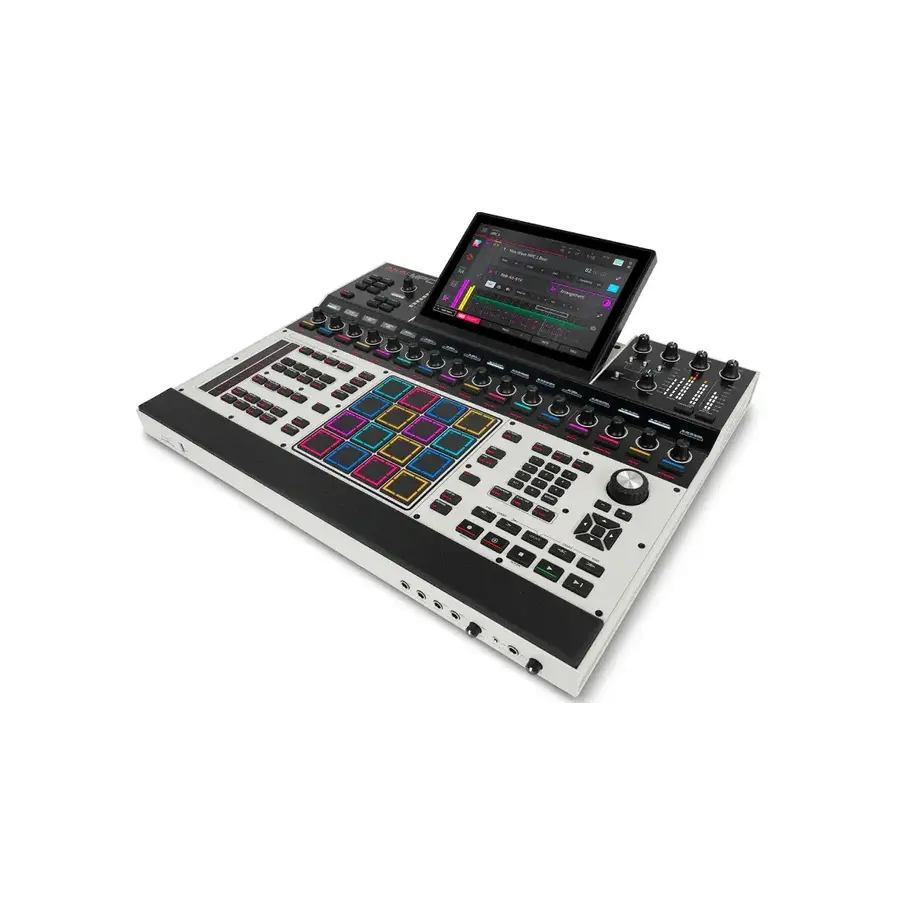

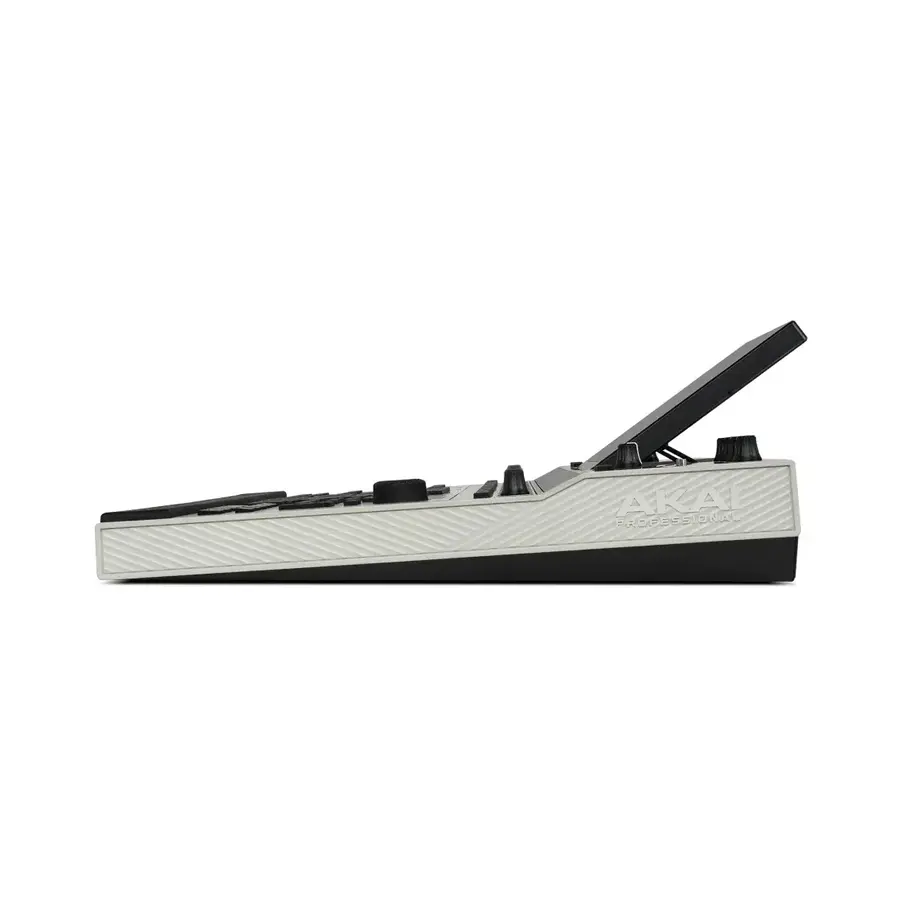

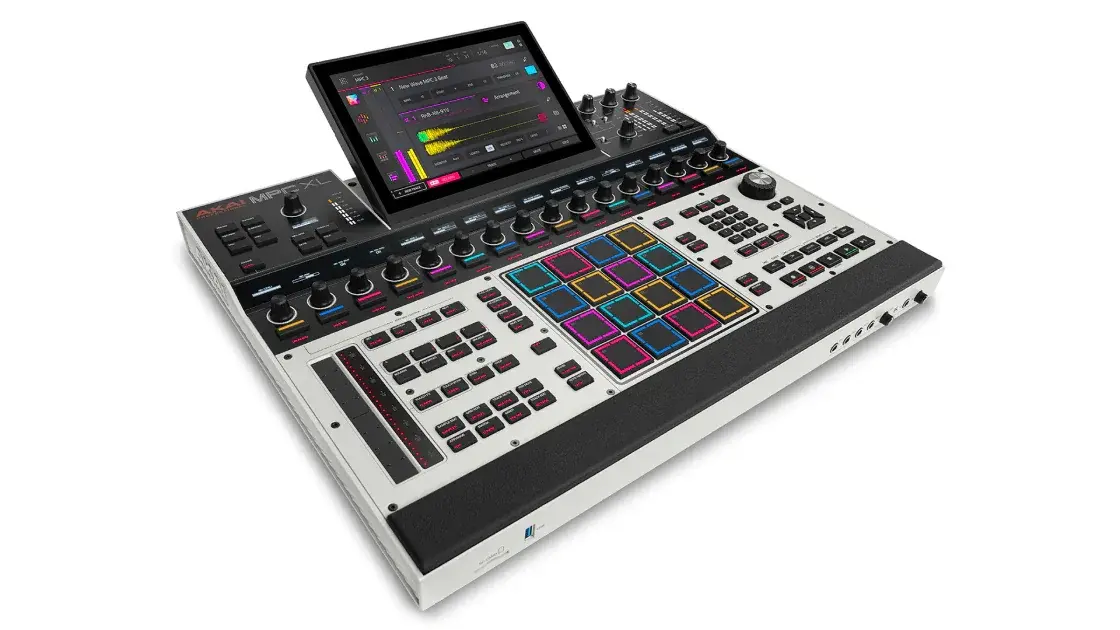

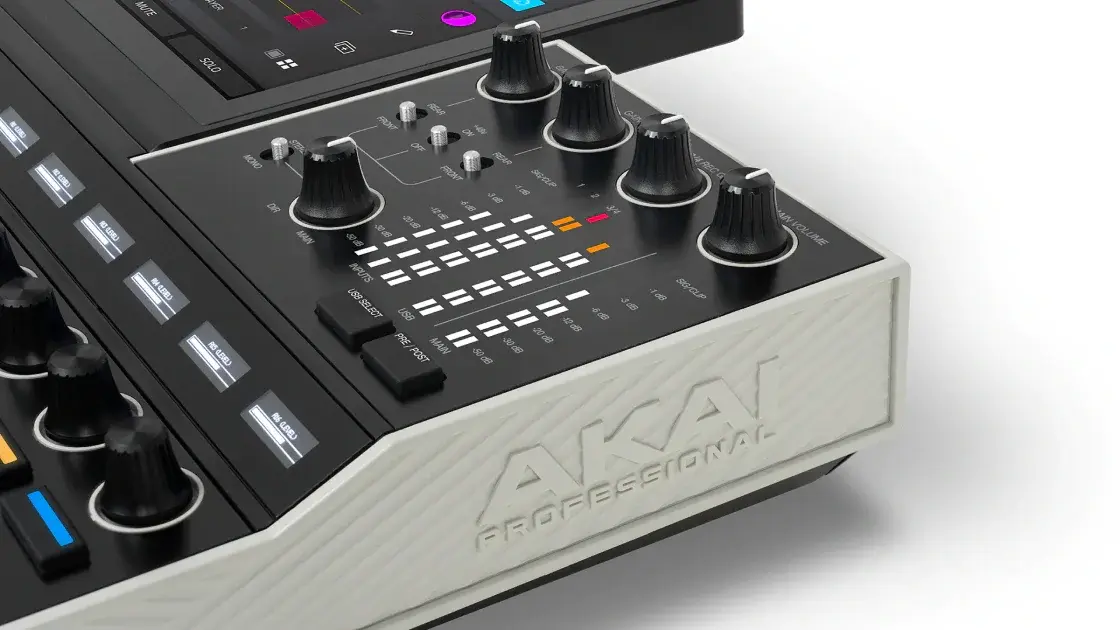

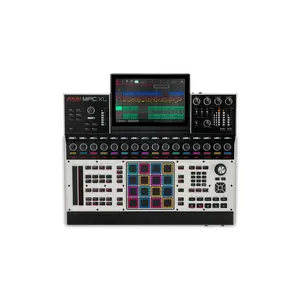

Standalone Music Production Center

• 8-core 2nd generation processor

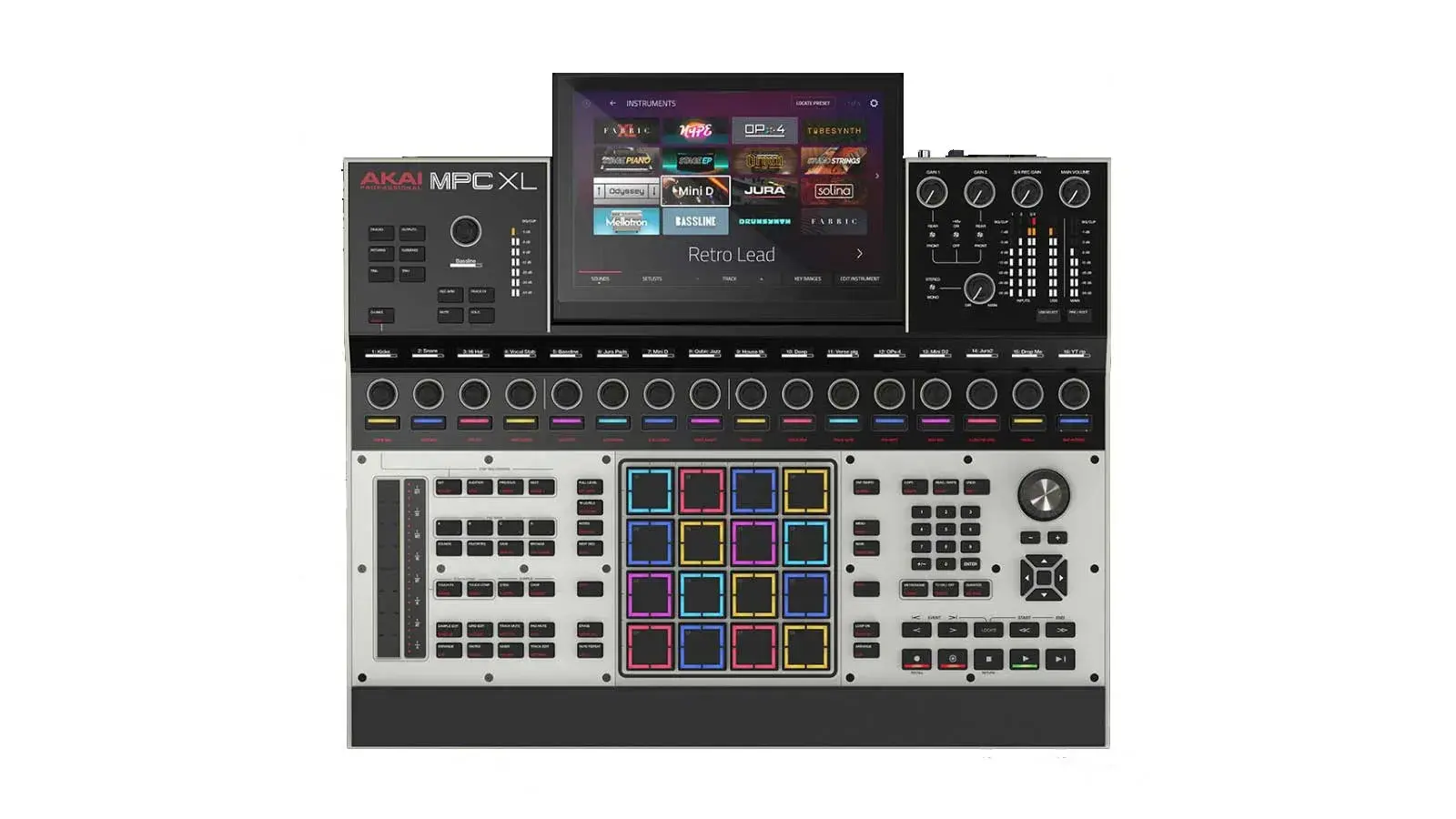

• 10.1" multi-touch display with adjustable viewing angle
• 16 GB RAM and 256 GB internal storage
• 16 velocity-sensitive RGB pads with new 3D sensor technology
• Assignable touch strip controller

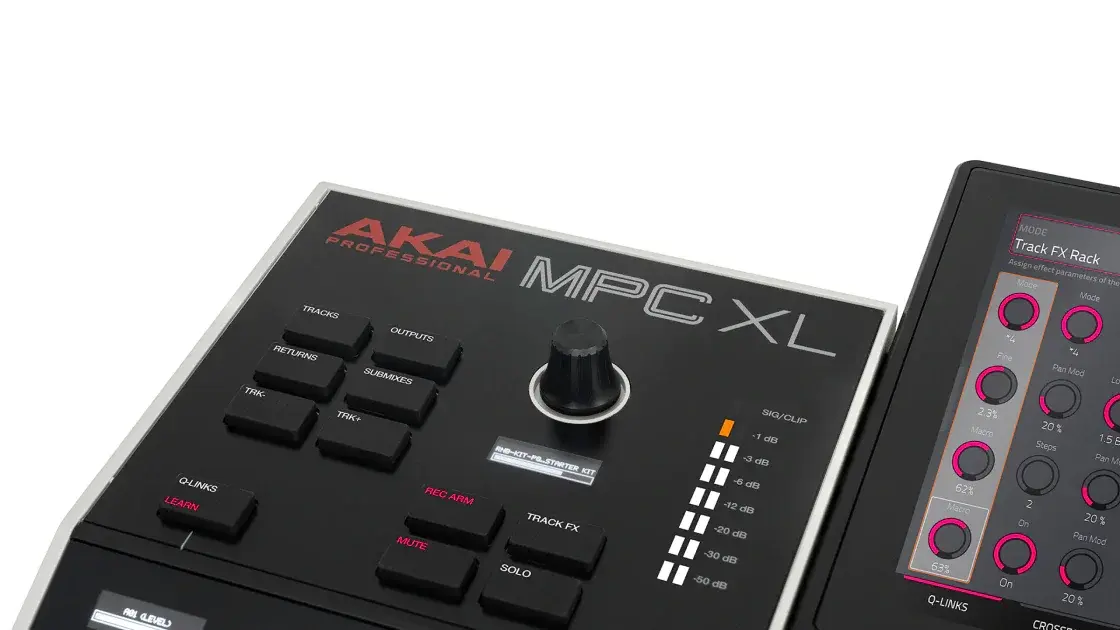

• 16 Q-Link encoders with OLED display
• 16 buttons with RGB lighting
• Up to 32 plug-in instruments
• 16 audio tracks and 256 sampling voices available simultaneously

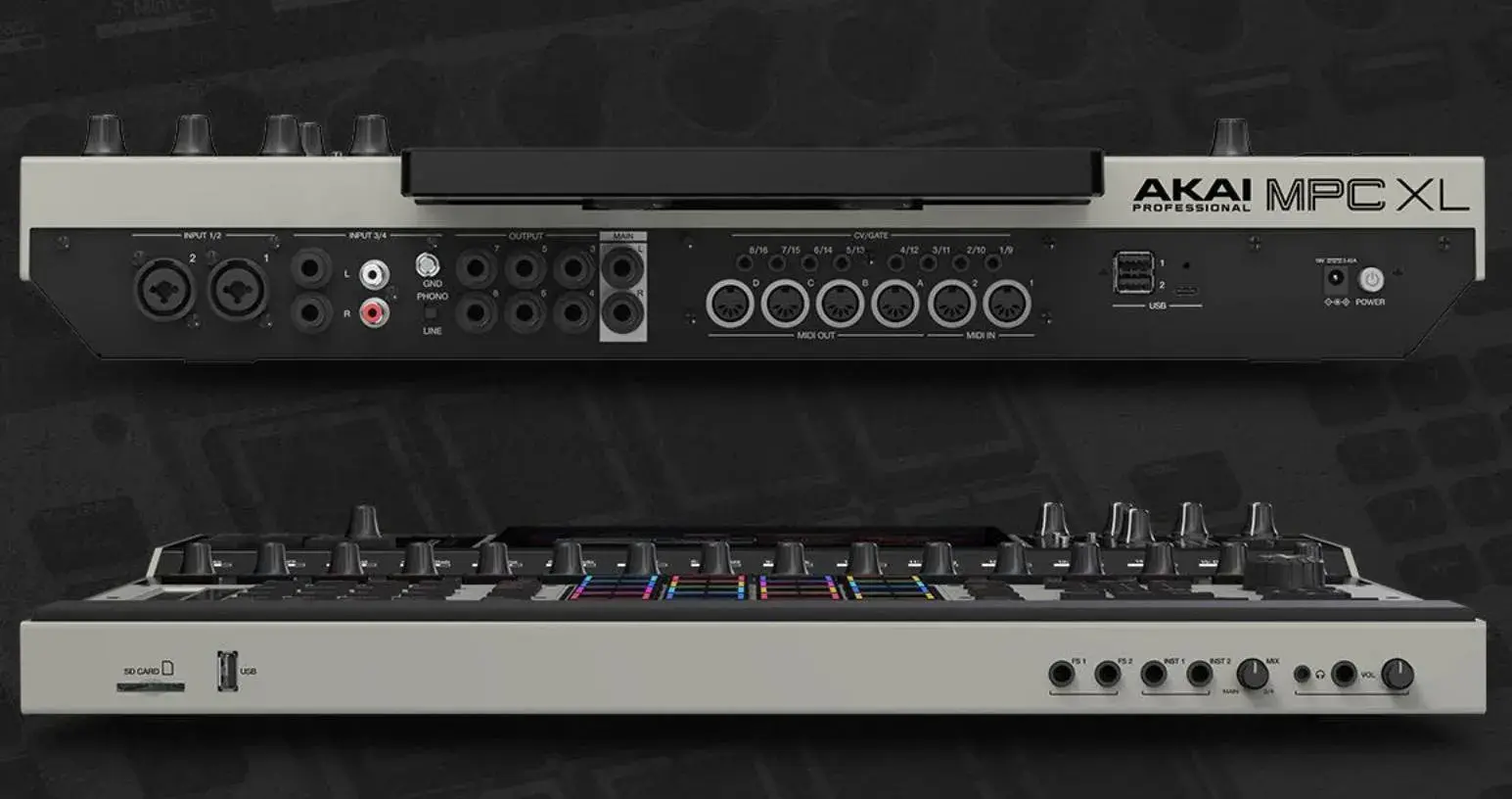

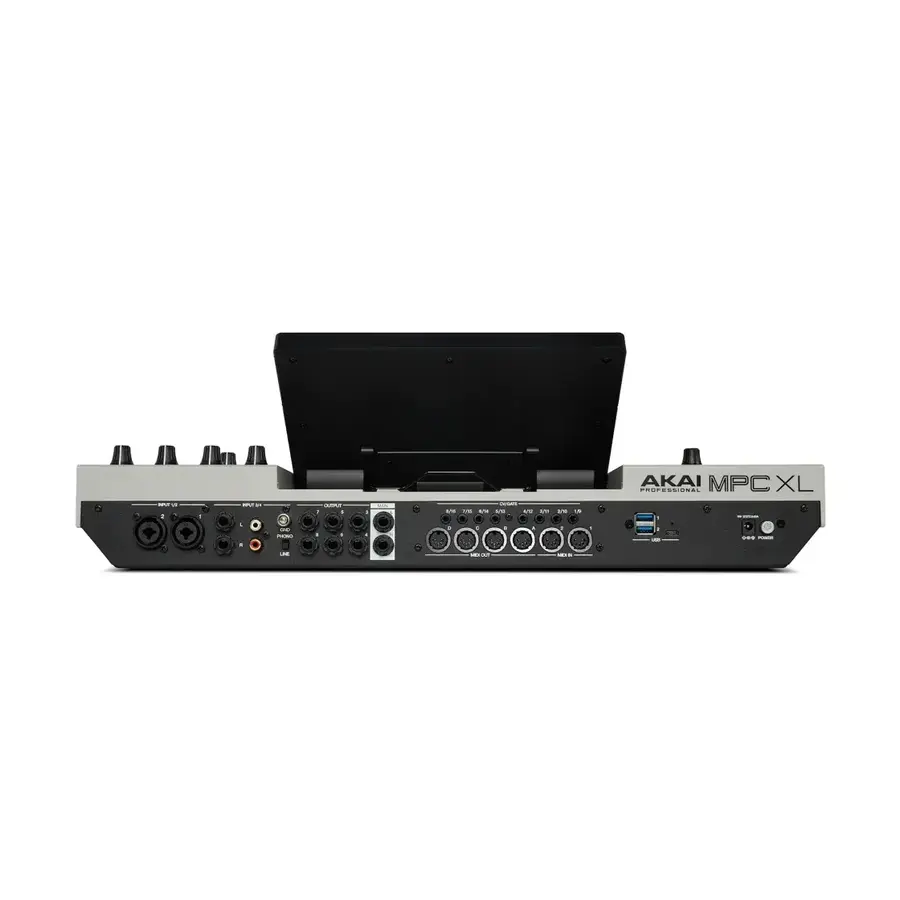

• Three USB A ports for USB storage devices or MIDI controllers
• SD-Card Slot
• USB C port for connection to Mac, PC, iOS and Android (including audio sampling from smart devices and up to 24 channels in/out with DAW)

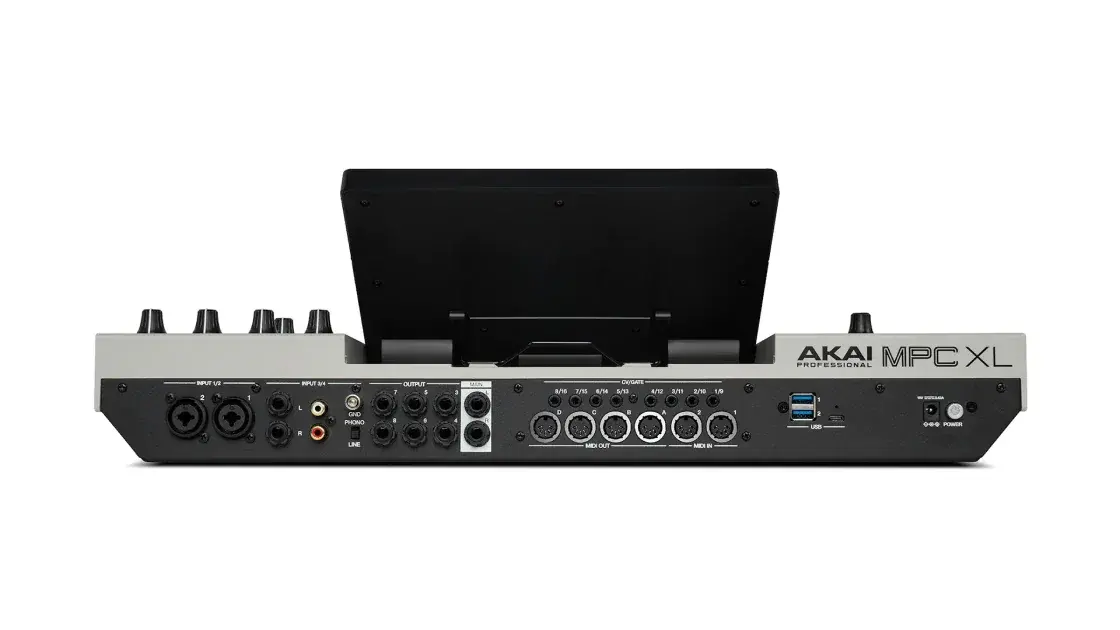

• 16 CV/Gate outputs: 4 x 3.5 mm TRS
• Two MIDI inputs and four MIDI outputs: 5-pin DIN
• Two line/microphone inputs: XLR/TRS combo jack, with switchable phantom power (+48 V)
• Two line inputs: 6.3 mm jack / RCA, switchable to phono
• Two instrument inputs: 6.3 mm jack
• Two headphone outputs: 3.5 mm and 6.3 mm jack
• Eight line outputs: 6.3 mm jack
• Dimensions (W x D x H): 488 x 543 x 94 mm
• Weight: 7.2 kg
• Includes power supply (19 V DC, 3.42 mA)
