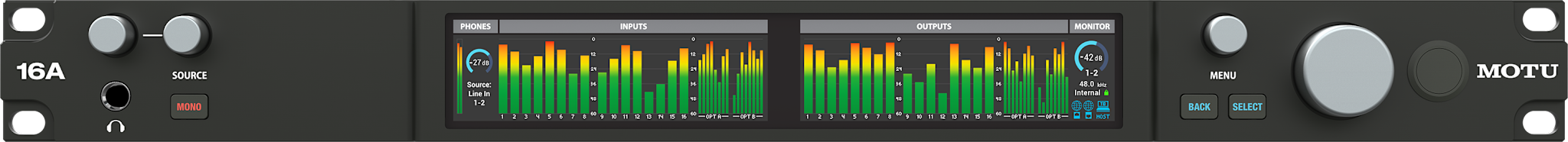

32 x 34 Thunderbolt/USB/AVB Audio Interface

• 32 inputs x 34 outputs
• Two 3.9" displays for all inputs and outputs
• ESS Sabre32 Ultra DAC-Technology
• DSP-controlled mixer with 64 inputs, 32 busses and DSP effects (reverb, 4-band equaliser, gate, compressor and high-pass filter)
• Patchbay routing to route any source signal to any destination
• 2x Gigabit Ethernet ports support AVB daisy-chaining and networking with standard CAT 5/6 cables
• 16x 8-channel AVB streams inputs and outputs (128 audio channels in total)
• WLAN control via the CueMix Pro app
• Network management functions (detection and control of multiple devices in the network)
• Control room functions such as talkback and A/B/C monitor selection via the CueMix Pro software
• Headphone output with independent volume control
• Dynamic range line outputs: 125 dB
• Dynamic range line inputs: 120 dB
• Resolution: 24-Bit / 192 kHz
• 16 balanced, DC-coupled 6.3 mm jack outputs
• 16 balanced 6.3 mm jack inputs
• 2x ADAT (16 ADAT channels)
• Wordclock In/Out
• System requirements: Windows 10 or higher, Mac OSX 12 or higher
• Dimensions: 482 x 311 x 44 mm
• Weight: 5 kg
• Includes 40 Gbps USB-C cable (compatible with Thunderbolt 3/4, USB4, USB3 and USB2)
