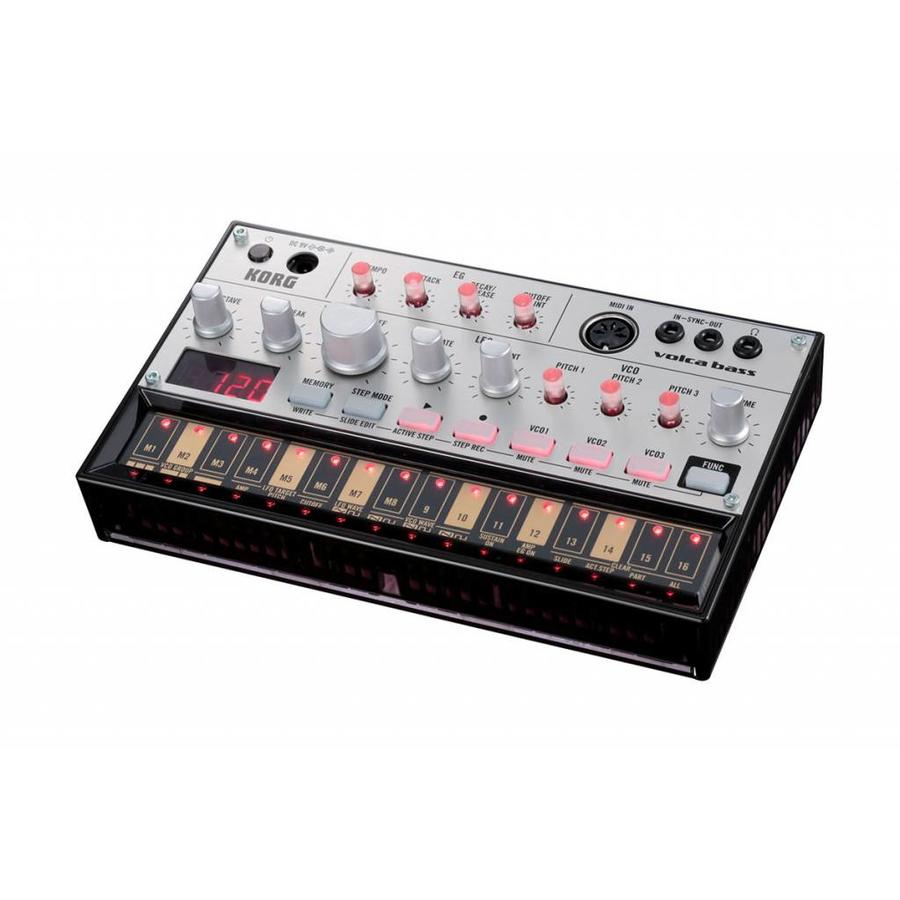

Aggressive sounds that stand up to the drums, fat sounds that support the rhythm, funky sounds that generate a groove — the volca bass is an analog bassline groove box that has what you need for a wide range of bass lines.

Although simple in structure, the analog sound engine has an unmistakable presence with subtle nuances that cannot be reproduced by a digital simulation; it's a great choice for acid house and many other styles of music. The step sequencer distilled from the Electribe is not only visually intuitive; it's also a powerful way to generate "free form" bass loops that will stimulate your inspiration.

Specifications

• Keyboard — Multi touch Keyboard / step key
• Synthesizer

  • Type — Analog synthesis
  • Structure — 3VCO, 1VCF, 1VCA, 1LFO, 1EG
  • VCO Wave — Saw, Square
  • VCF — Cutoff, Peak, EG Int
  • VCF Type — Low Pass Filter, 12 db/oct
  • VCA — EG on/of, Sustain on/off
  • LFO — Rate, Int, Target (Amp, Pitch, Cutoff), Wave (Triangle, Square）
  • EG — Attack, Decay/Release, Sustain
• Sequencer

  • Number of Parts — 3
  • Number of Steps — 16
  • Number of Recording Patterns — 8
• Connectors

  • Audio Output — Headphones (3.5mm stereo mini jack)
  • Sync In (3.5mm monaural mini jack, Maximum input level: 20V)
  • Sync Out (3.5mm monaural mini jack, Maximum Output level: 5V)
  • MIDI In
• Power

  • Battery Life — Approximately 10 hours (using alkaline batteries)
  • Power supply

    • AA alkaline battery ×6
    • AA nickel-metal hydride battery ×6
    • AC adapter “KA-350” (optional)
• Accessories — AA alkaline battery ×6 (for verifying operation)
• Options — AC adapter “KA-350”
• Dimensions (W x D x H) — 193 × 115 × 46 mm / 7.61 x 4.54 x 1.82 inches
• Weight — 370 g / 0.82 lbs (Excluding batteries)
